Item no.:14016441Herst.-Art.-Nr.:UC2324

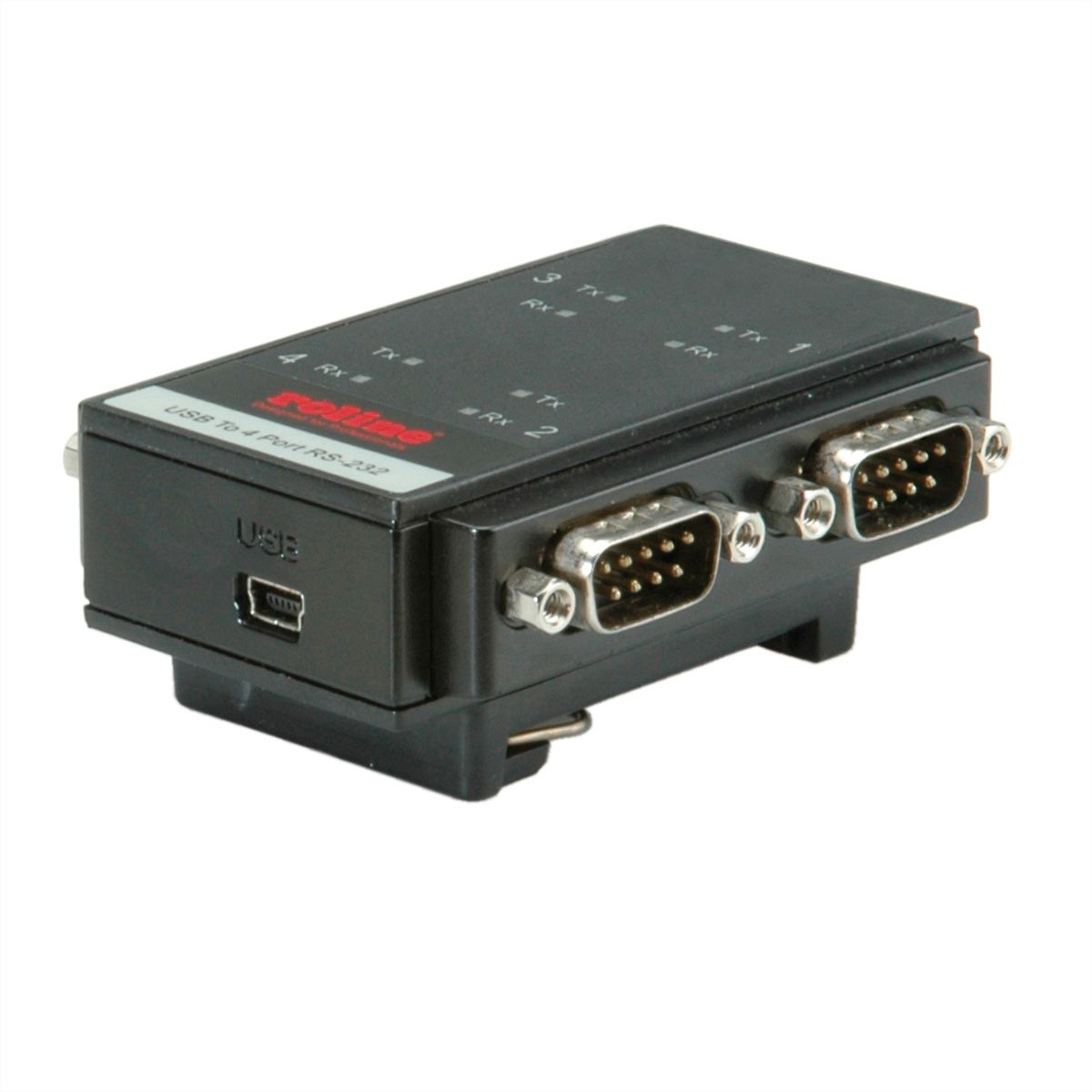

ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 4 Ports
Item no.
12021003
Brand / Manufacturer
ROLINE
Manuf. item no.
12.02.1003
EAN
7611990194834
Item weight
0.22 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

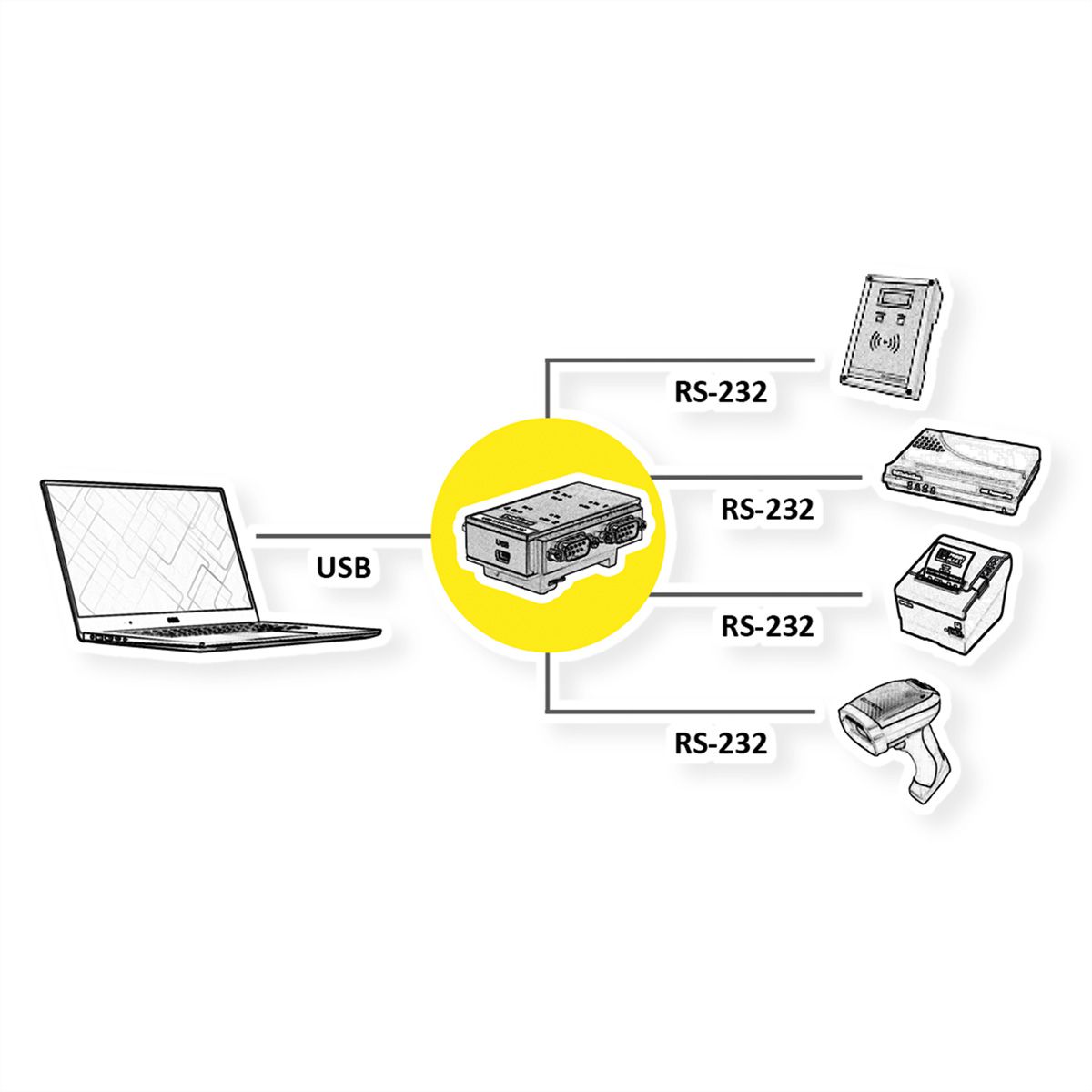

Converter to connect serial devices to a USB port on your PC
- Compatible with USB 2.0, USB 1.1, USB 1.0
- Data transfer rate of up to 115 Kbit/s
- 15 KV ESD protection for all RS232 ports
- Connectors: 4x DB9 Male, 1x Mini USB type B

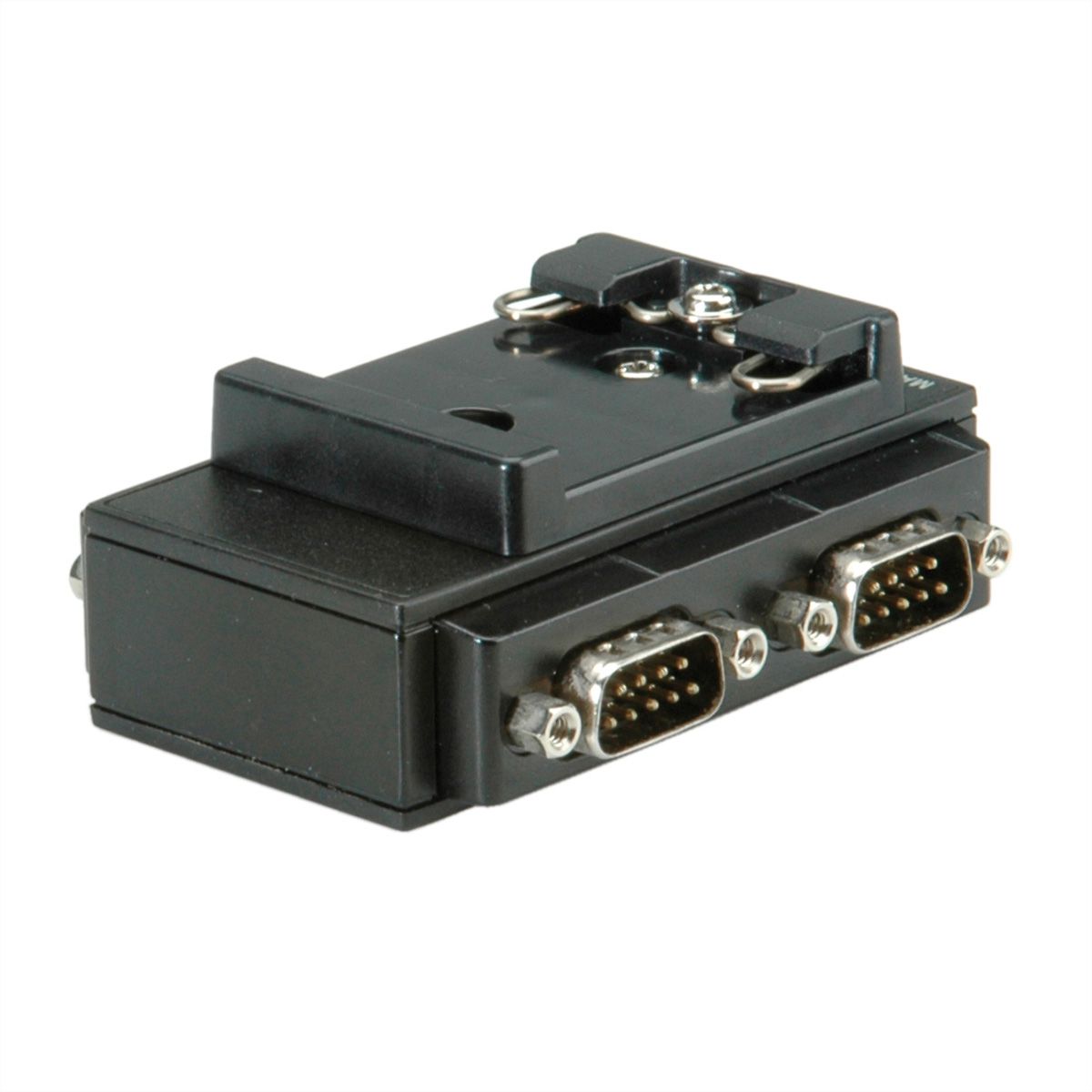

- For DIN Rail mounting
- Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11
- Power supply over Mini USB type B connector (40mA)
Specifications
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- USB - Serial Converter
- Colour
- black
- Scope of delivery
- converter, driver CD, manual
- Side 1 connection (PC)
- 1x USB Typ A Stecker
- Side 2 connection (Peripherals)
- 4 x DB9 Male
- Side 1 Connector Type
- USB 2.0 Type A
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- D-Sub 9-pin (DE-9)
- Side 2 Connector Gender
- Male
- Conversion direction
- serial - USB
- Area of application
- External
- Dimensions (HxWxD)
- 22,5 x 63,5 x 80,5 mm
- Technical particularity
- for DIN Rail
- Height
- 22.5 mm
- Width
- 63.5 mm
- Depth
- 80.5 mm
- Weight
- 149.3 g
- Height of packaging (single piece)
- 45 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 0.22 kg
Alternatives
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/roline.png "ROLINE Logo")
The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
