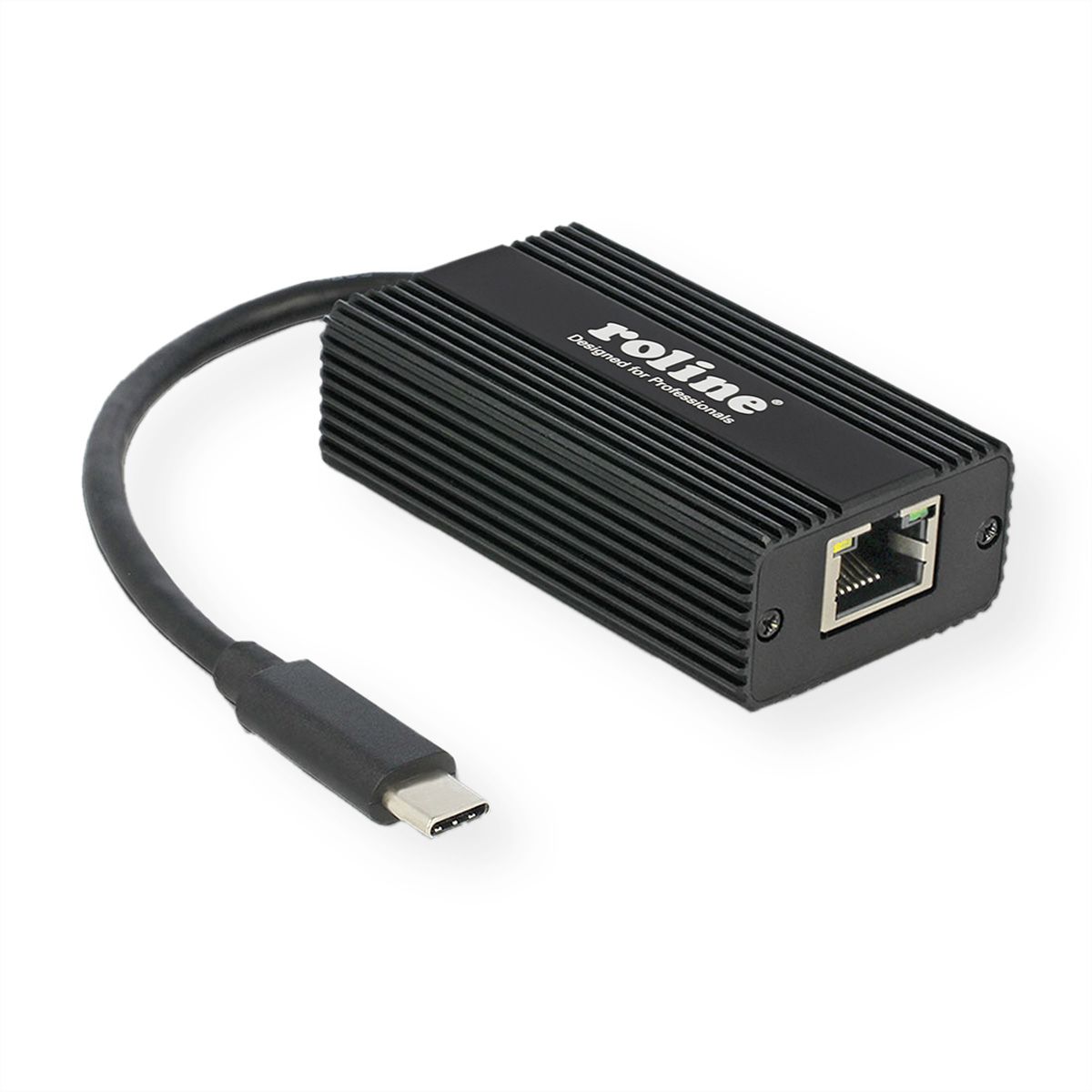

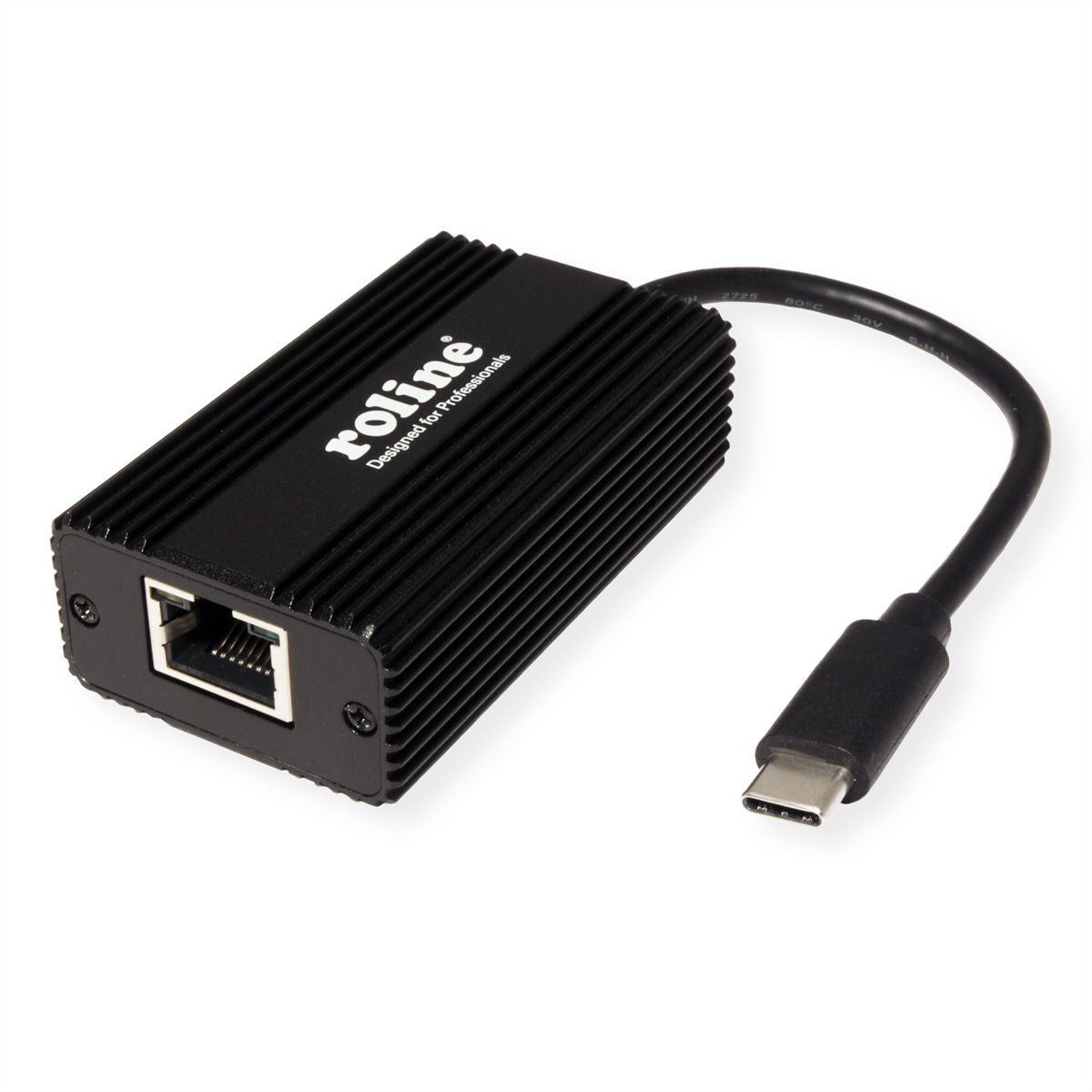

ROLINE USB 3.2 Gen 2 to 2.5 Gigabit Ethernet Converter

Item no. 12021103 Brand / Manufacturer ROLINE EAN 7630049615885 Item weight 0.05 kg
ROLINE
No article image

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login

Description

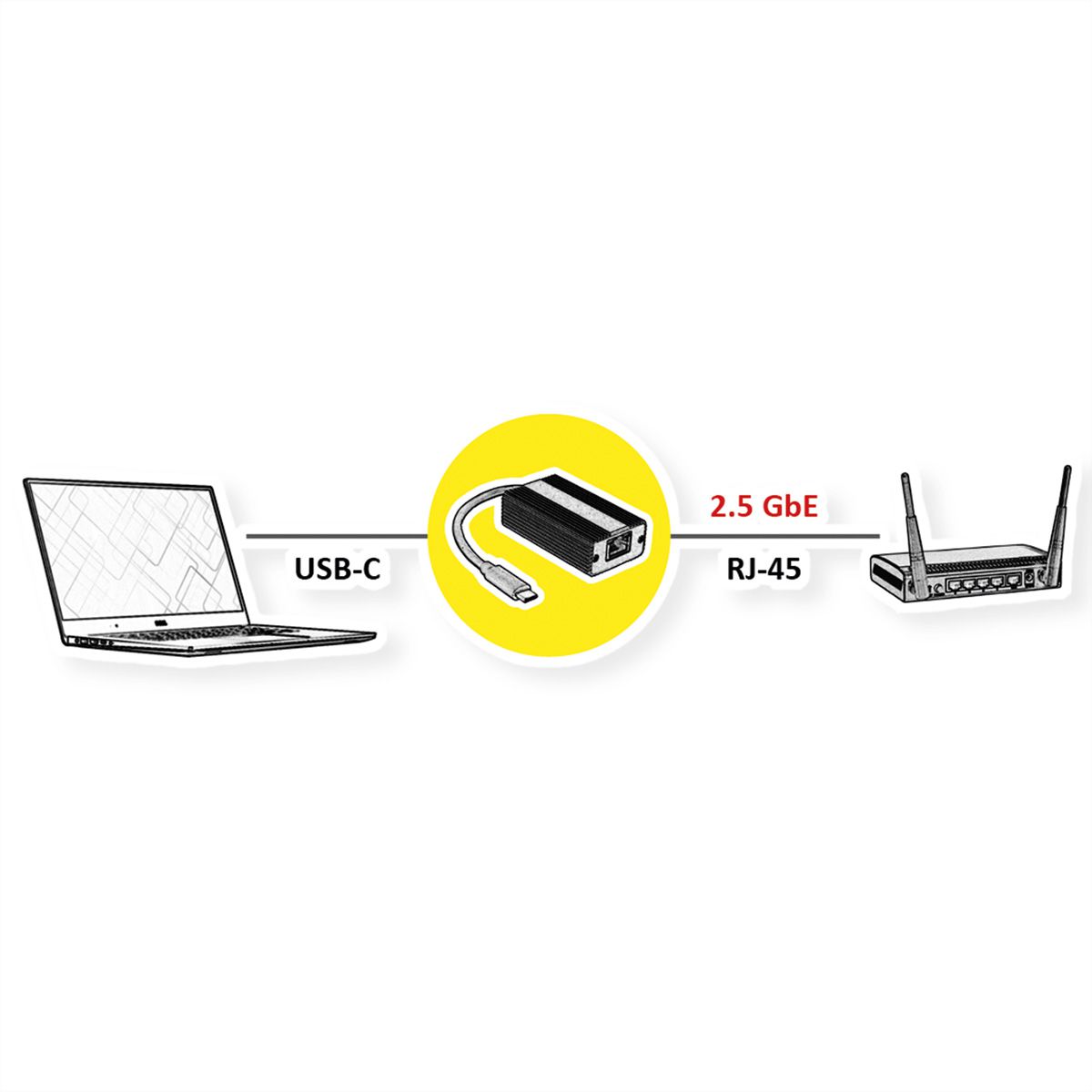

With this converter you can connect your PC or notebook with USB Type C interface to a network with up to 2.5 Gigabit Ethernet.

  • Supports USB 3.2, backwards compatible to USB 3.1 / USB 3.0 / USB 2.0
  • Easy installation - just plug the converter into the USB port, connect the LAN cable - done!
  • Bus Powered - no external power supply required
  • USB Type C connector, compatible with most laptops, notebooks, PCs or mobile devices such as tablets with USB Type C interface
  • Supports 2.5 Gigabit Ethernet with Auto Negotiation, Auto MDI/-MDIX and Half/Full Duplex

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Network adapters
Product type
Gigabit Ethernet Converter
Colour
black
Length
15 cm
Scope of delivery
Converter, manual
BUS system
USB
Network standard
2.5 Gigabit Ethernet
LAN (Mbps)
10/100/1000/2500
Quantity of ports
1
Connection ports
1x RJ-45 F, 1x USB 3.2 Type C M
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Female
Full duplex
yes
Wake on LAN
no
Network topology
Ethernet
Dimensions (HxWxD)
16 x 26 x 60 mm
Power supply
Power supply via USB
Height
16 mm
Width
26 mm
Depth
60 mm
Weight
63.3 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
50 mm
Package weight (single piece)
0.05 kg
ROLINE Logo

The products of our own brand ROLINE are designed for professional continuous operation.

With a 5-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
