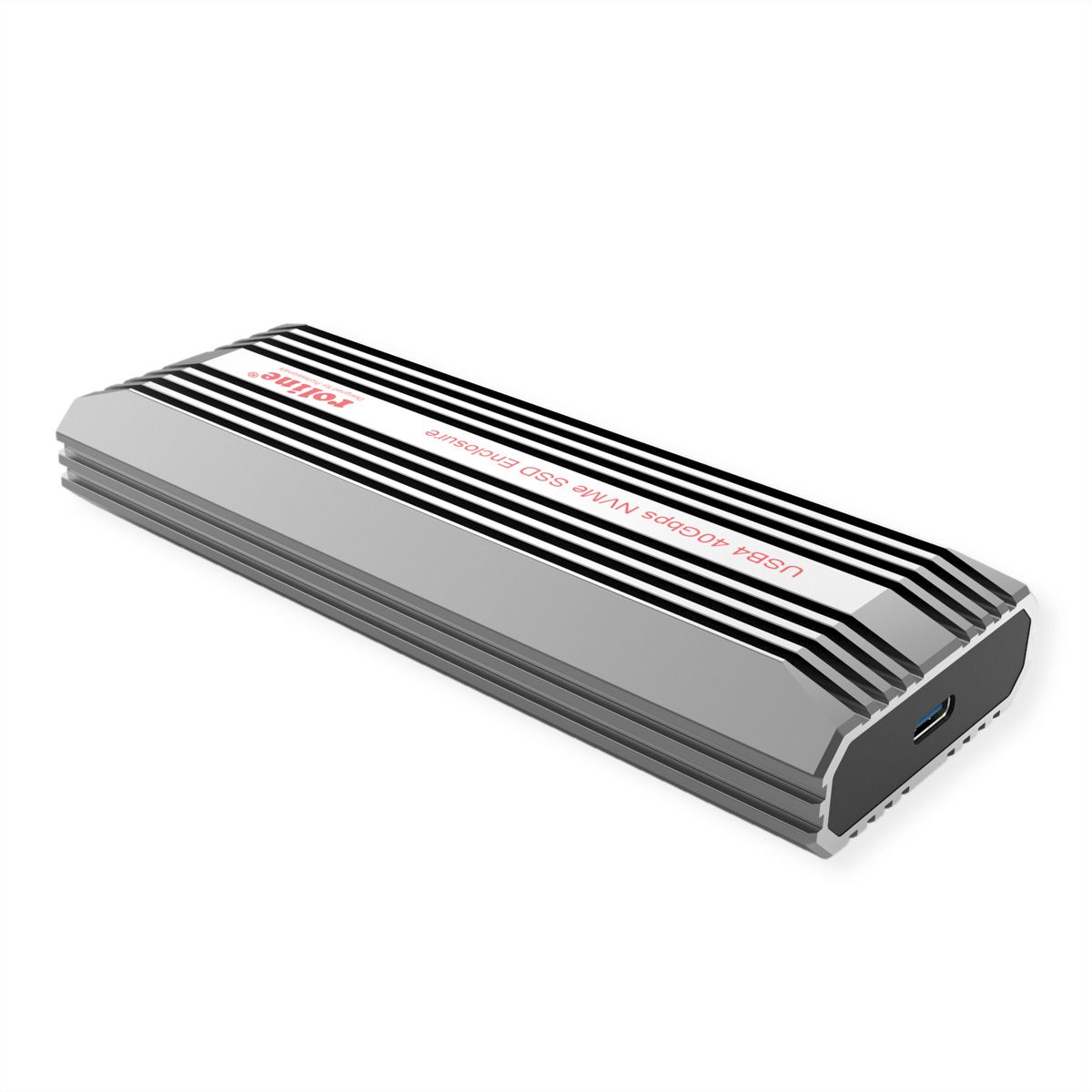

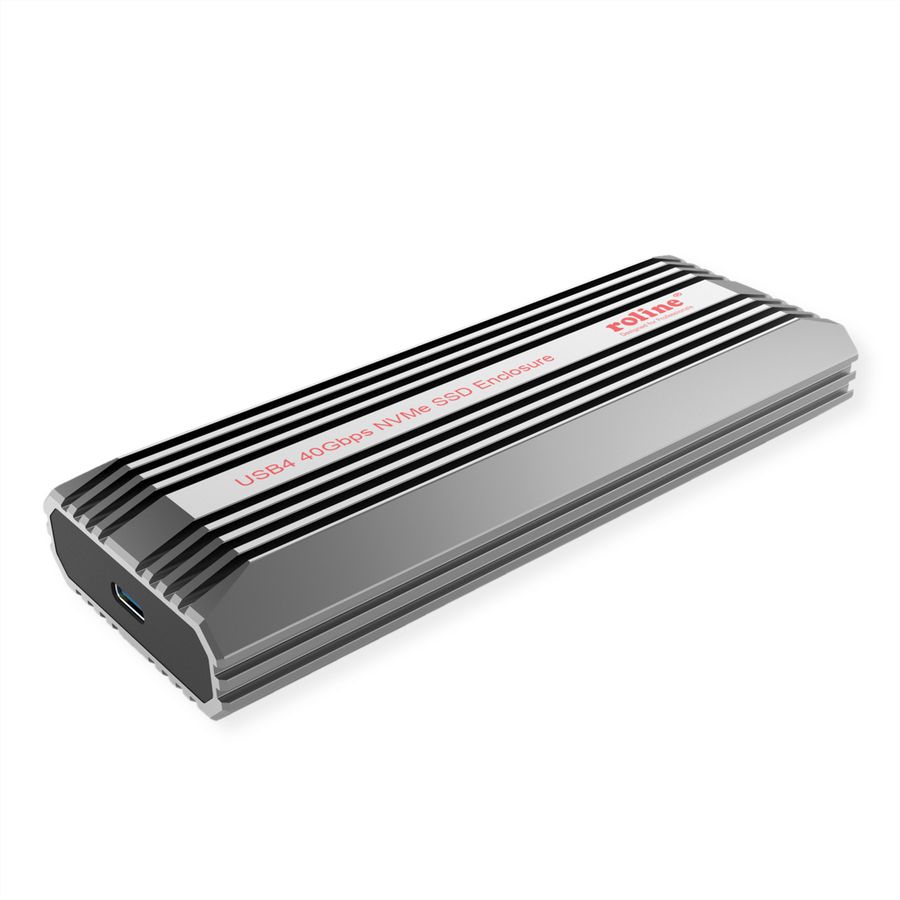

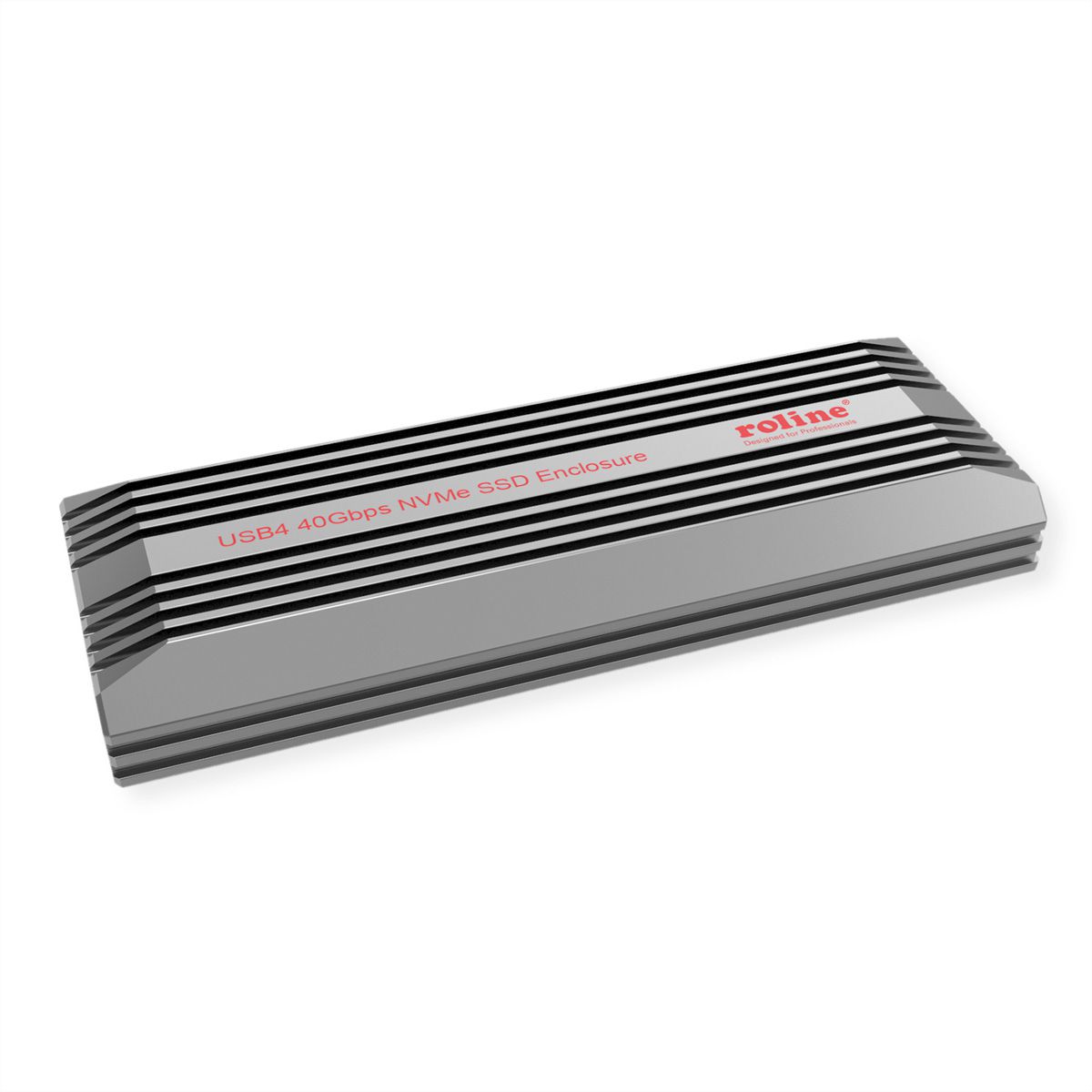

ROLINE USB4 Gen 3x2 NVMe M.2 SSD Enclosure

Item no. 16014149 Brand / Manufacturer ROLINE Manuf. item no. 16.01.4149 EAN 7630049634312 Item weight 0.3 kg

ROLINE USB4 Gen 3x2 NVMe M.2 SSD Enclosure

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

Extra narrow empty SSD enclosure, made of aluminium, with USB4 Gen3x2 host connection for M.2 NVMe SSDs.

Empty housing for M.2 NVMe SSDs
External interface: USB Type-C
Supports USB4 Gen 3x2 Type-C host connection of up to 40 Gbps
Bus-powered
Supports PCIe Gen4x4 NVMe SSD with 2280, 2260, 2242 or 2230 M.2 form factors
Toolless design for easy installation of NVME M.2 SSDs
Plug & Play, no installation of software driver needed
Aluminium housing

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer: ROLINE
Product group: Drive housing
Product type: M.2 SSD Enclosure
Colour: anthracite
Scope of delivery: SSD Enclosure, USB Type-C Cable (ca. 30 cm), Thermal Pad, User Manual
Quantity of Drives: 1
Drive form: M.2
Drive connection: NVME
External connections: USB4 Gen3x2, Type C
Dimensions (HxWxD): 15 x 46 x 124 mm
Material (casing): Aluminum
Power supply: Over USB port
Storage temperature min.: -10 °C
Storage temperature max.: 70 °C
Height: 15 mm
Width: 46 mm
Depth: 124 mm
Weight: 227 g
Height of packaging (single piece): 30 mm
Width of packaging (single piece): 100 mm
Depth of packaging (single piece): 150 mm
Package weight (single piece): 0.3 kg
