RPRO STYLE 6U 63HP 235D F-TC/TC PLAIN

Item no. 26186722 Brand / Manufacturer SCHROFF Manuf. item no. 24581634 EAN 4036088228759 Item weight 3.973 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/19/2026

Description

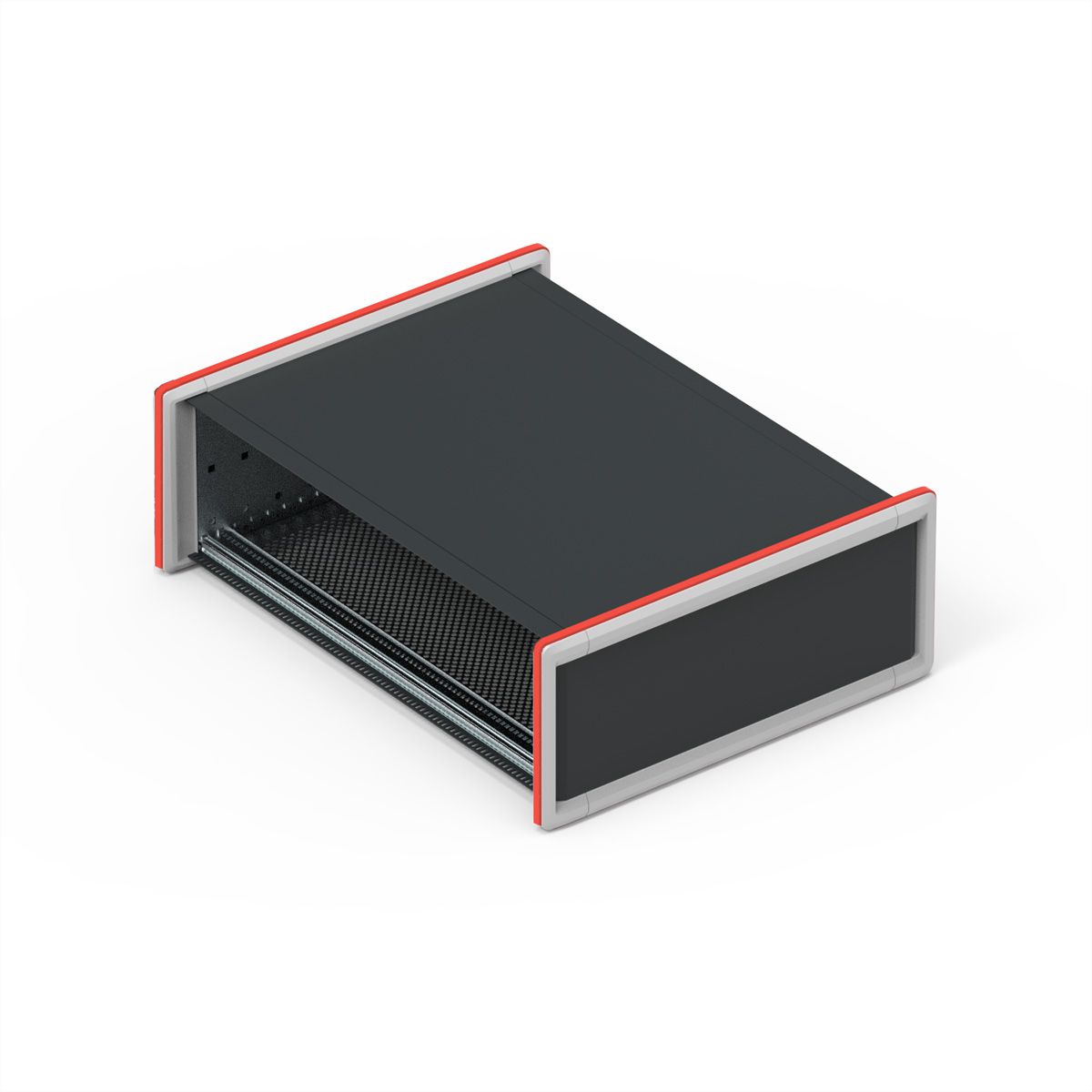

RatiopacPRO Style, Front and Rear Trim Circulating, Screwless Front, 6 U, 63 HP, 235,5 mm

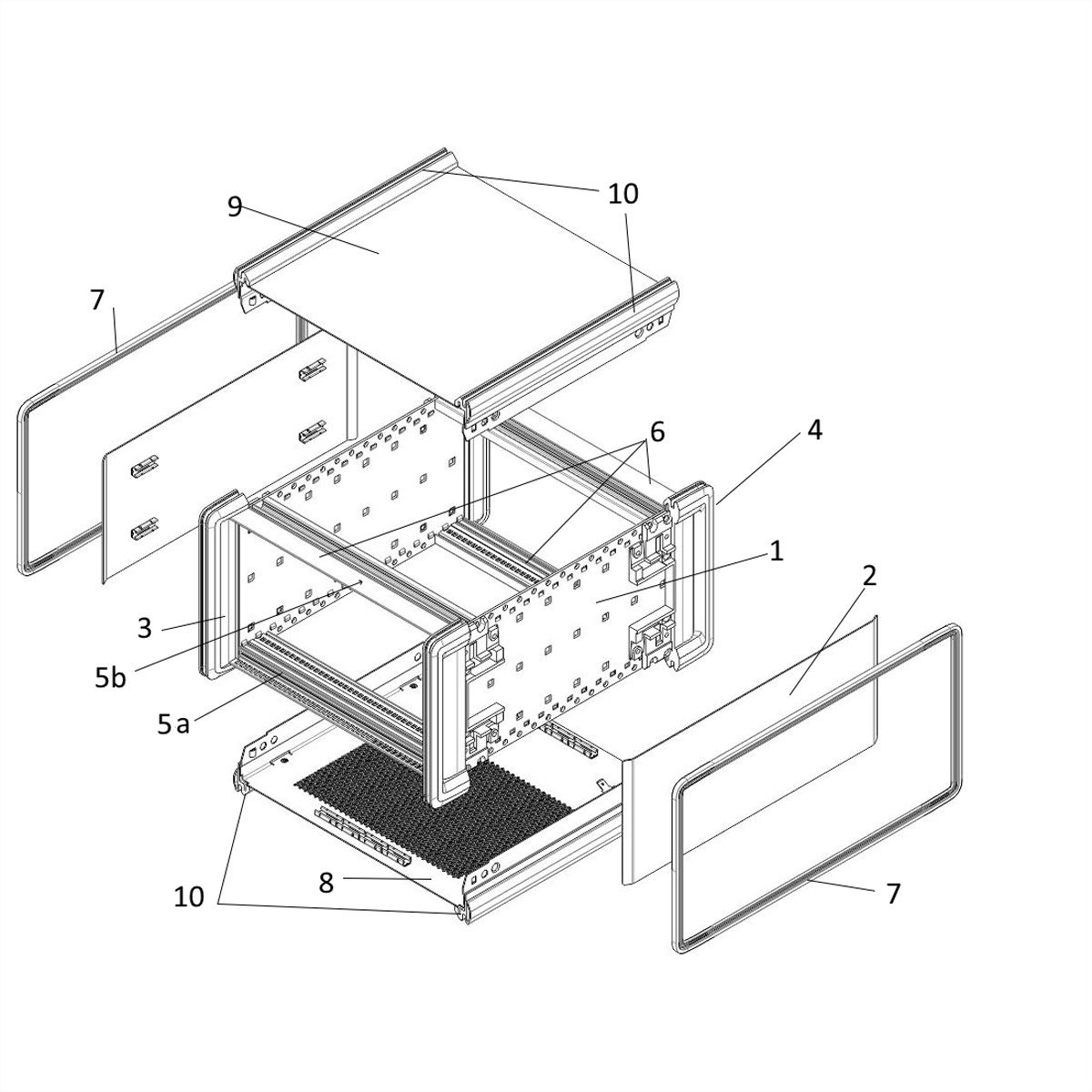

High-quality protection for your electronic components in modular 19" desktop enclosures, RatiopacPRO Style. Highlight the identity of your brand with customisable design options. Desktop enclosure with protective frame design and rubber strips around the frame for even more protection. Enclosure for 19" components (guide rails) or proprietary components (mounting plate). Additional components must be added to the case to establish EMC shielding. Front panel mounting without screws and rear panel prepared for standard front panel mounting

Specifications

Manufacturer
SCHROFF
Product group
SCHROFF 19" cabinets & expansion parts
Product type
19"-Subrack
Height units
6 U
Width units
63 HP
Maximum weight capacity
25 kg
Height
290 mm
Width
354.2 mm
Depth
298 mm
Weight
4 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
370 mm
Depth of packaging (single piece)
420 mm
Package weight (single piece)
3.973 kg



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
