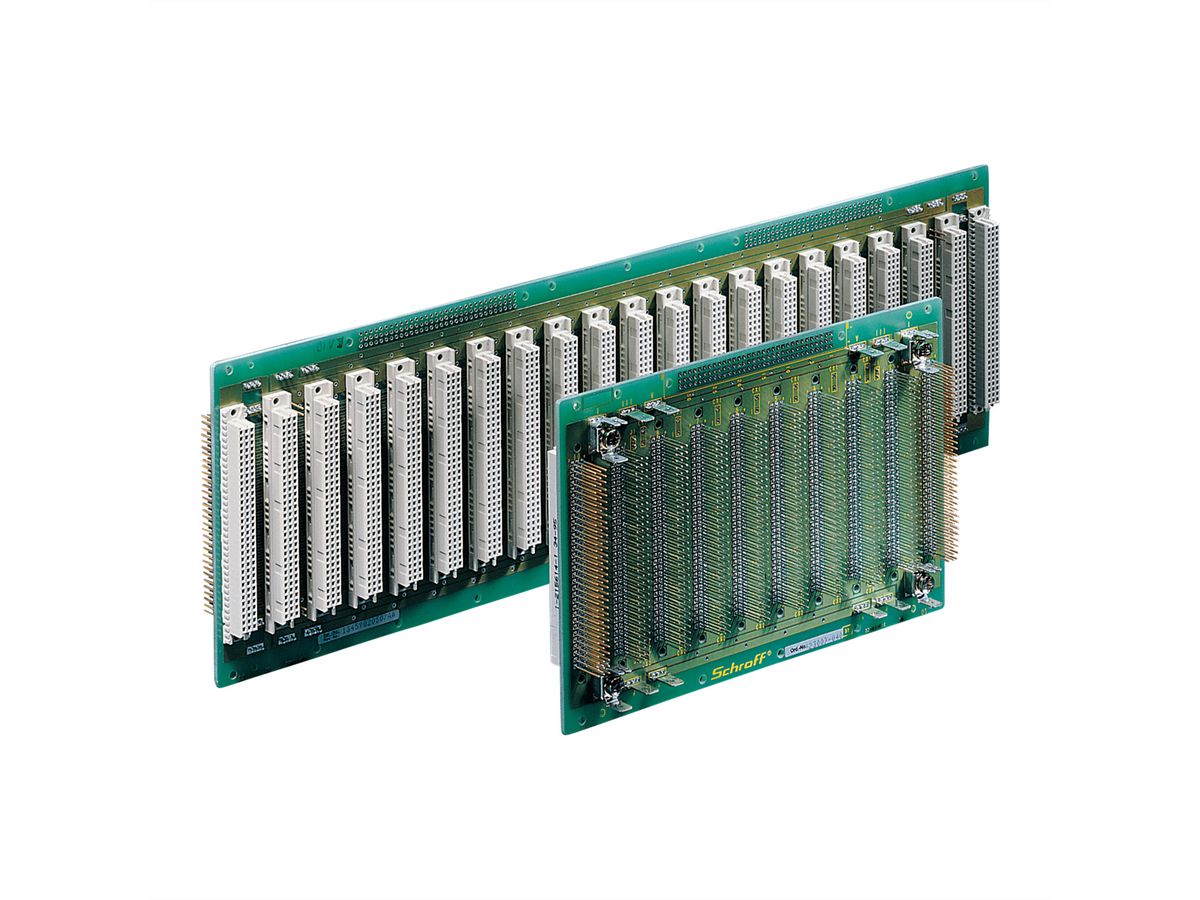

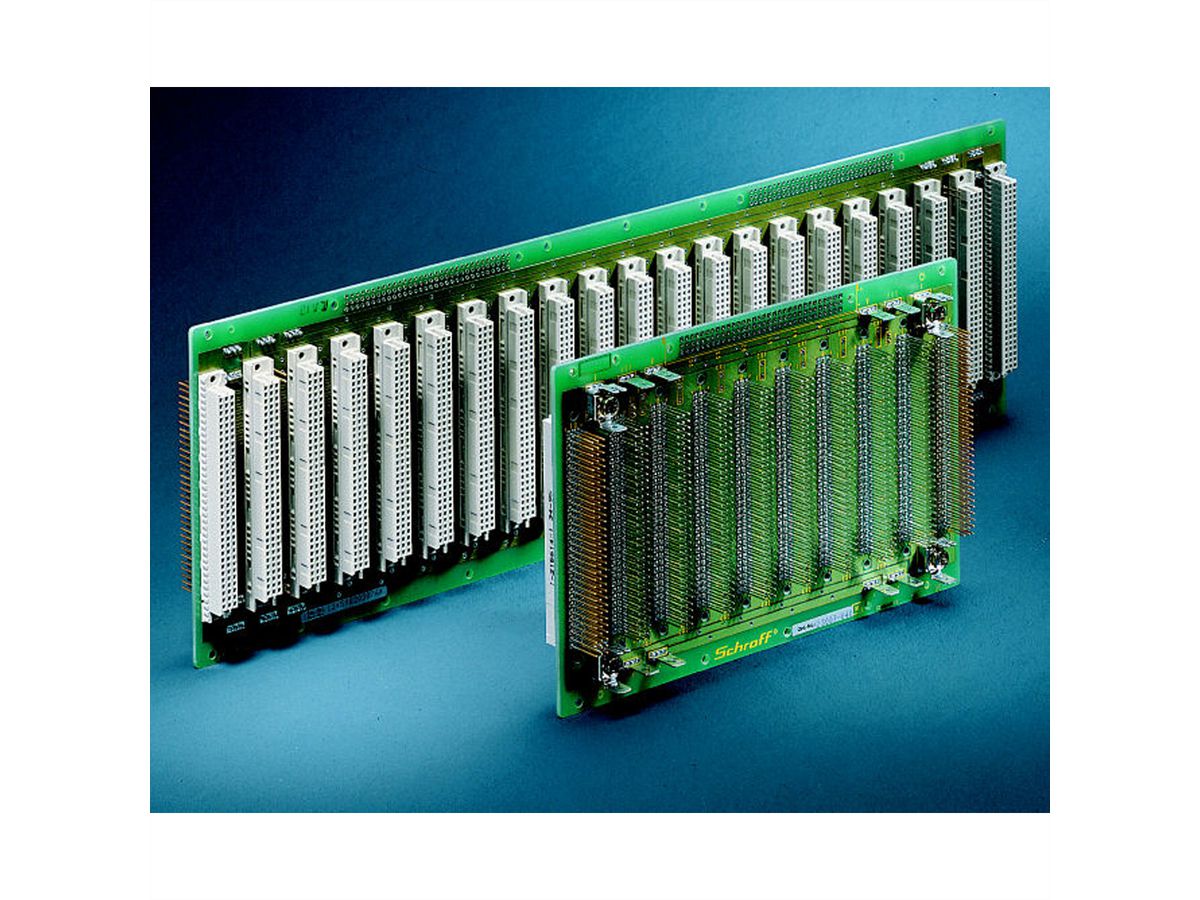

SCHROFF Backplane With 60 Through-Connected Signal Lines, 21 Slots, 4 HP Pitch, no Connectors

Item no. 26154739 Brand / Manufacturer SCHROFF Manuf. item no. 23007081 Item weight 0.45 kg

SCHROFF Backplane With 60 Through-Connected Signal Lines, 21 Slots, 4 HP Pitch, no Connectors

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 09/09/2026

Description

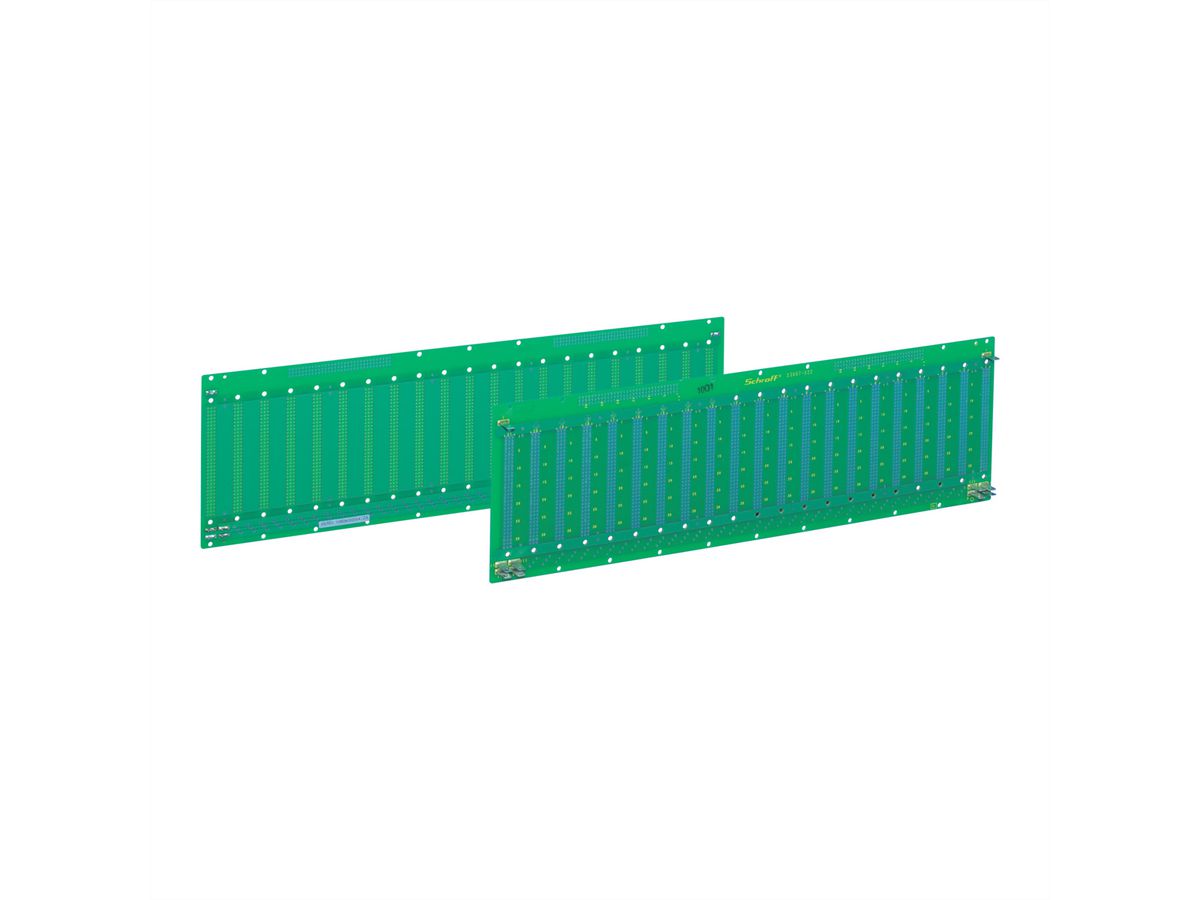

Backplane with 60 through-connected signal lines, 21 slots, 4 HP grid, no connectors

BACKPLANE 3U 21SLOT UNASSD

Universal backplane, backplane with through-connected signal lines

Specifications

Manufacturer: SCHROFF
Product group: SCHROFF 19" cabinets & expansion parts
Product type: Other backplanes
Height units: 3 U
Height of packaging (single piece): 70 mm
Width of packaging (single piece): 150 mm
Depth of packaging (single piece): 470 mm
Package weight (single piece): 0.45 kg

Downloads

Manufacturer data sheet - Deutsch (813.5 KB) Manufacturer data sheet - English (812.7 KB)

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
