SCHROFF Comptec 19" Desktop Case, Unshielded, Alu Cover, 12 U, 84 HP, 500 mm

Item no. 26150739 Brand / Manufacturer SCHROFF Manuf. item no. 10225685 Item weight 14.2 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/18/2026
This item is transported on a pallet; additional shipping costs will be charged!

Description

19-inch Comptec housing, unshielded, aluminium cladding parts, 12 U, 84 HP, 500 mm

COMPTEC CASE 12U 500D

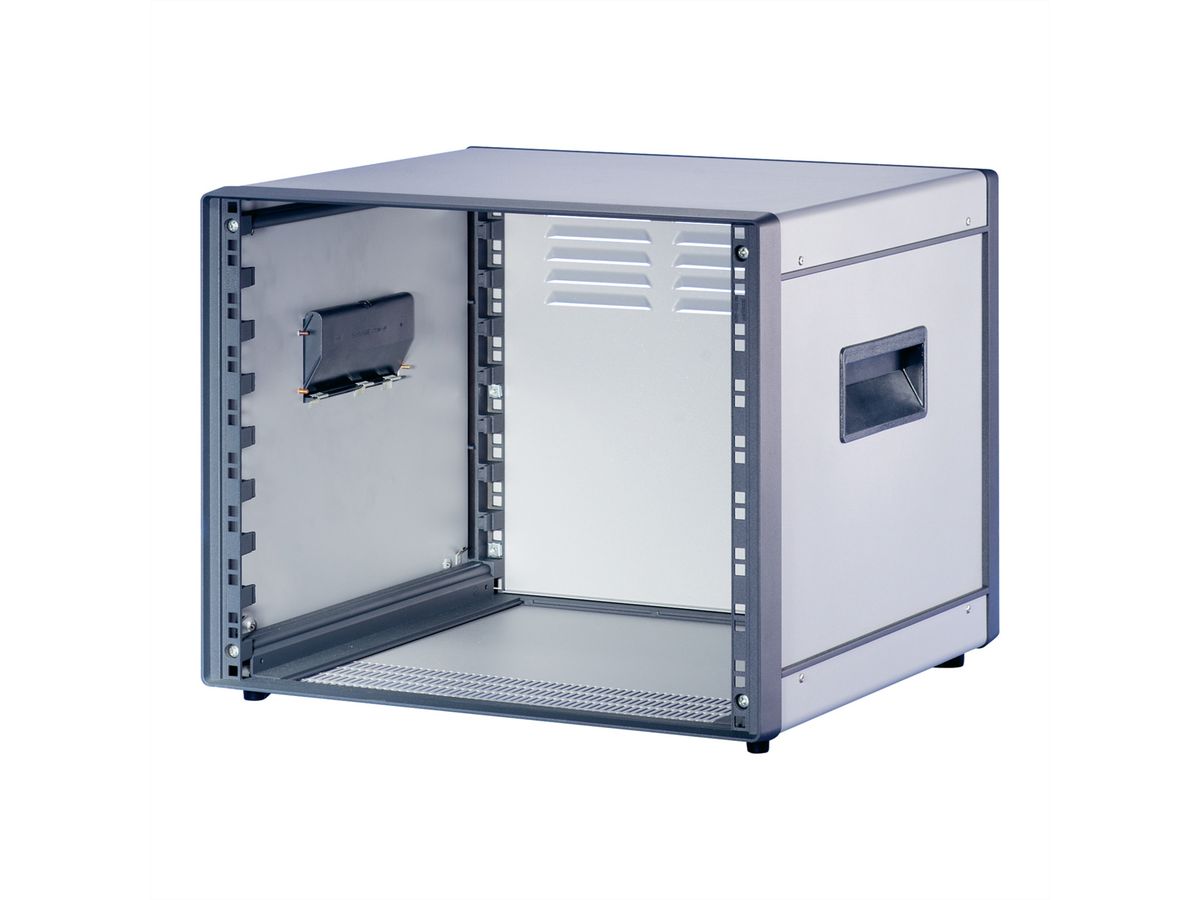

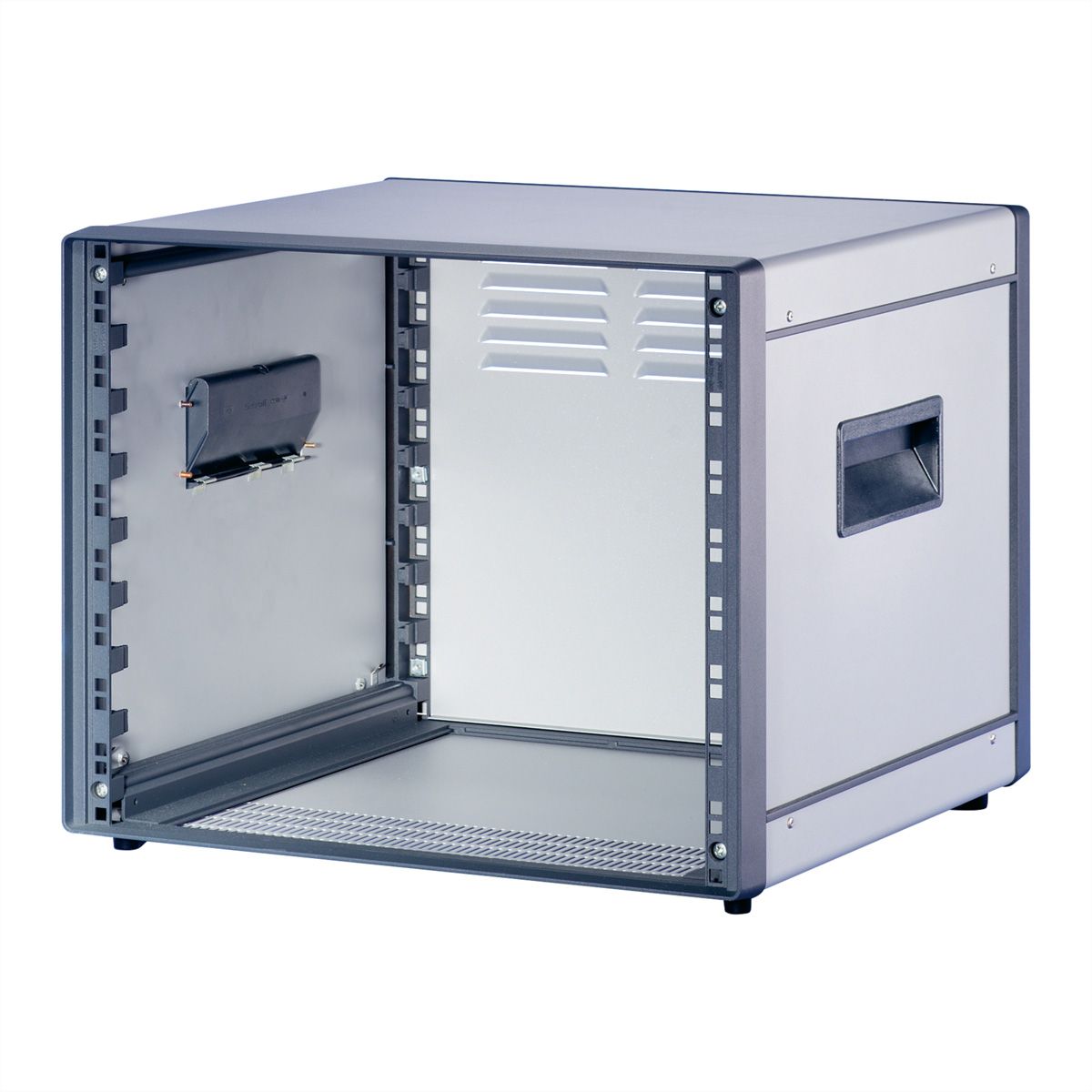

Table housing (pre-assembled) - With handle shell - Cover, base plate and rear wall made of aluminium - Front and rear frame made of die-cast aluminium - Ventilation slots in the base plate - Ventilation gills in the rear wall

Specifications

Manufacturer
SCHROFF
Product group
SCHROFF 19" cabinets & expansion parts
Product type
Comptec
Modular spacing
482.6 mm (19 inch)
Height units
12 U
Width units
84 HP
Maximum weight capacity
40 kg
Protection class (IP Code)
IP20
Height
553 mm
Width
520 mm
Depth
500 mm
Height of packaging (single piece)
0 mm
Width of packaging (single piece)
0 mm
Depth of packaging (single piece)
0 mm
Package weight (single piece)
14.2 kg



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
