SCHROFF Comptec 19" Desktop Case, Unshielded, Alu Cover, 9 U, 84 HP, 500 mm

Item no. 26150738 Brand / Manufacturer SCHROFF Manuf. item no. 10225682 Item weight 10.441 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/18/2026

Description

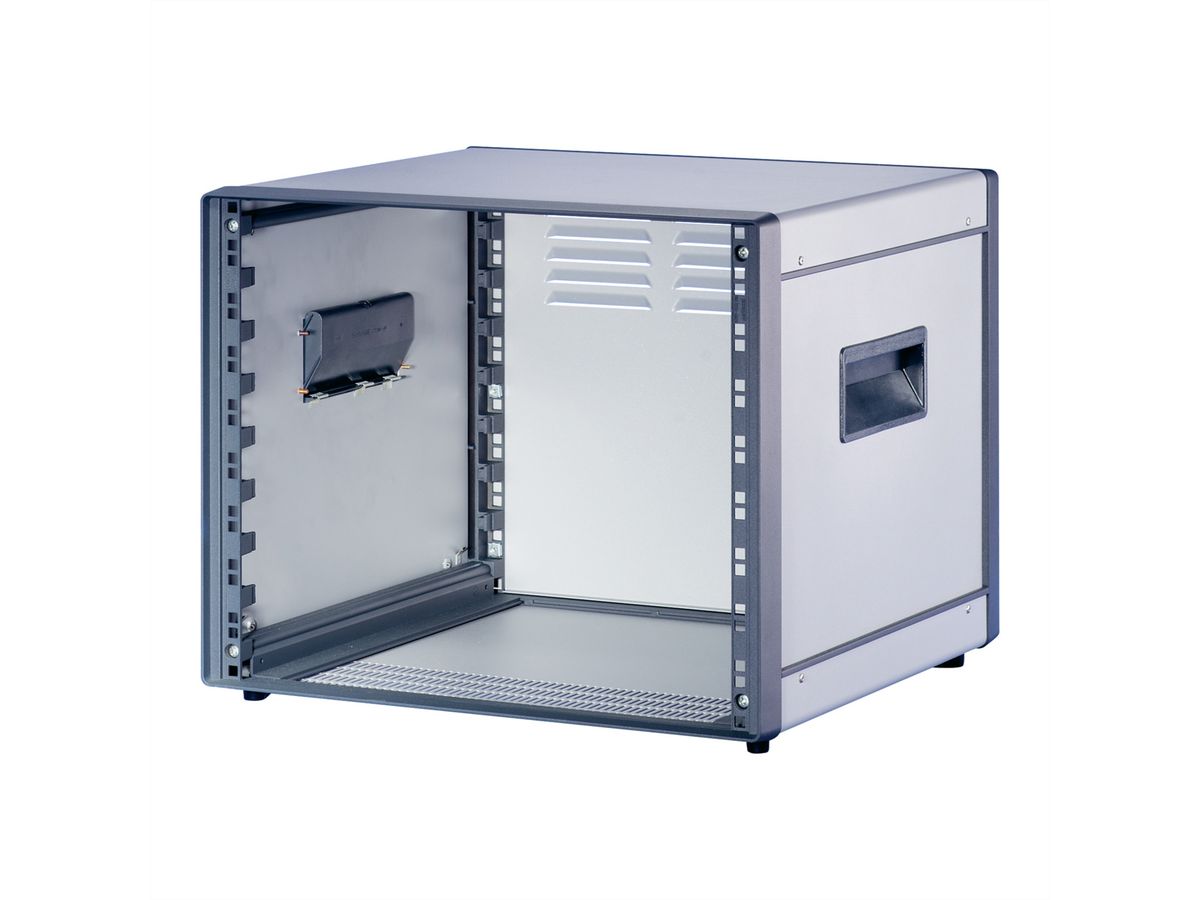

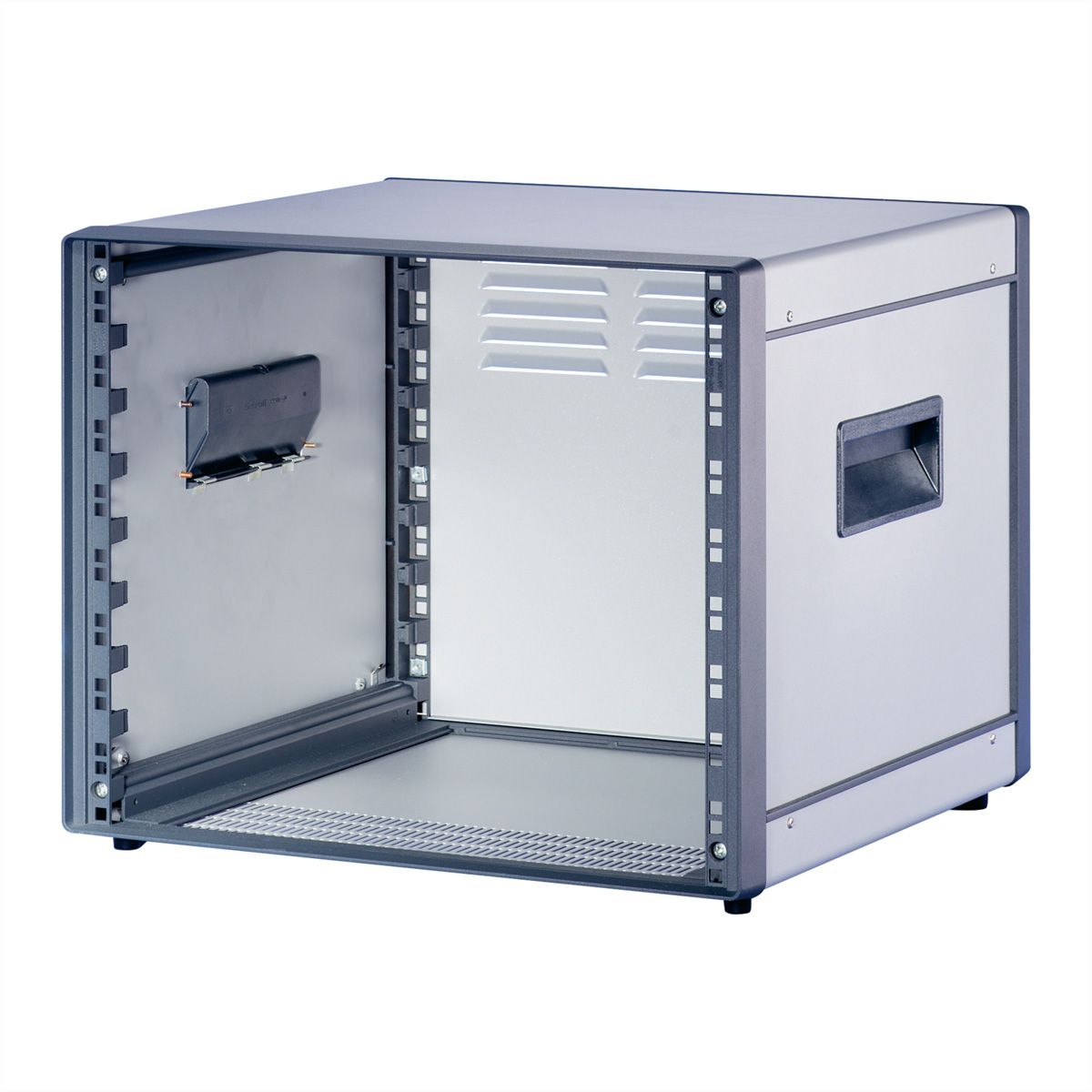

19-inch Comptec housing, unshielded, aluminium cladding parts, 9 U, 84 HP, 500 mm

COMPTEC CASE 9U 500D

Table housing (pre-assembled) - With handle shell - Cover, base plate and rear wall made of aluminium - Front and rear frame made of die-cast aluminium - Ventilation slots in the base plate - Ventilation gills in the rear wall

Specifications

Manufacturer
SCHROFF
Product group
SCHROFF 19" cabinets & expansion parts
Product type
Comptec
Modular spacing
482.6 mm (19 inch)
Height units
9 U
Width units
84 HP
Maximum weight capacity
40 kg
Protection class (IP Code)
IP20

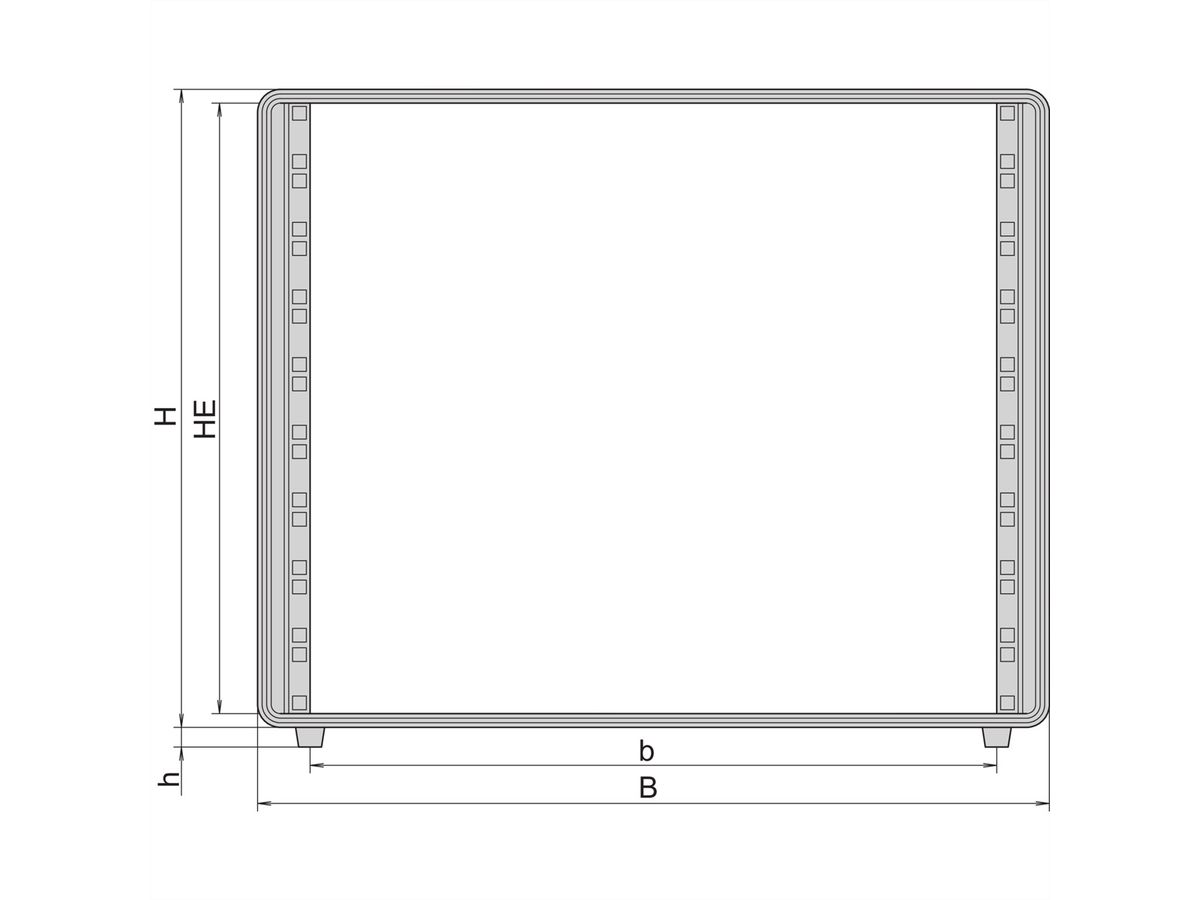

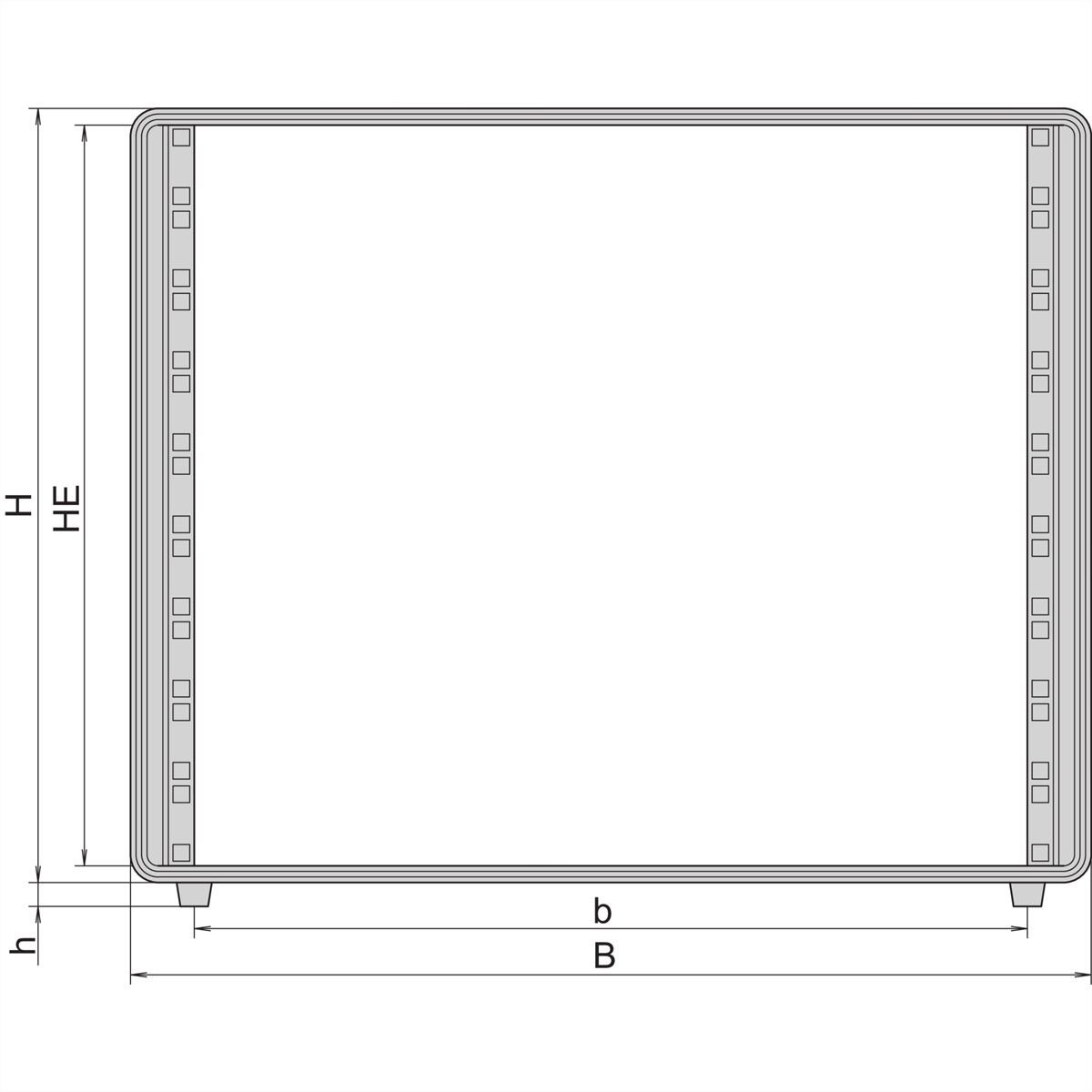

Height
420 mm
Width
520 mm
Depth
500 mm
Height of packaging (single piece)
500 mm
Width of packaging (single piece)
590 mm
Depth of packaging (single piece)
660 mm
Package weight (single piece)
10.441 kg



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
