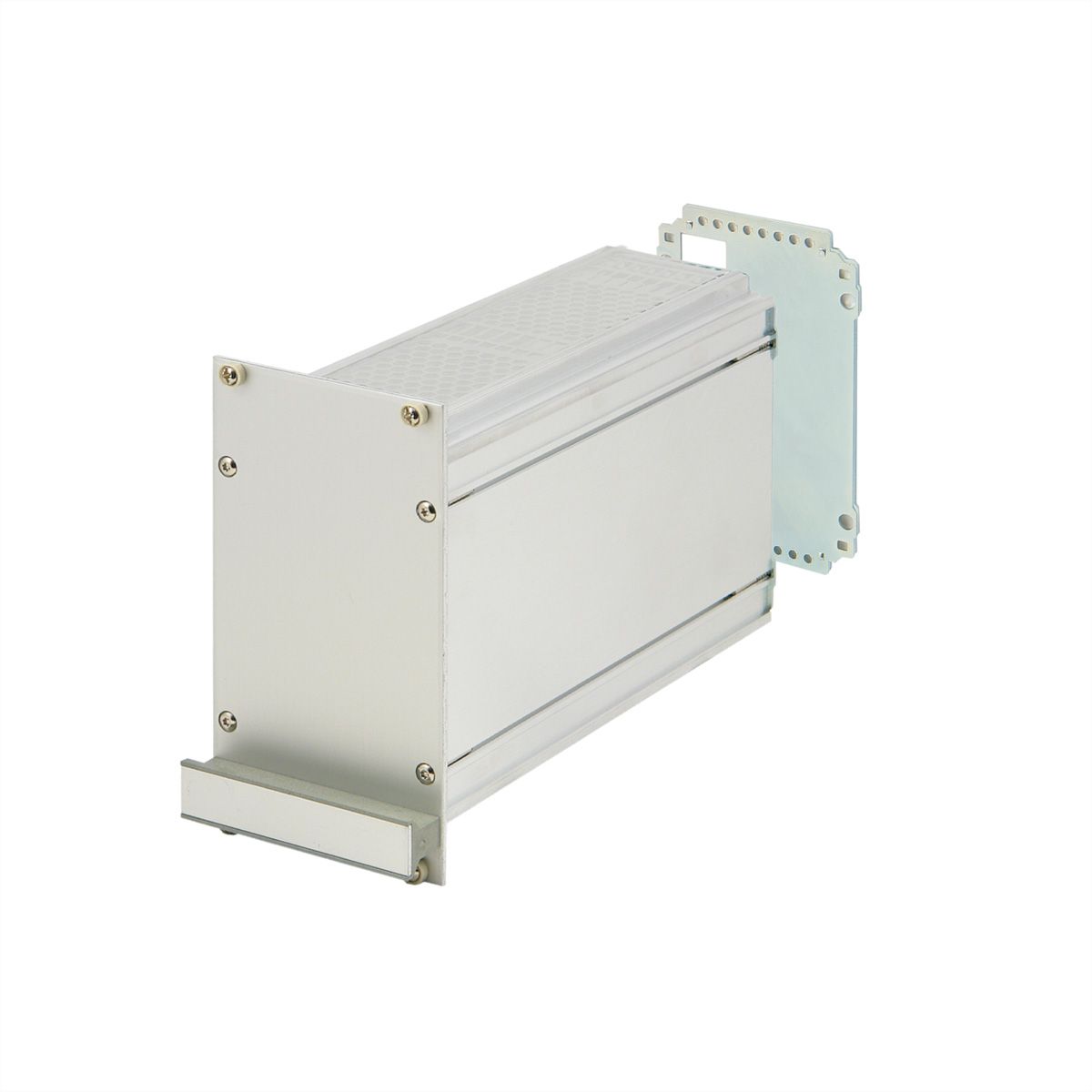

SCHROFF Frame Type Plug-In Unit PRO, Plain Cover, 1 Connector, 3 U, 8 HP, 167 mm

Item no. 26156096 Brand / Manufacturer SCHROFF Manuf. item no. 24812408 EAN 4036088064296 Item weight 0.436 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/09/2026

Description

Cassette kit, cover plate closed, cut-out in the rear panel for 1 connector, 3 U, 8 HP, 167 mm

PIU S1 WO P 3U 8HP 167D

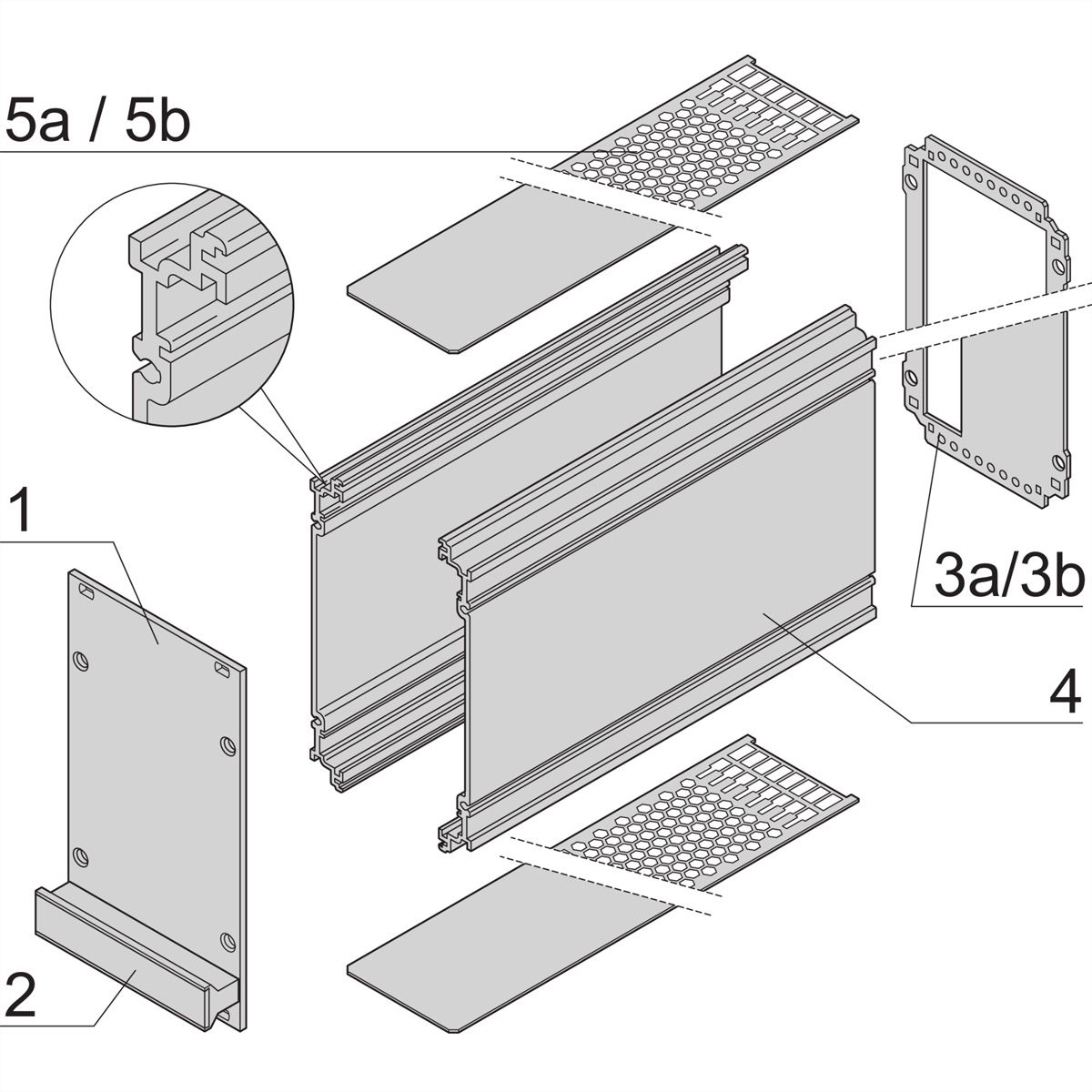

Right and left side panel profiles with groove, for inserting a PCB (standard-compliant position of the PCB only in the left side panel profile) - Cover plate version (5a): Without perforation - Rear panel version (3a): With a cut-out for a connector,Connectors to EN 60603 (DIN 41612), types: B, C, D, F, H, Q, R, S

Specifications

Manufacturer
SCHROFF
Product group
SCHROFF 19" cabinets & expansion parts
Product type
Cassettes
Height units
3 U
Width units
8 HP
Depth
167 mm
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.436 kg

Downloads

Manufacturer data sheet - Deutsch (975.9 KB) Manufacturer data sheet - English (975.1 KB) Manufacturer data sheet - English (1.6 MB)



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
