SCHROFF HF Frame Type Plug-In Unit PCB Mounting Bracket, Bottom

Item no. 26156902 Brand / Manufacturer SCHROFF Manuf. item no. 30809700 EAN 4036088063763 Item weight 0.007 kg

SCHROFF HF Frame Type Plug-In Unit PCB Mounting Bracket, Bottom

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 09/09/2026

Description

HF cassette Mounting bracket for PCB, bottom

MOUNTING BRACKET BOTTOM PIU

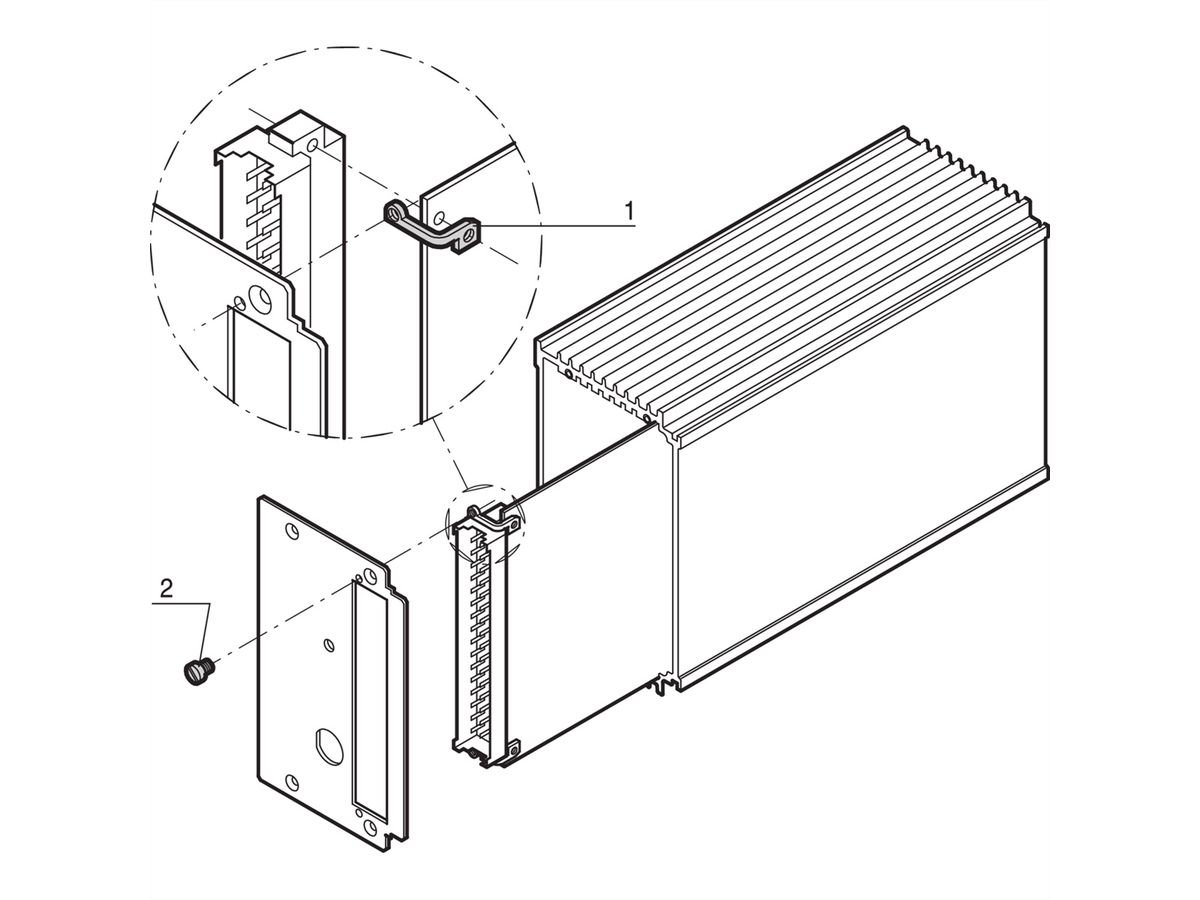

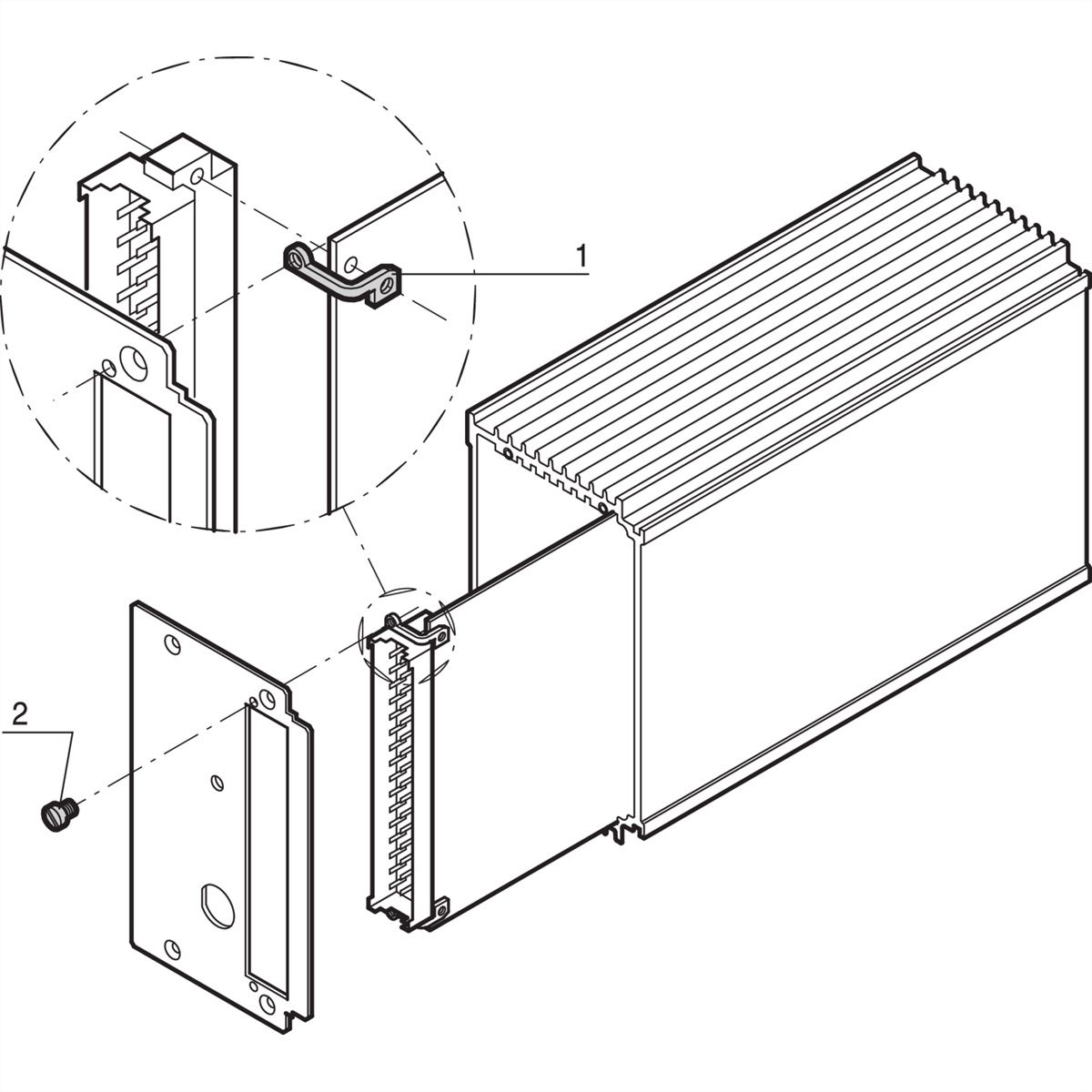

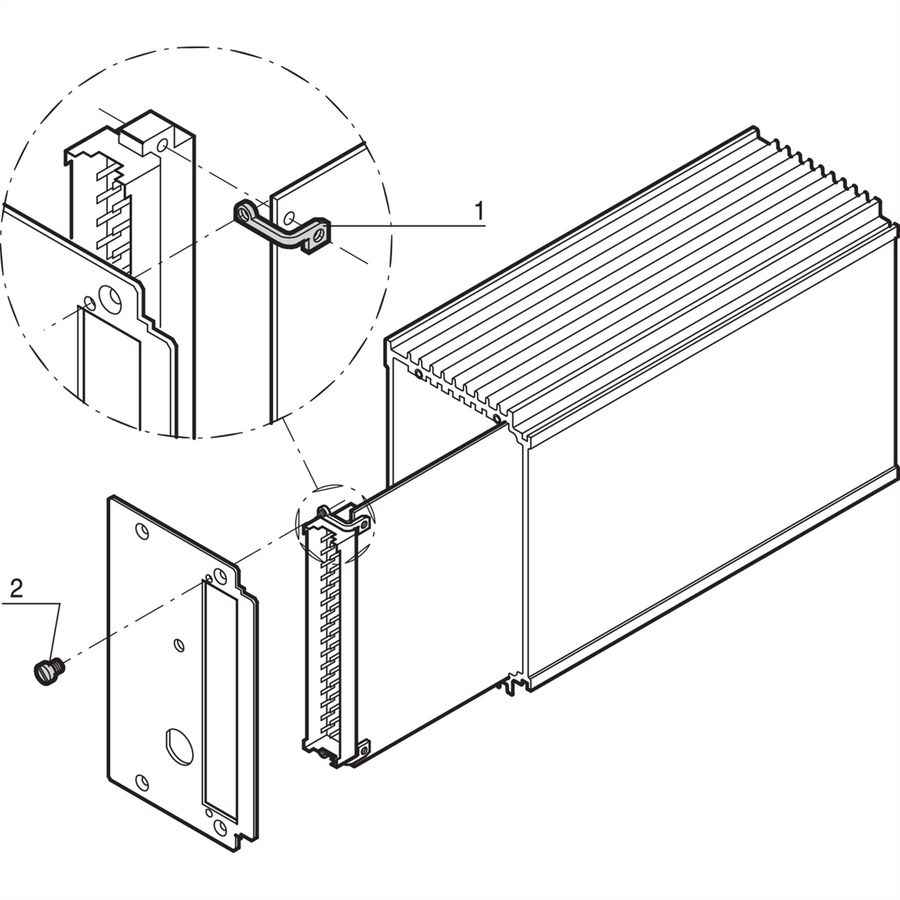

Mounting bracket at the bottom for mounting 10 PCBs in HF cassette - Please order mounting bracket at the top and mounting screw separately

Specifications

Manufacturer: SCHROFF
Product group: SCHROFF 19" cabinets & expansion parts
Product type: Other Accessories
Height: 5.8 mm
Width: 9.8 mm
Depth: 13.5 mm
Height of packaging (single piece): 20 mm
Width of packaging (single piece): 70 mm
Depth of packaging (single piece): 100 mm
Package weight (single piece): 0.007 kg

Downloads

Manufacturer data sheet - Deutsch (284.5 KB) Manufacturer data sheet - English (283.5 KB)

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
