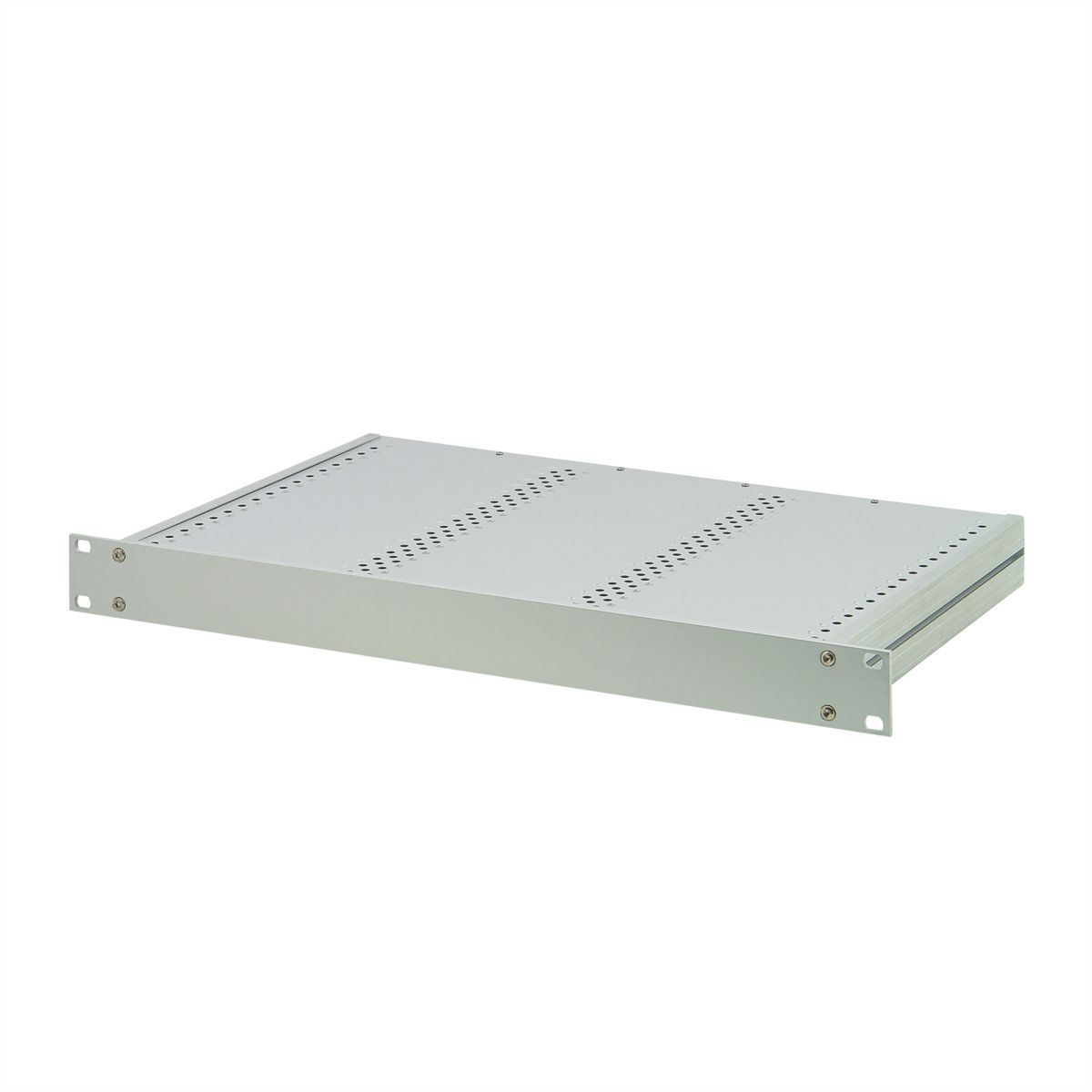

SCHROFF MultipacPRO 19" Chassis, Aluminum, for Eurocards Assembly, 1 U, 280 mm

Item no. 26152831 Brand / Manufacturer SCHROFF Manuf. item no. 20860642 Item weight 1.563 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/18/2026

Description

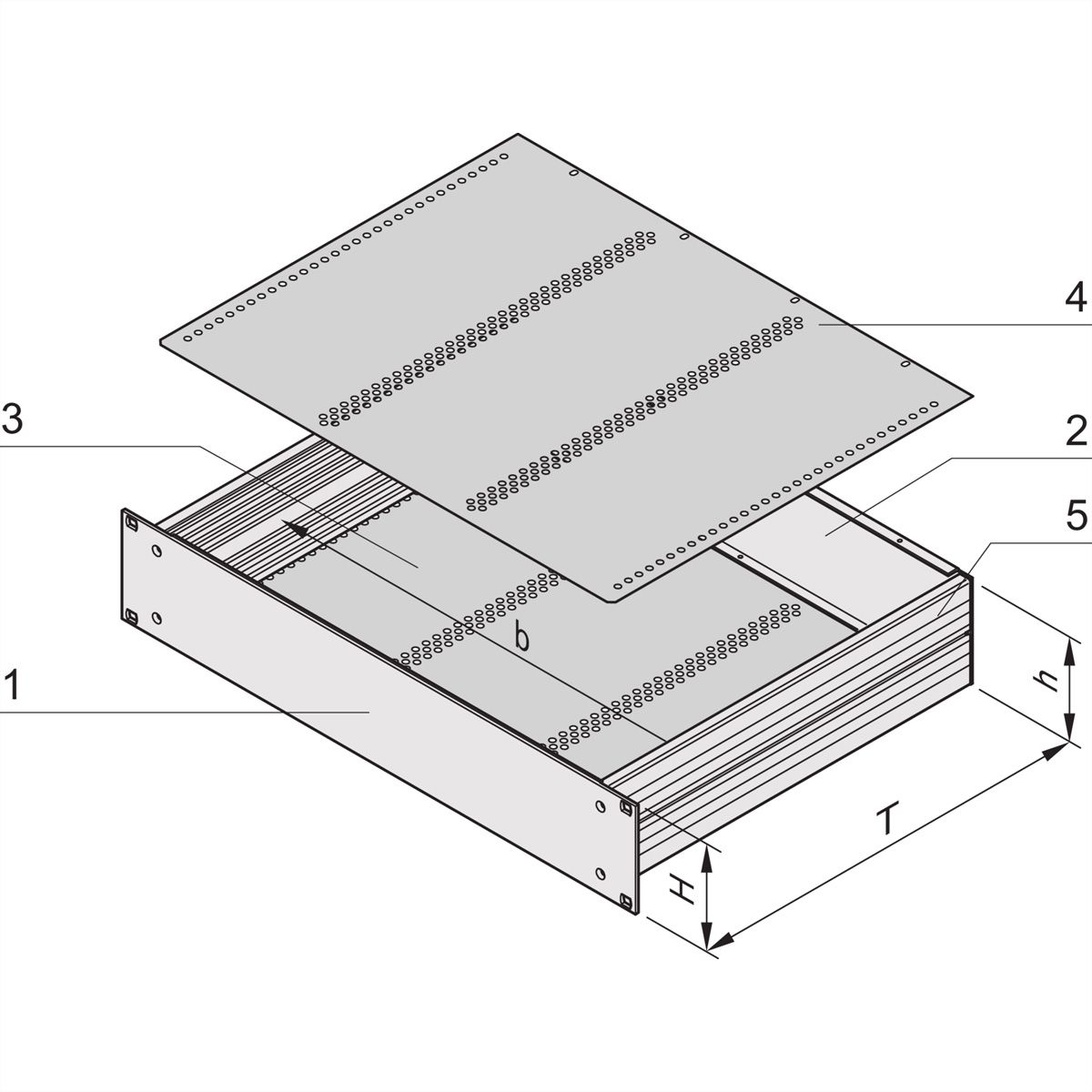

MultipacPro 19" slide-in unit, 1 U, 280 mm, made of aluminium, prepared for mounting horizontally mounted Euroboards

MULTIPAC PRO 1U 280D COVER P

Complete plug-in unit made of aluminium - Rear panel can be removed for easy processing - EMC shielding of approx. 30 dB(A) at 1 GHz (without additional shielding material) - In accordance with IEC 60297-3-100, -101, -105 - 19" and ATX power supply units can be installed up to a clear height of 35 mm in 1 U of enclosure height

Specifications

Manufacturer
SCHROFF
Product group
SCHROFF 19" cabinets & expansion parts
Product type
Multipac
Modular spacing
482.6 mm (19 inch)
Height units
1 U
Depth
280 mm
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
300 mm
Depth of packaging (single piece)
560 mm
Package weight (single piece)
1.563 kg



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Schroff GmbH
Langenalber Strasse 96-100, 75334 Straubenhardt, Germany
