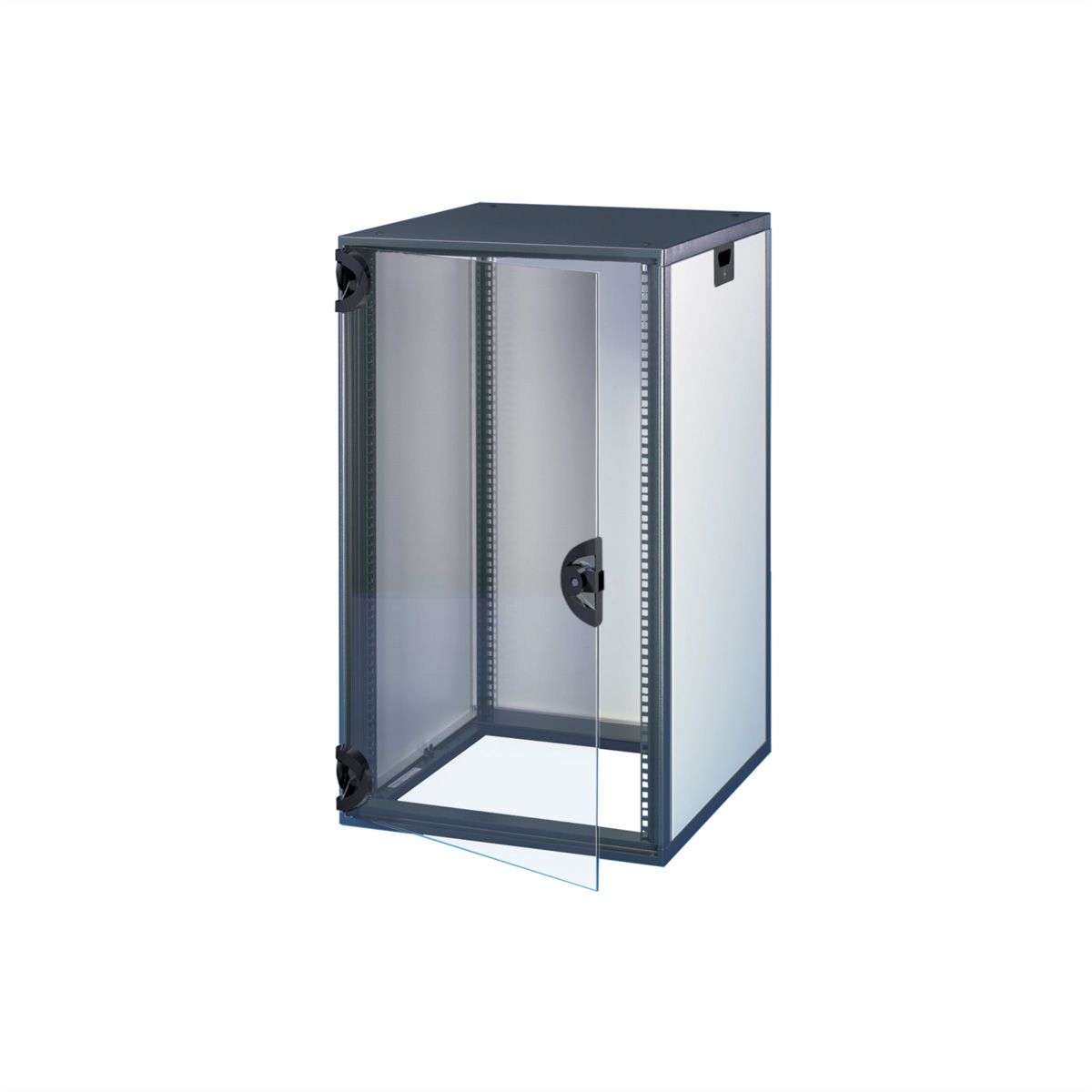

SCHROFF Novastar Cabinet With Glazed Door and Rear Panel, Heavy-Duty, RAL 7021/7035, 1745H 553W 800D, Heavy-Duty

Item no. 26151314 Brand / Manufacturer SCHROFF Manuf. item no. 16230023 Item weight 82 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/14/2026
This item is transported on a pallet; additional shipping costs will be charged!

Description

NOVASTAR - the 19" electronics enclosure for applications in the fields of measurement, control, regulation, audio and video

- Static load capacity up to 400 kg - With smoked glass door and rear panel - Frame screwed together, made of die-cast frame and aluminium profiles - Colours: Colour combination RAL 7021/RAL 7035 - All uprights (front and rear) with 19" perforation - Internal cladding parts - Cabinet width only 553 mm - Protection class IP 20 -

Specifications

Manufacturer
SCHROFF
Product group
SCHROFF 19" cabinets & expansion parts
Product type
Novastar
Colour
grey
Modular spacing
482.6 mm (19 inch)
Height units
38 U
Maximum weight capacity
400 kg
Protection class (IP Code)
IP20
RAL colour
RAL 7035 Light grey
Height
1745 mm
Width
553 mm
Depth
800 mm
Height of packaging (single piece)
2200 mm
Width of packaging (single piece)
860 mm
Depth of packaging (single piece)
860 mm
Package weight (single piece)
82 kg

Downloads

Manufacturer data sheet - Deutsch (1.0 MB) Manufacturer data sheet - English (1.0 MB)



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
