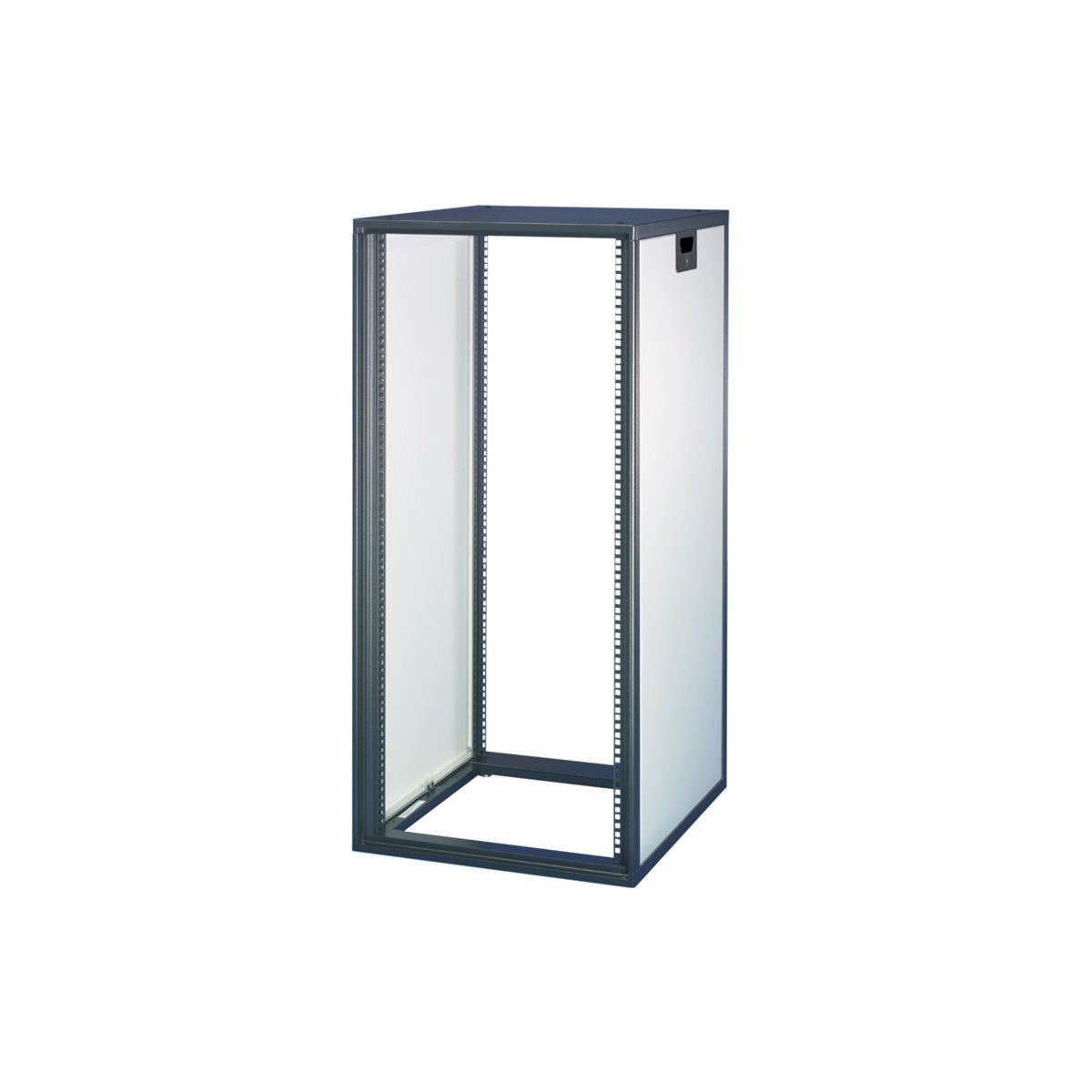

SCHROFF Novastar Cabinet Without Door and Rear Panel, Heavy-Duty, RAL 7021/7035, 1967H 553W 800D

Item no. 26151307 Brand / Manufacturer SCHROFF Manuf. item no. 16230016 EAN 4036088088445 Item weight 62 kg

SCHROFF Novastar Cabinet Without Door and Rear Panel, Heavy-Duty, RAL 7021/7035, 1967H 553W 800D

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 09/14/2026

This item is transported on a pallet; additional shipping costs will be charged!

Description

Novastar cupboard frame, heavy duty, without door and rear panel, RAL 7021/7035, 1967 H, 553 B, 800 T

NOVASTAR 43U 553W800D 7021-35

19" enclosure, door and rear panel combination freely selectable

Specifications

Manufacturer: SCHROFF
Product group: SCHROFF 19" cabinets & expansion parts
Product type: Novastar
Colour: grey
Modular spacing: 482.6 mm (19 inch)
Height units: 43 U
Maximum weight capacity: 400 kg
RAL colour: RAL 7035 Light grey

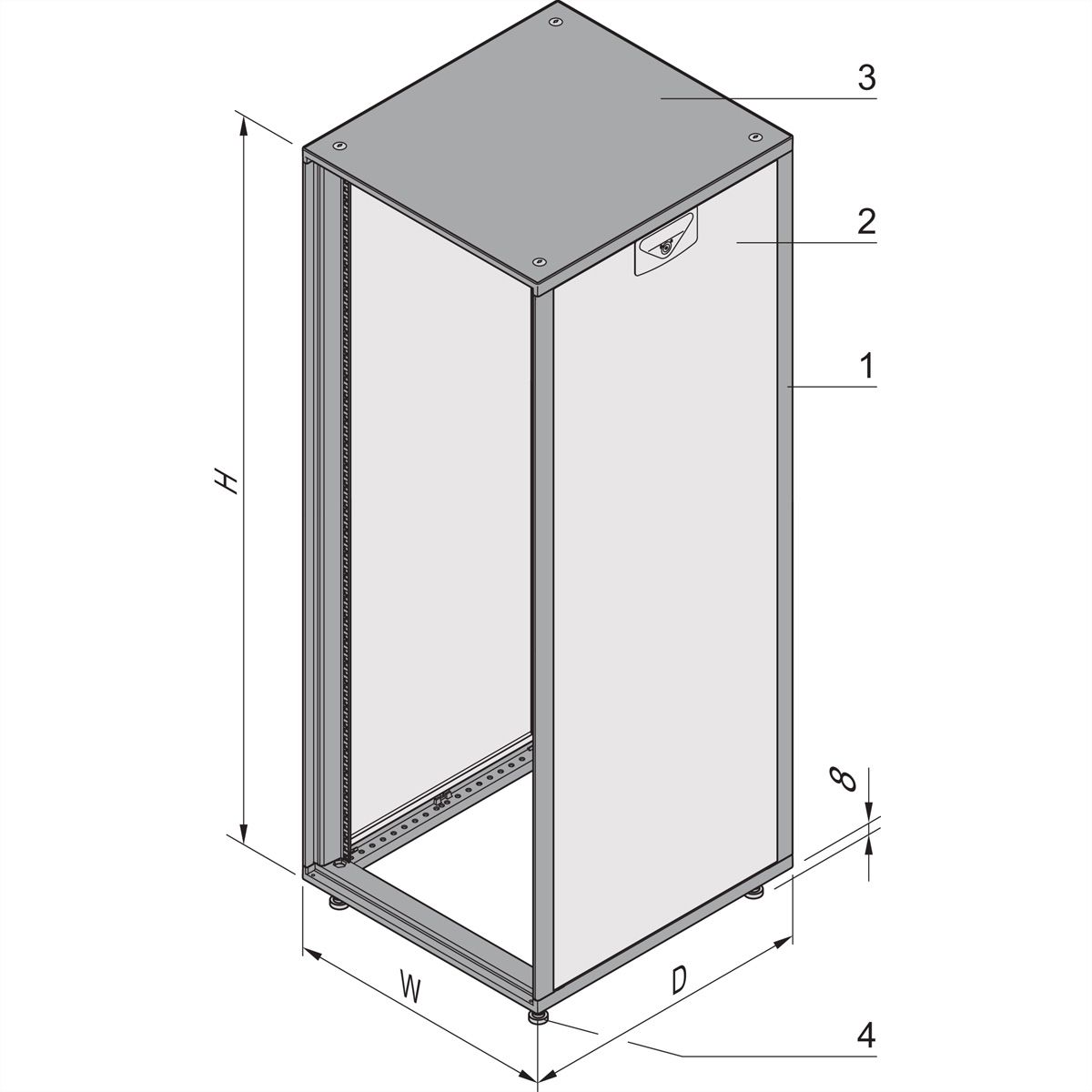

Height: 1967 mm
Width: 553 mm
Depth: 800 mm
Height of packaging (single piece): 2200 mm
Width of packaging (single piece): 860 mm
Depth of packaging (single piece): 860 mm
Package weight (single piece): 62 kg

Downloads

Manufacturer data sheet - Deutsch (1.0 MB) Manufacturer data sheet - English (1.0 MB)

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
