SCHROFF Outdoor Unibody VENT Cabinet With Single Door, 930H 16 U, 700W 500D

Item no. 26150993 Brand / Manufacturer SCHROFF Manuf. item no. 11249007 Item weight 48 kg

SCHROFF Outdoor Unibody VENT Cabinet With Single Door, 930H 16 U, 700W 500D

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 09/09/2026

This item is transported on a pallet; additional shipping costs will be charged!

Description

Unibody outdoor enclosure VENT with single door, 930 H 16 U, 700 B 500T

OUTDOOR UNIBODY 16U 700 500

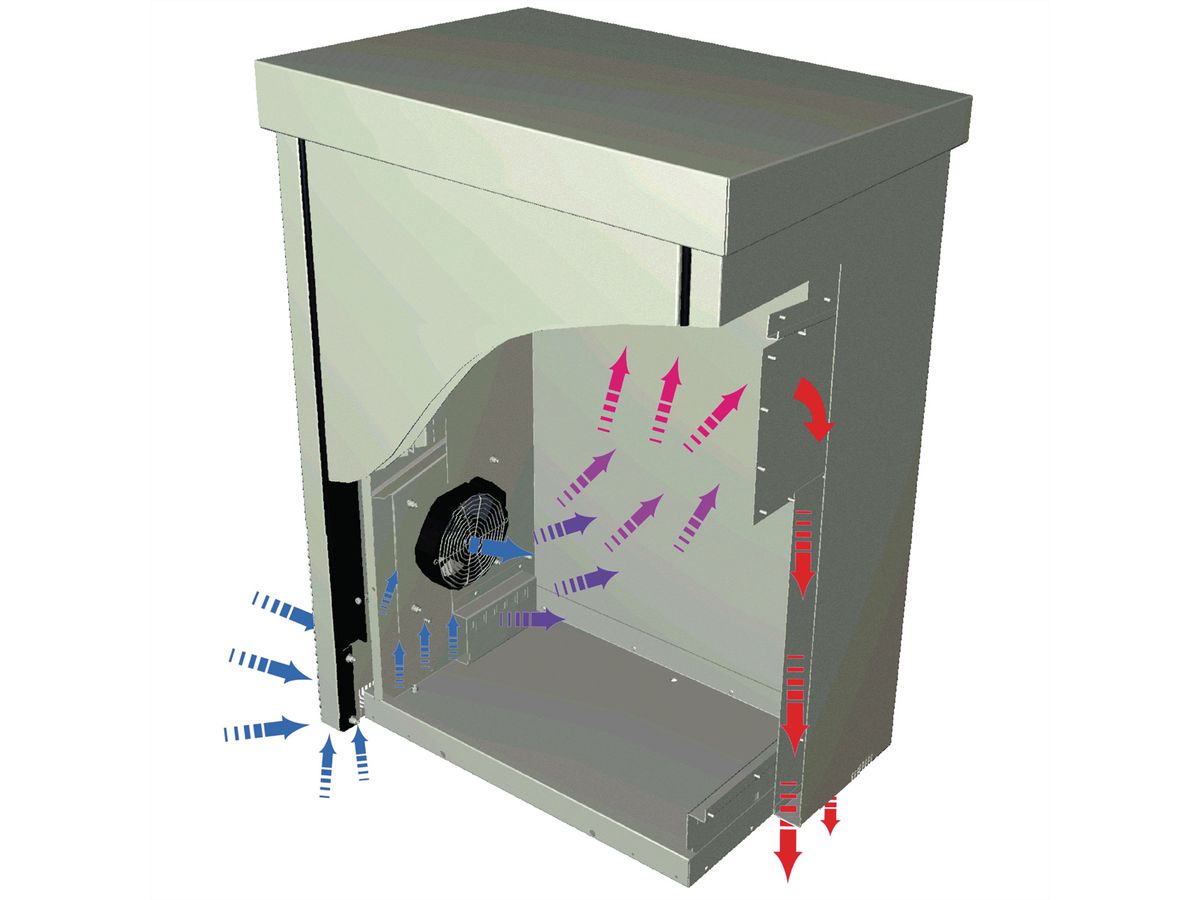

One-piece inner housing with removable outer panelling - Forced cooling by a fan in the side wall, max. 35 W/K - IP 55 - Double-walled, Al

Specifications

Manufacturer: SCHROFF
Product group: SCHROFF 19" cabinets & expansion parts
Product type: Outdoor cabinet
Height units: 16 U
Protection class (IP Code): IP55

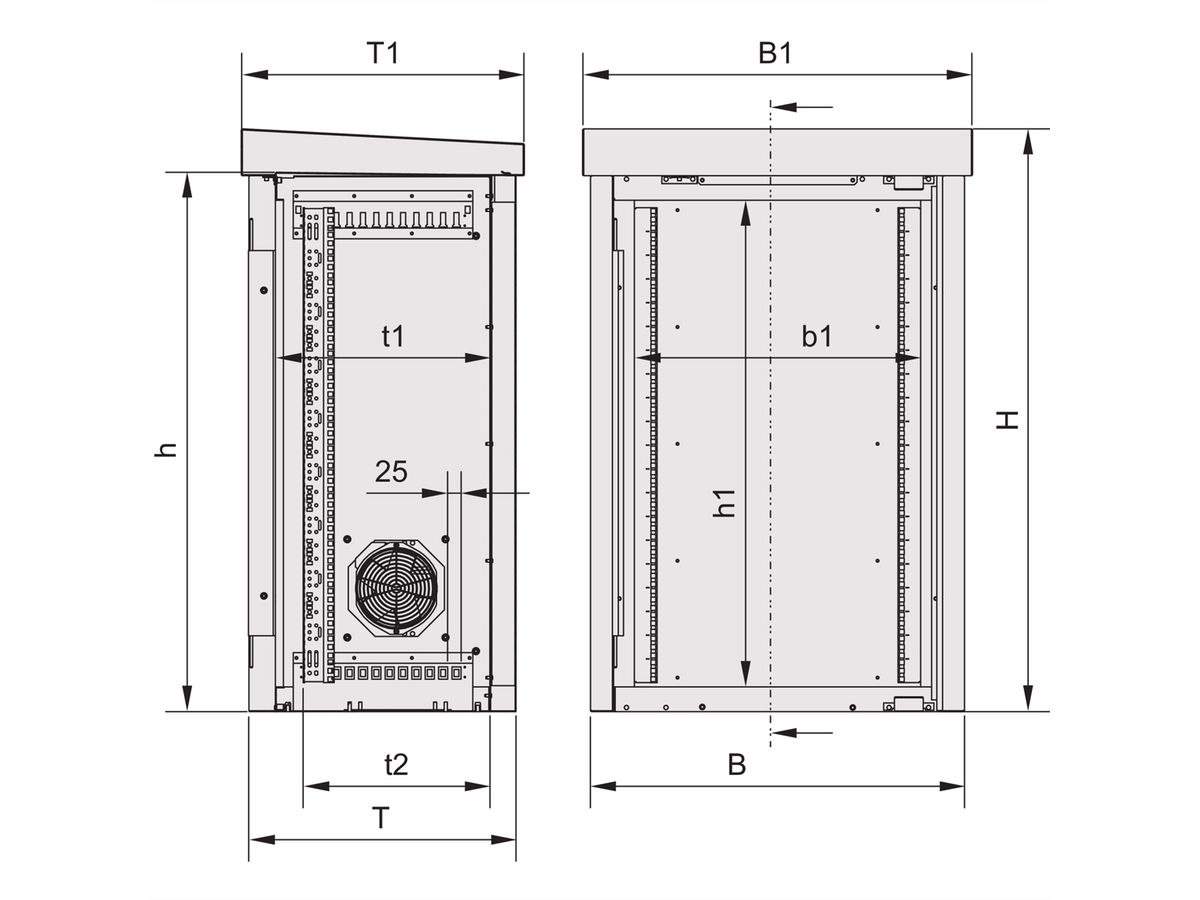

Height: 930 mm
Width: 700 mm
Depth: 500 mm
Height of packaging (single piece): 1400 mm
Width of packaging (single piece): 650 mm
Depth of packaging (single piece): 650 mm
Package weight (single piece): 48 kg

Downloads

Manufacturer data sheet - Deutsch (480.2 KB)

The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.

More about SCHROFF
