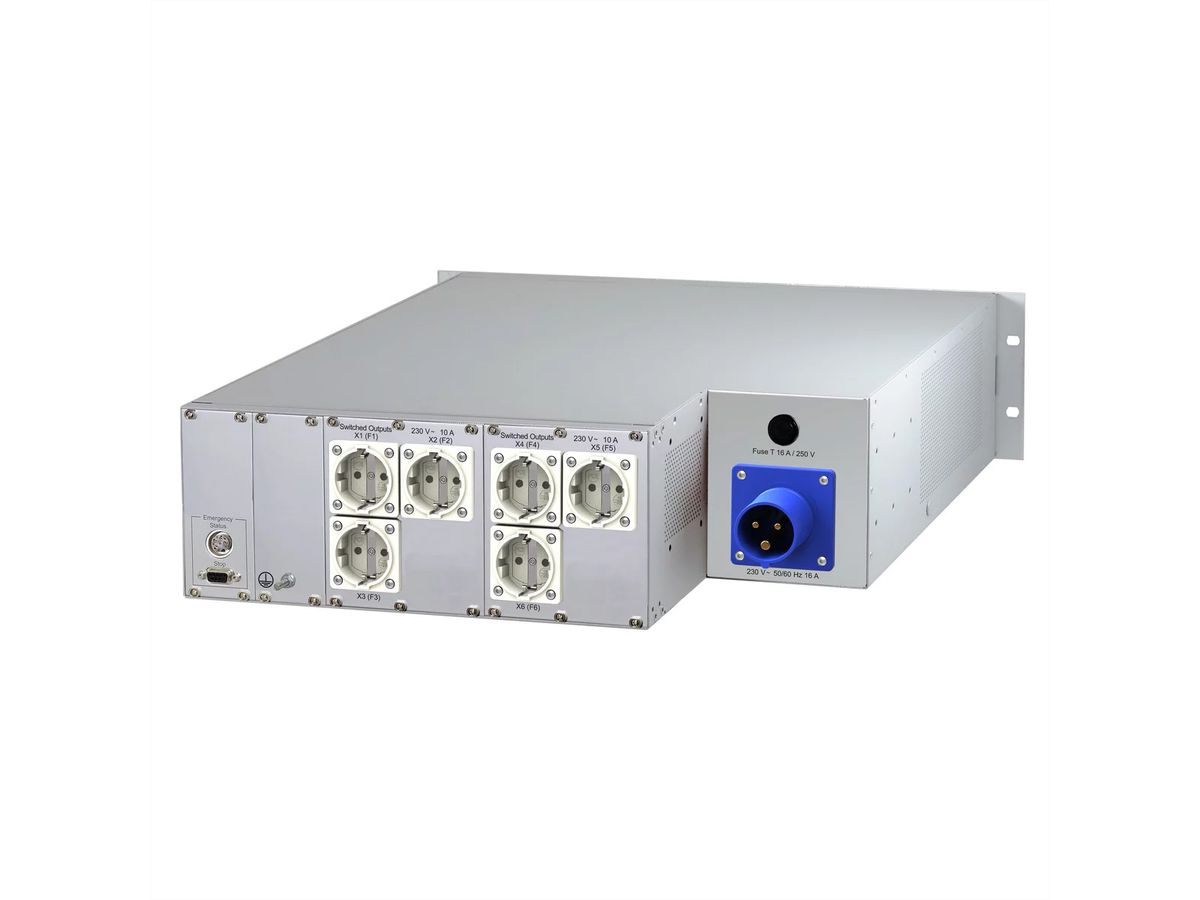

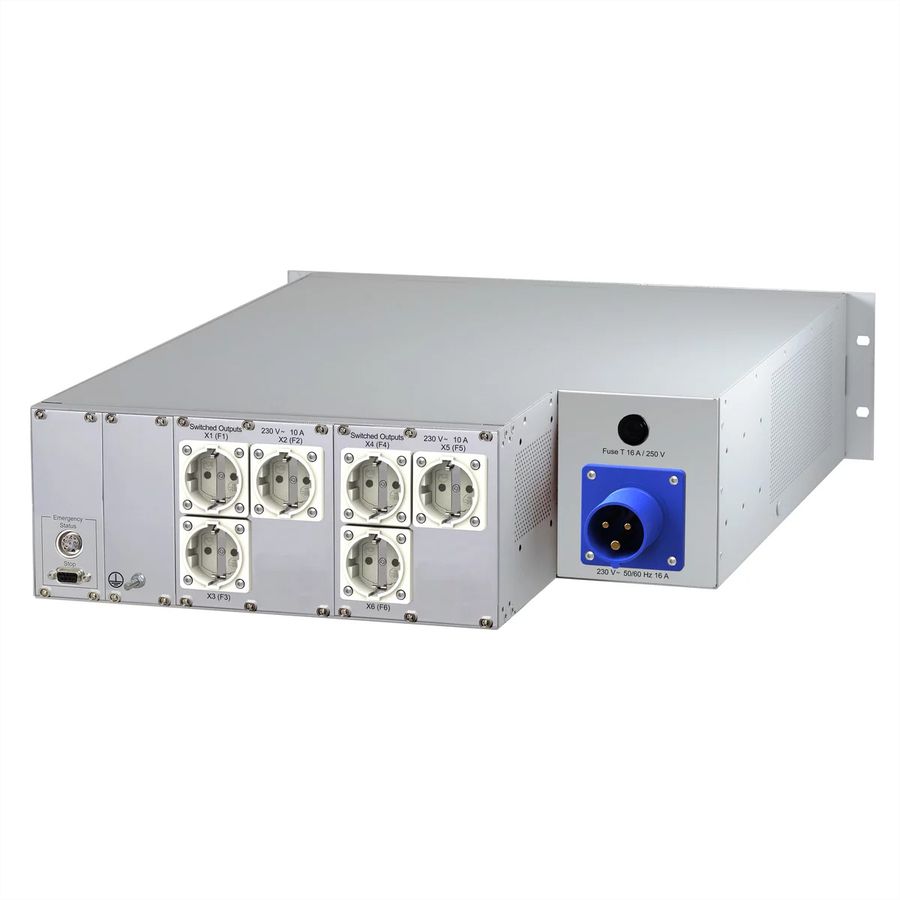

SCHROFF Rack Safety Plus, 3 U, 230 V AC, CEE

Item no. 26185421 Brand / Manufacturer SCHROFF Manuf. item no. 21270005 EAN 4036088224683 Item weight 12.463 kg
SCHROFF

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/12/2026
Download PDF

Description

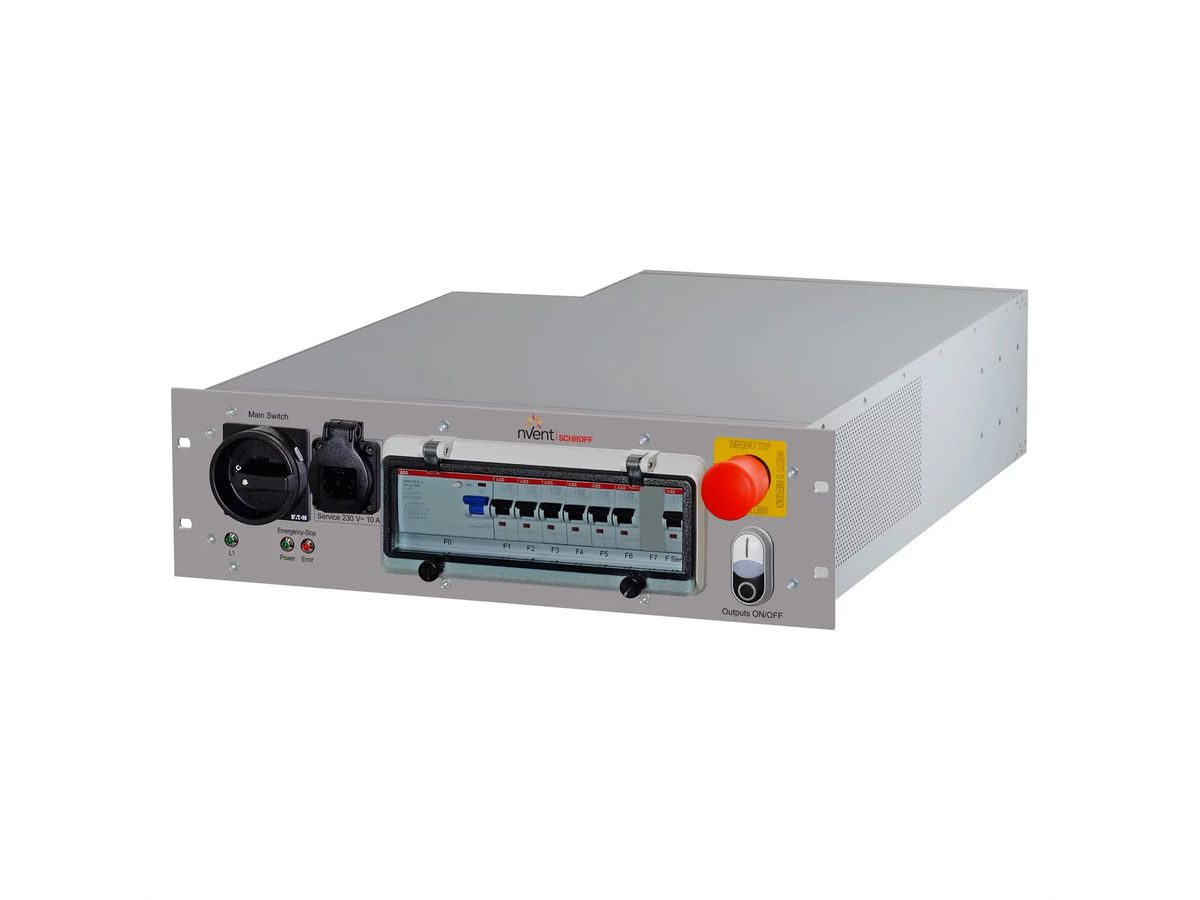

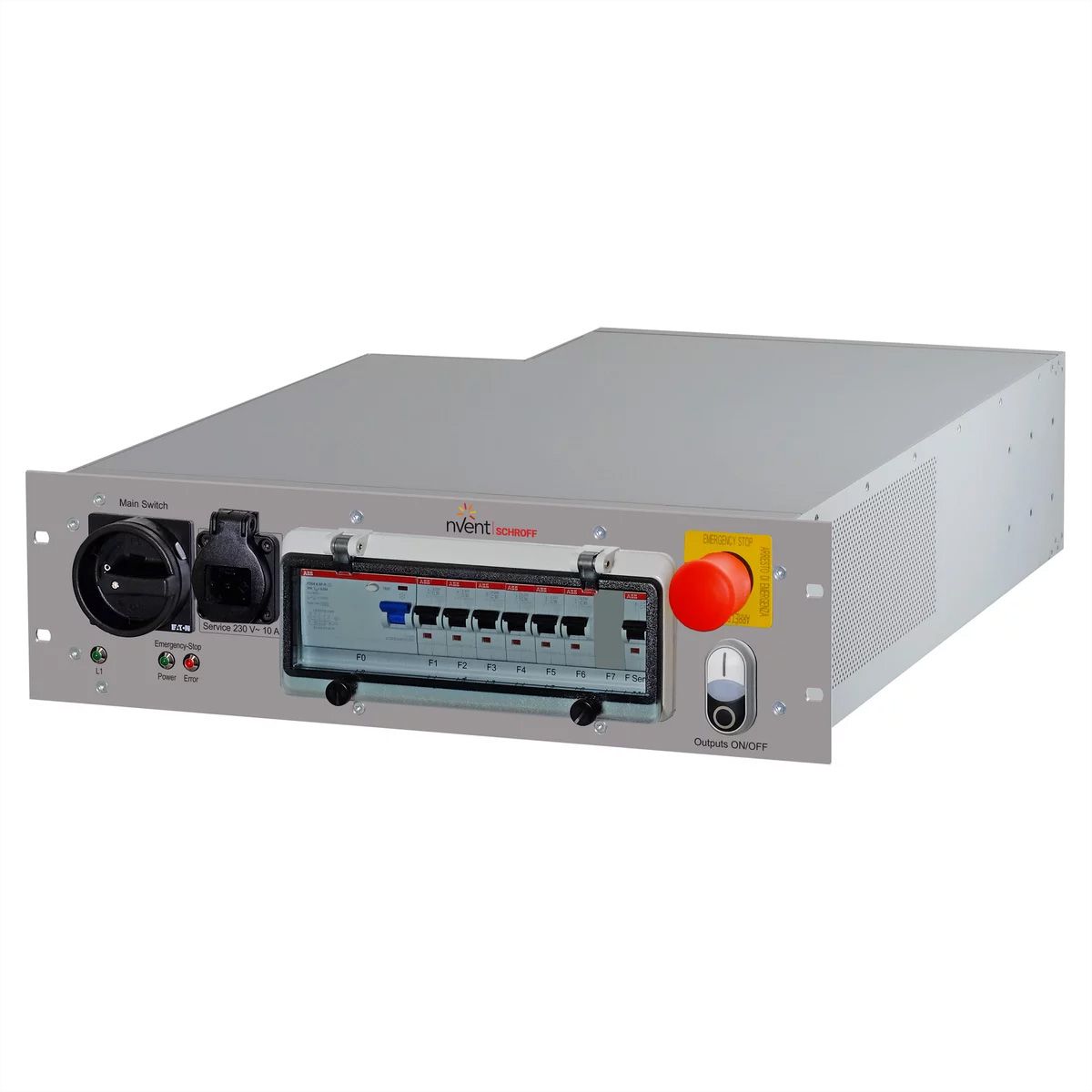

The nVent SCHROFF Rack Safety Plus unit is a 19" power distribution unit used to supply AC mains power to electrical or electronic devices as a central power switch. In addition it is equipped with an emergency stop function.

  • 19“, 3 U Power Distribution Unit with Emergency Stop function
  • Supplies AC mains power to electrical or electronic devices as a central power switch
  • 400 V 3-phase or 230 V 1-phase mains input with mains fuses
  • AC outputs with different connector types, switched by ON/OFF switch
  • Permanent AC Outputs (Service)
  • All outputs are protected by circuit breakers
  • The emergency stop function meets the requirements of EN 60947-5-1 and EN 60204-1 and is vandalism-proof
  • An additional external emergency stop push button can be connected to the system
PRODUCT ATTRIBUTES
  • Works With: Varistar; Varistar CP; Novastar
  • Function: Emergency Stop
  • Input Voltage AC: 230 V
  • Number of Phases: 1
  • EMC Filter: No
  • Surge Arrester: Yes
  • Inrush Current Limiter: No
  • Residual Current Device: Yes
  • Circuit Breaker Cover: Yes
  • Rack Height: 3 U
  • Socket Type: SCHUKO
  • Accessory Type: Power distribution accessories

Specifications

Manufacturer
SCHROFF
Product group
Power supply
Product type
19" power strip
Height units
3 U
Height of packaging (single piece)
250 mm
Width of packaging (single piece)
600 mm
Depth of packaging (single piece)
800 mm
Package weight (single piece)
12.463 kg

Downloads

Manufacturer data sheet - English (570.6 KB) User manual - English (2.5 MB)



The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
