SCHROFF Varistar Fan Tray
Item no.
26100531
Brand / Manufacturer
SCHROFF
Manuf. item no.
23130070
EAN
4036088152191
Item weight
3.662 kg
:strip_icc():strip_exif()/logos/schroff.png "SCHROFF")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

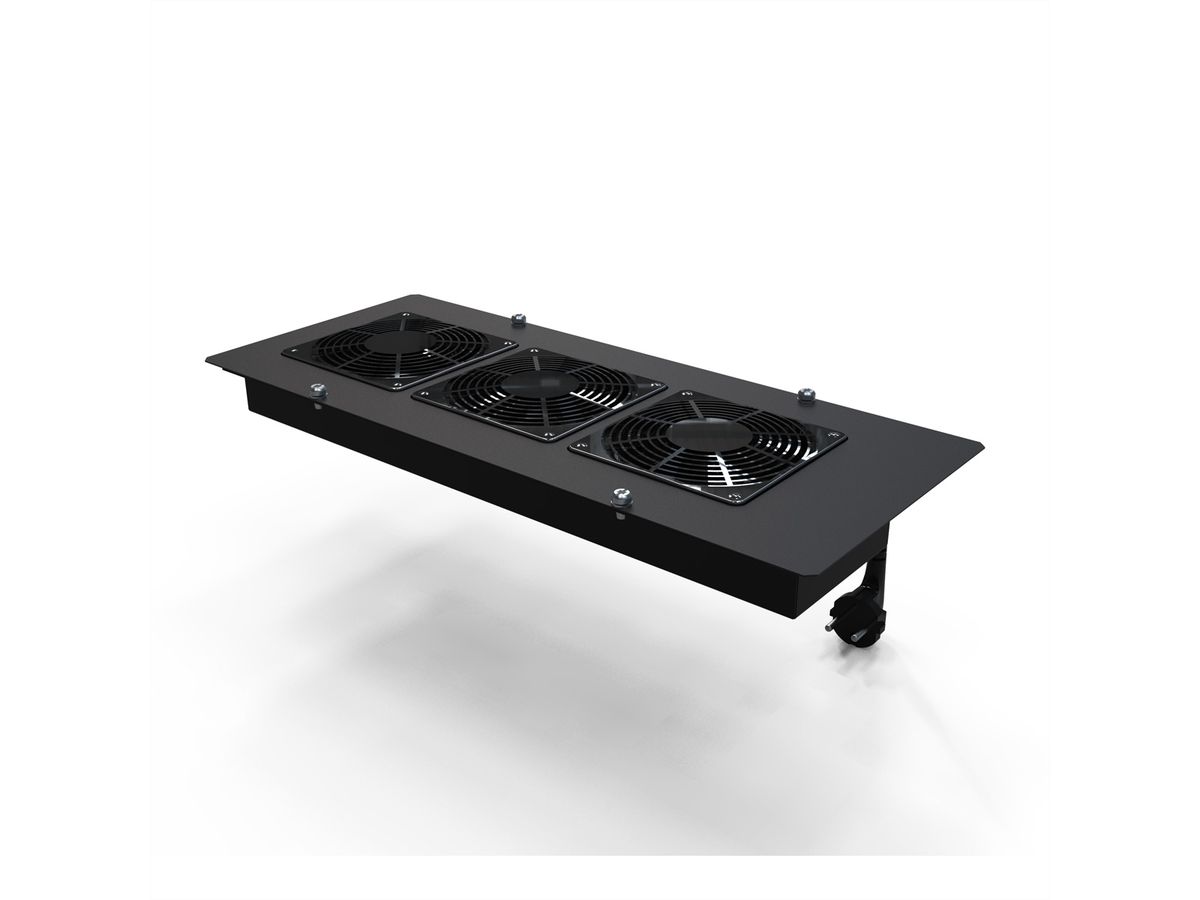

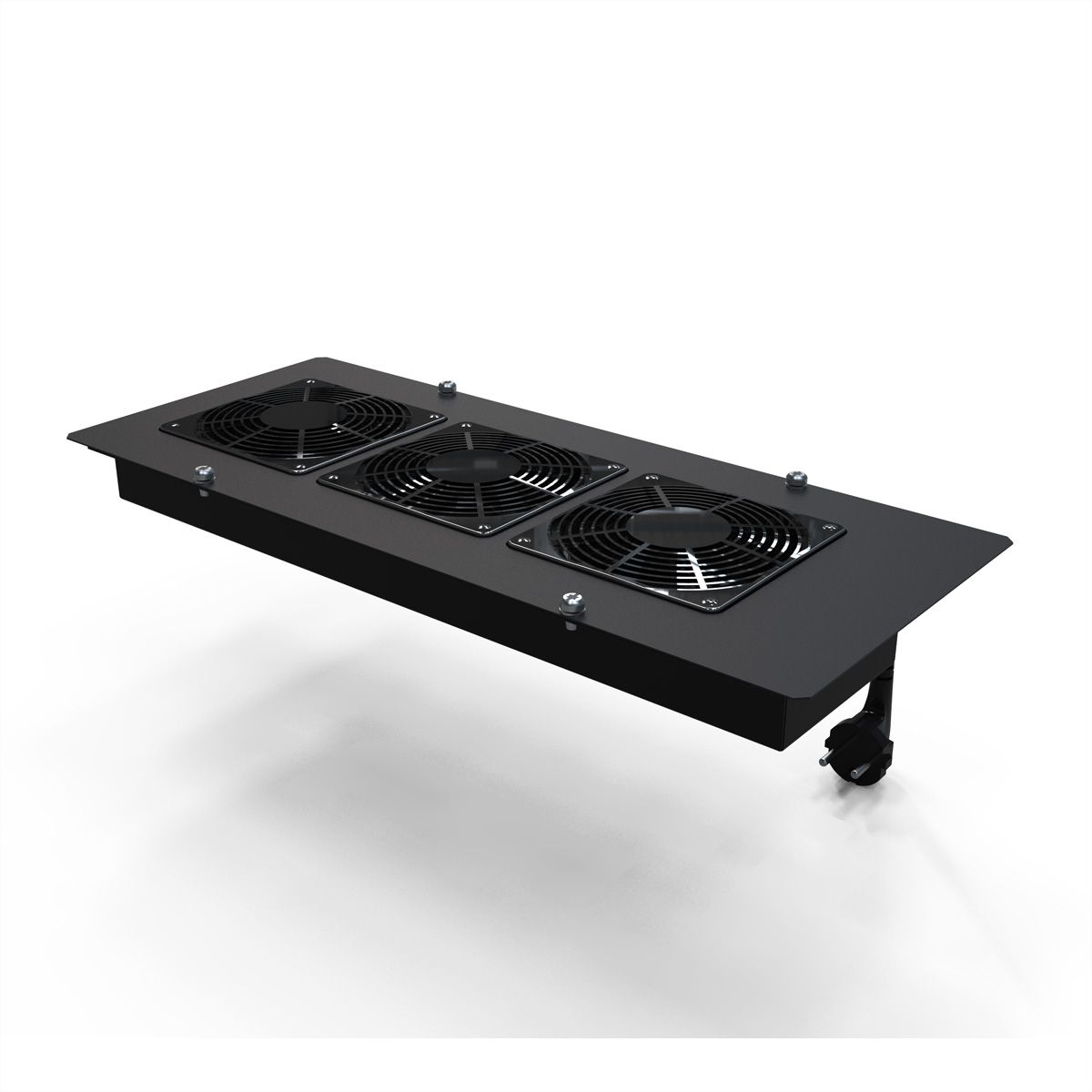

Varistar fan unit

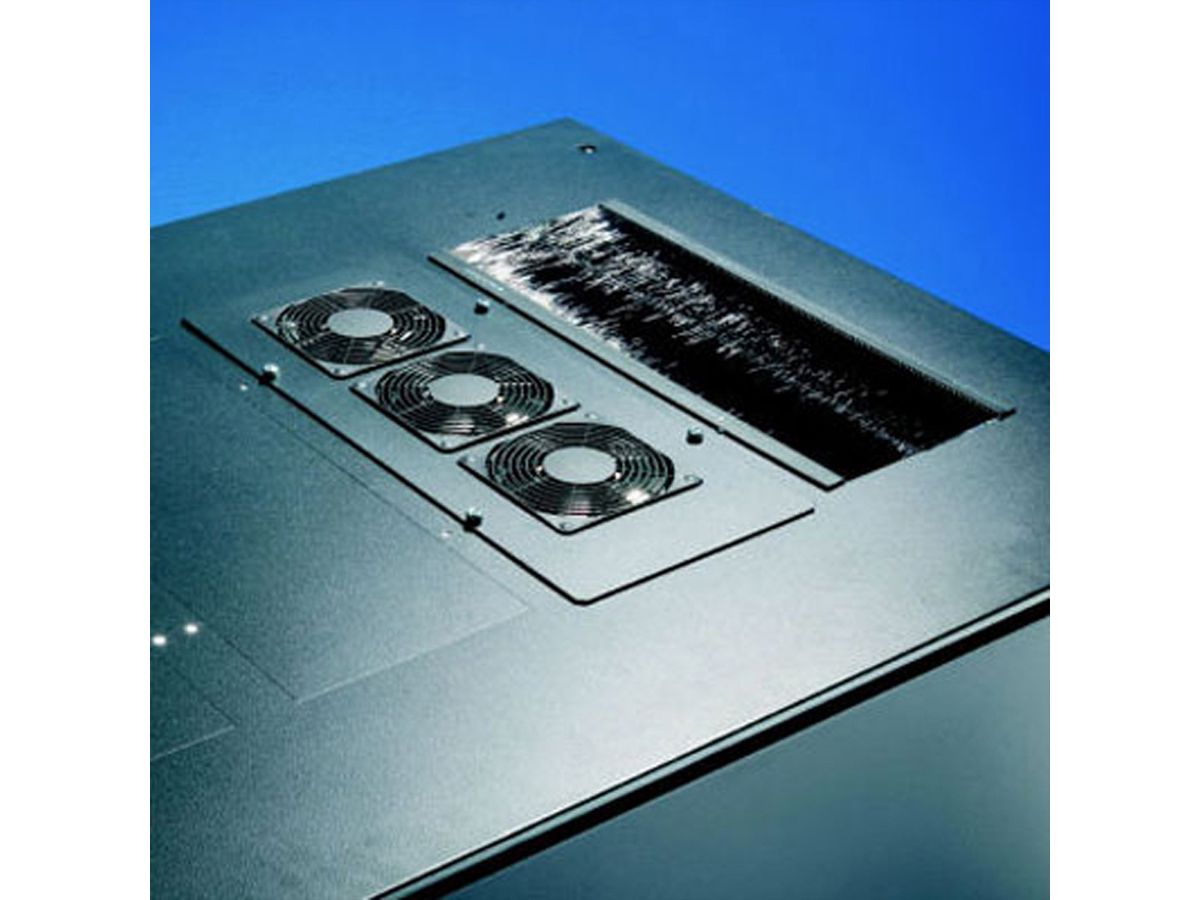

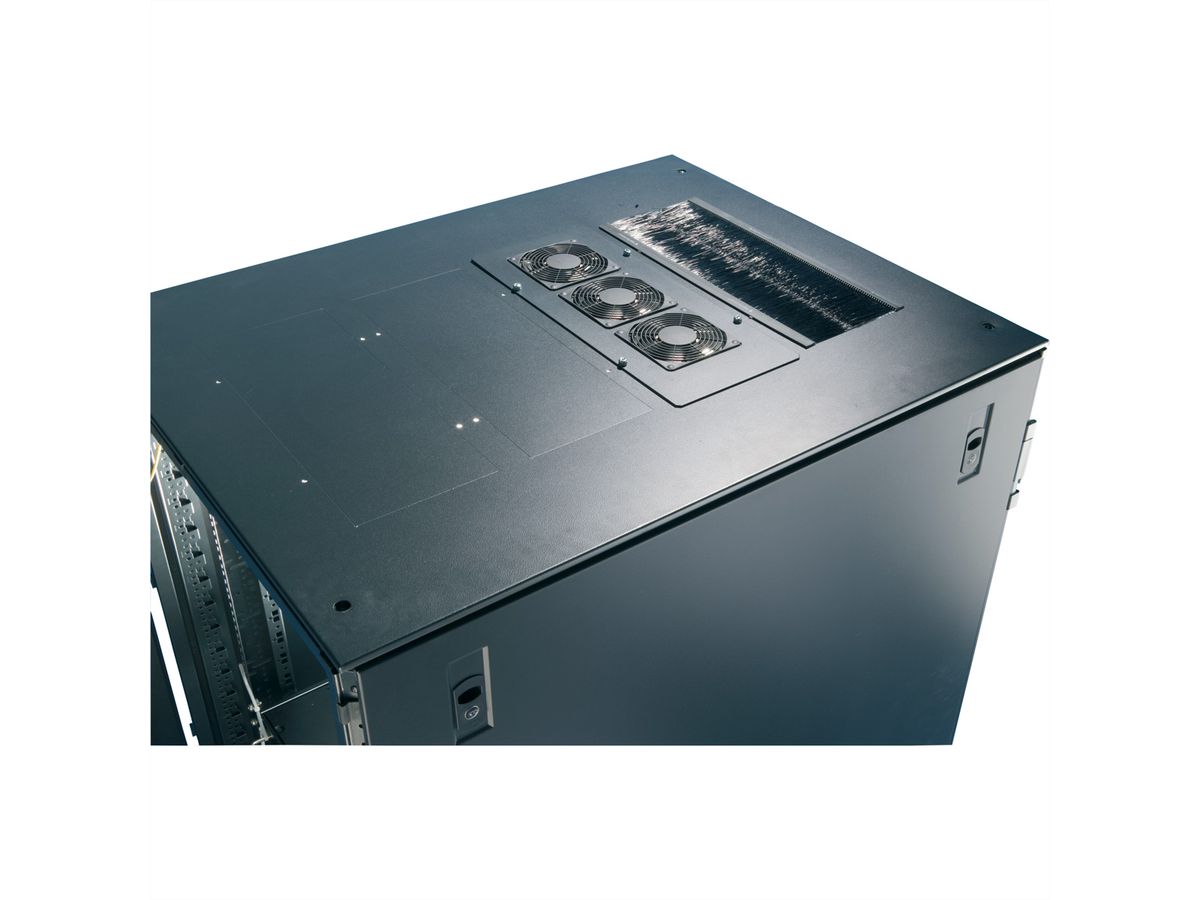

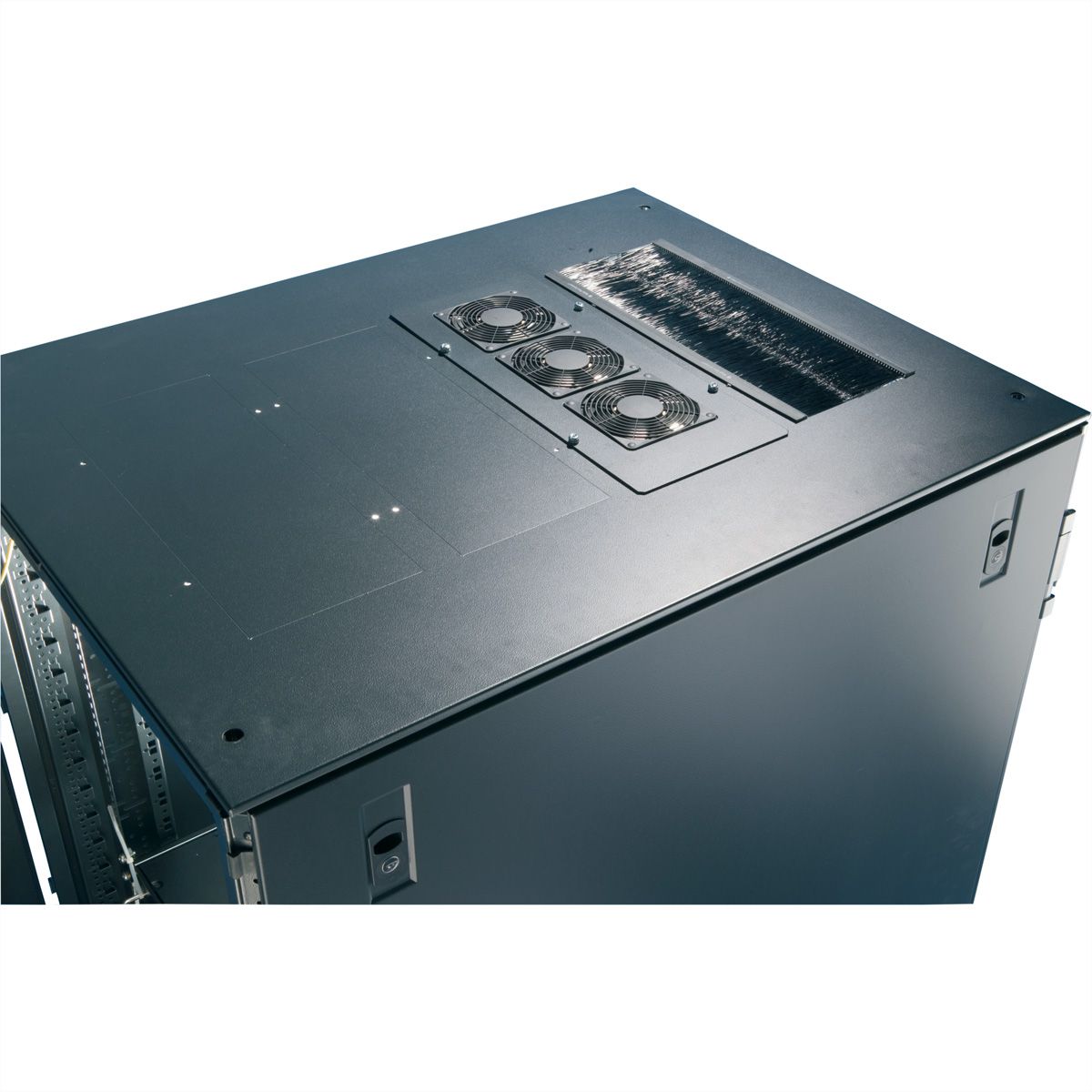

- Fan insert with IEC power connection for VARISTAR enclosures with flat roof (from 42 U) - Kit with three fans - Mounted at the top of the flat roof - Note: - Located completely inside the enclosure, no roof attachment
Specifications
- Manufacturer
- SCHROFF
- Product group
- 19"-/10"-Cabinet ventilation
- Product type
- 19"-/10"-Cabinet ventilation
- Colour
- grey
- Scope of delivery
- Kit with fan insert, 3 fans with protective grille and fixing material
- Quantity of fans
- 3
- RPM-regulated fan
- no
- Air flow (m³/h)
- 162
- Fan module
- yes
- Voltage fan
- 230 V
- Fan power consumption
- 3x 15 W
- Protection class (IP Code)
- IP20
- RAL colour
- RAL 7021 Black grey
- Height
- 38 mm
- Width
- 449 mm
- Depth
- 170 mm
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 270 mm
- Depth of packaging (single piece)
- 620 mm
- Package weight (single piece)
- 3.662 kg
