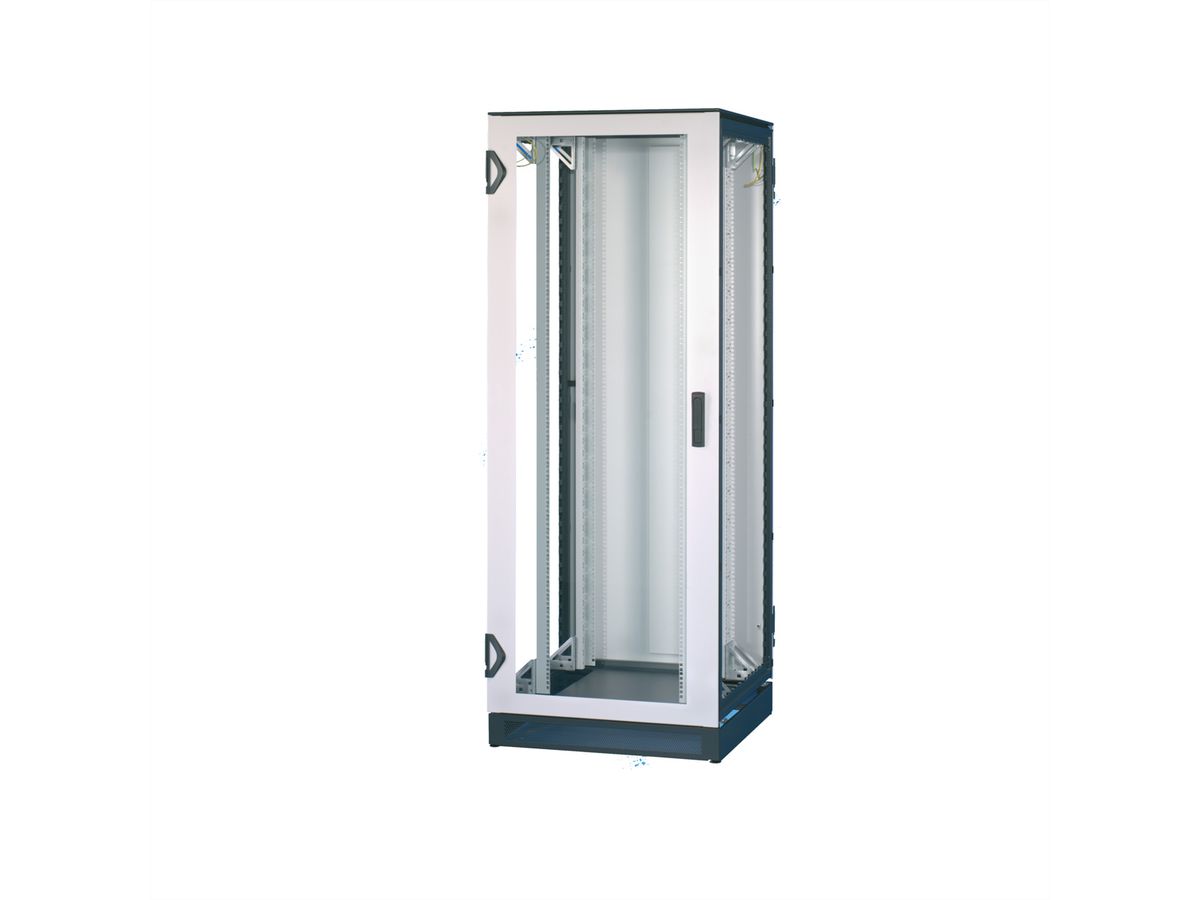

SCHROFF Varistar NET Plus Cabinet, RAL 7035, Side-by-Side, 47 U, 2200H, 800W, 800D

Item no. 26100509 Brand / Manufacturer SCHROFF Manuf. item no. 10130115 EAN 4036088120930 Item weight 140 kg

SCHROFF Varistar NET Plus Cabinet, RAL 7035, Side-by-Side, 47 U, 2200H, 800W, 800D

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/24/2026

This item is transported on a pallet; additional shipping costs will be charged!

Download PDF

Description

Varistar NET Plus enclosure, RAL 7035, bayable, 47 U, 2200 H, 800 B, 800 T

New enclosure series from SCHROFF: The VARISTAR NET Plus is a very flexible network enclosure in various designs. - With two 19" shelves and plinth - Static load capacity up to 400 kg - Baying cabinet without side panels, but with baying kit - Unique meander profile with many mounting options - Welded base frame made of steel profiles - Front door with safety glass, 180° hinge, 1-point locking and swivelling lever handle, Rear door made of sheet steel - otherwise the same - Plinth with ventilation panels at the front and rear and integrated levelling feet - Complete range of accessories - Colour: RAL 7035 (light grey) - Also available on request as a server enclosure with a load capacity of up to 800 kg - Also available in RAL 7021 (black grey) on request - Optional accessories: - 19" shelves 26. 10.0538 or 26.10.0539 - Sliding rails 26.10.00537 for heavy 19" shelves, max. 25 kg per shelf - Optional accessories: - 19" shelves 26.

26.10.0531, kit with three fans - Brush strip, nylon black, 26.10.00534 for cable entry via roof - Brush strip, nylon black, 26.10.00535 for cable entry through base plate - Cable eyelets: Plastic 100x100 26.10.0540, steel 100x100 26.10.0541, steel 100x180 26.10.0542 - Base plate for lateral cable entry 26.10.0537 - Fastening material 26.10.0530 consisting of 50 M5 cage nuts and M5 x 10 screws each

Specifications

Manufacturer: SCHROFF
Product group: 19"-/10"-Cabinet
Product type: 19"-Floor cabinet
Colour: grey
Modular spacing: 482.6 mm (19 inch)
Height units: 47 U
Maximum rack depth supported: 650 mm
Server cabinet: no
Socket: yes
Socket with tilt protection: no
Socket type: Cable entry possibility
Socket height: 100 mm

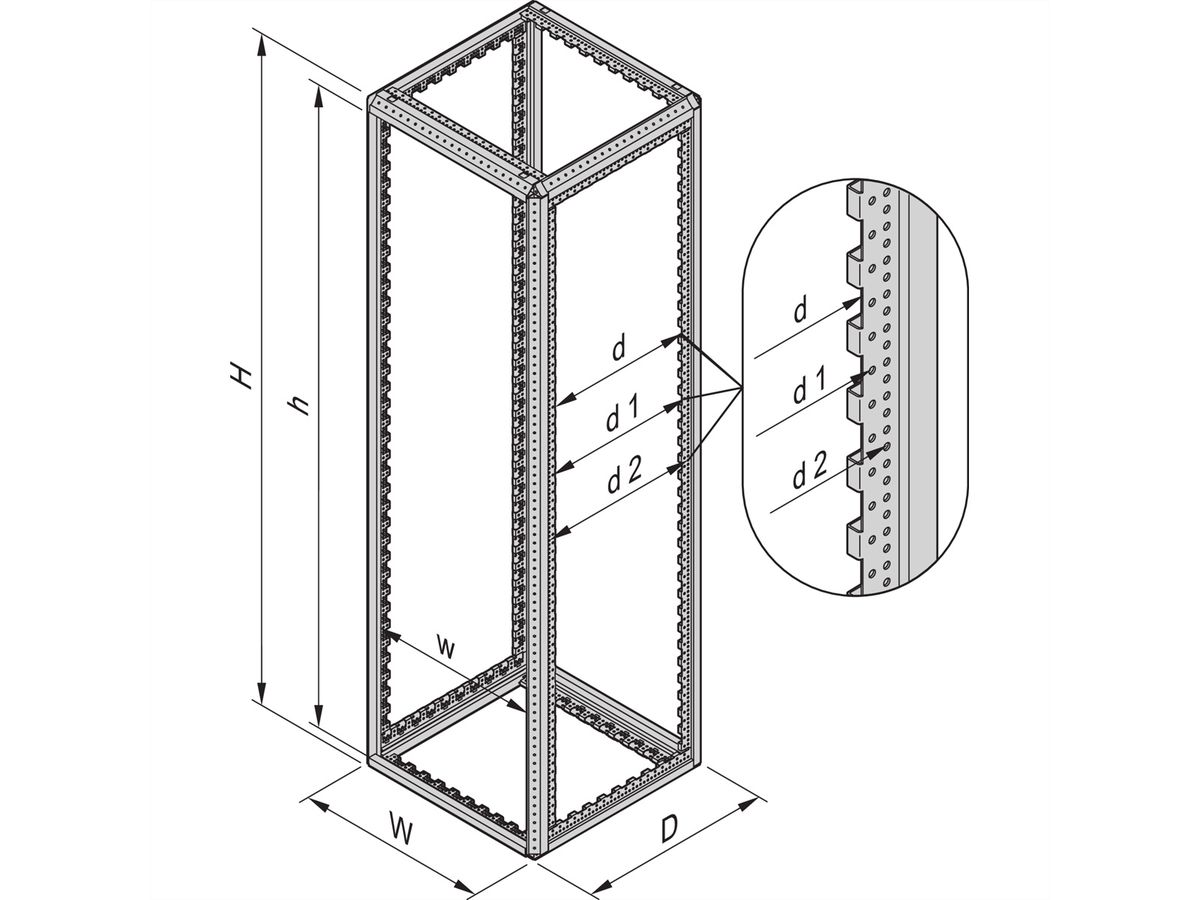

Dimensions (HxWxD) w/o socket: 2100 x 800 x 800 mm
Dimensions (HxWxD) with socket: 2200 x 800 x 800 mm
Socket plinth panel: partially
Adjustable feets: yes
Maximum weight capacity: 400 kg
Protection class (IP Code): IP20
Front: Glass door with frame
Backside: Steel door
Side panel: Not available
19" level: Ahead and behind
Roof: Cable entry possibility
Roof raised: no
Floor: Open
Ventilation: Passive
Fan ready: yes
Grounding set mounted: yes
Colour (Cabinet): RAL 7021 Black grey
Colour (Covering): RAL 7035 Light grey
RAL colour: RAL 7035 Light grey
Height: 2200 mm
Width: 800 mm
Depth: 800 mm
Height of packaging (single piece): 2300 mm
Width of packaging (single piece): 800 mm
Depth of packaging (single piece): 800 mm
Package weight (single piece): 140 kg
