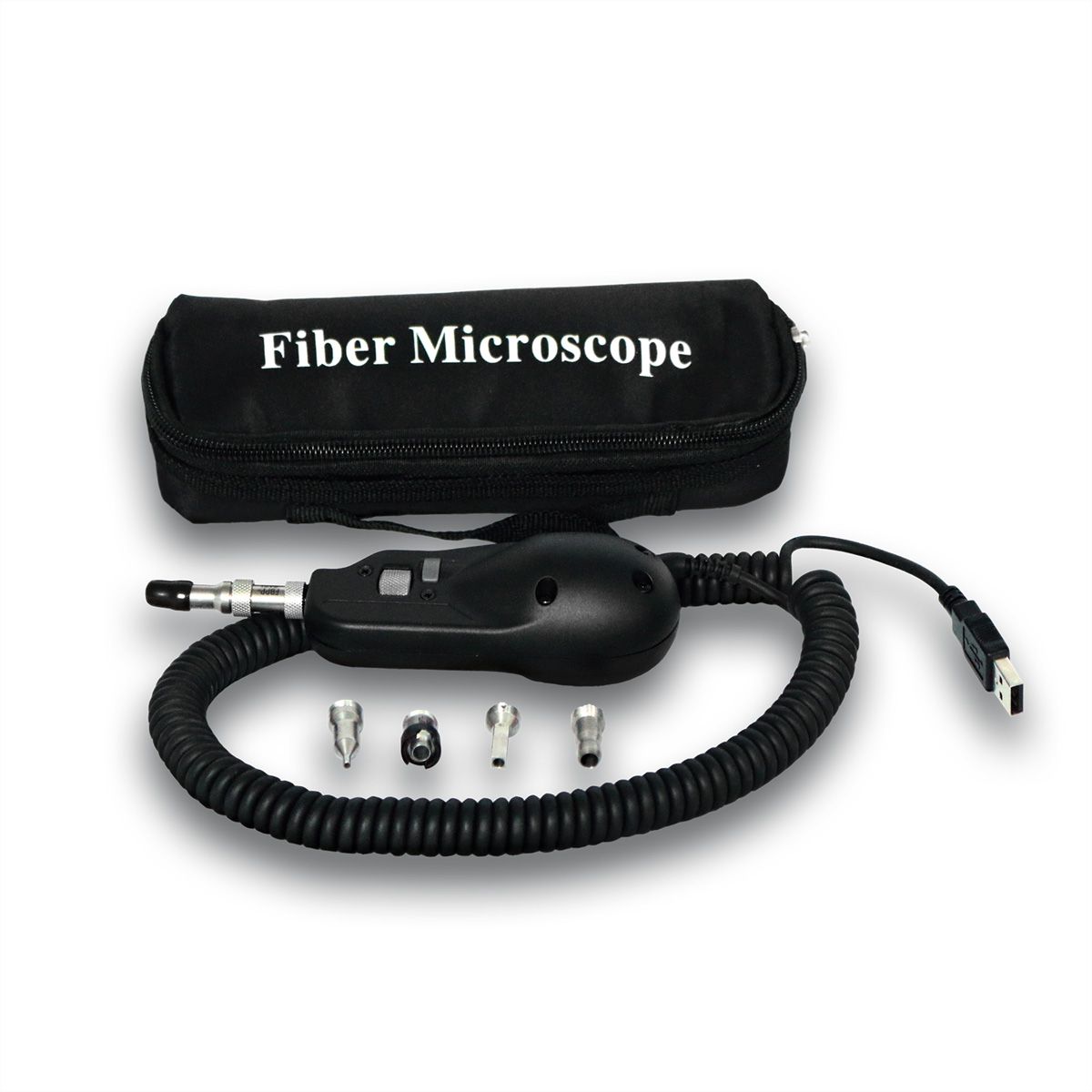

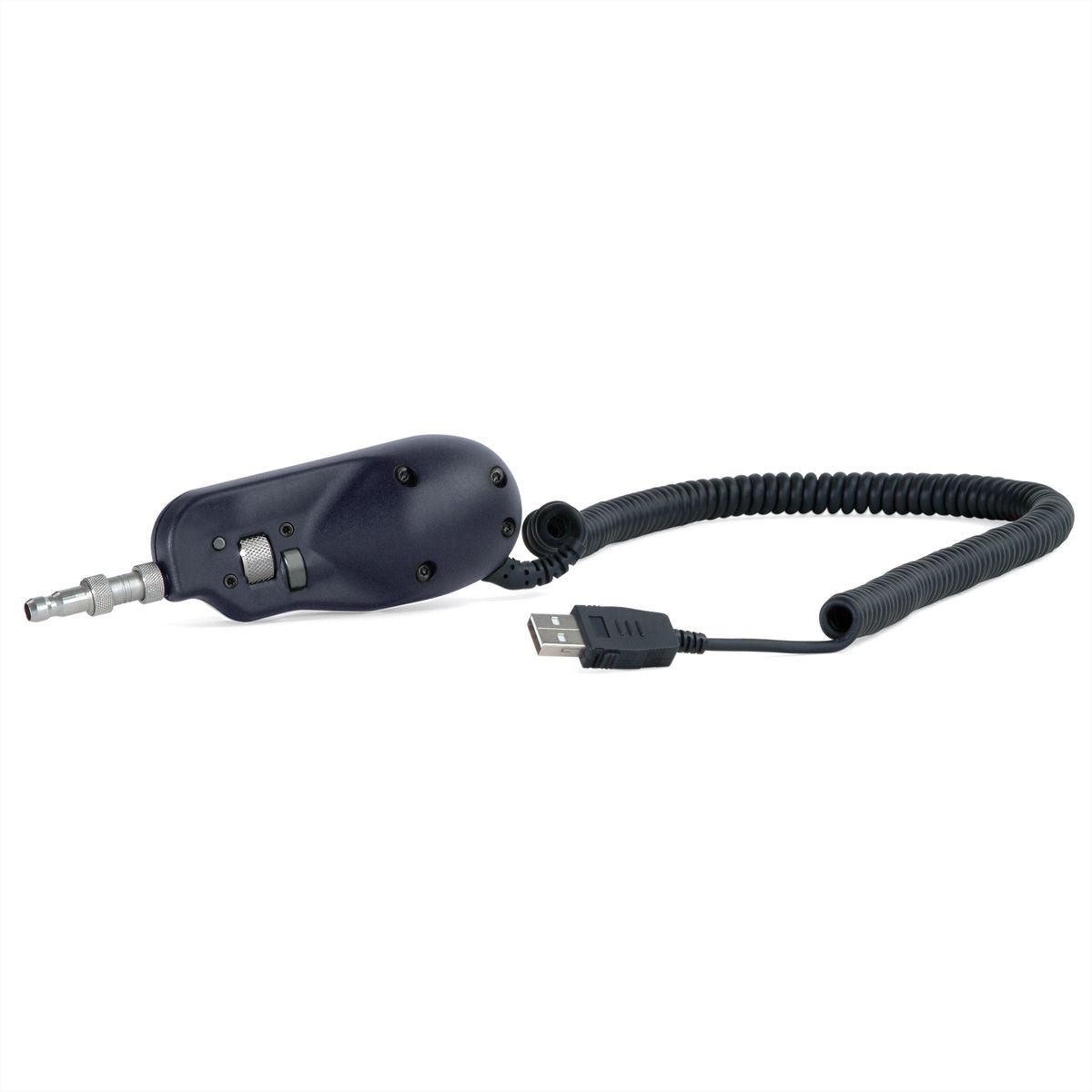

SOFTING Digital fiber microscope USB, WX_FX_INSP_KIT

Digital fiber microscope to inspect connector end-faces

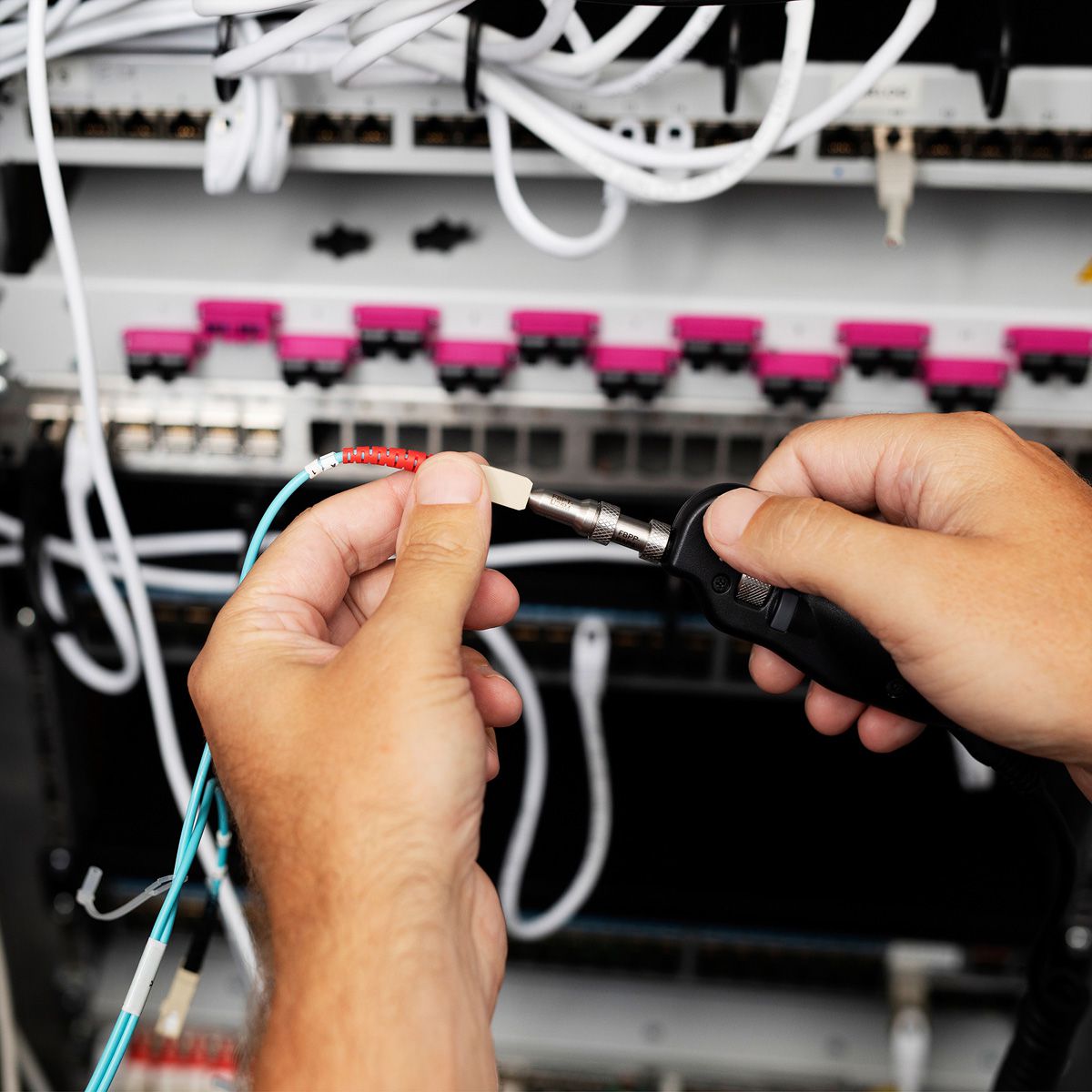

Before testing fiber-optic links and every time fiber optic connectors are mated, connector end-faces should be inspected and evaluated to avoid contamination that can cause degradation of network performance and destructive damage in the contact zone. The new fiber microscope provides for a quick and easy inspection of connector end-faces and an automated analysis compliant with IEC 61300-3-35.
The microscope is easily connected via USB with WireXpert or FiberXpert and the evaluation of connector end-faces can be added to the test reports.

• Inspection and evaluation of connector end-face at the touch of a button
• Automated analysis compliant with IEC 61300-3-35
• Ease of use and quick analysis
• Compatible with WireXpert and FiberXpert, NetXpert XG as well as LinkXpert M3

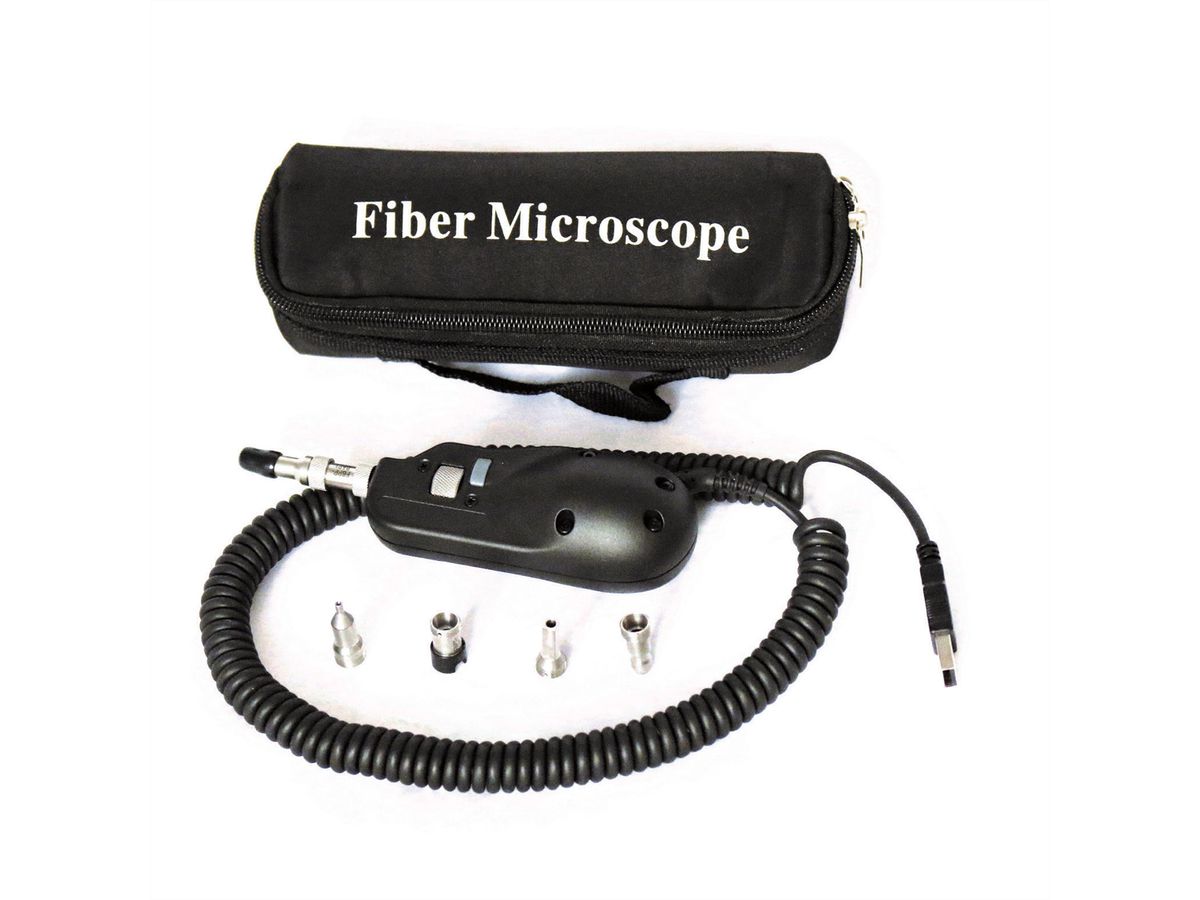

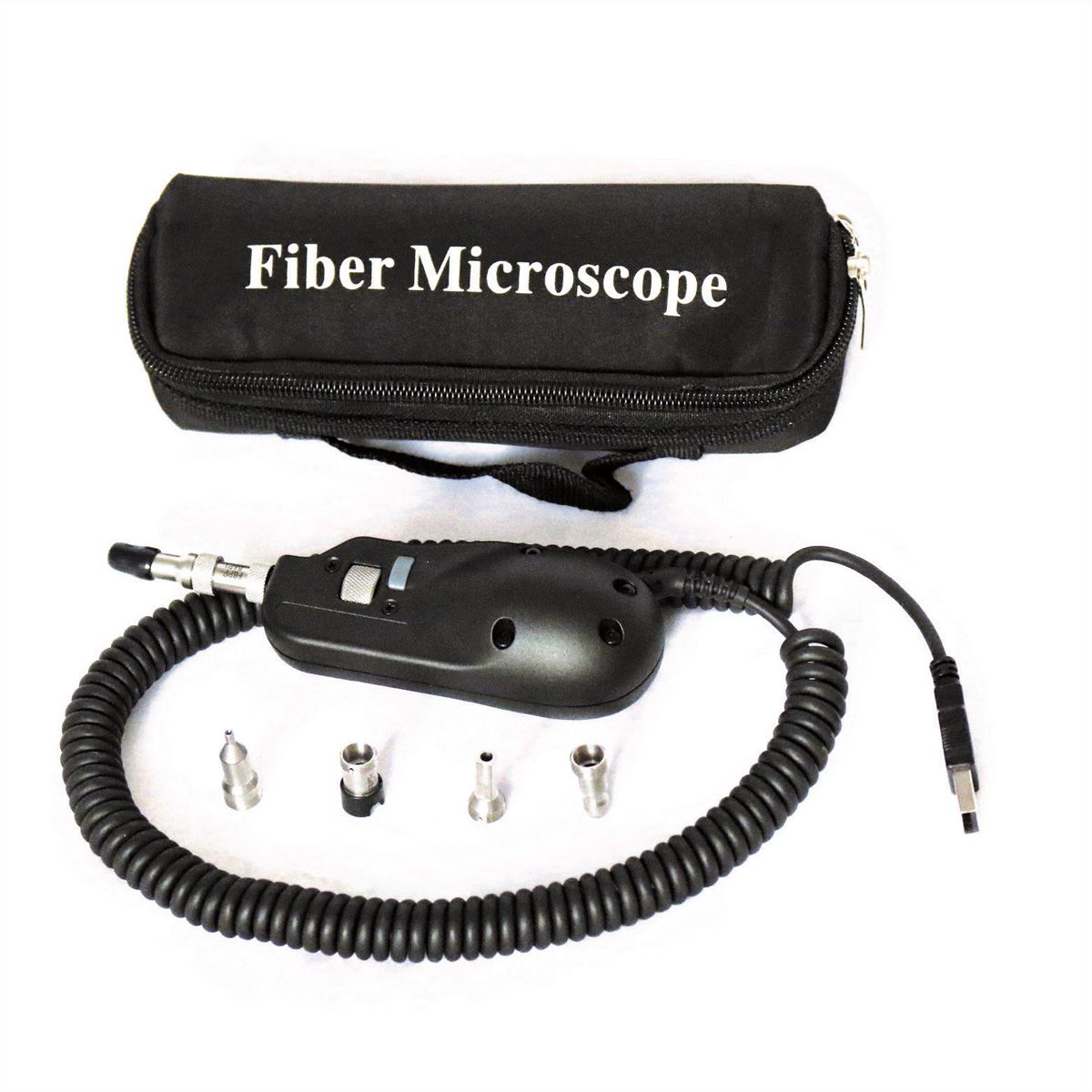

• Adapters for the most common fiber-optic connectors are included in the delivery

• Low mag field-of-view (FOV): Horizontal 740 μm, Vertical 550 μm
• High mag field-of-view (FOC): Horizontal 370 μm, Vertical 275 μm
• Live image: 640 x 480 fps
• Connector: USB 2.0 (backwards compatible to USB 1.1)
• Camera sensor: 2560 x 1920, 1/2.5-in CMOS
• Particle size detection: <1 μm
• Light source: Blue LED, 100,000+ hour life
• Accuracy: ±1 m ± 10-5 x distance ± sampling resolution (excluding group index uncertainties)
• Lighting technique: Coaxial
• Power source: USB Port
