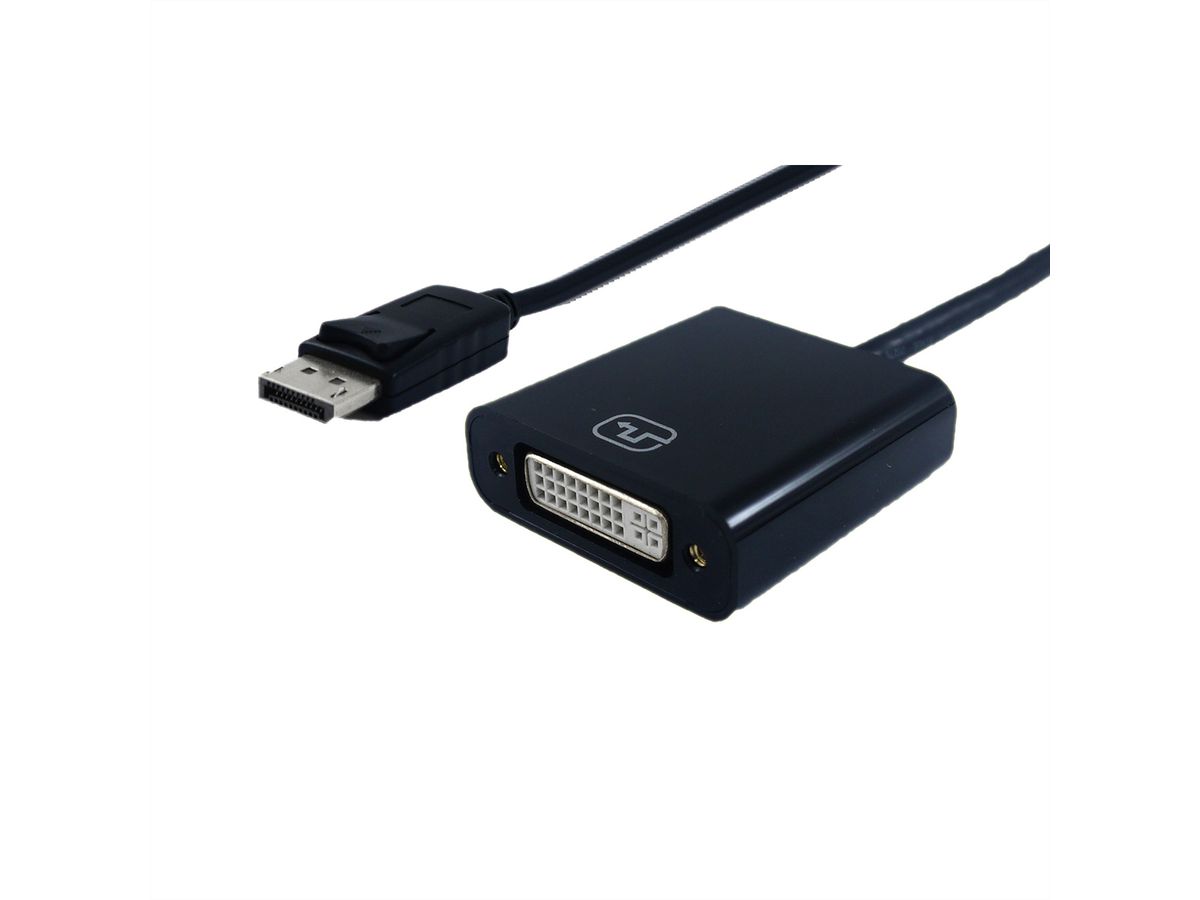

STANDARD Cableadapter, DP M - DVI F, 0.15 m

Item no. S3202 Brand / Manufacturer SECOMP Manuf. item no. S3202 EAN 7611990142545 Item weight 0.07 kg
SECOMP

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

DisplayPort to DVI cable adapter for connecting a graphics card with DP to a monitor with DVI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

  • If you want to connect a graphic card with DisplayPort Female to a monitor by using a DVI cable, you need this DisplayPort to DVI adapter
  • Connectors: DisplayPort Male, DVI Female
  • Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer
SECOMP
Product group
Adapters, Terminators, Converters
Product type
DisplayPort-DVI Adapter
Colour
black
Length
0.15 m
Max. resolution
1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)
DisplayPort Stecker
Side 2 connection (Peripherals)
DVI F
Side 1 Connector Type
DisplayPort
Side 1 Connector Gender
Male
Side 2 Connector Type
DVI-D 24+1, Dual-Link
Side 2 Connector Gender
Female
Area of application
External
Height
14 mm
Width
44 mm
Depth
44 mm
Weight
42.4 g
Height of packaging (single piece)
170 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
150 mm
Package weight (single piece)
0.07 kg

Downloads

Technical drawing (128.6 KB)
