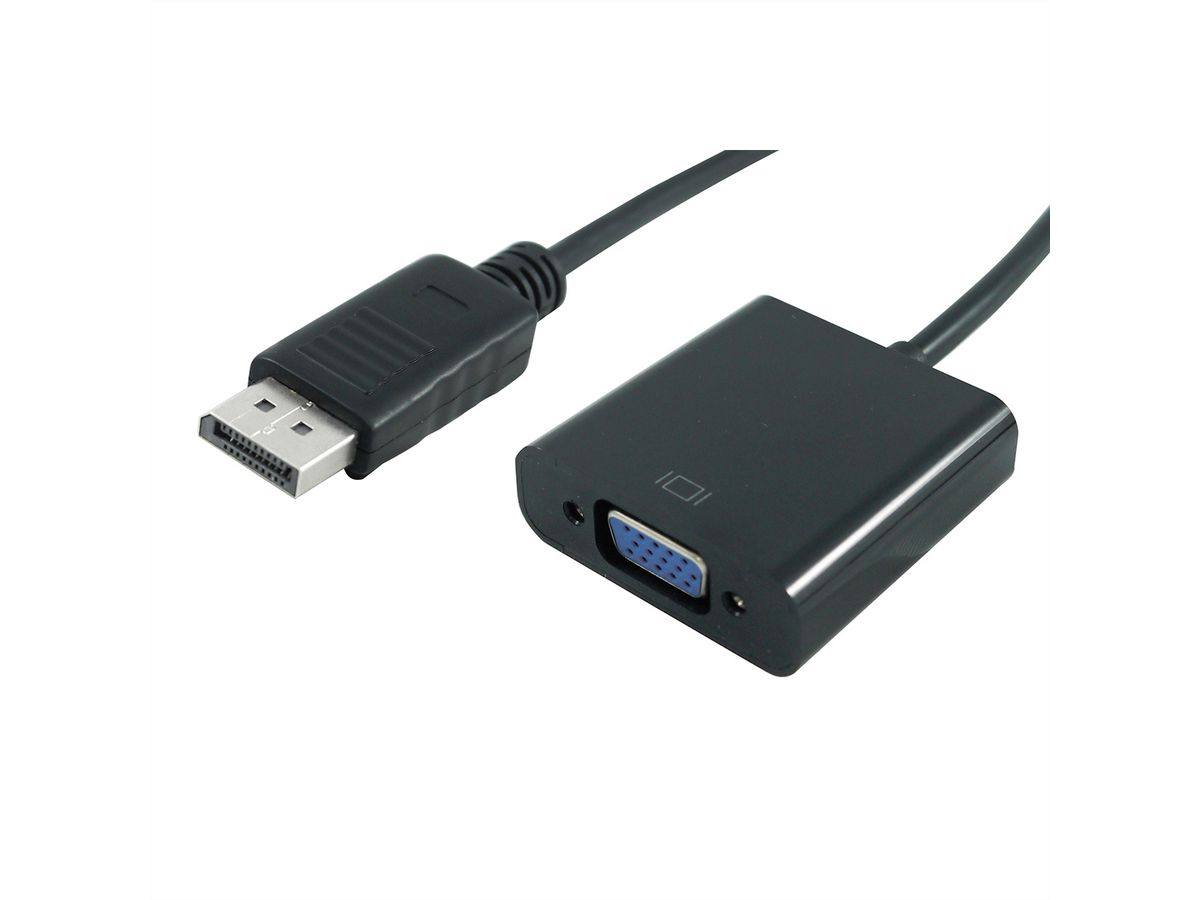

STANDARD Cableadapter, DP M - VGA F

Item no. S3201 Brand / Manufacturer SECOMP Manuf. item no. S3201 EAN 7611990142477 Item weight 0.5 kg
SECOMP

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

DisplayPort to VGA cable adapter for connecting a graphics card with DP to a monitor with VGA connector - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

  • For connecting a graphic card with DisplayPort connector to a VGA monitor by using a VGA M-M cable
  • Connectors: DisplayPort Male and VGA Female
  • Cable length: ca. 20 cm
  • Remark: The DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer
SECOMP
Product group
Adapters, Terminators, Converters
Product type
DisplayPort-VGA Adapter
Colour
black
Length
0.15 m
Max. resolution
1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)
DisplayPort Male
Side 2 connection (Peripherals)
VGA Female
Side 1 Connector Type
DisplayPort
Side 1 Connector Gender
Male
Side 2 Connector Type
HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender
Female
Area of application
External
Operating temperature min.
0 °C
Operating temperature max.
55 °C
Height
14 mm
Width
44 mm
Depth
44 mm
Weight
33.4 g
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.5 kg

Downloads

Technical drawing (137.2 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


SECOMP Electronic Components GmbH
Einsteinstrasse 17-23, 76275 Ettlingen, Germany
