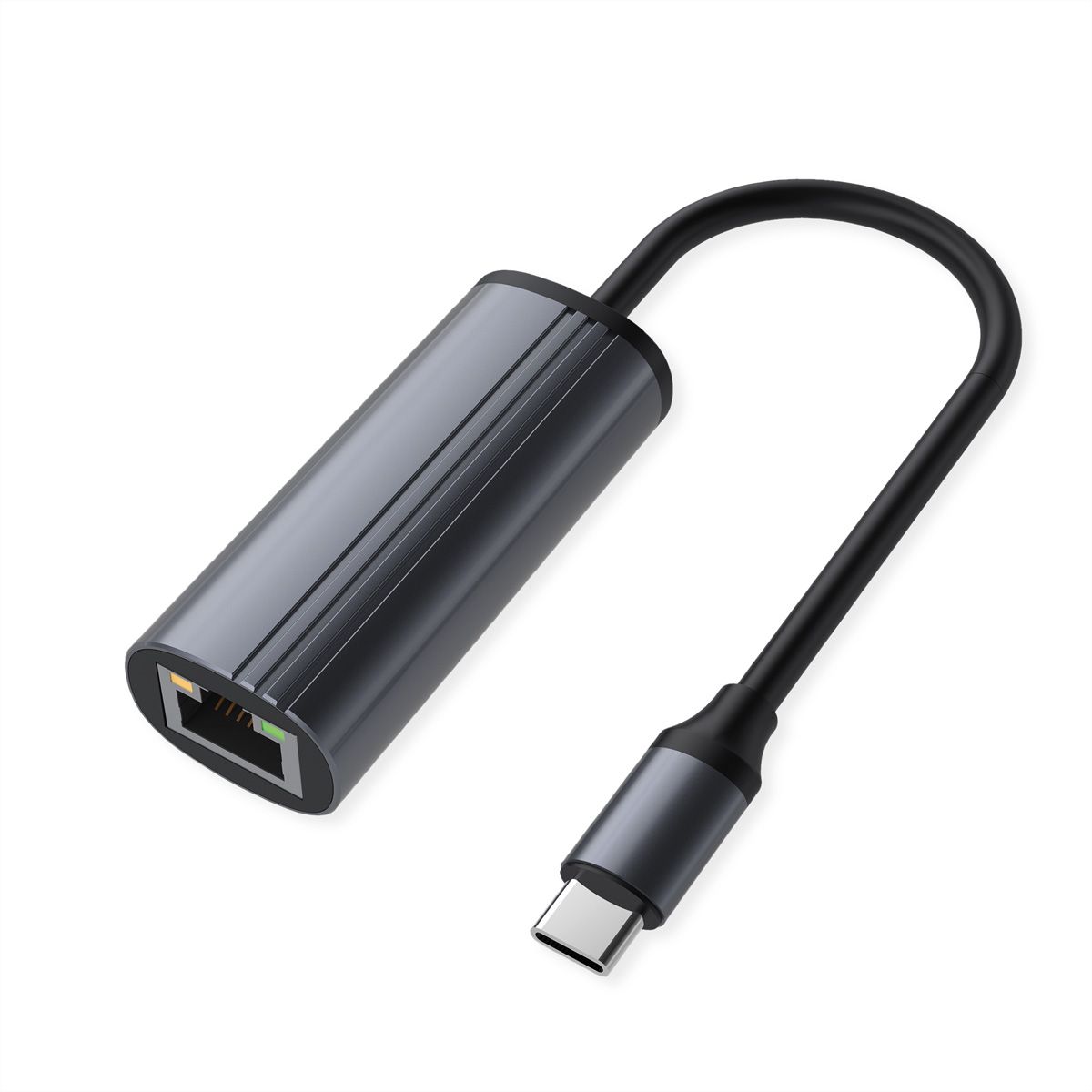

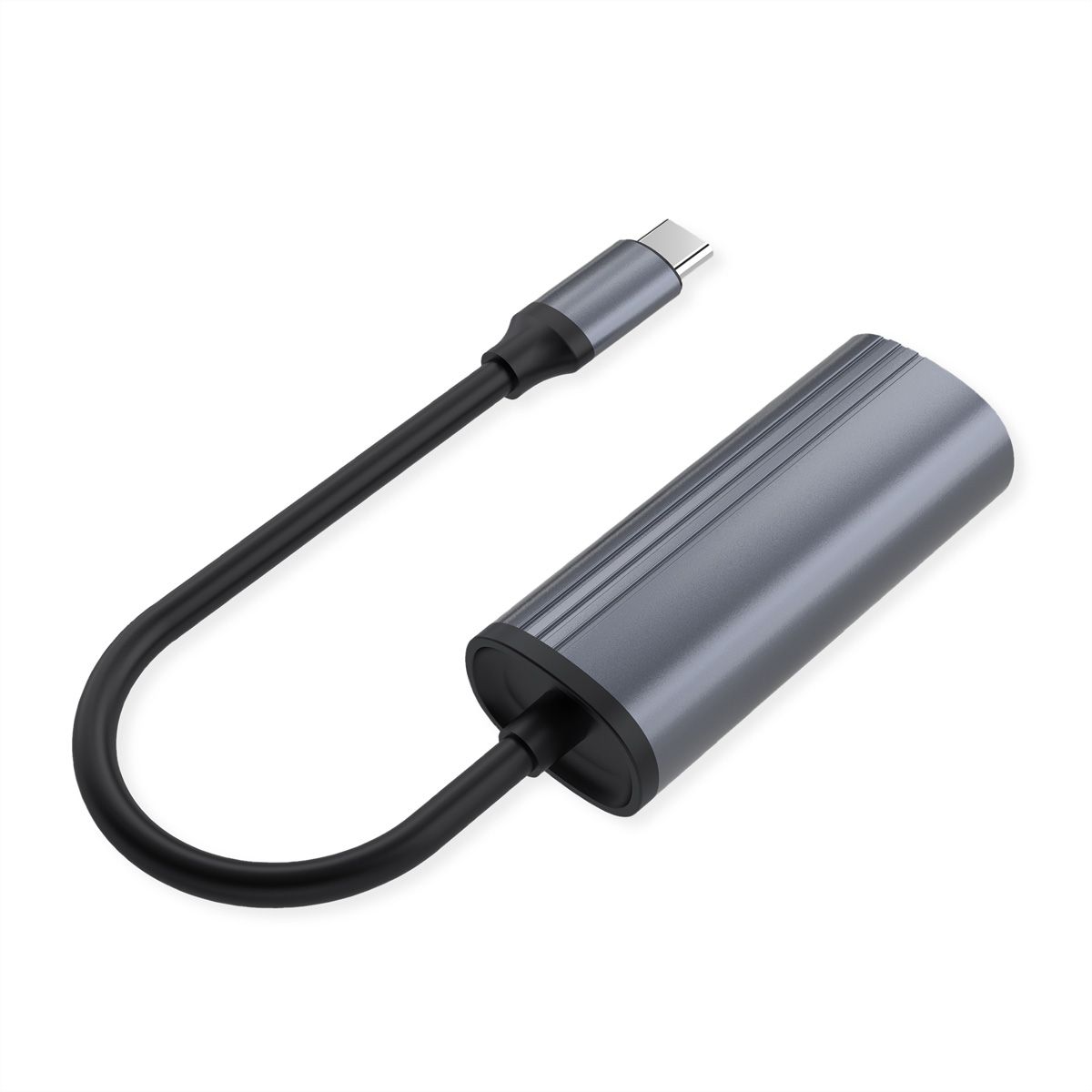

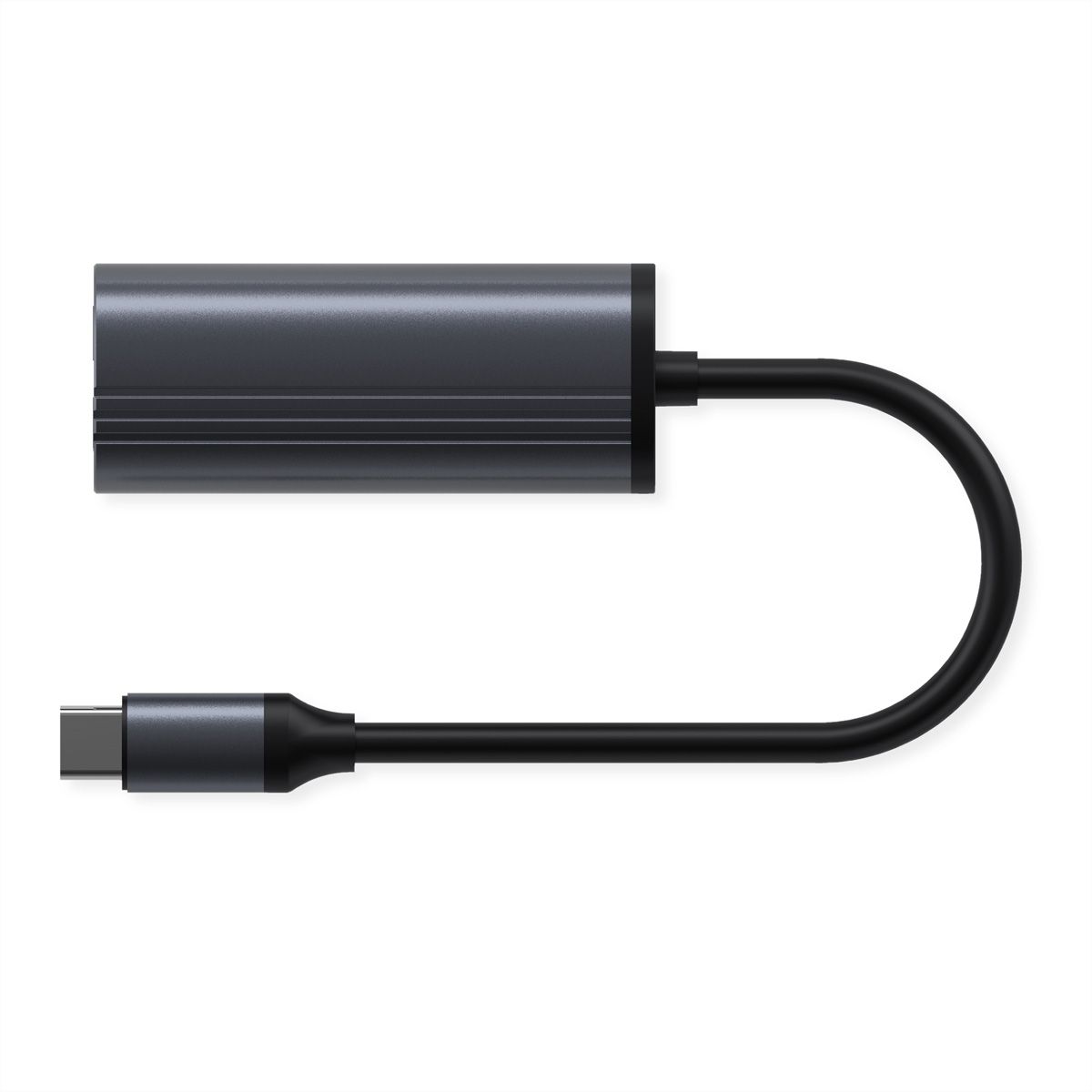

STANDARD USB 3.2 Gen 1 Type C to 2.5 Gigabit Ethernet Converter
Item no.
11551433
Brand / Manufacturer
SECOMP
Manuf. item no.
11.55.1433
EAN
7630049643895
Item weight
0.02 kg
:strip_icc():strip_exif()/logos/secomp.png "SECOMP")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

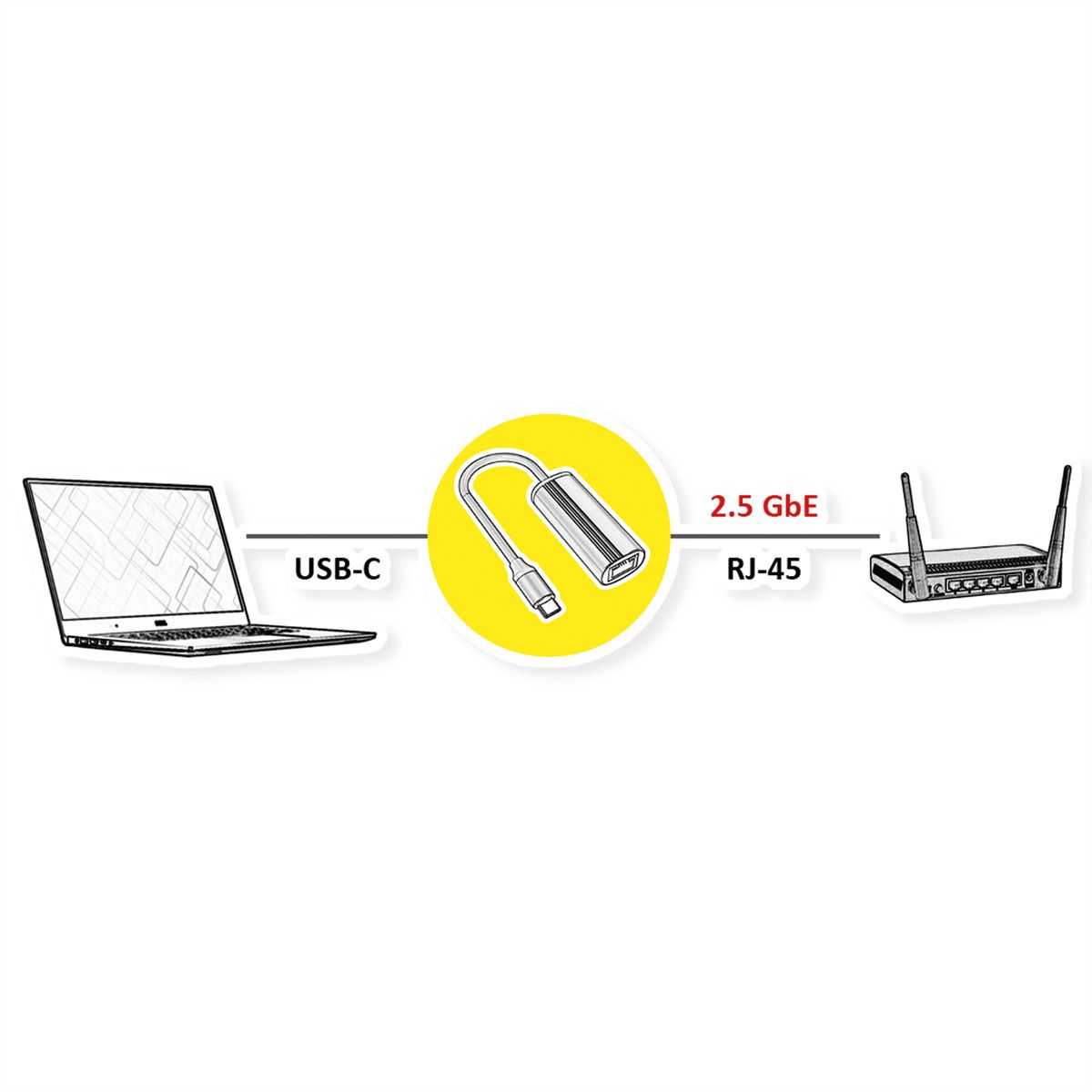

With this converter you can connect your PC or notebook with USB Type C interface to a network with up to 2.5 Gigabit Ethernet.
- Supports USB 3.2 Gen 1, backwards compatible to USB 3.1 / USB 3.0 / USB 2.0
- Easy installation - just plug the converter into the USB port, connect the LAN cable - done!
- Bus Powered - no external power supply required
- USB Type C connector
- Supports 2.5 Gigabit Ethernet with Auto Negotiation, Auto MDI/-MDIX and Half/Full Duplex
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
- Manufacturer
- SECOMP
- Product group
- Network adapters
- Product type
- Gigabit Ethernet Converter
- Colour
- black
- Length
- 15 cm
- Scope of delivery
- Converter, manual
- BUS system
- USB
- Network standard
- 2.5 Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000/2500
- Quantity of ports
- 1
- Connection ports
- 1x RJ-45 F, 1x USB 3.2 Type C M
- Side 1 Connector Type
- USB Type C (USB-C)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Female
- Full duplex
- yes
- Auto-Negotiation
- yes
- Wake on LAN
- yes
- Network topology
- Ethernet
- Technical particularity
- Link Activity
- Power supply
- Power supply via USB
- Weight
- 25 g
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 50 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.02 kg
Downloads
Product data sheet - English (44.0 KB)Product security
