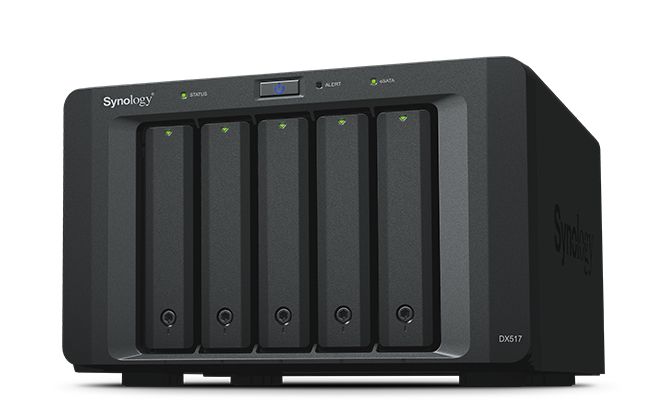

Synology DX517 disk array Desktop Black

Item no. 518991964 Brand / Manufacturer SYNOLOGY Manuf. item no. DX517-EW201 EAN 4711174722679
SYNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/24/2026

Description

Synology DX517. Chassis type: Desktop. Device class: Small & Medium Business. Number of storage drives supported: 5, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Width: 248 mm, Depth: 233 mm, Height: 157 mm, Weight: 3.91 kg. Product colour: Black

Effortless capacity expansion for Synology DiskStation1 solutions on-the-fly5-bay 3.5"/2.5" SATA expansionEasily add 5 additional drive bays to Synology DiskStation1. Supporting both 2.5" and 3.5" SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.Online volume expansionManaged from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.Hot-swappable drive tray designThe hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.Dedicated local backup solutionSynology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.

Specifications

Manufacturer
SYNOLOGY
Product type
Disk Arrays
Technical details
Sustainability certificates
RoHS
Ports & interfaces
USB connectivity
N
Thunderbolt technology
N
eSATA ports quantity
1
FireWire 800
N
Fibre Channel
N
InfiniBand
N
Weight & dimensions
Width
248 mm
Depth
233 mm
Height
157 mm
Weight
3.91 kg
Power
Power supply unit (PSU) capacity
200 W
Number of power supply units
1
Redundant power supply (RPS) support
N
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-10 - 70 °C
Storage
Storage drives installed
N
Installed storage drive type
N
Supported storage drive types
HDD & SSD
Number of storage drives supported
5
Supported storage drive interfaces
Serial ATA, Serial ATA II, Serial ATA III
Hot-swap drive bays
Y
Packaging content
Cables included
AC, eSATA
Design
Chassis type
Desktop
Internal
N
Product colour
Black
LED indicators
Y
Cable lock slot
Y
Cable lock slot type
Kensington
Number of fans
2 fan(s)
Noise level
21.5 dB
Built-in display
N
Key lock
Y
Certification
FCCCEBSMI
Performance
Device class
Small & Medium Business
Compatible products
DS1817+DS1517+DS918+DS718+DS1817DS1517NVR1218
