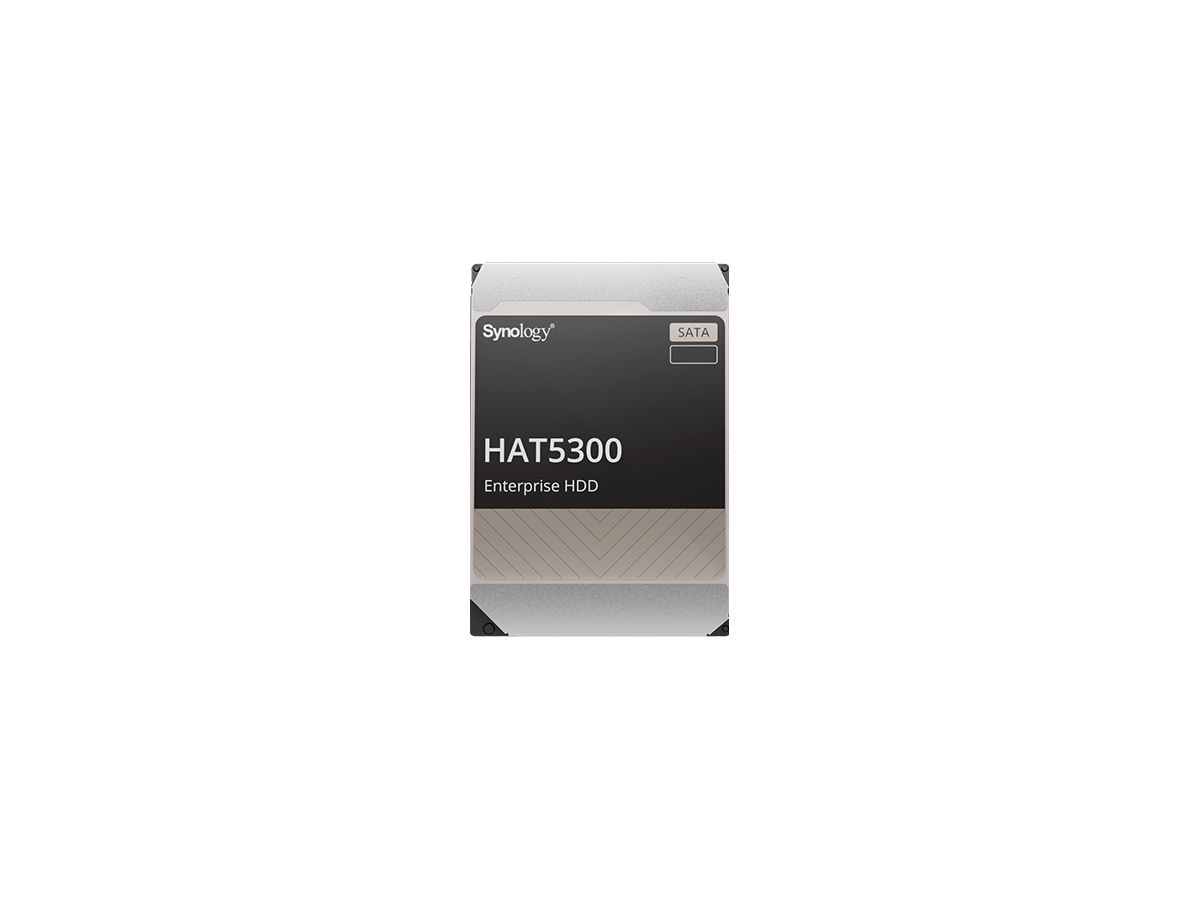

Synology HAT5300 3.5" 12000 GB Serial ATA III

Item no. 524794633 Brand / Manufacturer SYNOLOGY Manuf. item no. HAT5300-12T EAN 4711174724130
SYNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/06/2026

Description

Synology HAT5300. HDD size: 3.5", HDD capacity: 12000 GB, HDD speed: 7200 RPM

Enterprise storage drives for Synology systemsSynology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware. With over 300,000 hours of in-house validation testing and backed by Synology’s 5-year limited warranty, the HAT5300 series brings unmatched reliability to Synology deployments.Consistent performance scalingThrough testing and optimizations, HAT5300 series HDD has been tuned to deliver up to 23% higher sustained sequential read performance in demanding multi-user environments.Rigorous validationOver 300,000 hours of stress testing with Synology devices ensure that HAT5300 drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.Effortless firmware updatesAutomatic firmware updates through DSM mean that HAT5300 drives always benefit from the latest enhancements.Durability for 24/7 environmentsHAT5300 series HDD is backed by a 2.5 million hour MTTF rating, workload support of 550 TB per year, and persistent write cache technology to minimize data corruption in the event of sudden power loss.5-year warrantyAt Synology, we are committed to product innovation and quality. HAT5300 drives are backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment.

Specifications

Manufacturer
SYNOLOGY
Product type
Internal Hard Drives
Storage capacity
12000 GB
Hard disk size
3.5"
Technical details
Sustainability certificates
CE, RoHS
Weight & dimensions
Width
101.8 mm
Height
26.1 mm
Depth
147 mm
Weight
720 g
Power
Power consumption (read)
7.83 W
Power consumption (write)
7.83 W
Power consumption (idle)
4.25 W
Operating voltage
5 / 12 V
Operational conditions
Operating temperature (T-T)
5 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating vibration
0.75 G
Non-operating vibration
3 G
Operating altitude
-305 - 3048 m
Non-operating altitude
-305 - 12192 m
Operating shock
70 G
Non-operating shock
250 G
Features
HDD size
3.5"
HDD capacity
12000 GB
HDD speed
7200 RPM
Interface
Serial ATA III
Type
HDD
Component for
Server/workstation
Storage drive buffer size
256 MB
HDD interface transfer rate
6 Gbit/s
HDD sustained transfer rate
242 MiB/s
24/7 operation
Y
Workload rate limit
550 TB/year
Mean time to failure (MTTF)
2500000 h

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Synology GmbH
Grafenberger Allee 295, 40237 Düsseldorf, Germany
infosynology.com
