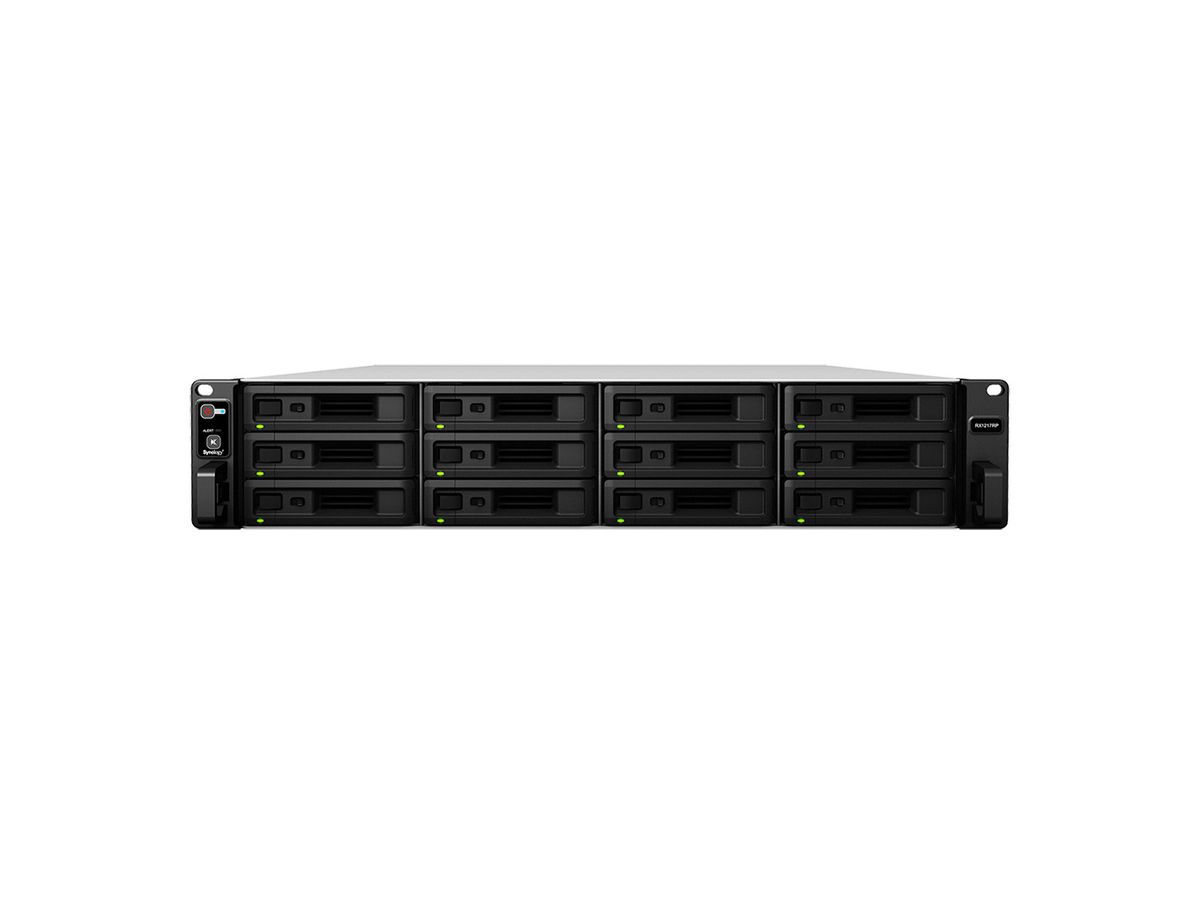

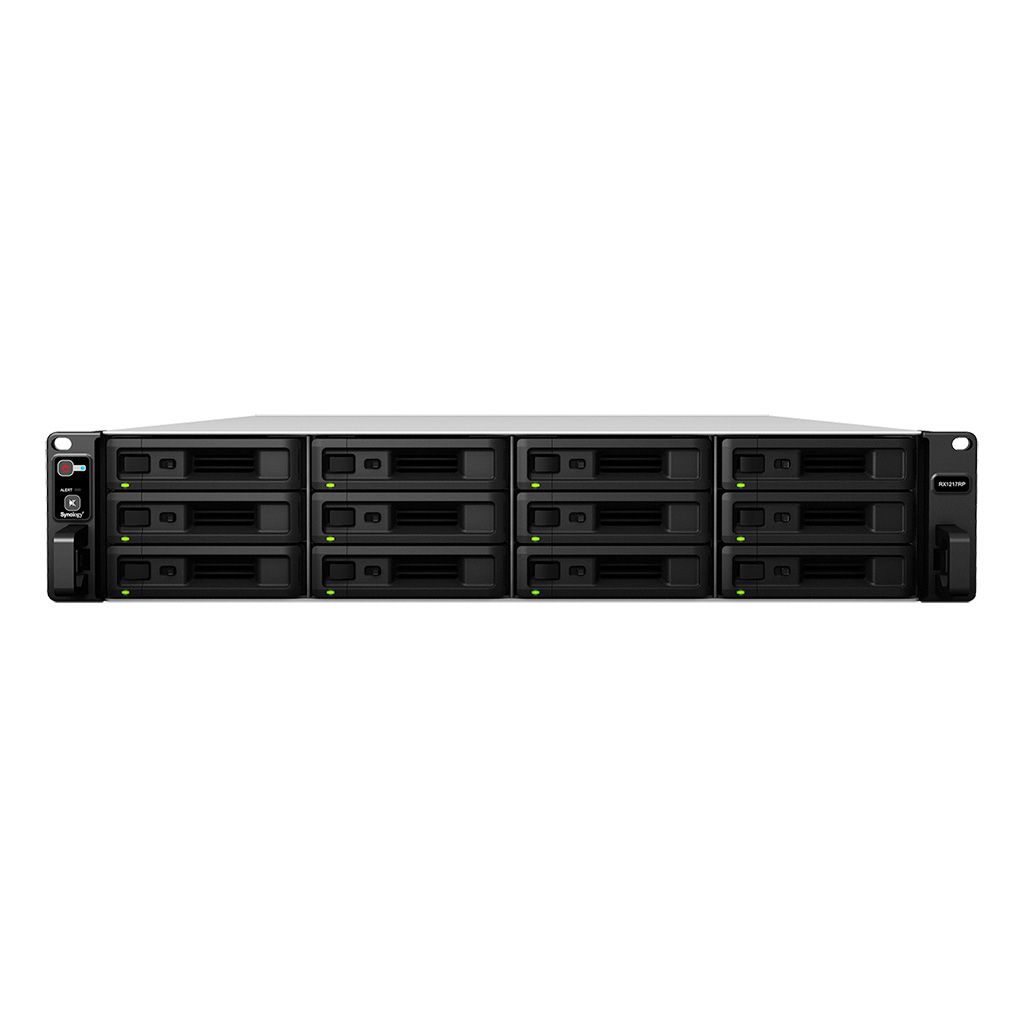

Synology RX1217 Rack (2U) Black disk array

Item no. 517477985 Brand / Manufacturer SYNOLOGY Manuf. item no. RX1217 EAN 4711174722303
SYNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/25/2026

Description

Synology RX1217. Supported storage drive types: HDD, SSD, Maximum supported storage capacity: 120 TB, Storage drive interface: Serial ATA III. Chassis type: Rack (2U), Colour of product: Black, Number of fans: 3 fan(s). Compatible products: Synology RS3617xs. Power supply unit (PSU) capacity: 500 W, Power consumption (typical): 68.6 W, AC input voltage: 100-240. Width: 430.5 mm, Depth: 664 mm, Height: 88 mm

Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations. Volume expansion & backup When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail. When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations. Reliable plug-and-use design Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance. Green & easy to manage Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Specifications

Manufacturer
SYNOLOGY
Product type
Disk Arrays
Ports & interfaces
InfiniBand
Y
Weight & dimensions
Width
430.5 mm
Depth
664 mm
Height
88 mm
Weight
12.7 kg
Power
Power supply unit (PSU) capacity
500 W
Number of power supply units
1
Power consumption (typical)
68.6 W
AC input voltage
100-240
AC input frequency
50/60
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-20 - 60 °C
Storage
Storage drives installed
N
Installed storage drive type
N
Supported storage drive types
HDD, SSD
Number of storage drives supported
12
Maximum supported storage capacity
120 TB
Storage drive interface
Serial ATA III
Storage drive size
2.5/3.5"
Data transfer rate
6 Gbit/s
Hot-swap drive bays
Y
Packaging content
Cables included
AC, InfiniBand
Design
Chassis type
Rack (2U)
Colour of product
Black
Number of fans
3 fan(s)
Noise level
54.6 dB
RoHS compliance
Y
Certification
FCC A, CE A, BSMI A
Performance
Compatible products
Synology RS3617xs
