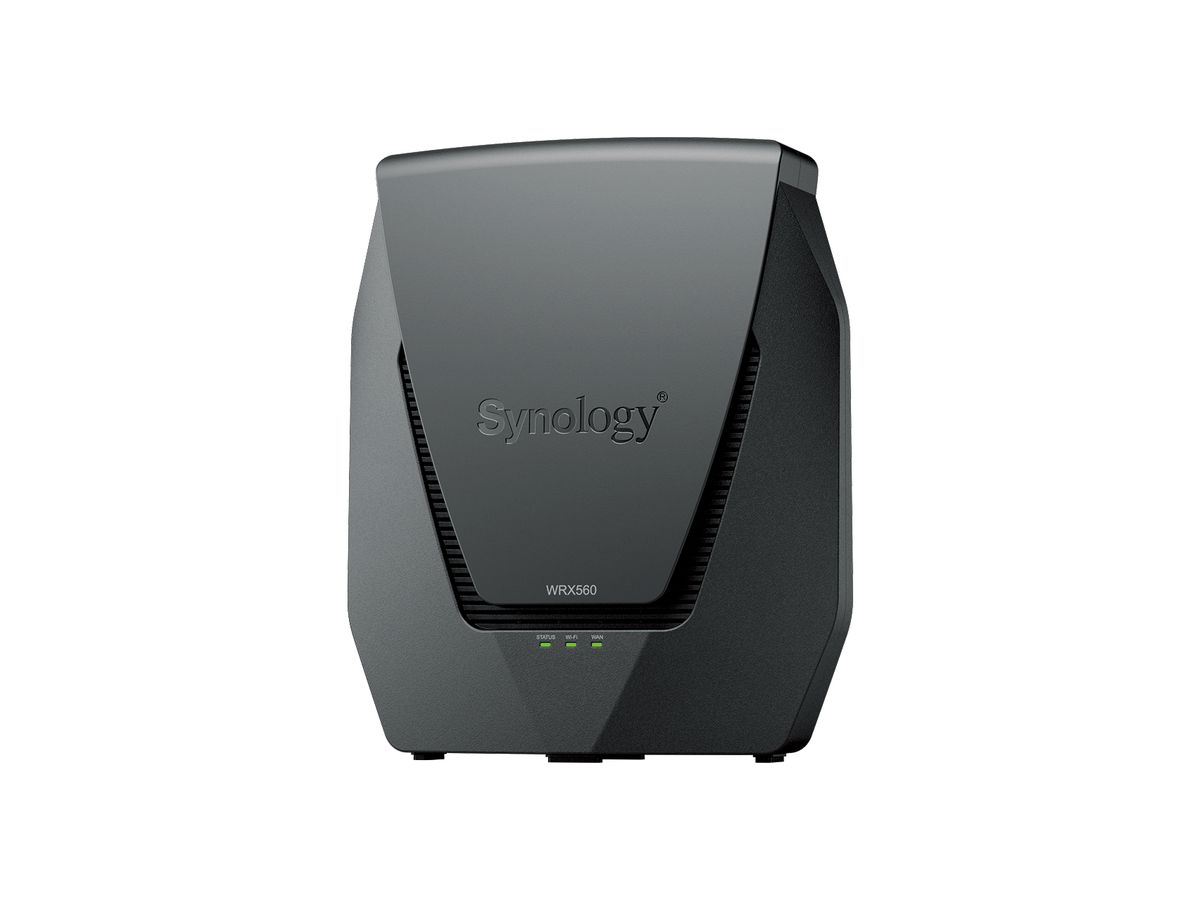

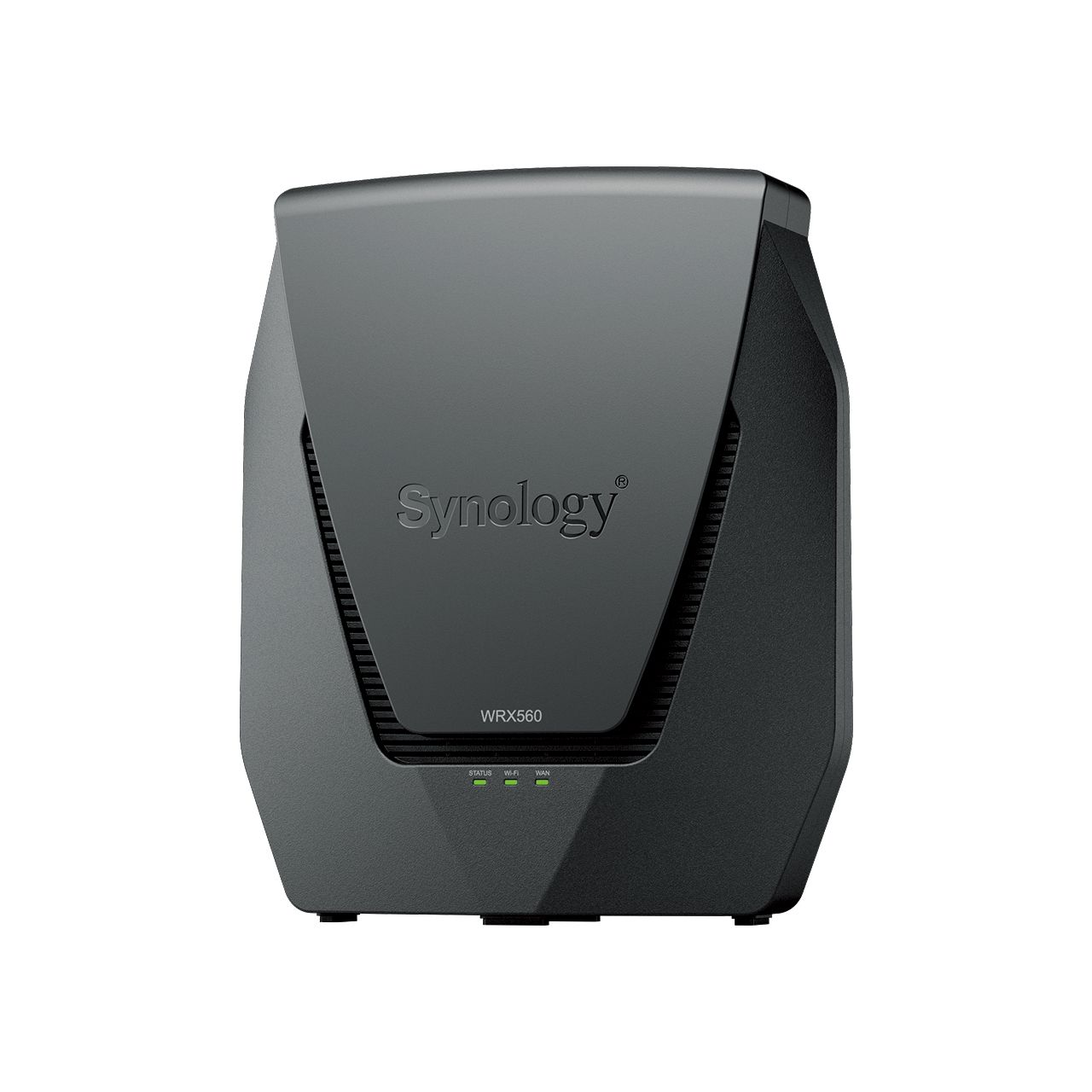

Synology WRX560 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Item no. 527399903 Brand / Manufacturer SYNOLOGY Manuf. item no. WRX560 EAN 4711174724970
SYNOLOGY

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Download PDF

Description

Synology WRX560. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000,2500 Mbit/s, Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA, WPA2, WPA2-Enterprise, WPA3-Enterprise. Product colour: Black, LED indicators: Power, WPS

Specifications

Manufacturer
SYNOLOGY
Product type
Wireless Routers
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB port
Y
Weight & dimensions
Width
233 mm
Depth
194 mm
Height
66 mm
Weight
1.35 kg
Power
Power source type
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
10.8 W
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Protocols
DHCP client
Y
DHCP server
Y
Network
Ethernet LAN
Y
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
1000,2500 Mbit/s
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Policy-based routing
Y
Static route
Y
Security
Security algorithms
WPA, WPA2, WPA2-Enterprise, WPA3-Enterprise
DMZ support
Y
Wireless LAN features
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)
2400 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)
600 Mbit/s
Packaging content
AC adapter included
Y
Quick installation guide
Y
Antenna
Antenna design
Internal
Design
Product colour
Black
LED indicators
Power, WPS
Features
Built-in processor
Y
Processor frequency
1.4 MHz
Internal memory
512 MB
Internal memory type
DDR4
Number of simultaneously connected devices (max)
150
WAN connection
Ethernet WAN
Y
DSL WAN
N
SIM card slot
N
3G/4G USB modem compatibility
N
WAN connection type
RJ-45
Sustainability
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA
