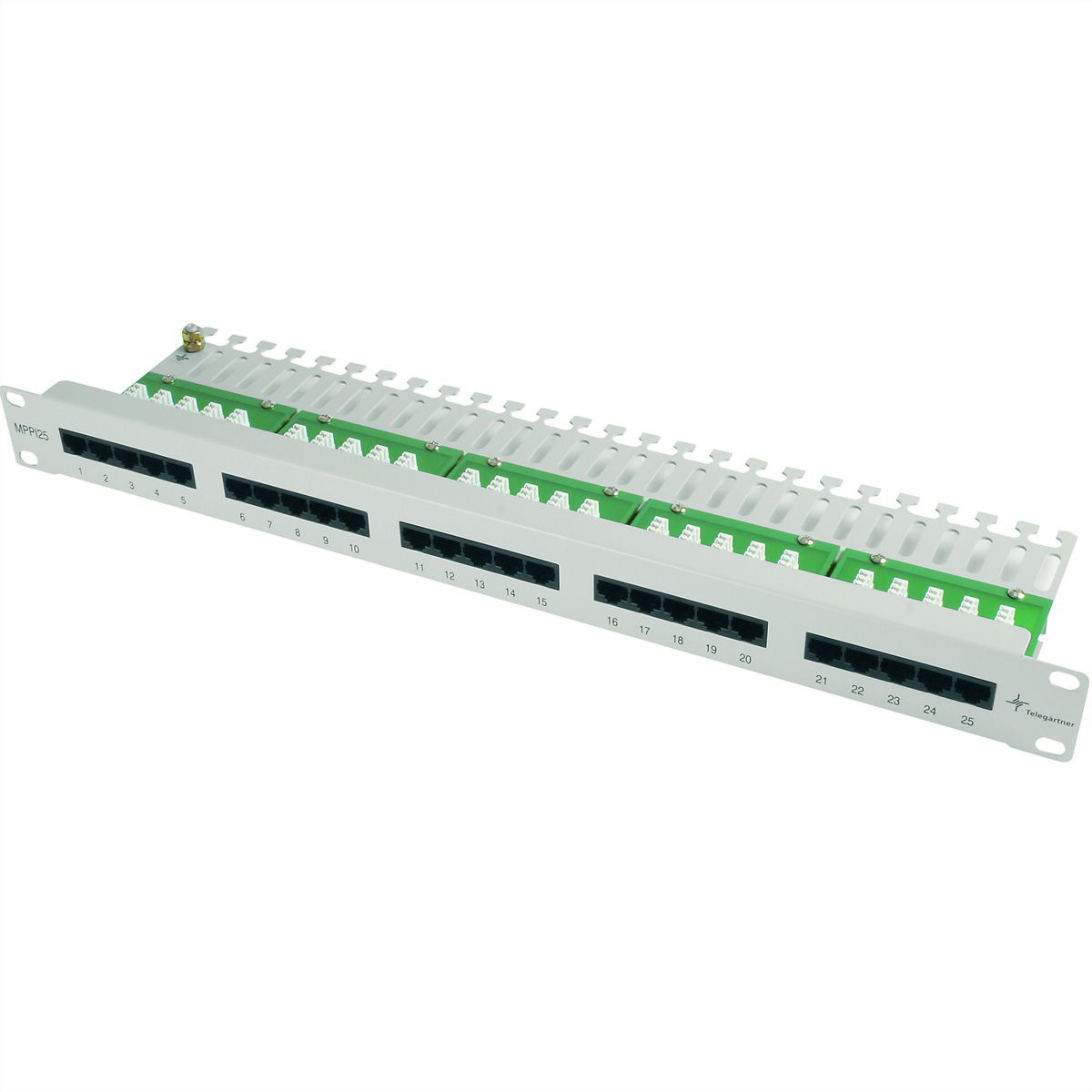

TELEGÄRTNER 19" Patch Panel, ISDN/TEL, 1HU, MPPI25-H ISDN/TEL w/o cabman gr

Item no. 26110157 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100007031 EAN 4018359290641 Item weight 1.281 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

CU-PP MPPI25-H ISDN/TEL w/o cabman grey

  • 19" rack mount unit 1 HU with 25, 30 or 50 RJ45 jacks assembled on one common PCB
  • wire termination via IDC (LSA-Plus) terminals
  • modular jacks are numbered on the front panel
  • housing made of steel, light grey (RAL 7035) powder-laminated
  • strain relief by common cable ties (not included) without need of screws and special tools

Specifications

Manufacturer
TELEGÄRTNER
Product group
Connection technology TP
Product type
patch panel
Colour
grey
Cabinet system
19"-Technique
Material (casing)
stainless sheet steel
Protection class (IP Code)
IP20
Dimensions (HxWxD)
44,2 x 480 x 123 mm
Height units
1 U
RAL colour
RAL 7035 Light grey
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
44.2 mm
Width
480 mm
Depth
123 mm
Weight
1200 g
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
590 mm
Package weight (single piece)
1.281 kg

Downloads

Manufacturer data sheet - Deutsch (98.5 KB) Manufacturer data sheet - English (98.5 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
