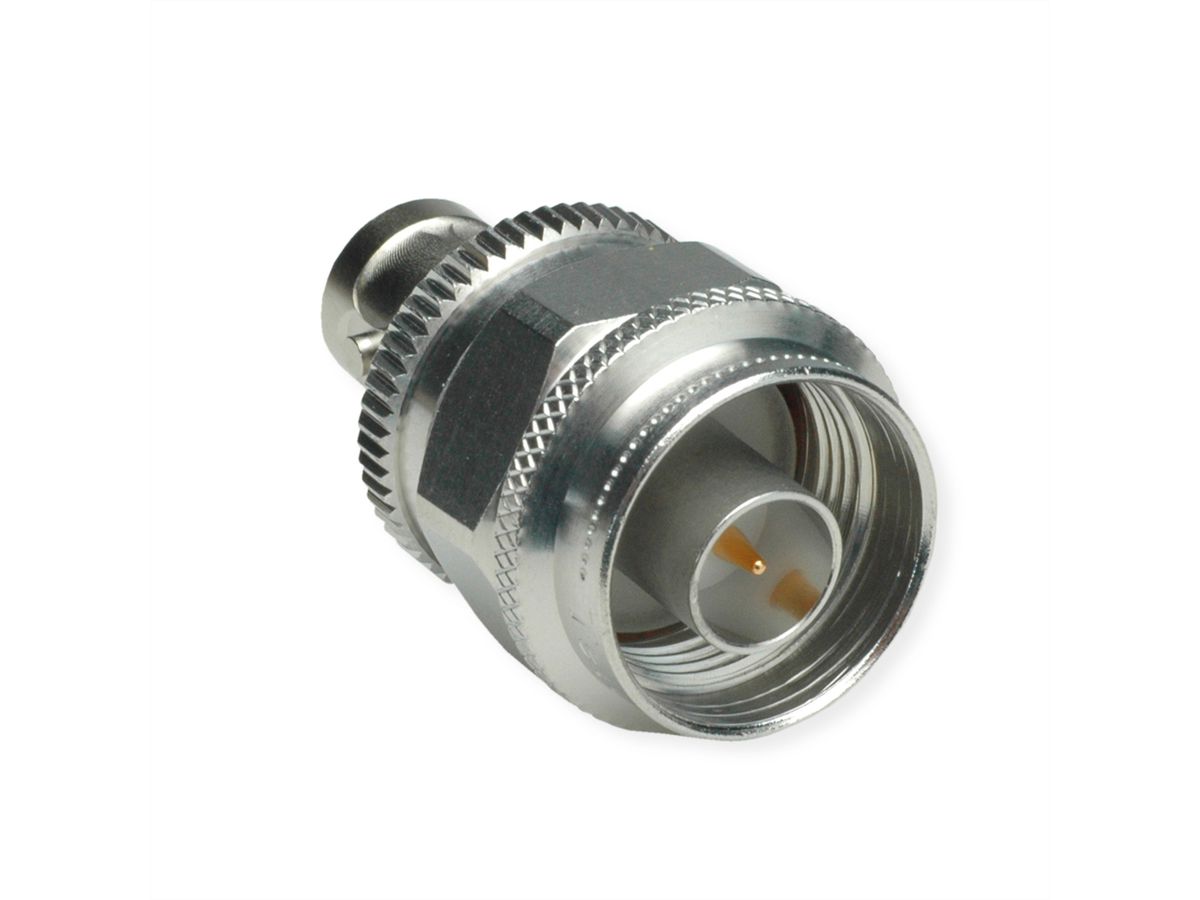

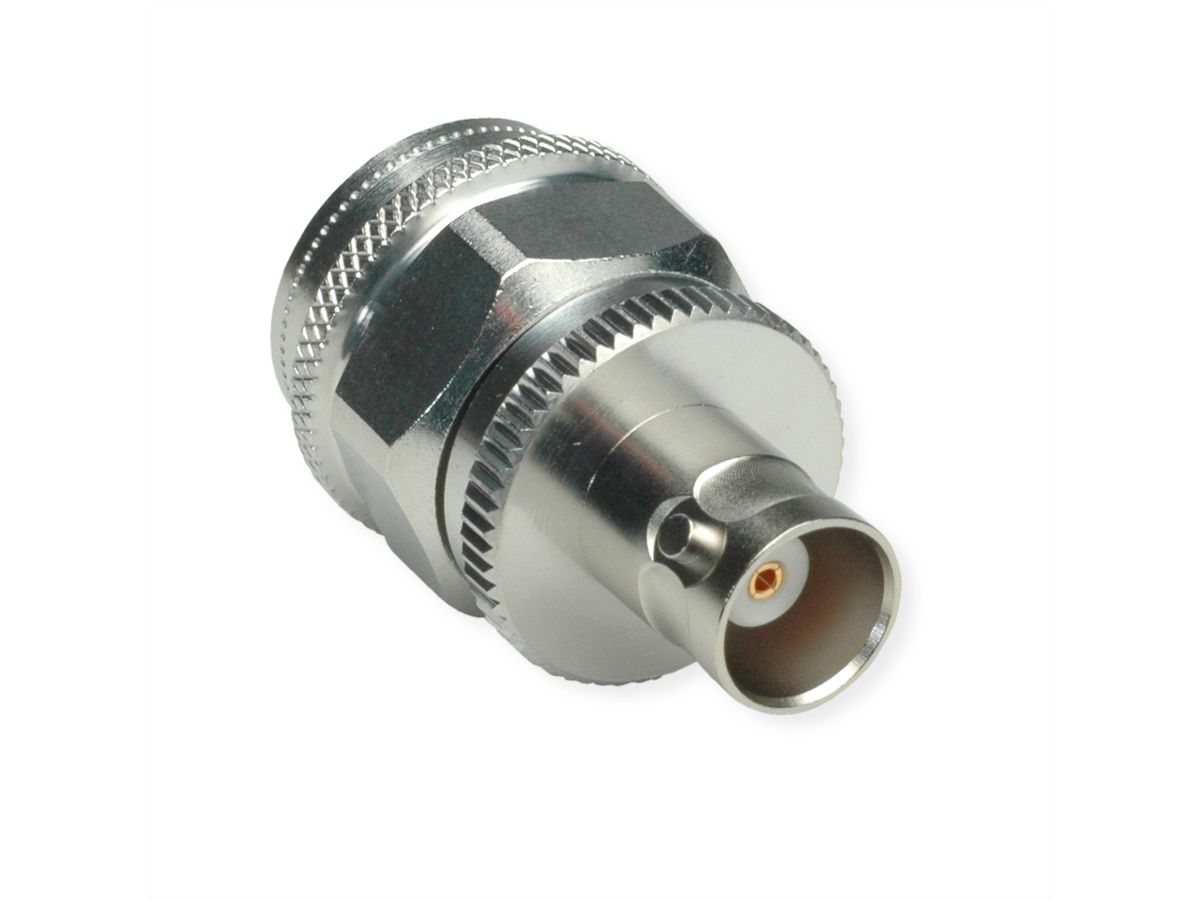

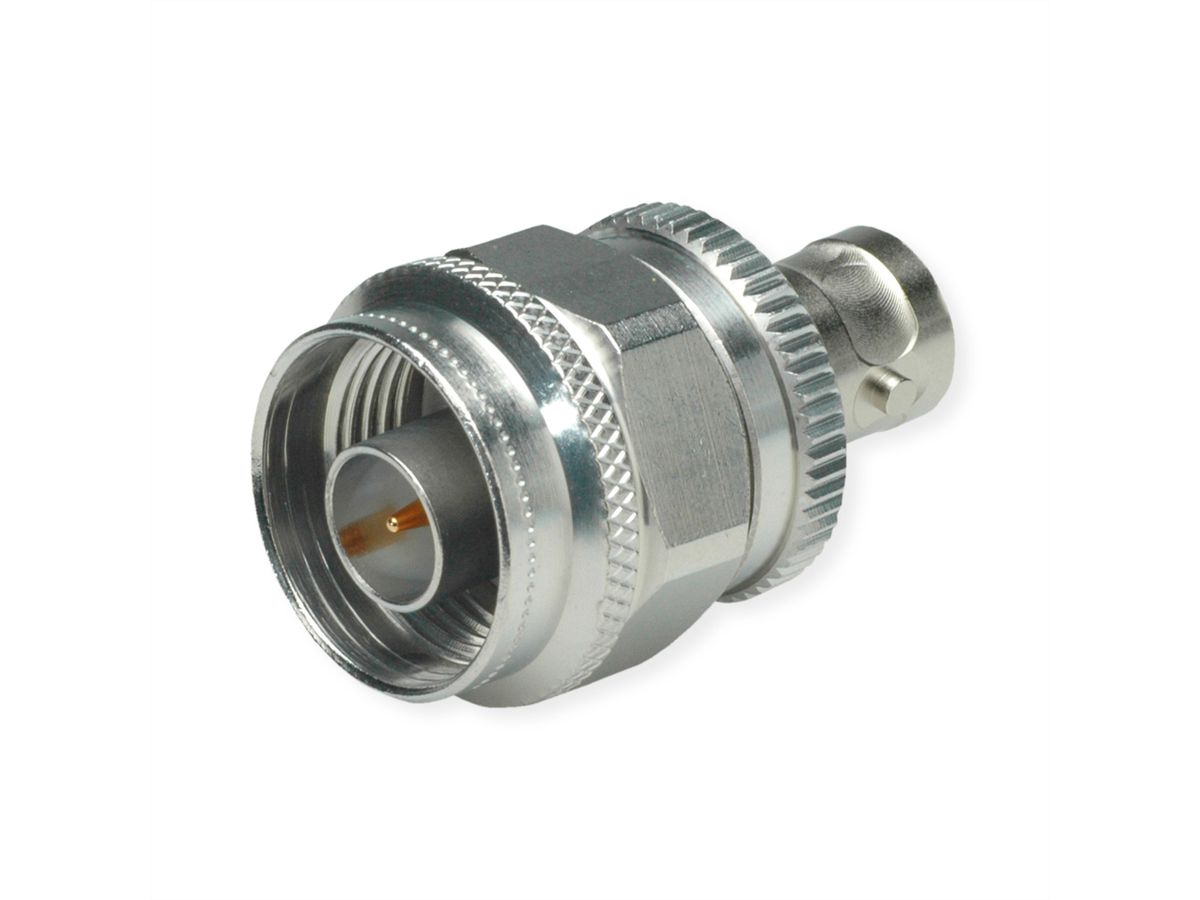

TELEGÄRTNER Adapt BNC to N (f-m)

Item no. 21170448 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100123517 EAN 4018359862411 Item weight 0.034 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

  • Article name: Adapt str BNCf - Nm (Old item number 100023684)
  • Type: BNC (f) / N (m)
  • Max. Frequency: 4 GHz
  • Return Loss: typ.: 1 GHz: -40 dB; 2 GHz: -39 dB ; 4 GHz: -26 dB
  • MIL-Std.: UG-201/U
  • Life: ≥ 500

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
BNC to N Adaptor
Colour
silver
Quantity of ports
1
Side 1 Connector Type
BNC connector
Side 1 Connector Gender
Female
Side 2 Connector Type
N connector
Side 2 Connector Gender
Male
Protection class (IP Code)
IP54
Connection direction
Straight
Frequency range (max.)
4 GHz
Operating temperature min.
-55 °C
Operating temperature max.
155 °C

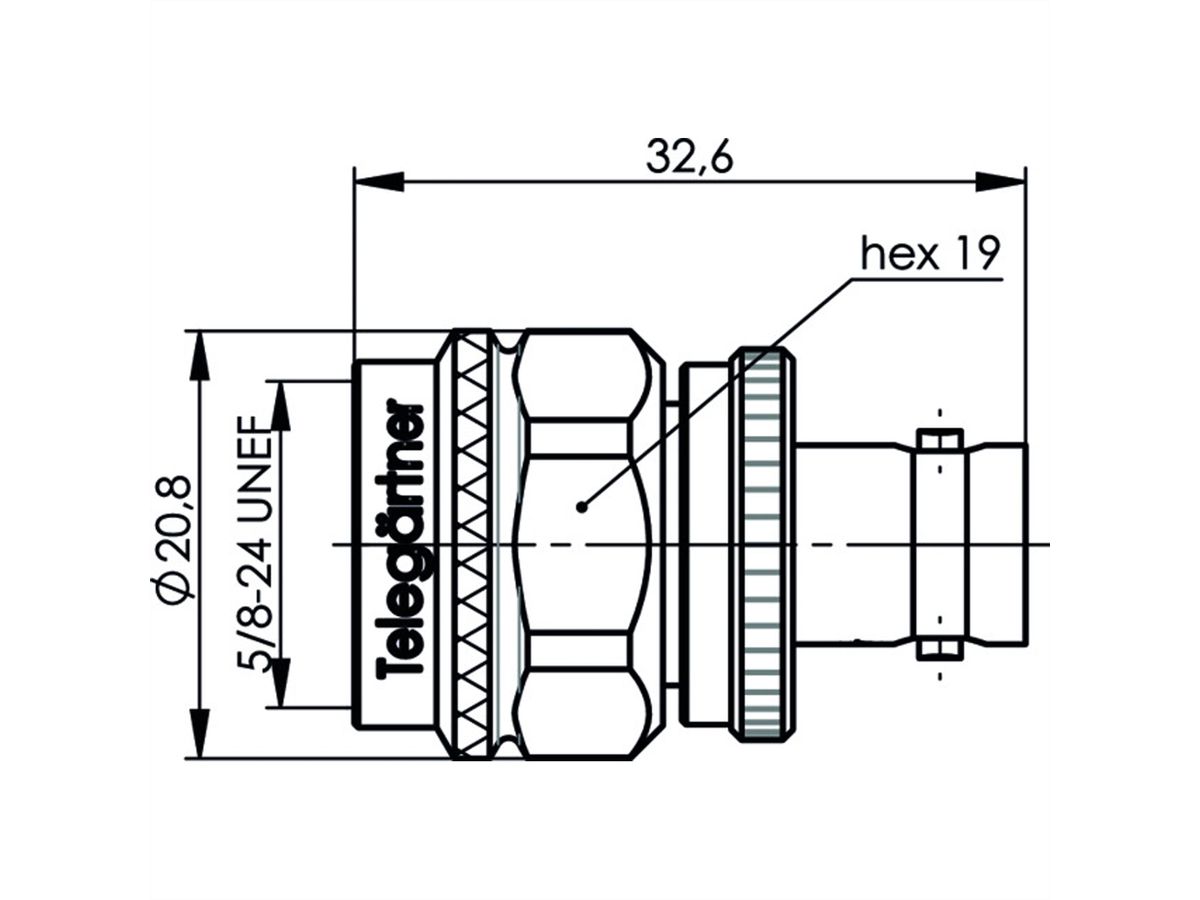

Height
20.8 mm
Width
20.8 mm
Depth
32.6 mm
Weight
33.32 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
50 mm
Depth of packaging (single piece)
30 mm
Package weight (single piece)
0.034 kg

Downloads

Manufacturer data sheet - English (72.2 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
