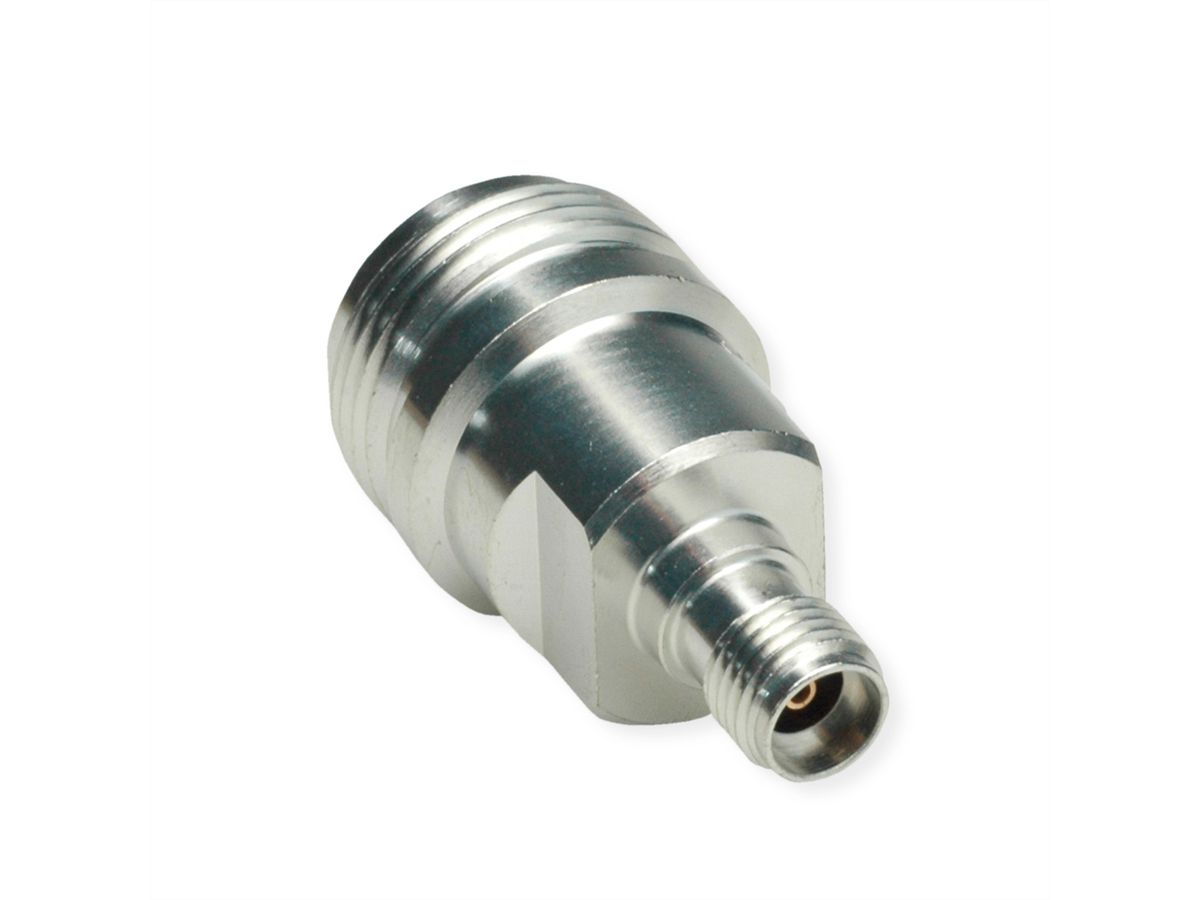

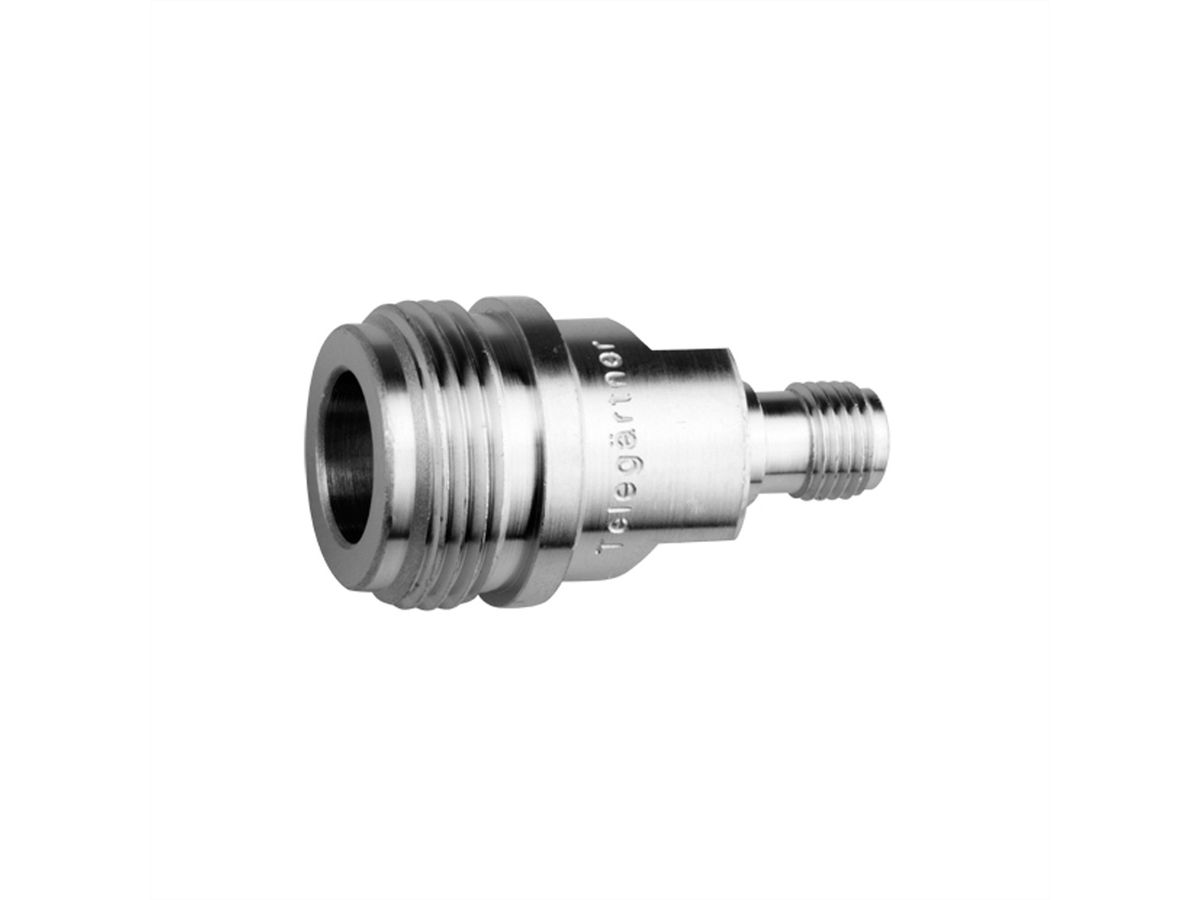

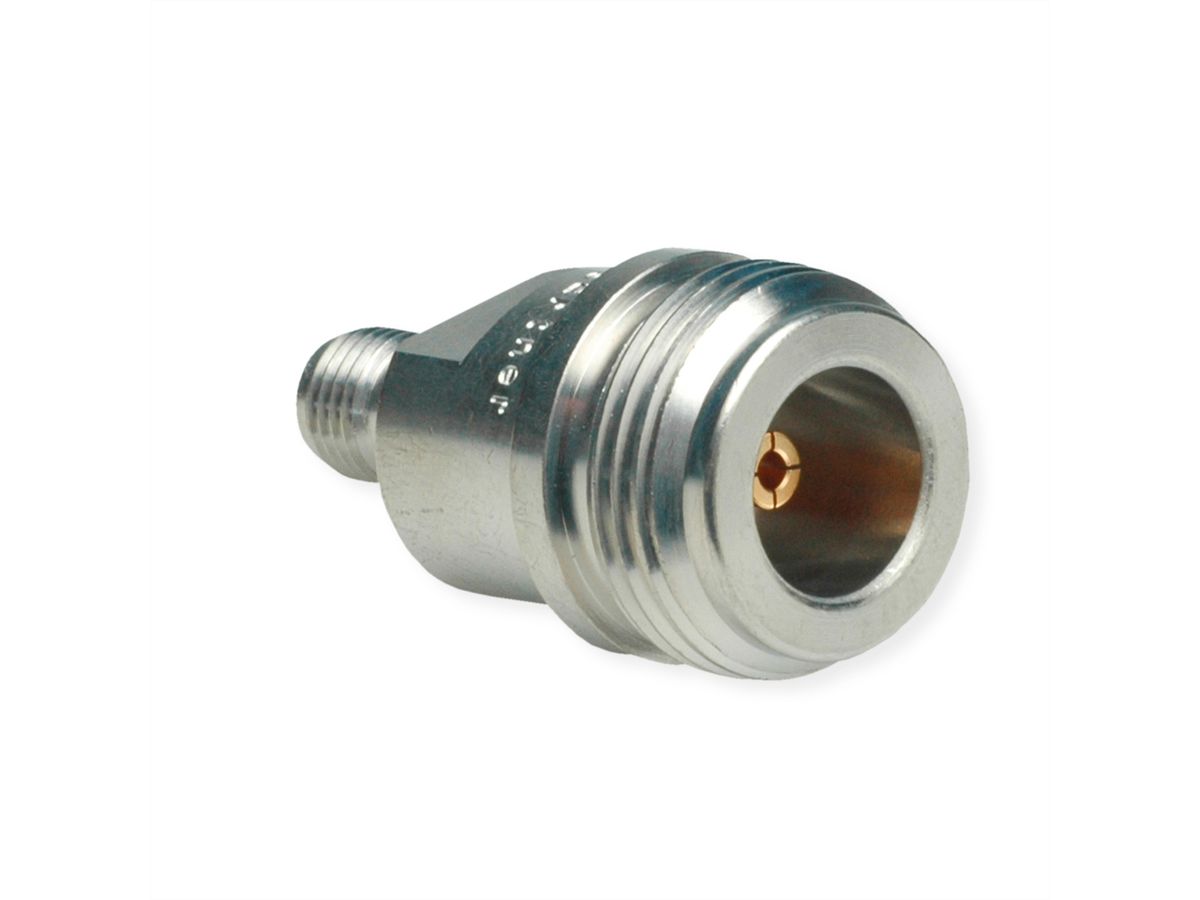

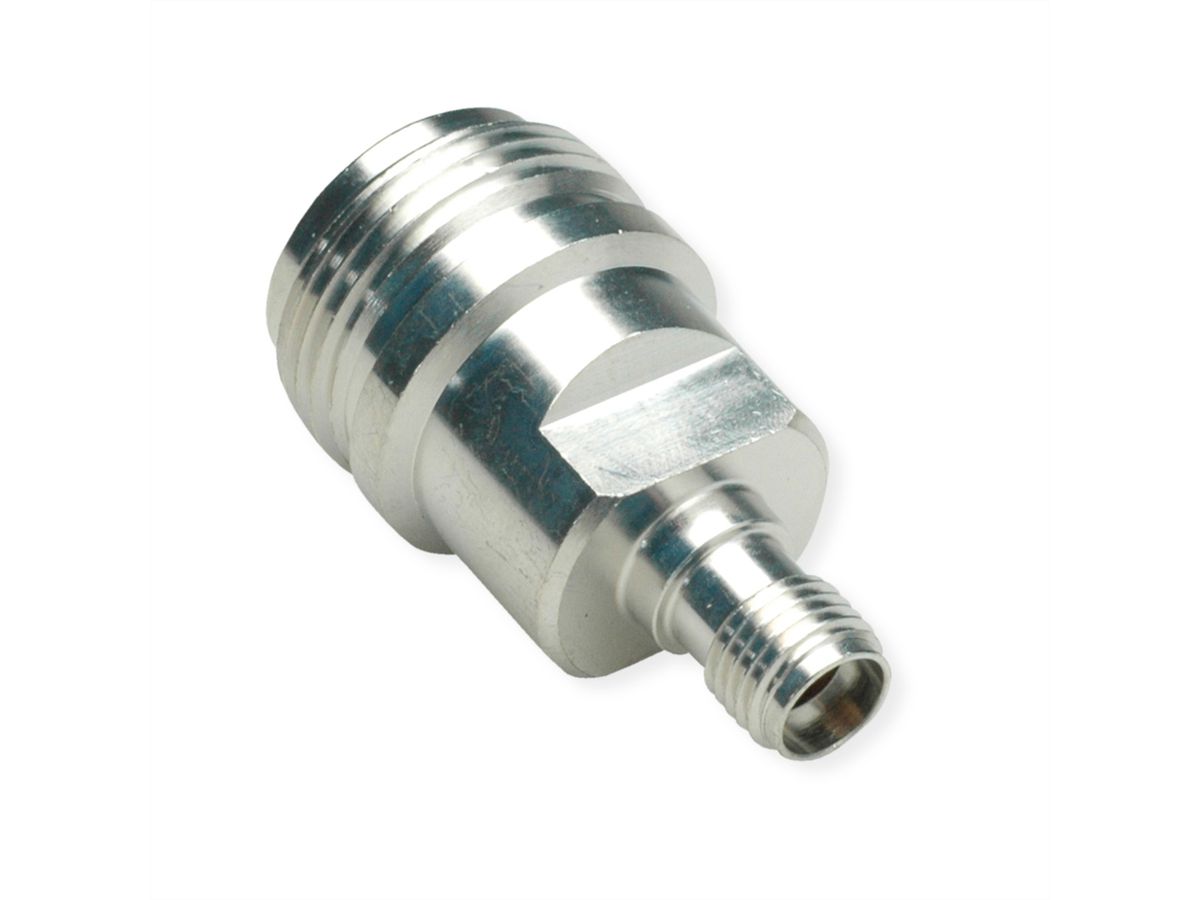

TELEGÄRTNER Adaptor N to SMA, f-f

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170487
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100024202
EAN	4018359398927
Item weight	0.022 kg

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

Article name: Adapt str Nf - SMAf (Old item number J01027B0017)
Type: N (f) / SMA (f)
Max. Frequency: 11 GHz
Return Loss: typ.: 1 GHz: -35 dB; 2 GHz: -33 dB; 6 GHz: -26 dB; 11 GHz: -20 dB
Remarks: IP68
Life: ≥ 500

Specifications

Manufacturer	TELEGÄRTNER
Product group	Coaxial Connectors
Product type	N to SMA Adaptor
Colour	silver
Quantity of ports	1
Side 1 Connector Type	N connector
Side 1 Connector Gender	Female
Side 2 Connector Type	SMA connector
Side 2 Connector Gender	Female
Protection class (IP Code)	IP68
Connection direction	Straight
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.022 kg

Downloads

Manufacturer data sheet - English (64.4 KB)

Download

The products of the TELEGÄRTNER brand stand for professional connection technology.

More about TELEGÄRTNER

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
info@telegaertner.com
