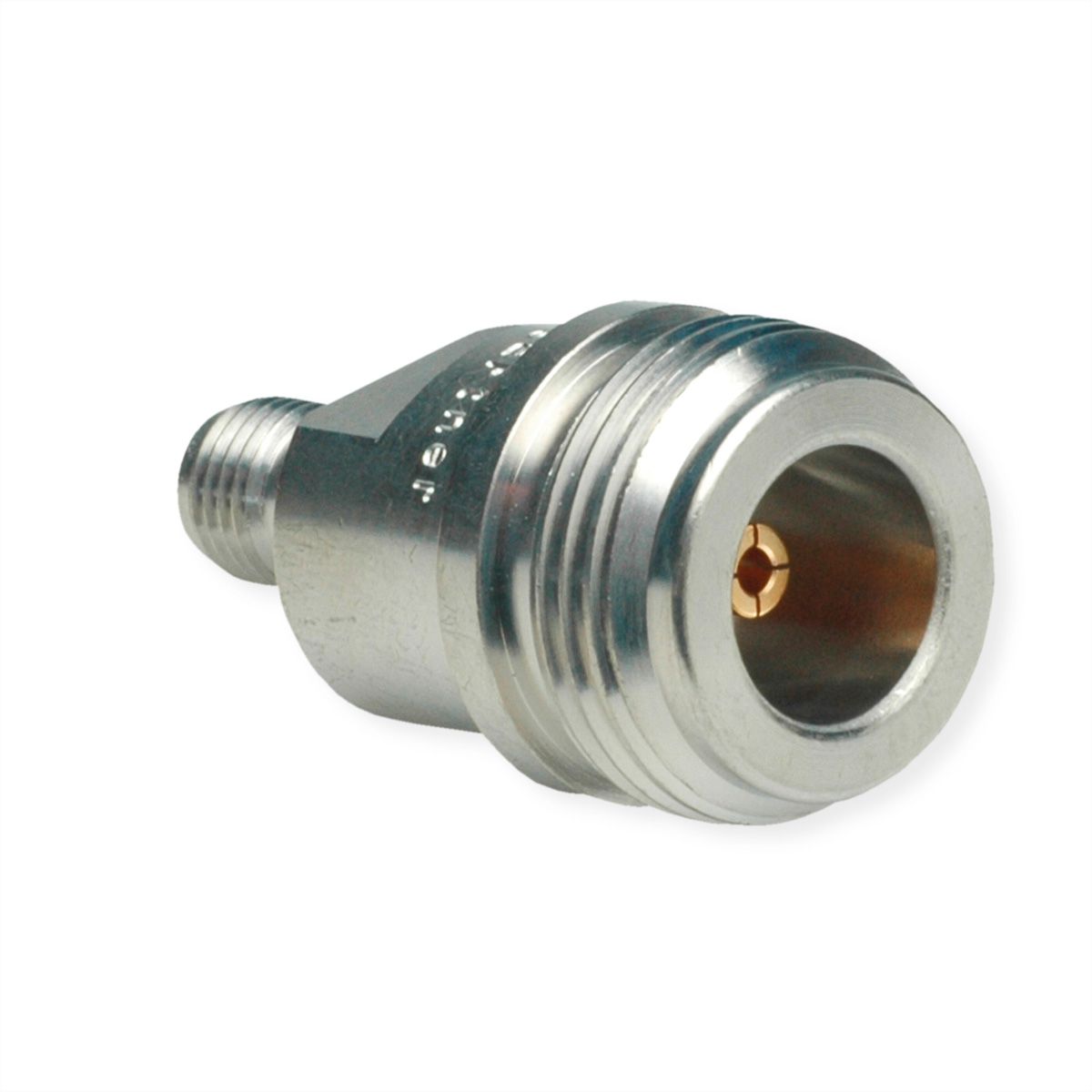

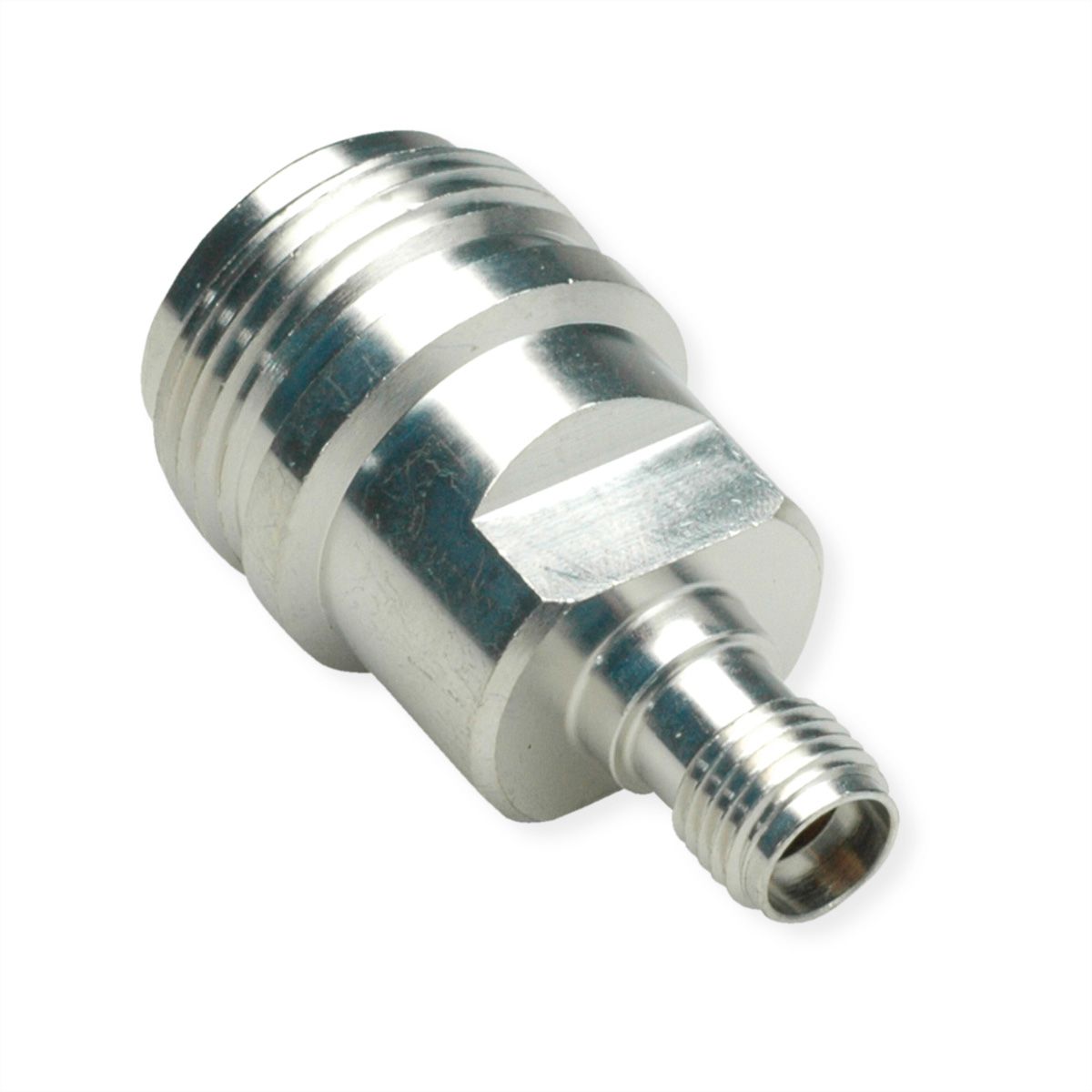

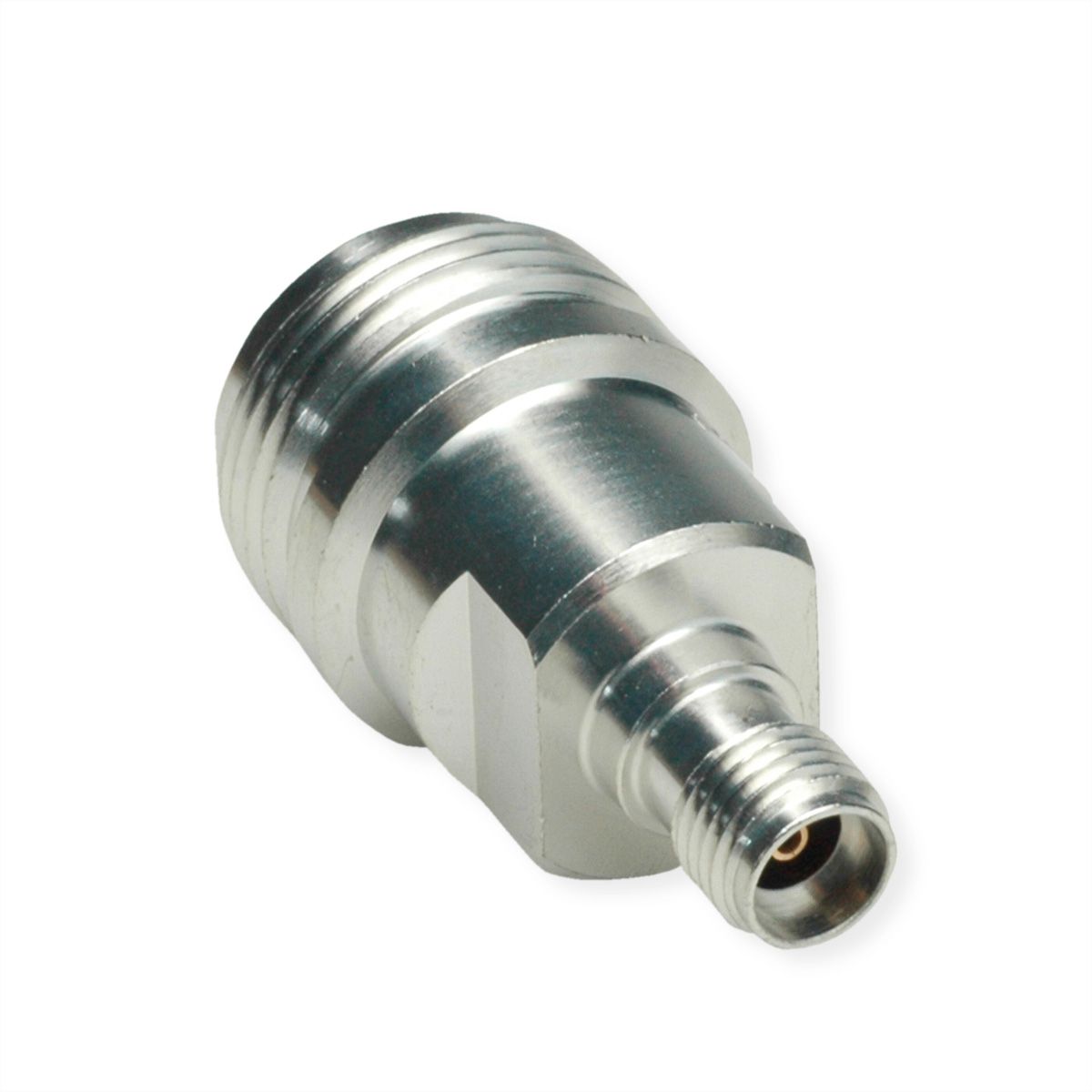

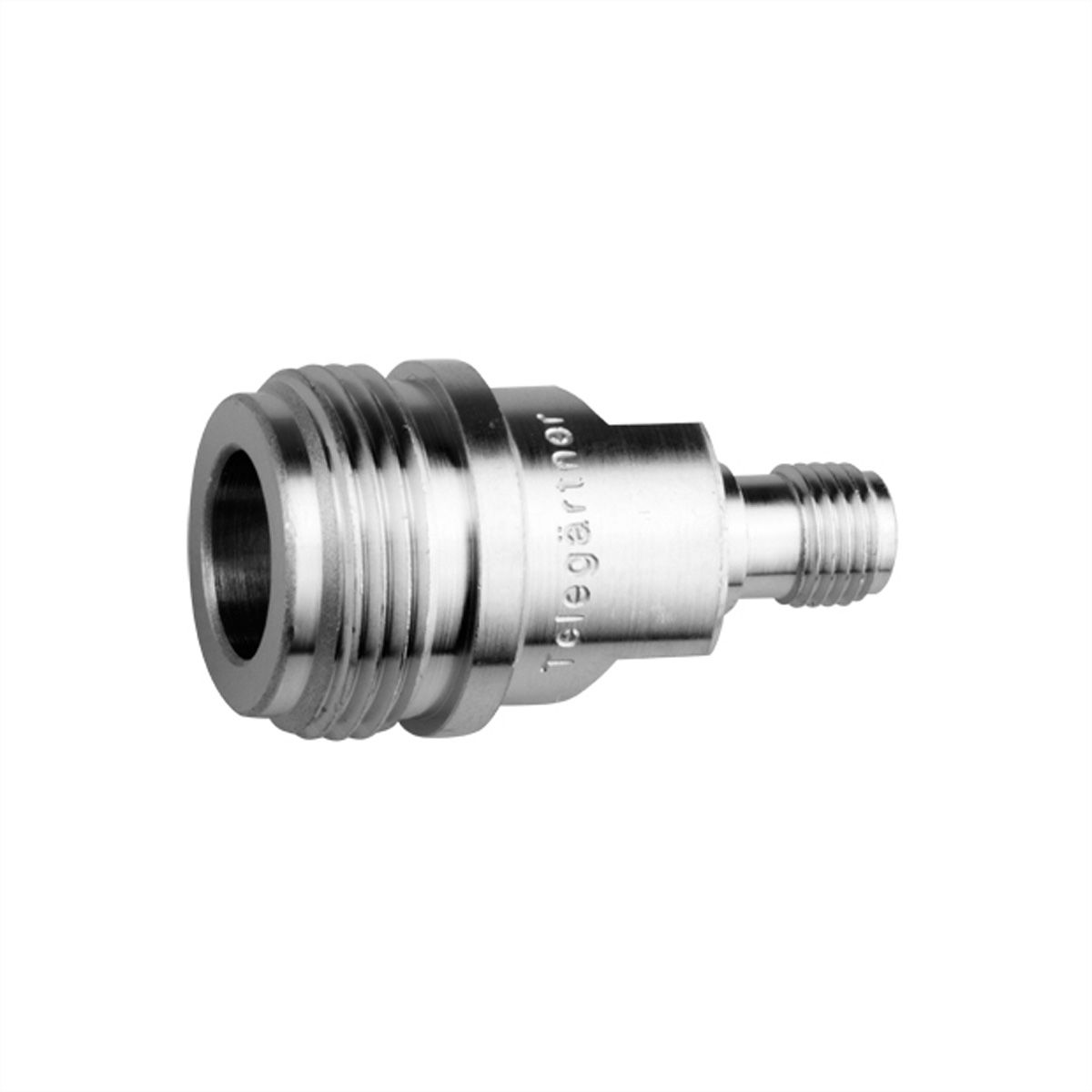

TELEGÄRTNER Adaptor N to SMA, f-f

Item no. 21170487 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100024202 EAN 4018359398927 Item weight 0.012 kg
TELEGÄRTNER
New products

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

  • Article name: Adapt str Nf - SMAf (Old item number J01027B0017)
  • Type: N (f) / SMA (f)
  • Max. Frequency: 11 GHz
  • Return Loss: typ.: 1 GHz: -35 dB; 2 GHz: -33 dB; 6 GHz: -26 dB; 11 GHz: -20 dB
  • Remarks: IP68
  • Life: ≥ 500

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
N to SMA Adaptor
Colour
silver
Quantity of ports
1
Side 1 Connector Type
N connector
Side 1 Connector Gender
Female
Side 2 Connector Type
SMA connector
Side 2 Connector Gender
Female
Protection class (IP Code)
IP68
Connection direction
Straight
Frequency range (max.)
11 GHz
Operating temperature min.
-40 °C
Operating temperature max.
85 °C

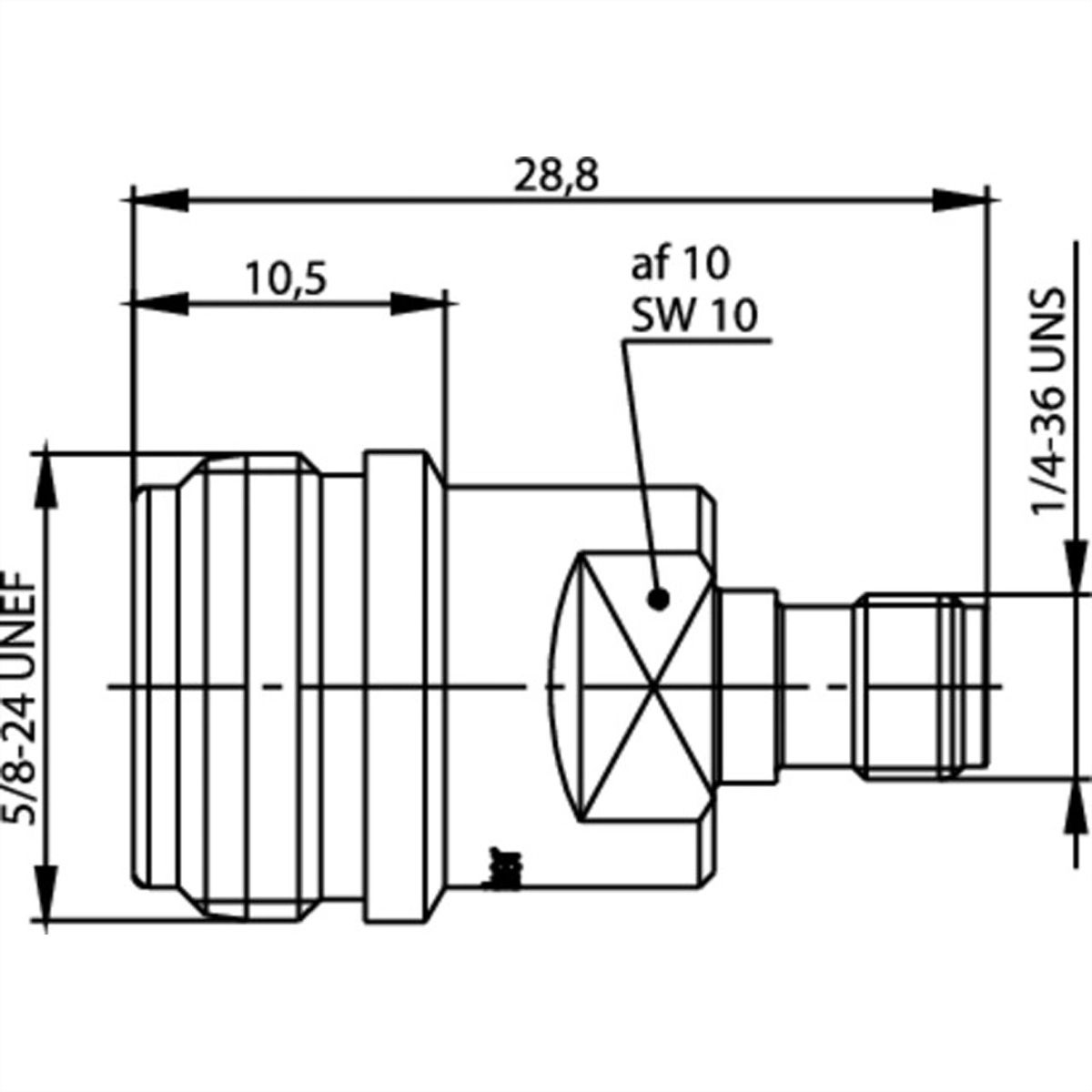

Height
15.9 mm
Width
15.9 mm
Depth
28.8 mm
Weight
21.35 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
20 mm
Package weight (single piece)
0.012 kg
