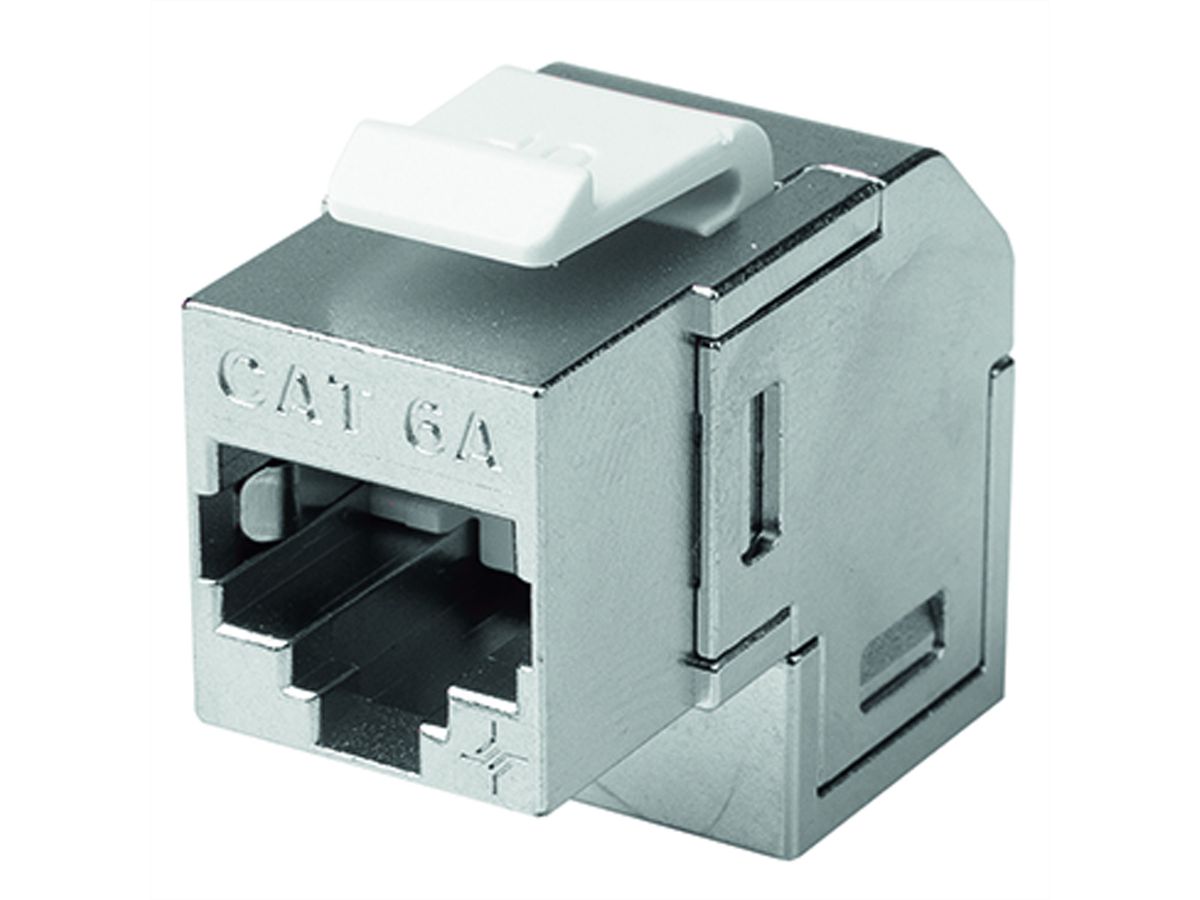

TELEGÄRTNER AMJ coupling 90° Cat.6A, RJ45 (f-f)

Item no. 21173204 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100023195 EAN 4018359504564 Item weight 0.028 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

AMJ Coupler 90° Cat.6A

  • Cat.6A (ISO/IEC) in accordance with IEC 60603-7-51
  • Cat.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100
  • Link certification: Class EA (ISO/IEC) compliant with ISO/IEC 11801
  • 10 Gigabit Ethernet compliant (IEEE 802.3an)
  • Contact bend protection: ≥750 mating cycles with RJ45/RJ11/RJ12 connectors
  • Suitable for PoE+ in accordance IEEE 802.3at
  • Compatible with AMJ-S Up/0 flex modular mount, adaptable to covers from various switch program manufacturers
  • Integrated cable clamp for cable diameters up to 9 mm
  • Universal globally available mounting dimension for cutouts of 19.3 x 14.7 mm
  • Visually monitored inspection of RJ45 contact heights
  • AMJ-S DD: with integrated protection against contact damage through automatic disconnection of the plug connection
  • Remarks: Suitable for RJ45/11/12 connectors
  • Description: Suitable for Class EA (ISO/IEC) channels, 10 Gigabit Ethernet

Specifications

Manufacturer
TELEGÄRTNER
Product group
Connection technology FO
Product type
Connectors RJ-45
Colour
silver
Transfer quality
Cat6A / Class EA
Component-Level certified
yes
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Female
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Female
Material (casing)
zinc diecast
Protection class (IP Code)
IP20
Dimensions (HxWxD)
24,6 x 16,4 x 31,7 mm
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
24 mm
Width
16.7 mm
Depth
31.7 mm
Weight
26.73 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.028 kg

Downloads

Manufacturer data sheet - Deutsch (170.1 KB) Manufacturer data sheet - English (170.1 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
info@telegaertner.com
