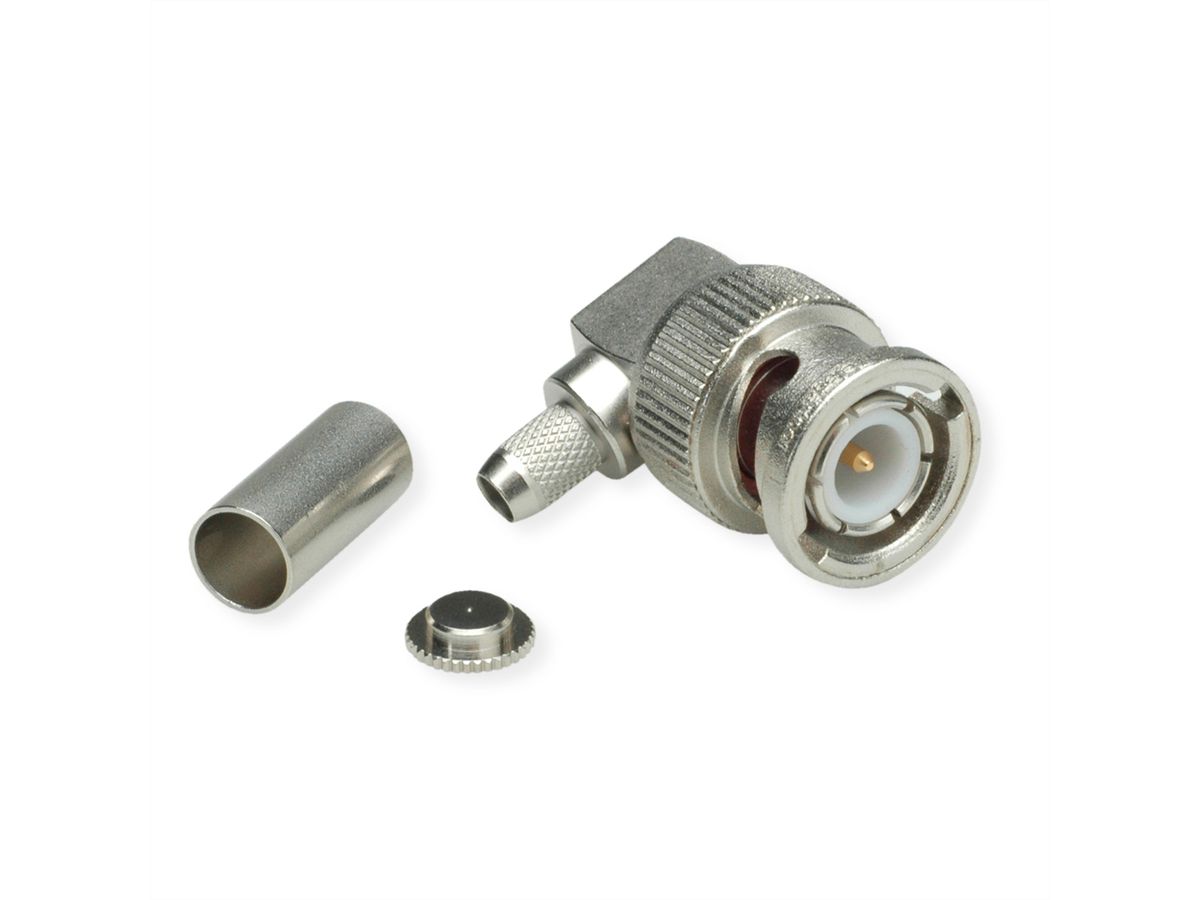

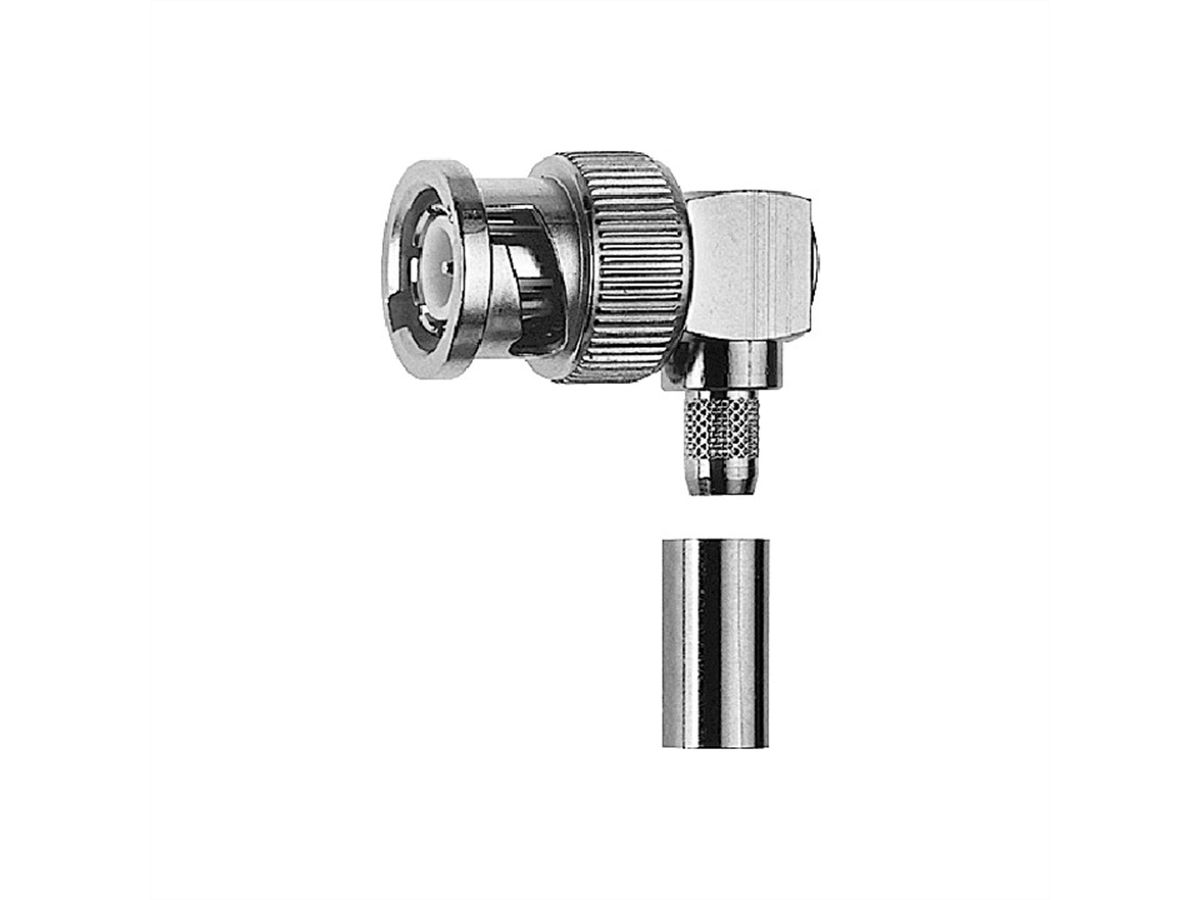

TELEGÄRTNER BNC Angle Plug Crimp, G5 (RG-223/U) solder/crimp

Item no. 21170484 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100023340 EAN 4018359101916 Item weight 0.014 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

  • Article name: BNC Plg 90 sd/cr G5 Z50 (Old item number J01000A1258)
  • Impedance: 50 Ω
  • Cable group; cable: G5 (RG-223/U), RG-223/U, RG-400/U
  • Remarks: solder/crimp

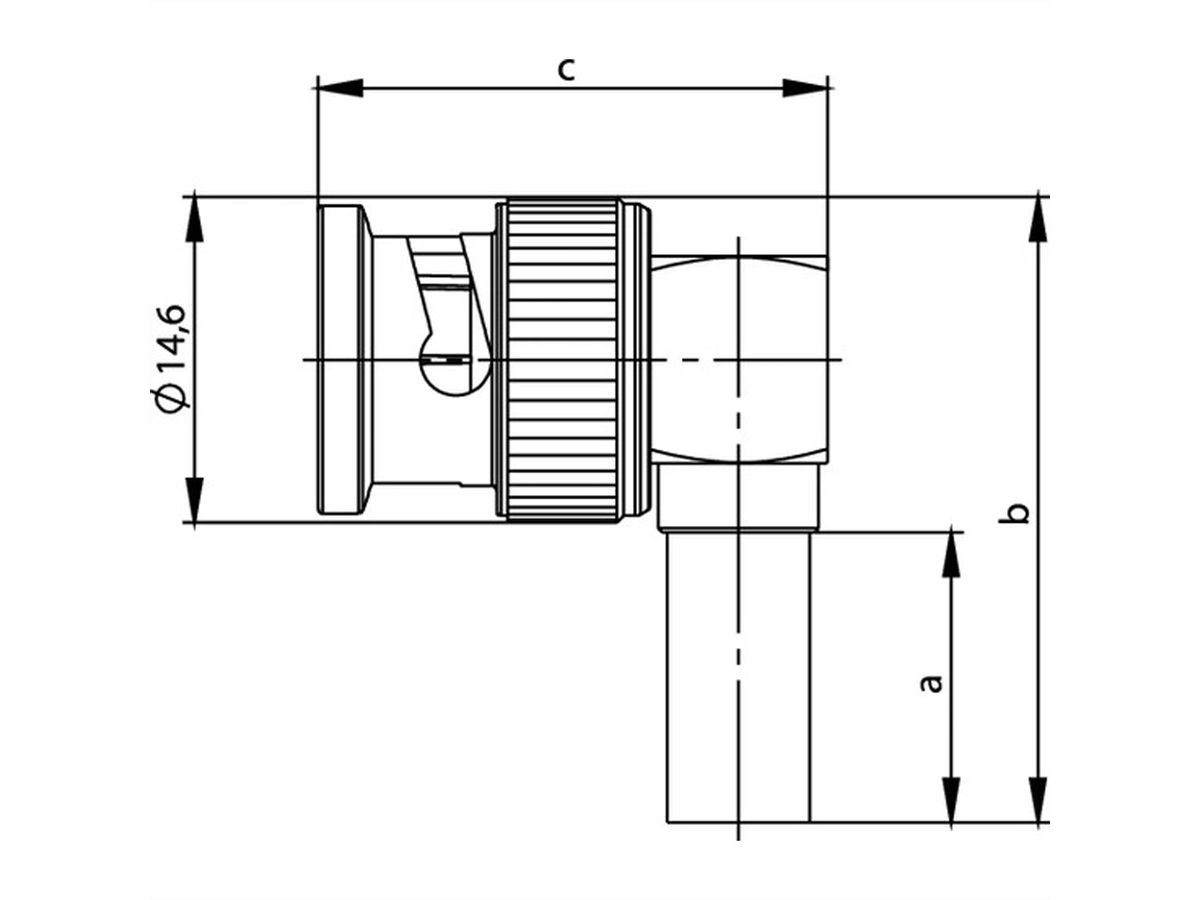

  • Dimensions: a=13.5, b=28.7; c=~23
  • Assembly: A0505

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
BNC Angle Plug Crimp
Colour
silver
Quantity of ports
1
Side 1 Connector Type
BNC connector
Side 1 Connector Gender
Male
Side 2 Connector Type
Solder / Crimp termination
Protection class (IP Code)
IP54
Connection direction
angled
Characteristic impedance
50 Ohm
Frequency range (max.)
4 GHz
Operating temperature max.
-40 °C
Storage temperature min.
155 °C
Height
28.7 mm
Width
14.6 mm
Depth
23 mm
Weight
13 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.014 kg
