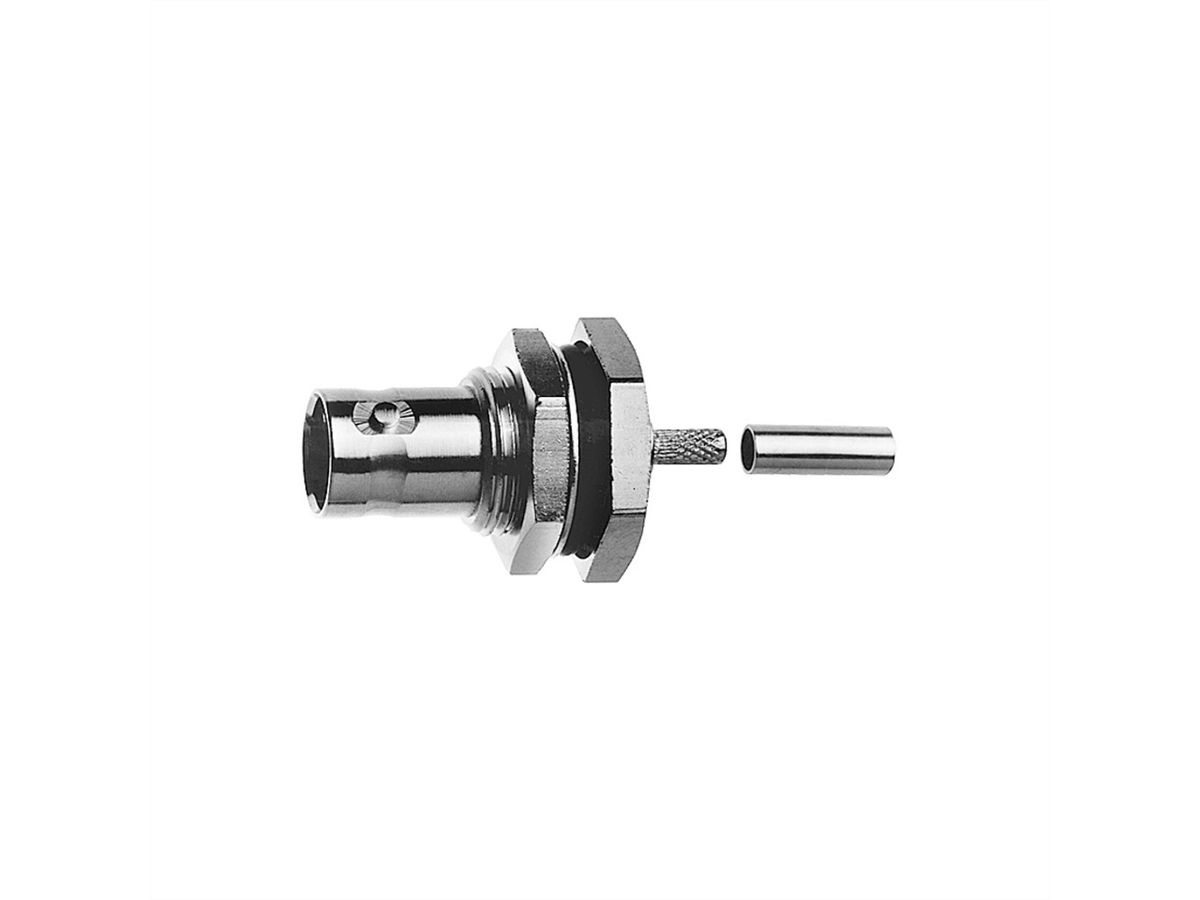

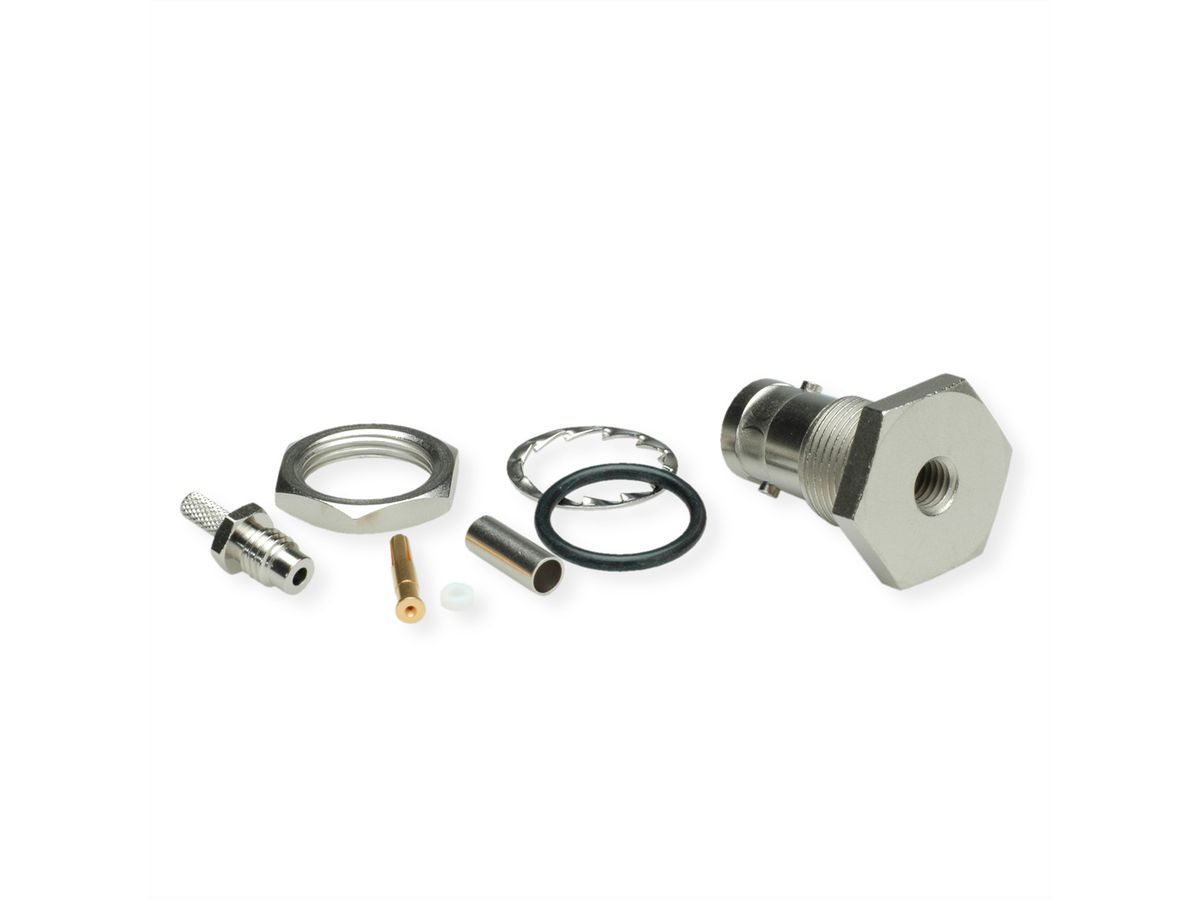

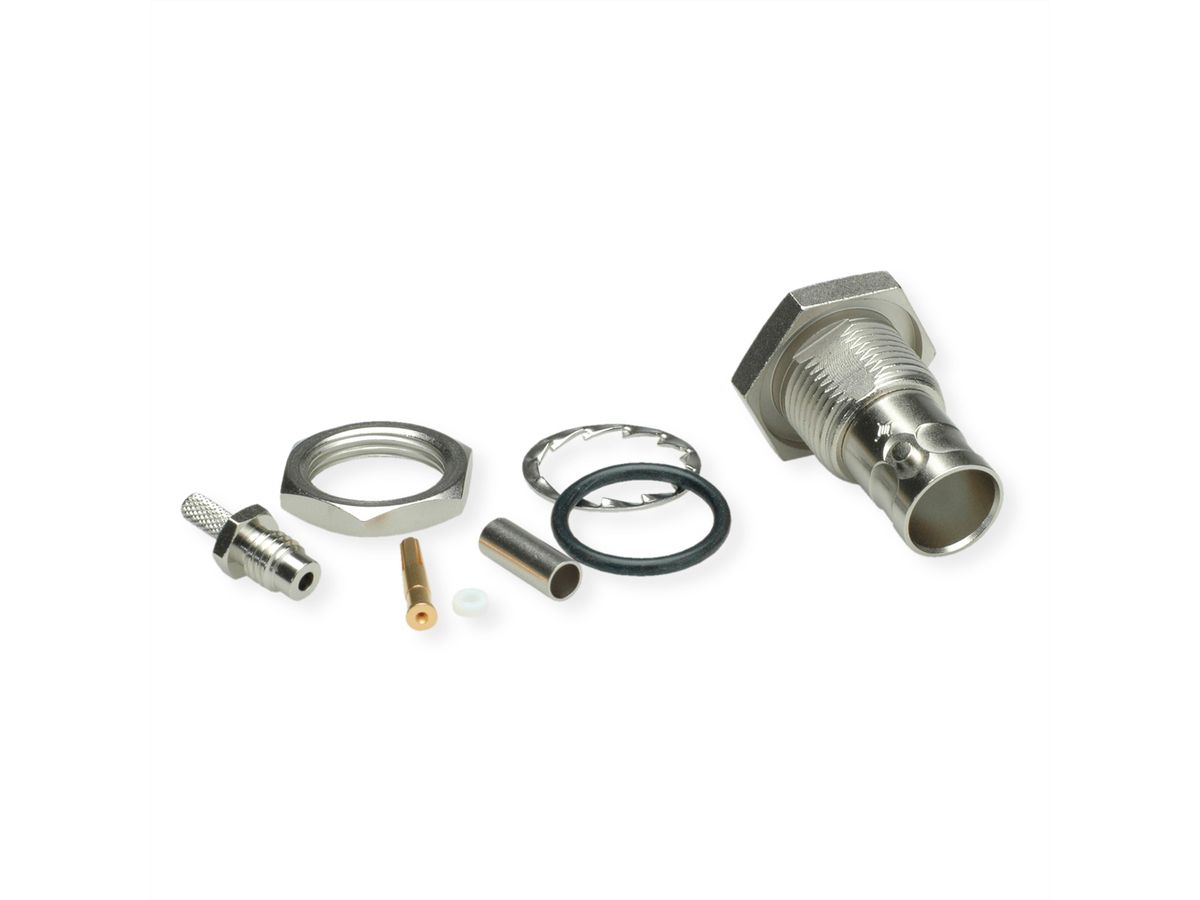

TELEGÄRTNER BNC Bulkhead Jack Crimp, G4 (RG-179B/U) crimp/crimp

Item no. 21170491 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100023575 EAN 4018359192747 Item weight 0.02 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

  • Article name: BNC Jck str Bkhd cr/cr G4 Z75 (Old item number J01003B5032)
  • Impedance: 75 Ω
  • Cable group; cable: G4 (RG-179B/U); 0.36L/1.6; 0.38L/1.6; 0.38L/1.7, 0.3LS/1.7S, 1520A, 1521A, 1522A, 179DT, RG-179B/U, RG-187A/U, 0.36L/1.6, 0.38L/1.6, 0.38L/1.7
  • Remarks: crimp/crimp
  • Mount. dim.: Z004
  • Assembly: A2903

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
BNC Bulkhead Jack Crimp
Colour
silver
Quantity of ports
1
Side 1 Connector Type
BNC connector
Side 1 Connector Gender
Female
Side 2 Connector Type
Crimp termination
Protection class (IP Code)
IP54
Connection direction
Straight
Characteristic impedance
75 Ohm
Frequency range (max.)
4 GHz

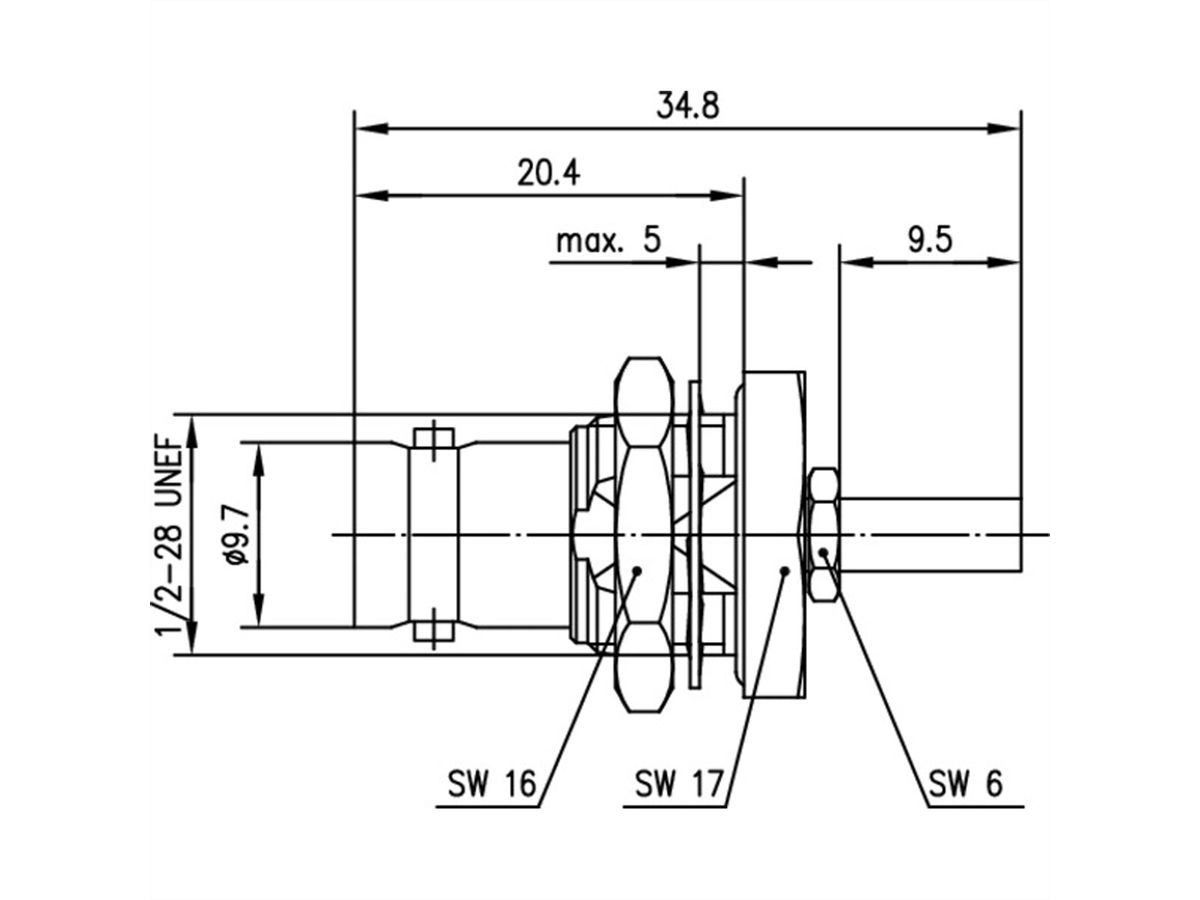

Height
17 mm
Width
17 mm
Depth
34.8 mm
Weight
16 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.02 kg

Downloads

Manufacturer data sheet - English (31.5 KB)
