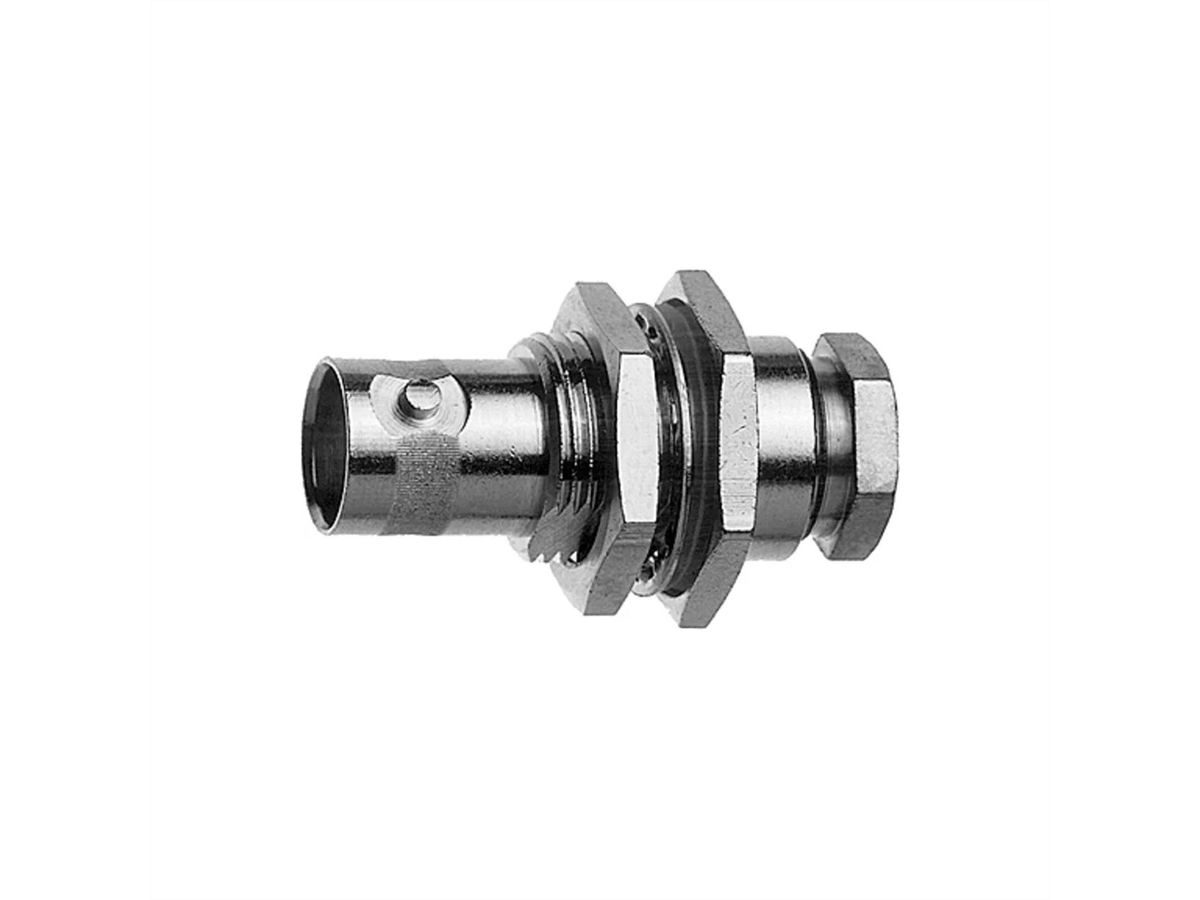

TELEGÄRTNER BNC Bulkhead Jack, G3 (RG-178B/U) IP67

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170430
Marke / Hersteller	TELEGÄRTNER
Manuf. item no.	100123563
EAN	4018359877408
Paketgewicht	0.026 kg

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

Article name: BNC Jck str Bkhd sd/cl G3 BarSeal Z50 (Old item number J01001A1319)
Impedance: 50 Ω
Cable group; cable: G3 (RG-178B/U)

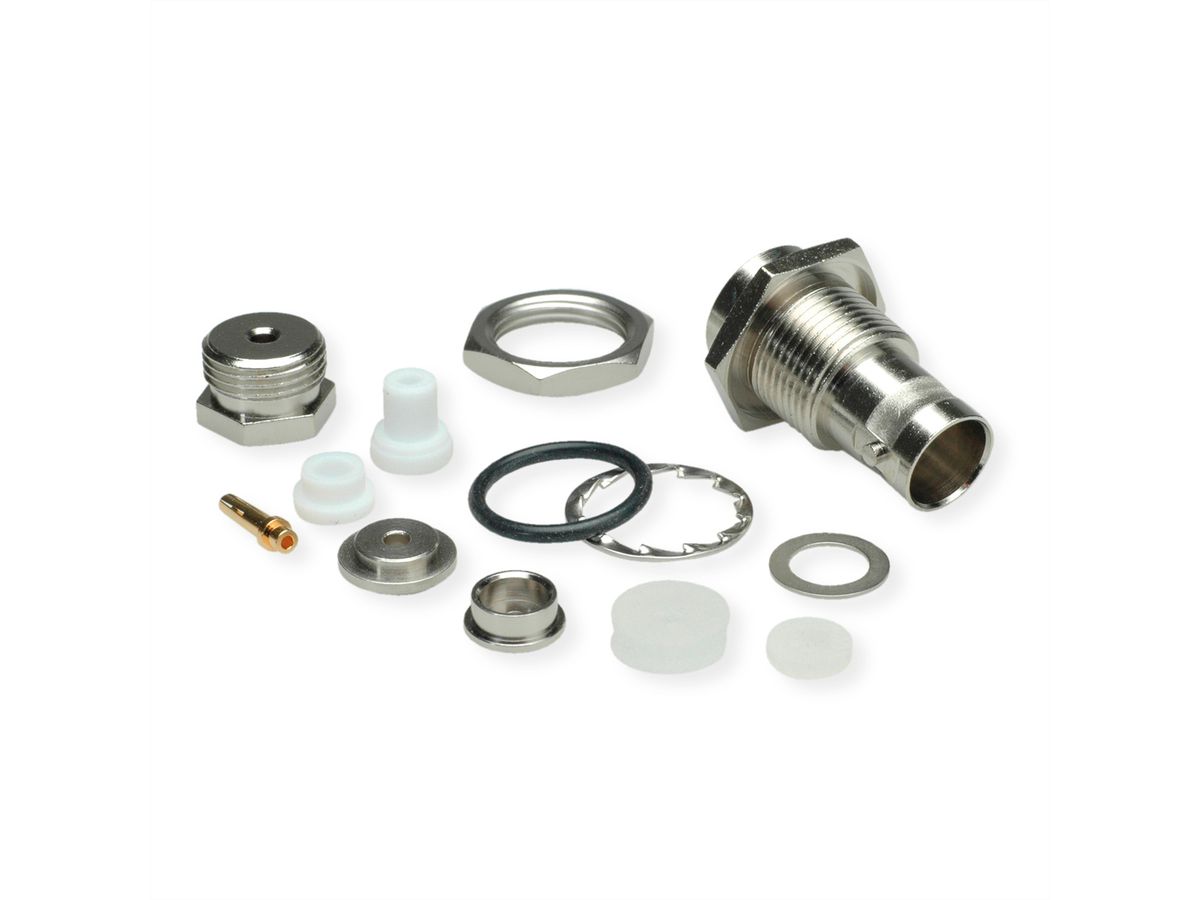

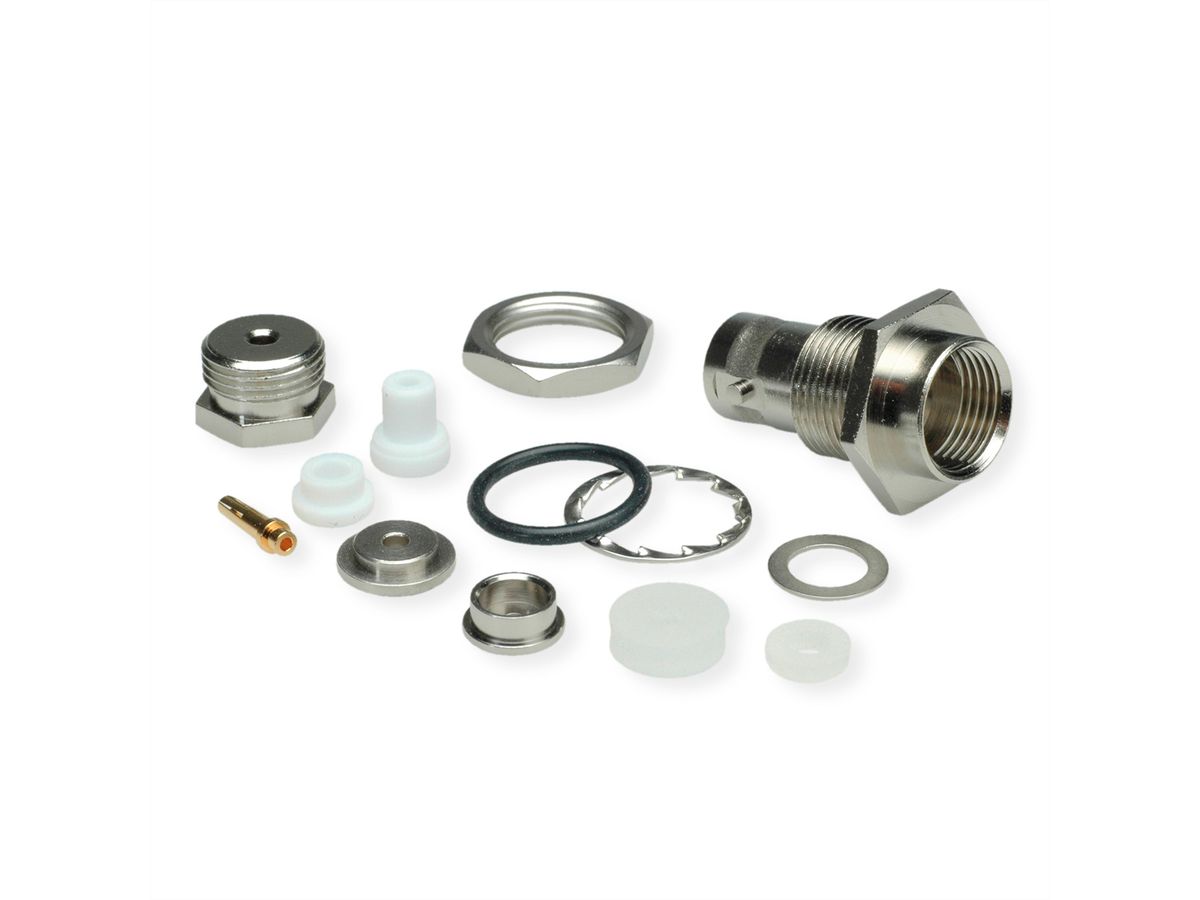

Remarks: solder/clamp; pressure sleeve IP67, barrier sealed

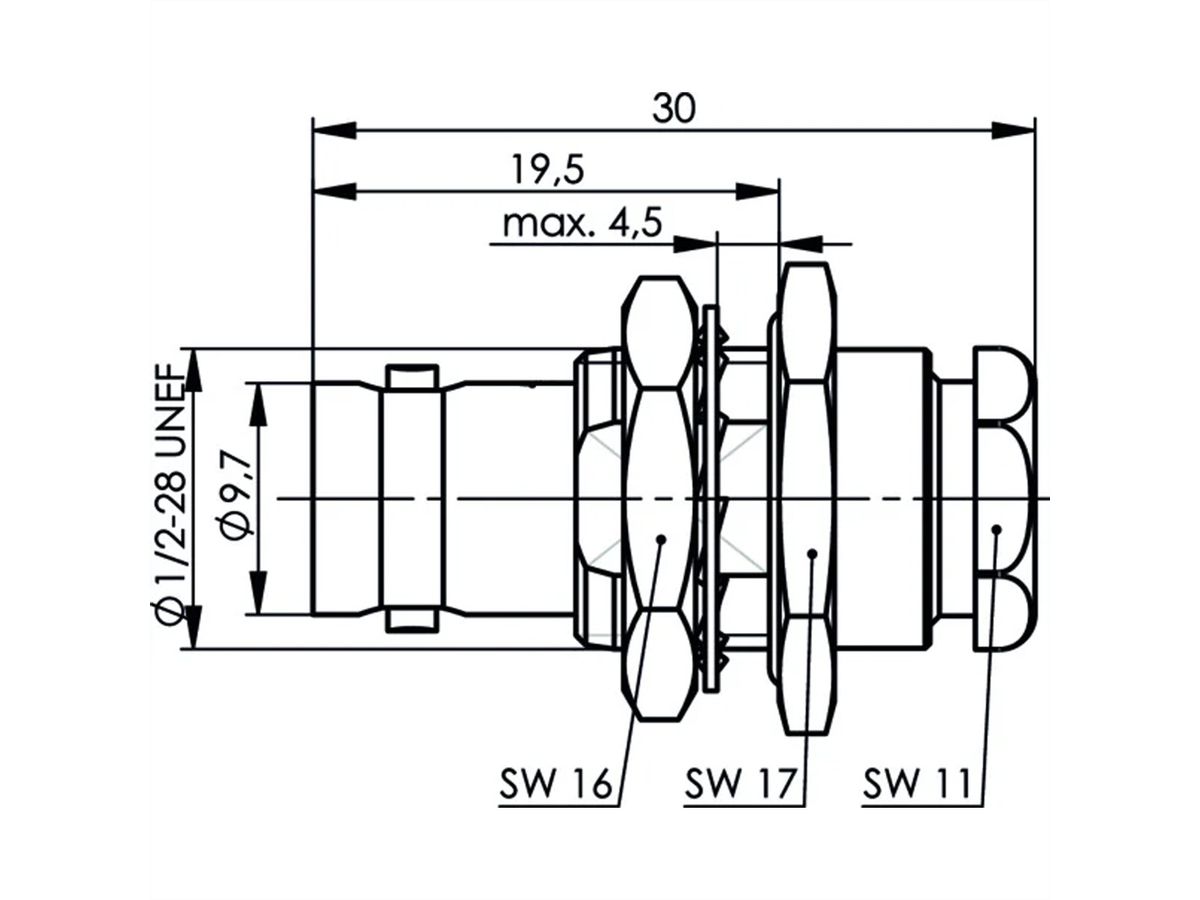

Mount. dim.: Z004
Assembly: A04

Specifications

Manufacturer	TELEGÄRTNER
Product group	Coaxial Connectors
Product type	BNC Bulkhead Jack
Colour	silver
Quantity of ports	1
Side 1 Connector Type	BNC connector
Side 1 Connector Gender	Female
Side 2 Connector Type	Solder / Clamp termination
Protection class (IP Code)	IP67
Connection direction	Straight
Characteristic impedance	50 Ohm
Frequency range (max.)	4 GHz
Height	17 mm
Width	17 mm
Depth	30 mm
Weight	22 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	40 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.026 kg

Downloads

Manufacturer data sheet - Deutsch (68.6 KB)

Download

Manufacturer data sheet - English (68.6 KB)

Download
