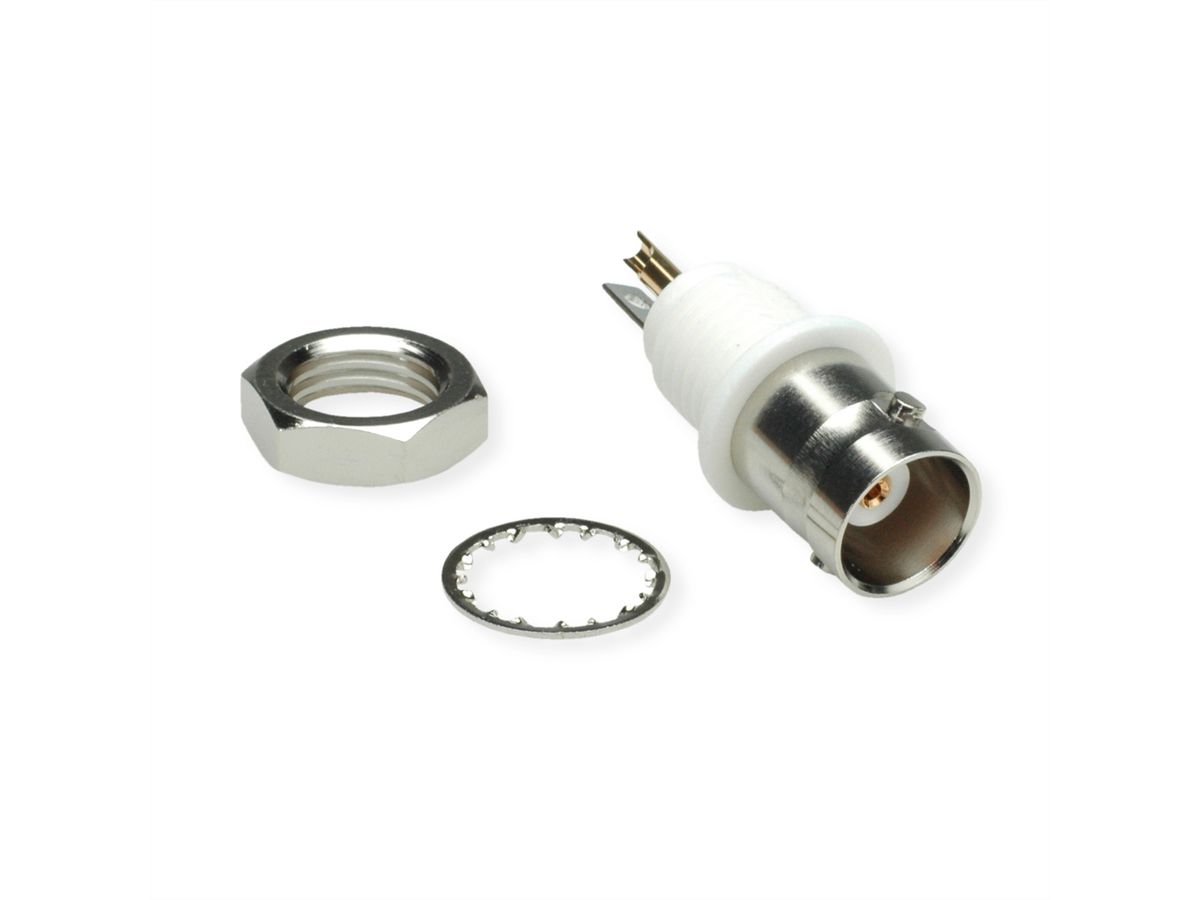

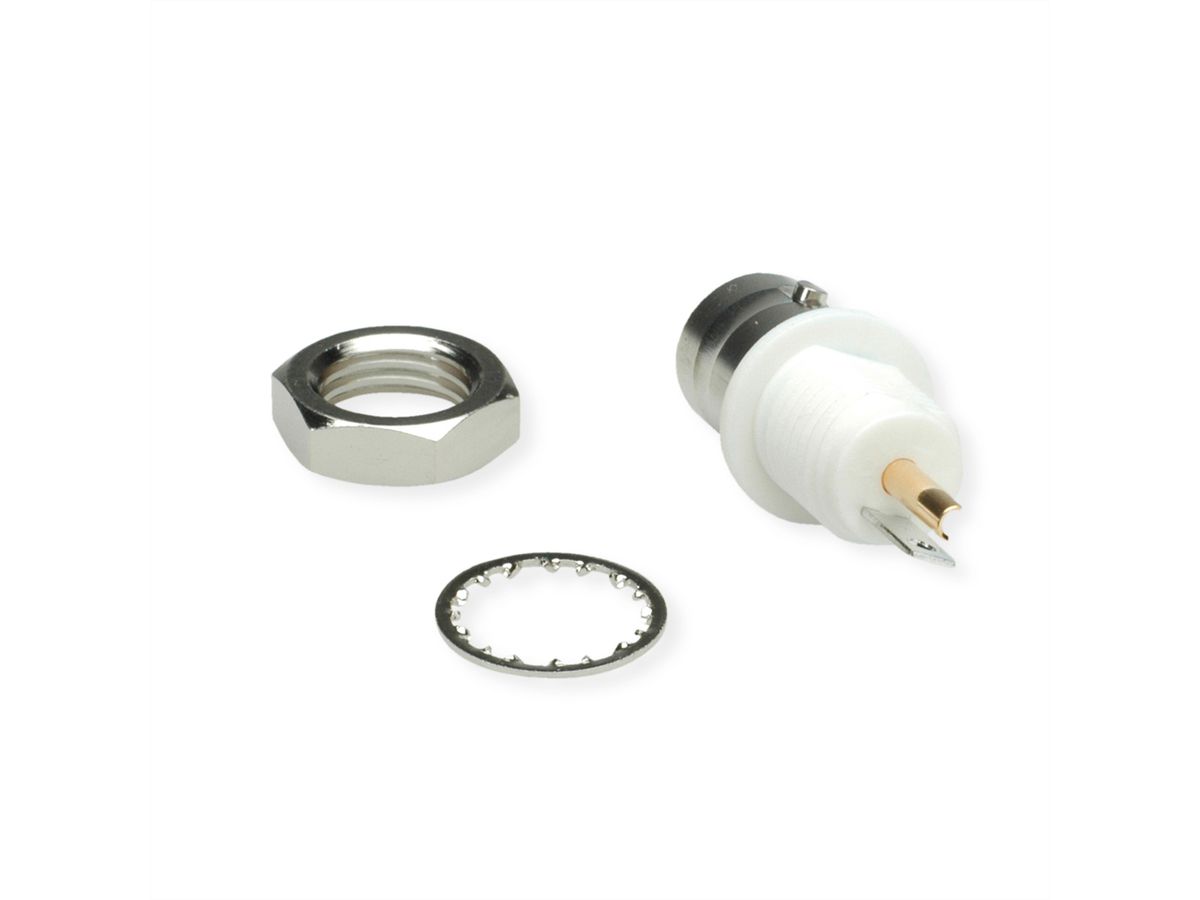

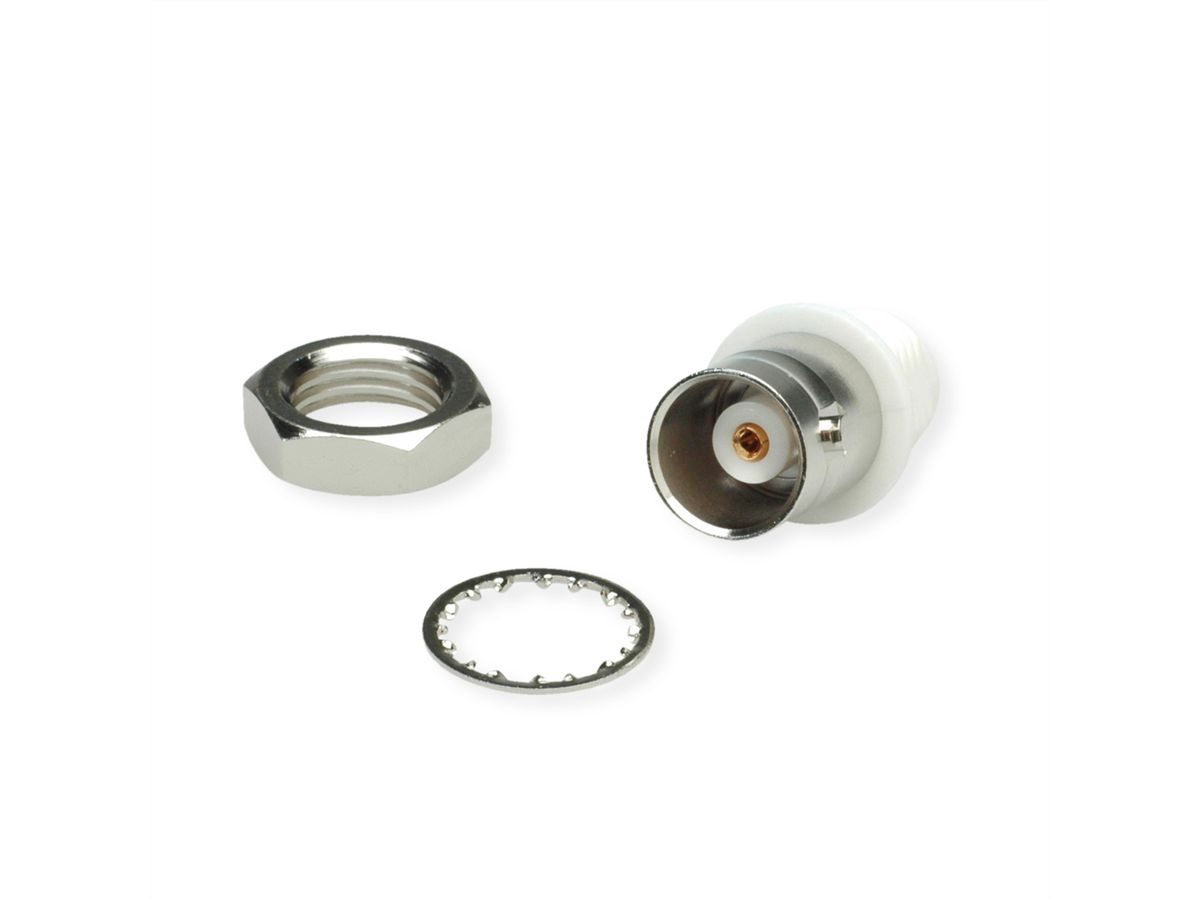

TELEGÄRTNER BNC Bulkhead Socket, insulated with white insulating flange
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170426 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100023370 |
| EAN | 4018359102685 |
| Item weight | 0.009 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.
- Article name: BNC Jck str Bkhd sd/sd insul Z50
- Impedance: 50 Ω
- Remarks: with white insulating flange

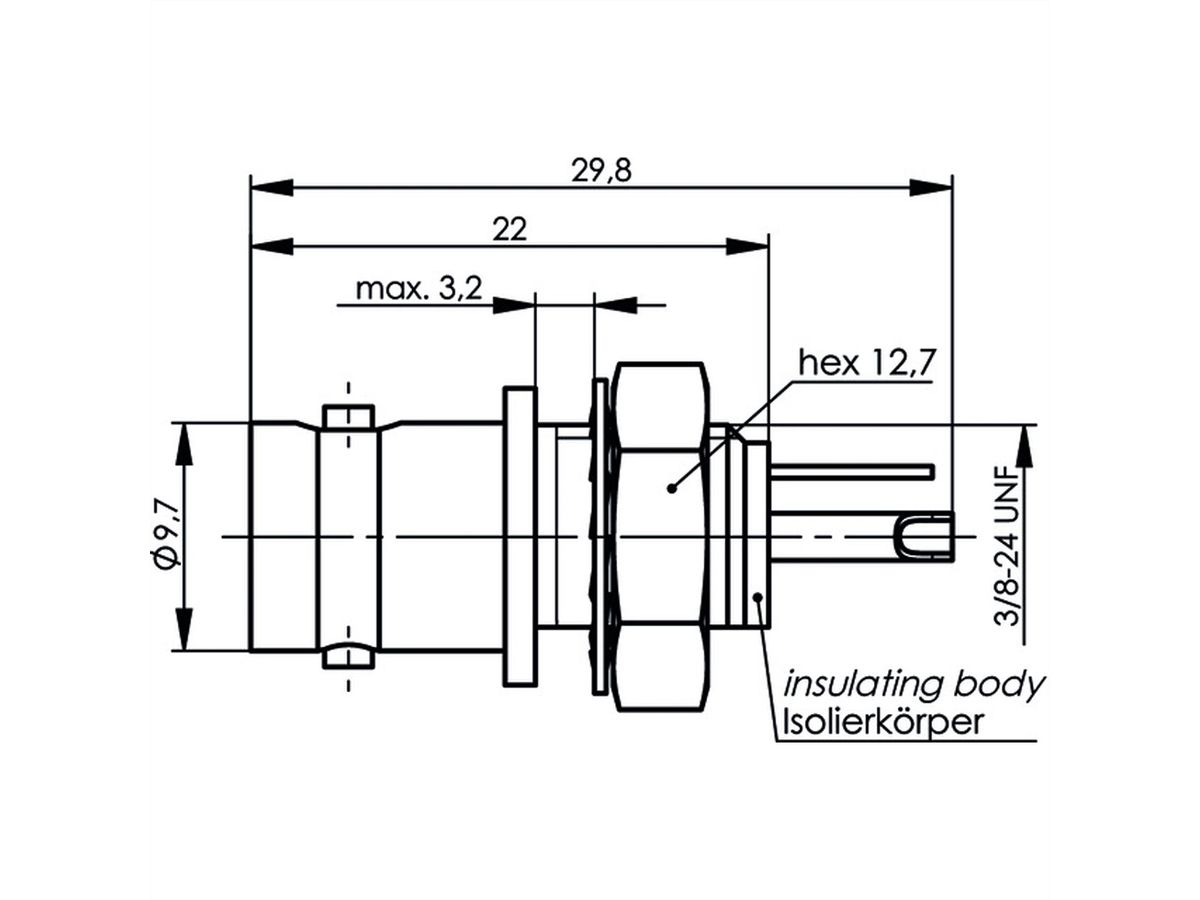

- Mount. dim.: Z113
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Coaxial Connectors |
| Product type | BNC Bulkhead Socket |
| Colour | silver |
| Quantity of ports | 1 |
| Side 1 Connector Type | BNC connector |
| Side 1 Connector Gender | Female |
| Protection class (IP Code) | IP54 |
| Connection direction | Straight |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 100 mm |
| Package weight (single piece) | 0.009 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
