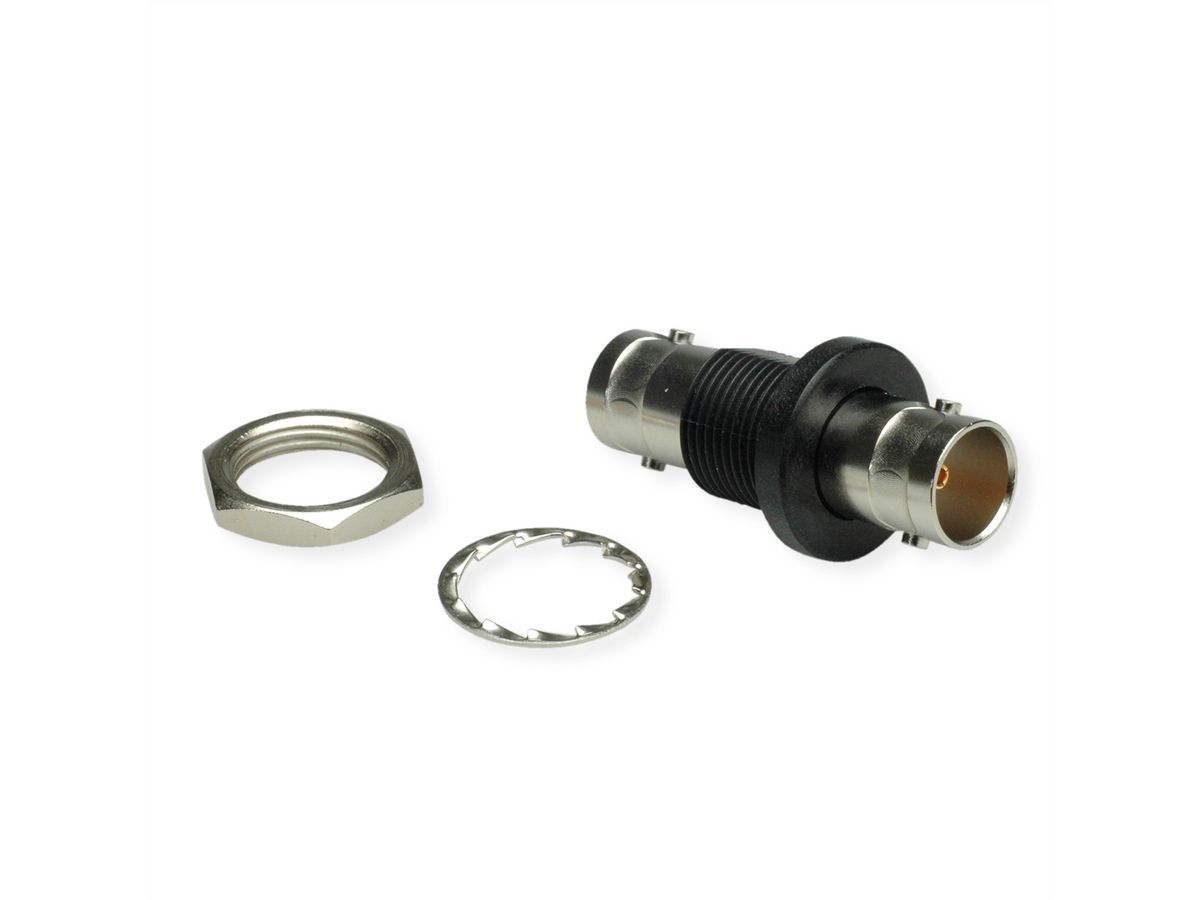

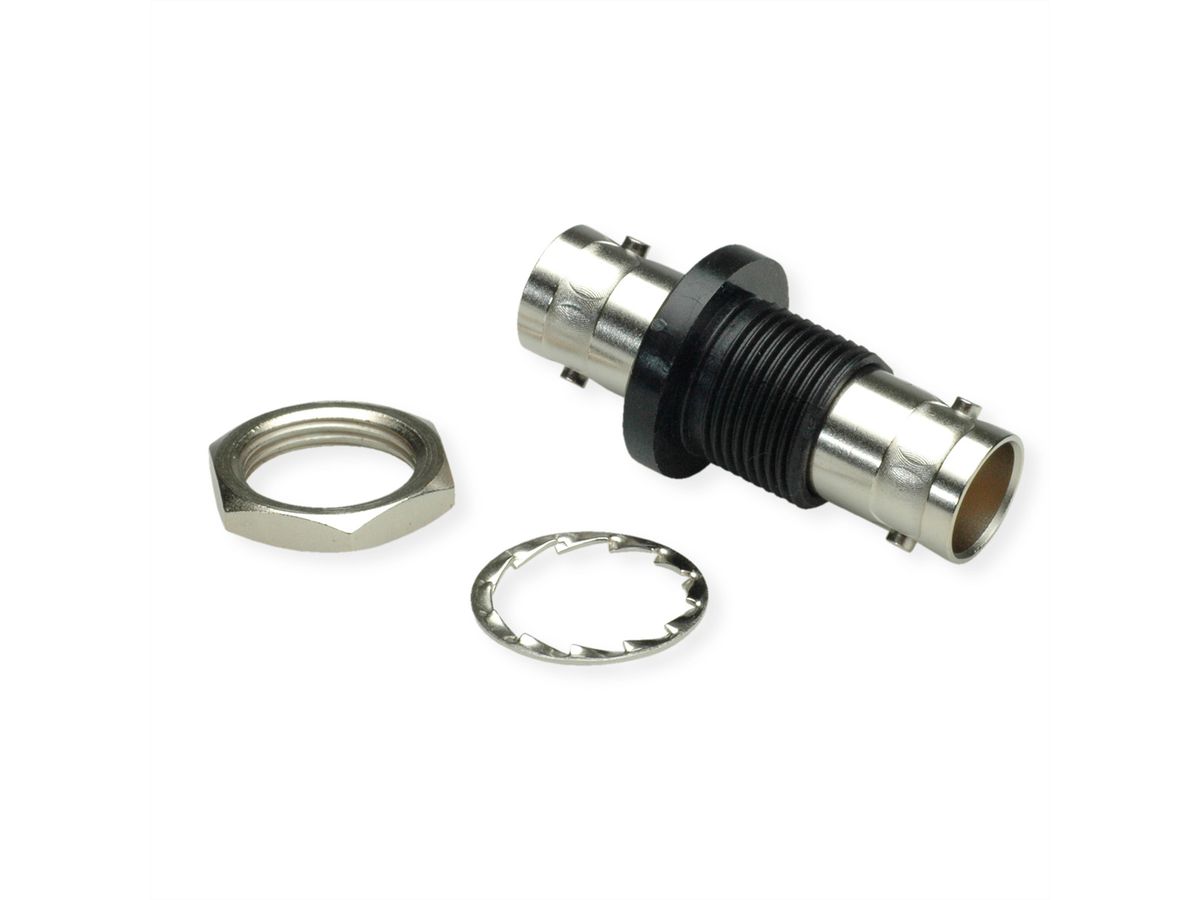

TELEGÄRTNER BNC Panel Adaptor, Panel Mounting HDTV 75 Ohm with insulating flange f-f

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170449
Marke / Hersteller	TELEGÄRTNER
Manuf. item no.	100027522
EAN	4018359313487
Paketgewicht	0.014 kg

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

Article name: BNC Adapt str Bkhd f-f insul HDTV (Old item number J01005A0008)
Impedance: 75 Ω
Type: f-f
Remarks: HDTV, insulating flange
Return Loss: typ.: 1 GHz: -36 dB; 3 GHz: -29 dB; 4 GHz: -26 dB

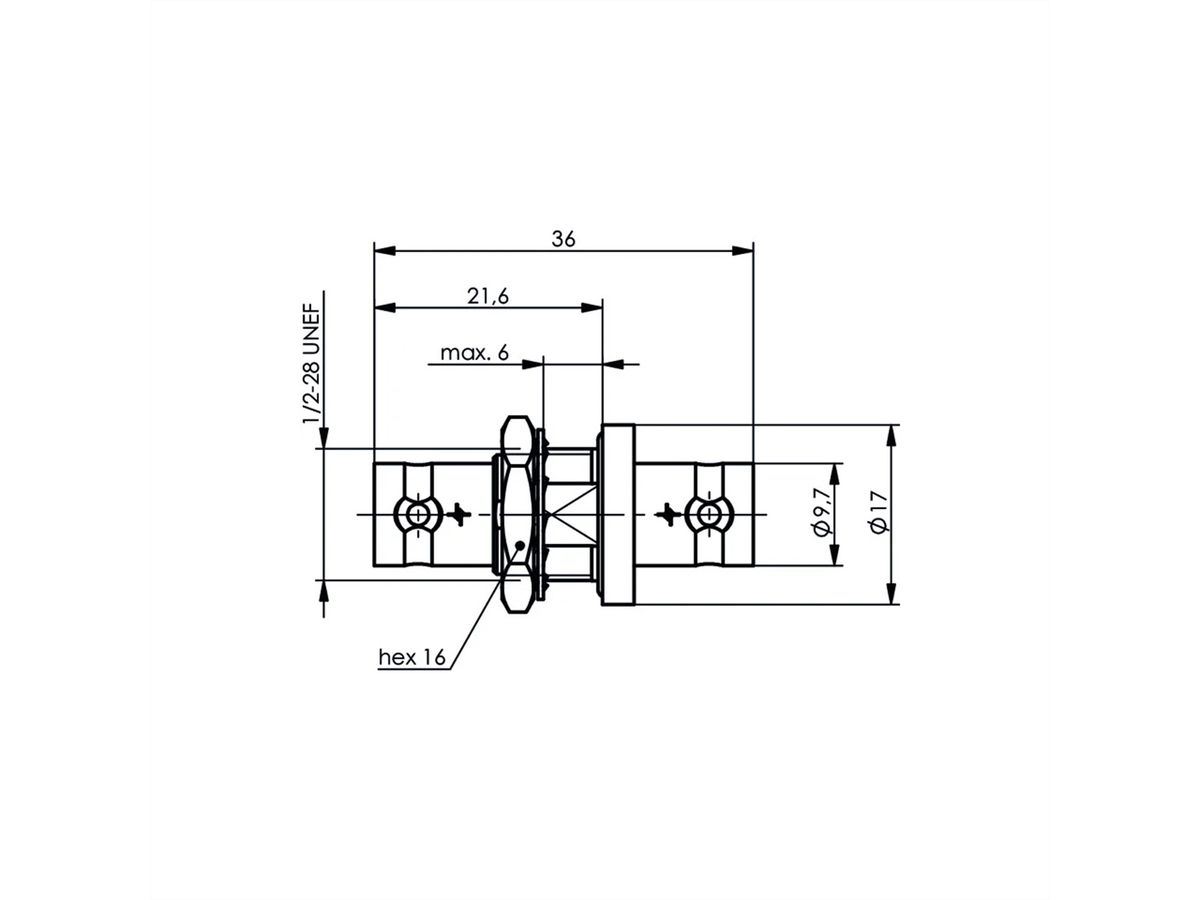

Mount. dim.: Z004

Specifications

Manufacturer	TELEGÄRTNER
Product group	Coaxial Connectors
Product type	BNC Panel Adaptor
Colour	silver
Quantity of ports	1
Side 1 Connector Type	BNC connector
Side 1 Connector Gender	Female
Side 2 Connector Type	BNC connector
Side 2 Connector Gender	Female
Protection class (IP Code)	IP54
Connection direction	Straight
Characteristic impedance	75 Ohm
Frequency range (max.)	4 GHz
Height	17 mm
Width	17 mm
Depth	36 mm
Weight	14.21 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.014 kg
