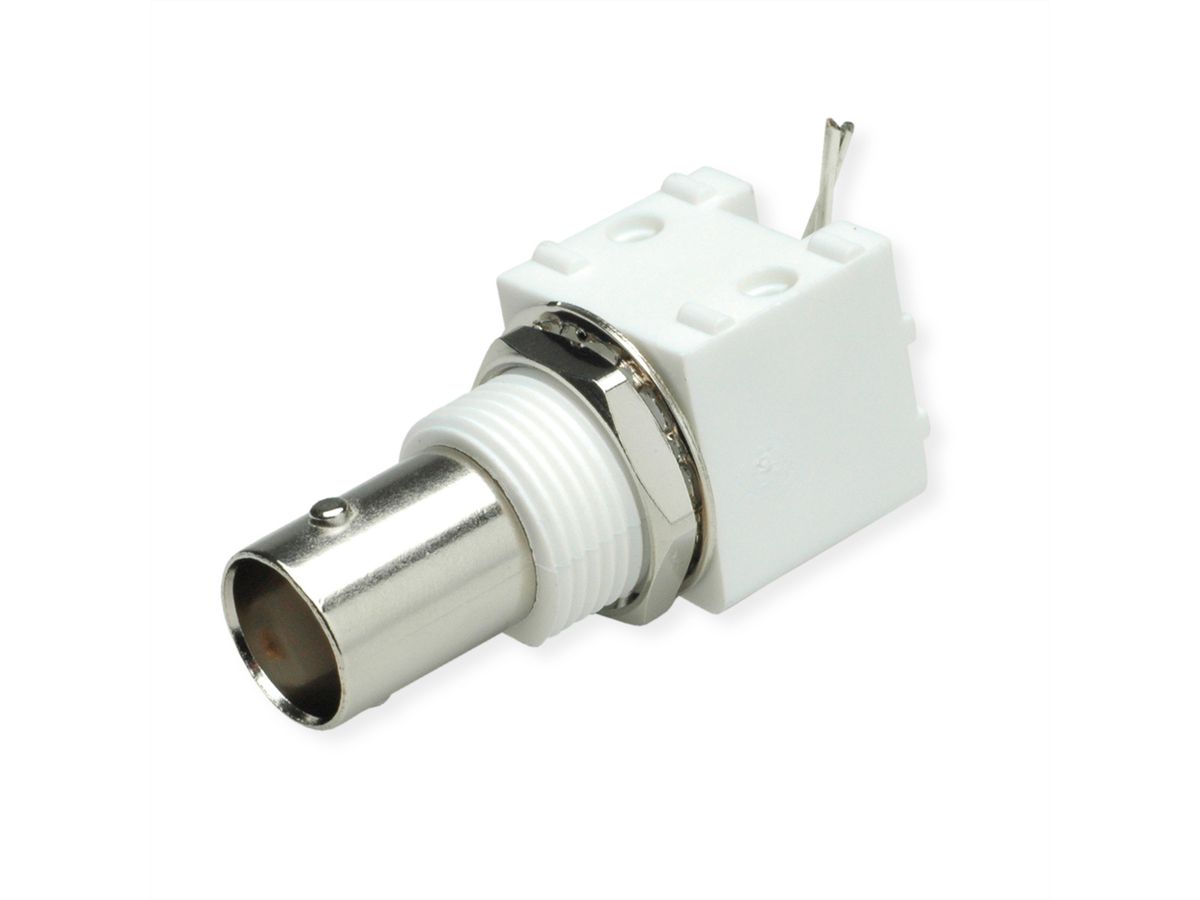

TELEGÄRTNER BNC PCB Bulkhead Angle Jack, insulated for Printed Circuits

Item no. 21170429 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100132568 EAN 4018359017736 Item weight 0.012 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

  • Article name: BNC Jck str Bkhd sd/sd PCB insul A Z50 (Old item number J01001A0037)
  • Impedance: 50 Ω

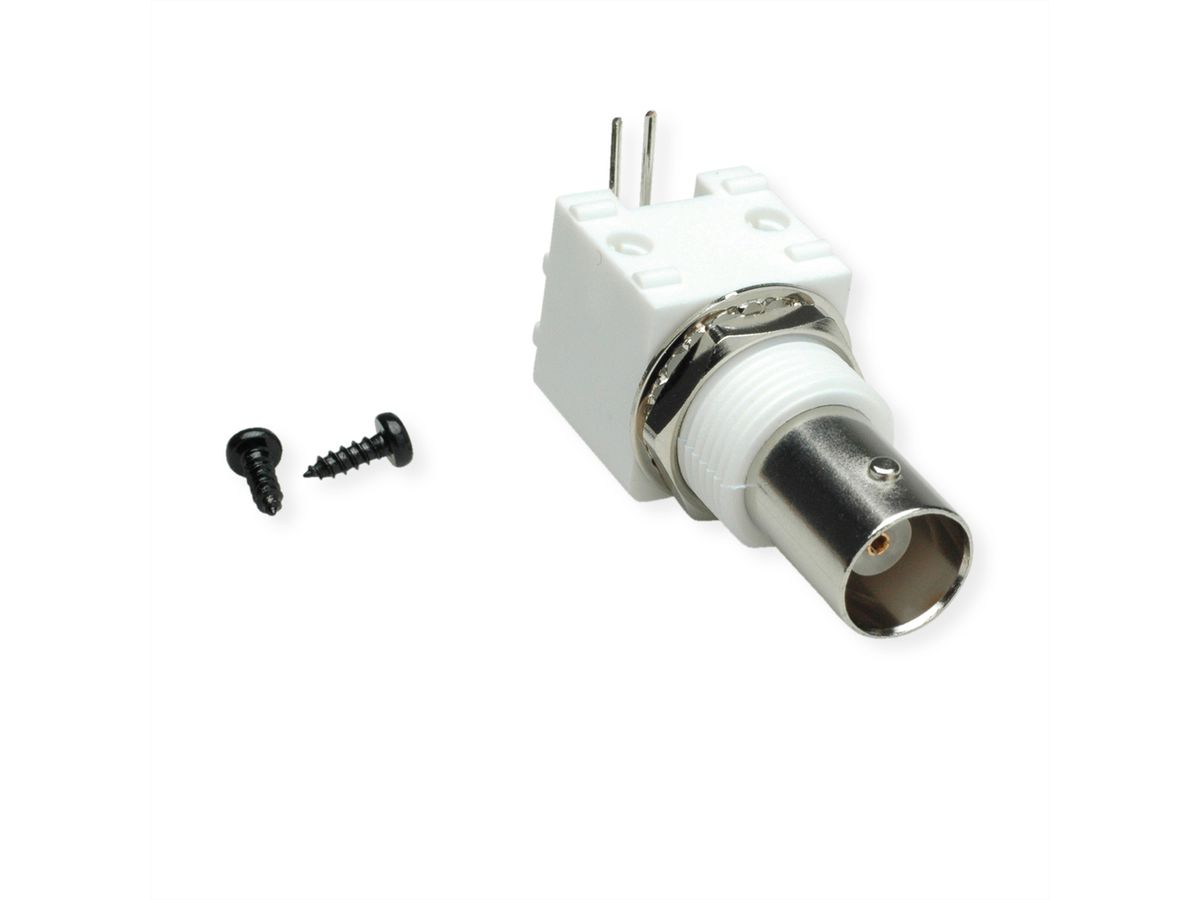

  • Remarks: without fixing pins with fastening screws, solder pin 90°; insulated
  • Mount. dim.: Z004/Z034

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
BNC PCB Bulkhead Angle Jack
Colour
silver
Quantity of ports
1
Side 1 Connector Type
BNC connector
Side 1 Connector Gender
Female
Side 2 Connector Type
Solder termination
Protection class (IP Code)
IP54
Connection direction
Straight
Characteristic impedance
50 Ohm
Frequency range (max.)
4 GHz

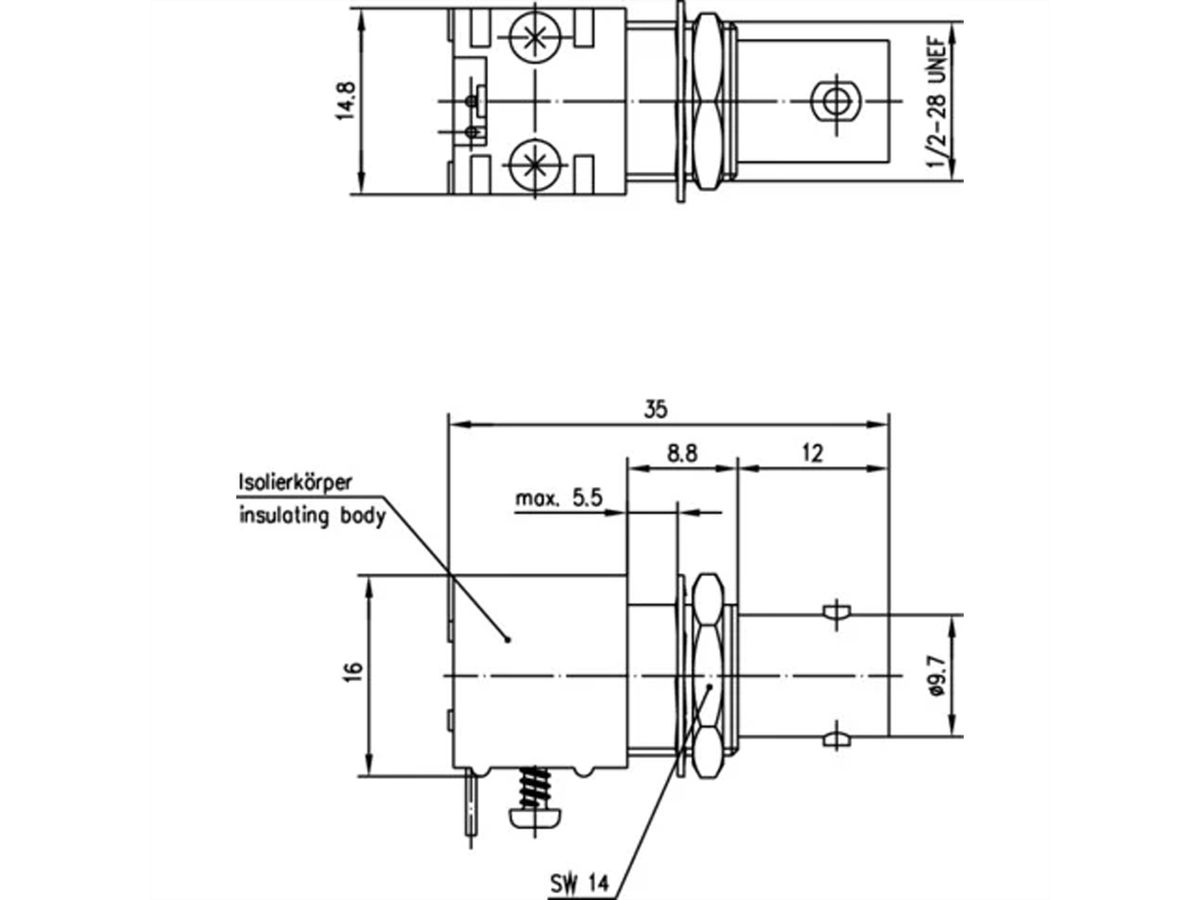

Height
16 mm
Width
14.8 mm
Depth
35 mm
Weight
12.8 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.012 kg
