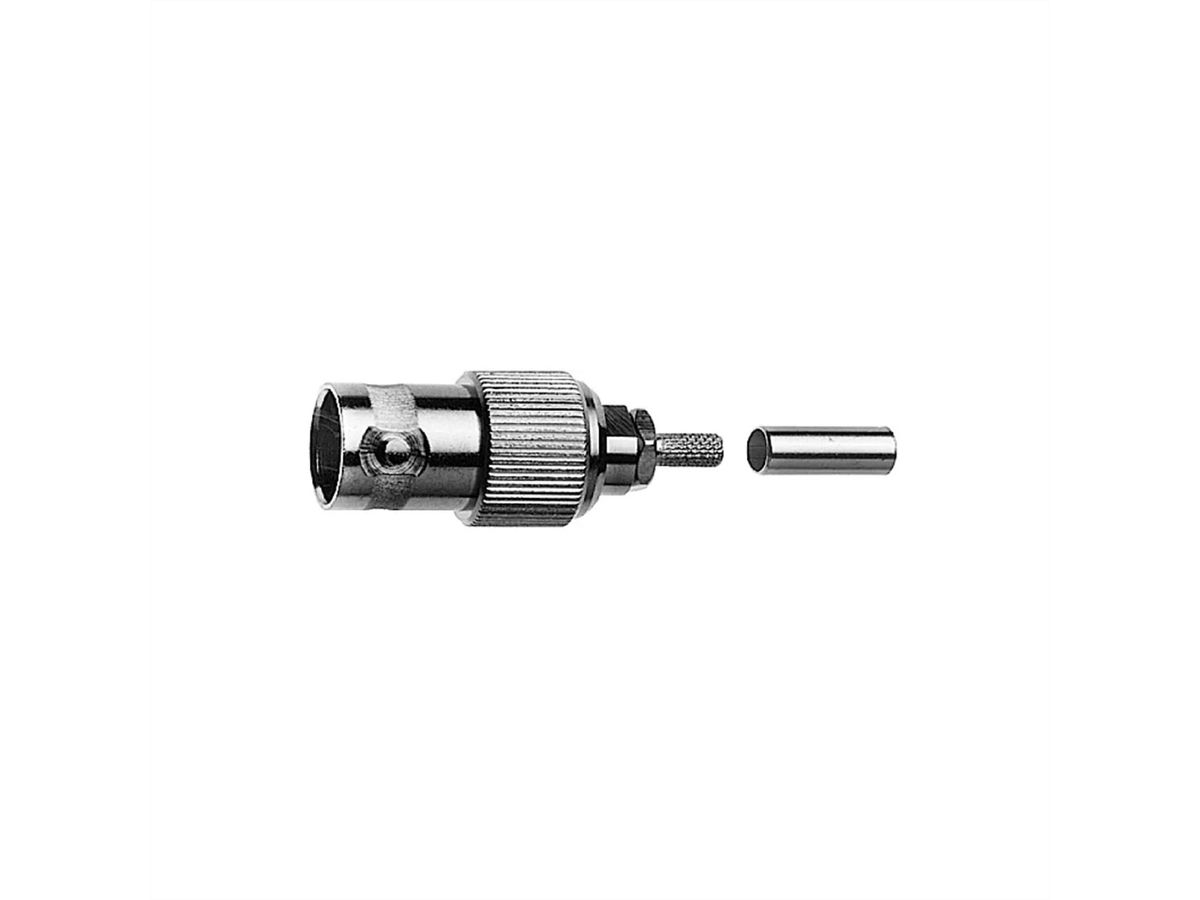

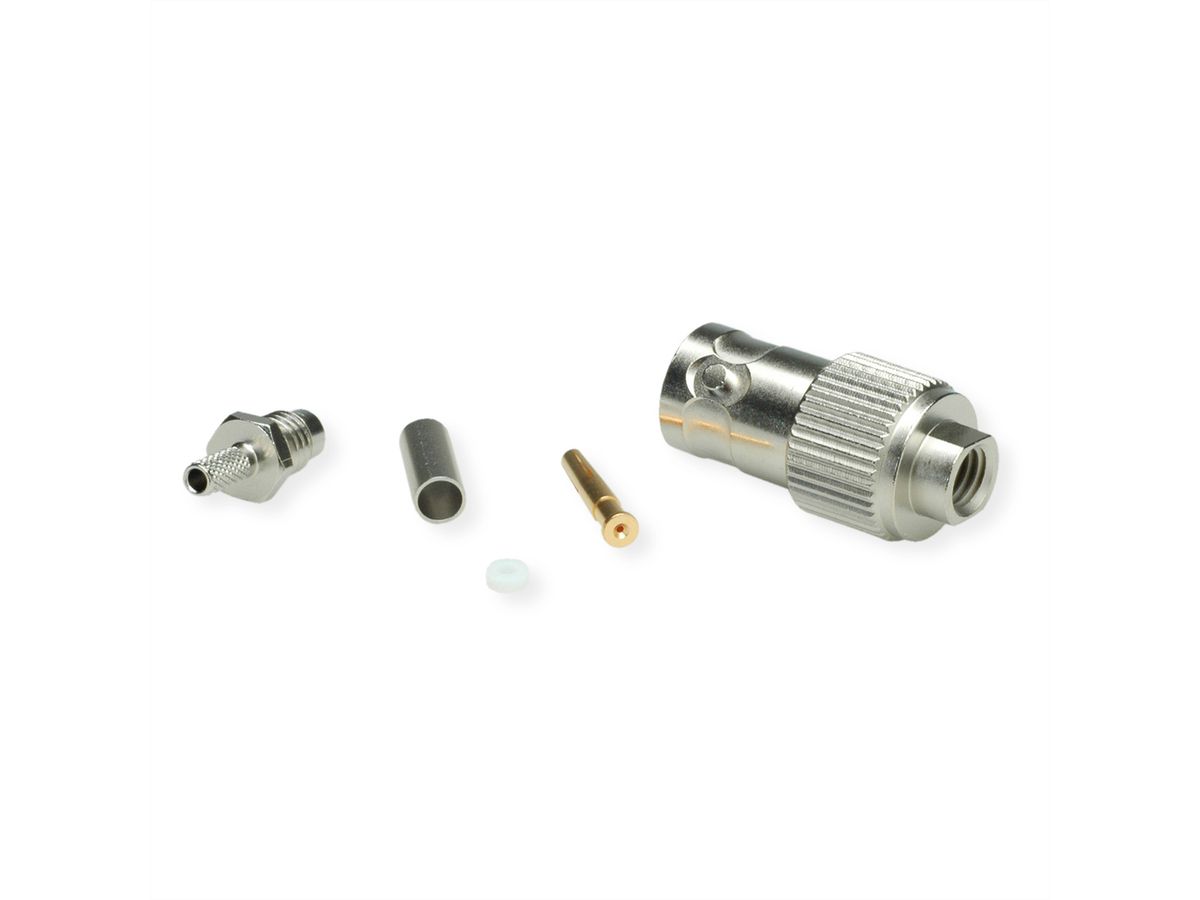

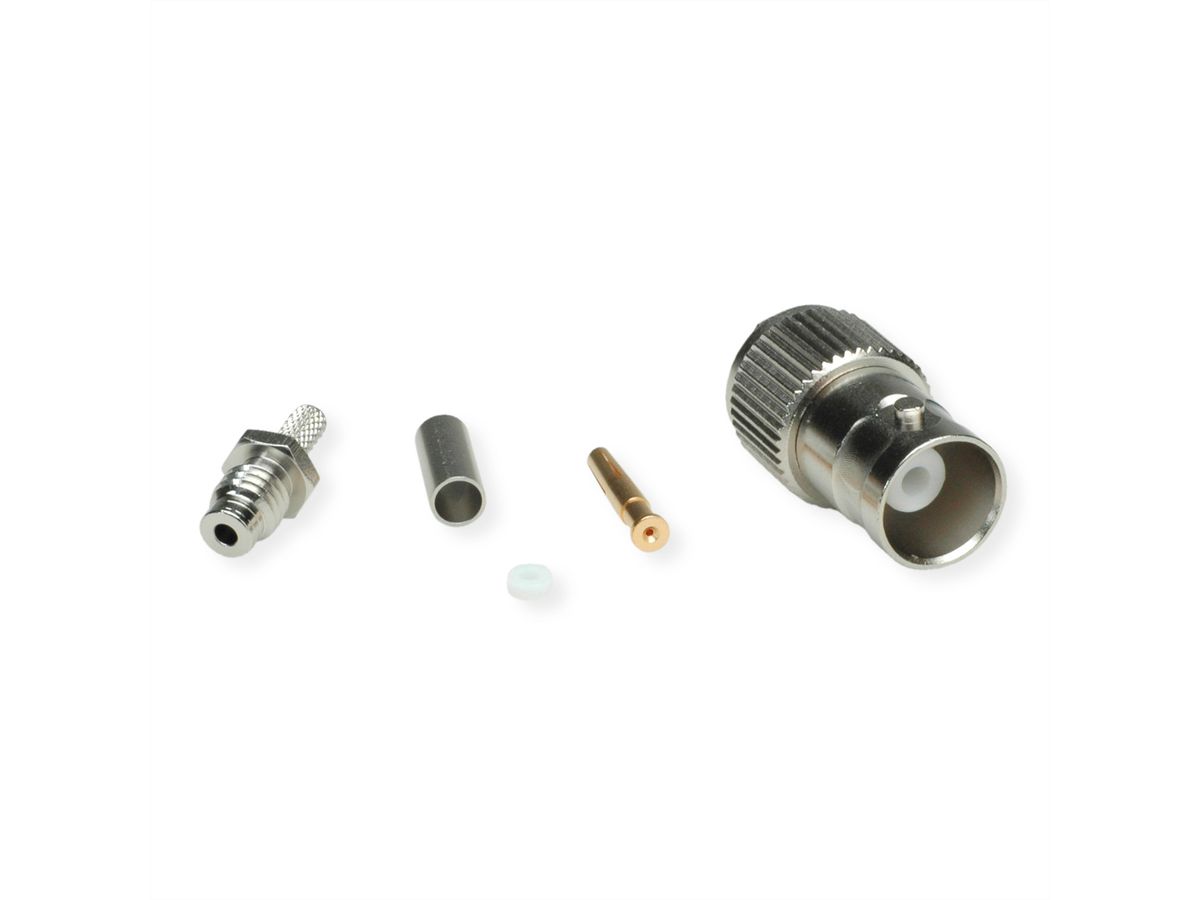

TELEGÄRTNER BNC Straight Jack Crimp, G7 (RG-316/U) crimp/crimp
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170490 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100023420 |
| EAN | 4018359192556 |
| Item weight | 0.012 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.
- Article name: BNC Jck str cr/cr G7 Z50 (Old item number J01001B0005)
- Impedance: 50 Ω
- Cable group; cable: G7 (RG-316/U), RG-316/U, KX 22A, KX 3B, RG-174/U, RG-188A/U, MRC 100 Flex (0.48L/1.5 AF)
- Remarks: crimp/crimp
- Assembly: A2903
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Coaxial Connectors |
| Product type | BNC Straight Jack Crimp |
| Colour | silver |
| Quantity of ports | 1 |
| Side 1 Connector Type | BNC connector |
| Side 1 Connector Gender | Female |
| Protection class (IP Code) | IP54 |
| Connection direction | Straight |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 90 mm |
| Depth of packaging (single piece) | 130 mm |
| Package weight (single piece) | 0.012 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
