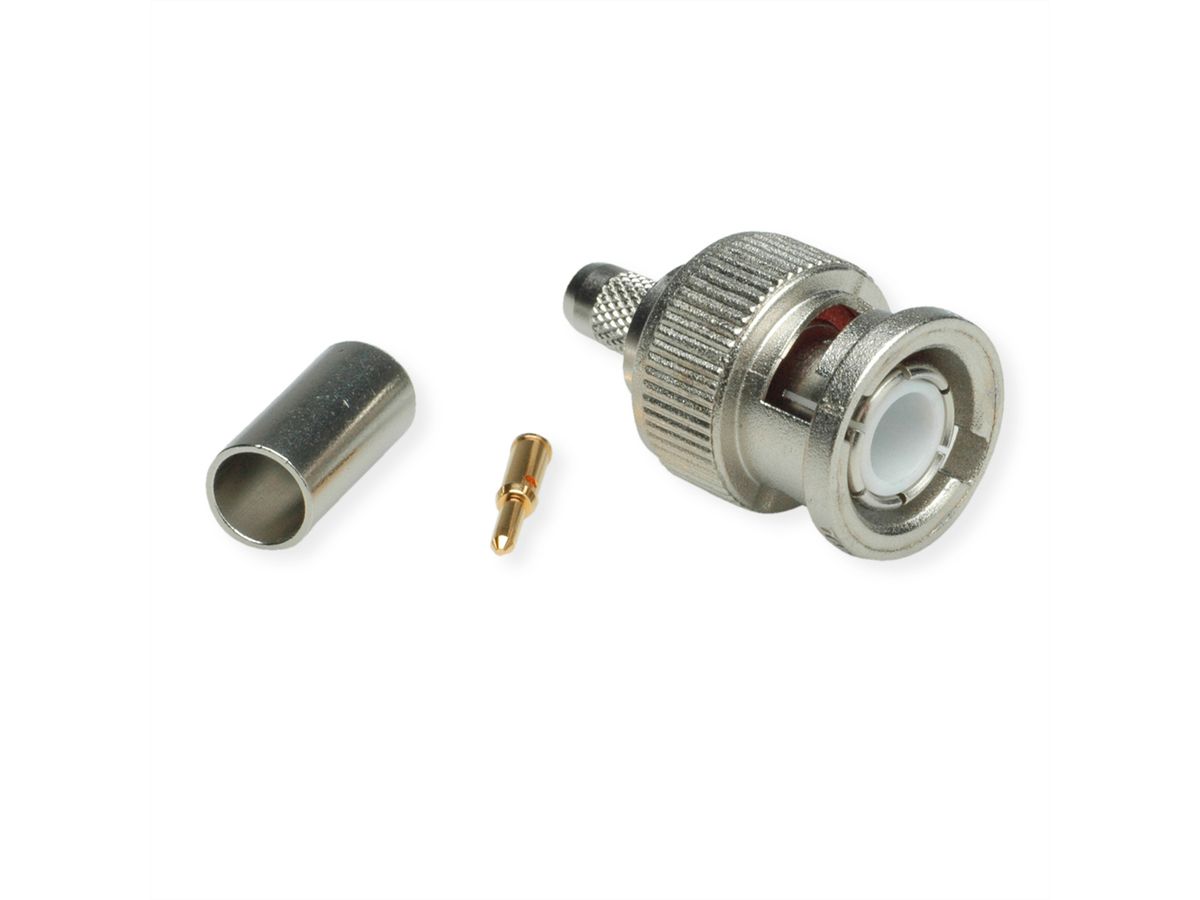

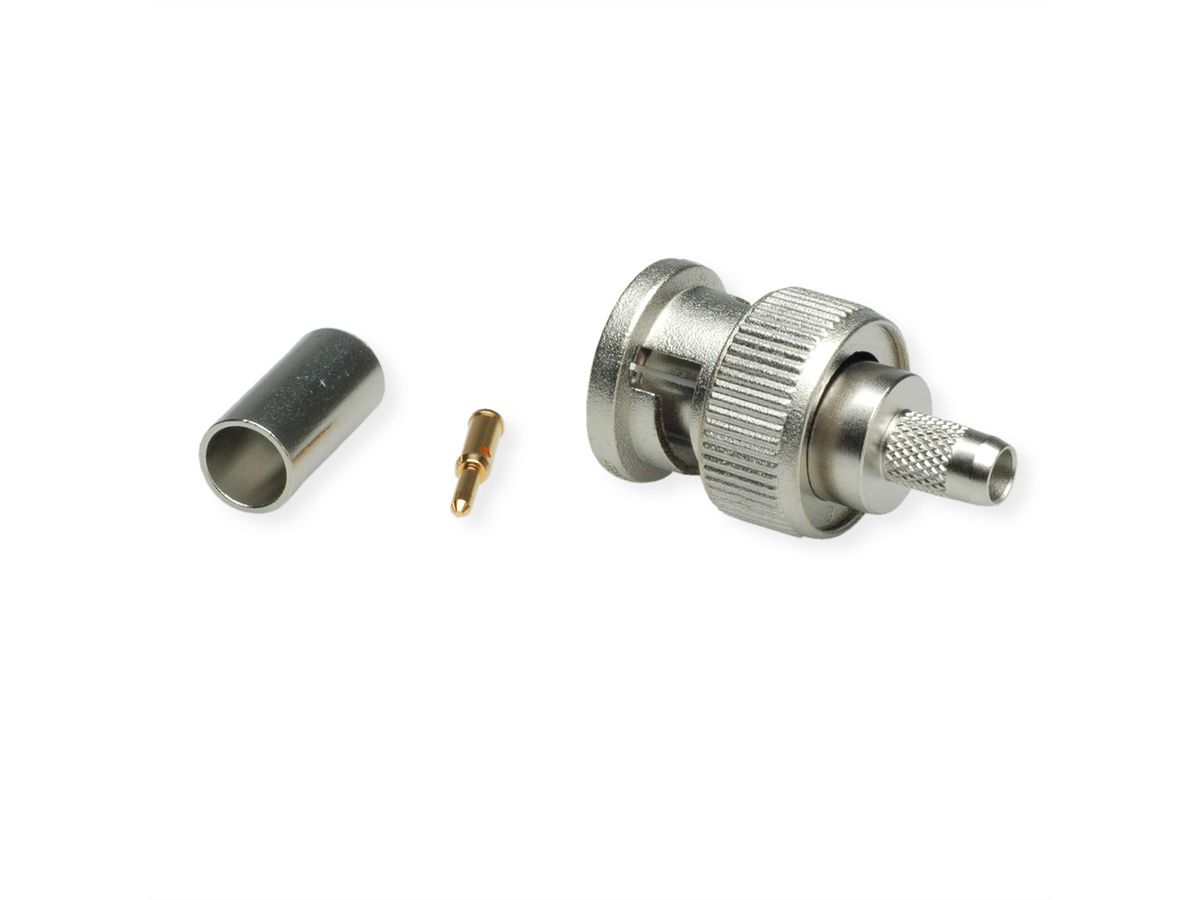

TELEGÄRTNER BNC Straight Plug Crimp, G1 (RG-58C/U)

Item no. 21170481 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100027459 EAN 4018359102166 Item weight 0.011 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

  • Article name: BNC Plg str cr/cr G1 YR23092 Std Z50 (Old item number J01000F1255Y)
  • Impedance 50 Ω
  • Cable group; cable: G1 (RG-58C/U), 7806A, 9907, CNT-195, HPF 195, KX 15, LMR-195, RG-58C/U, WCX195, YR23092
  • Remarks: crimp/crimp Standard

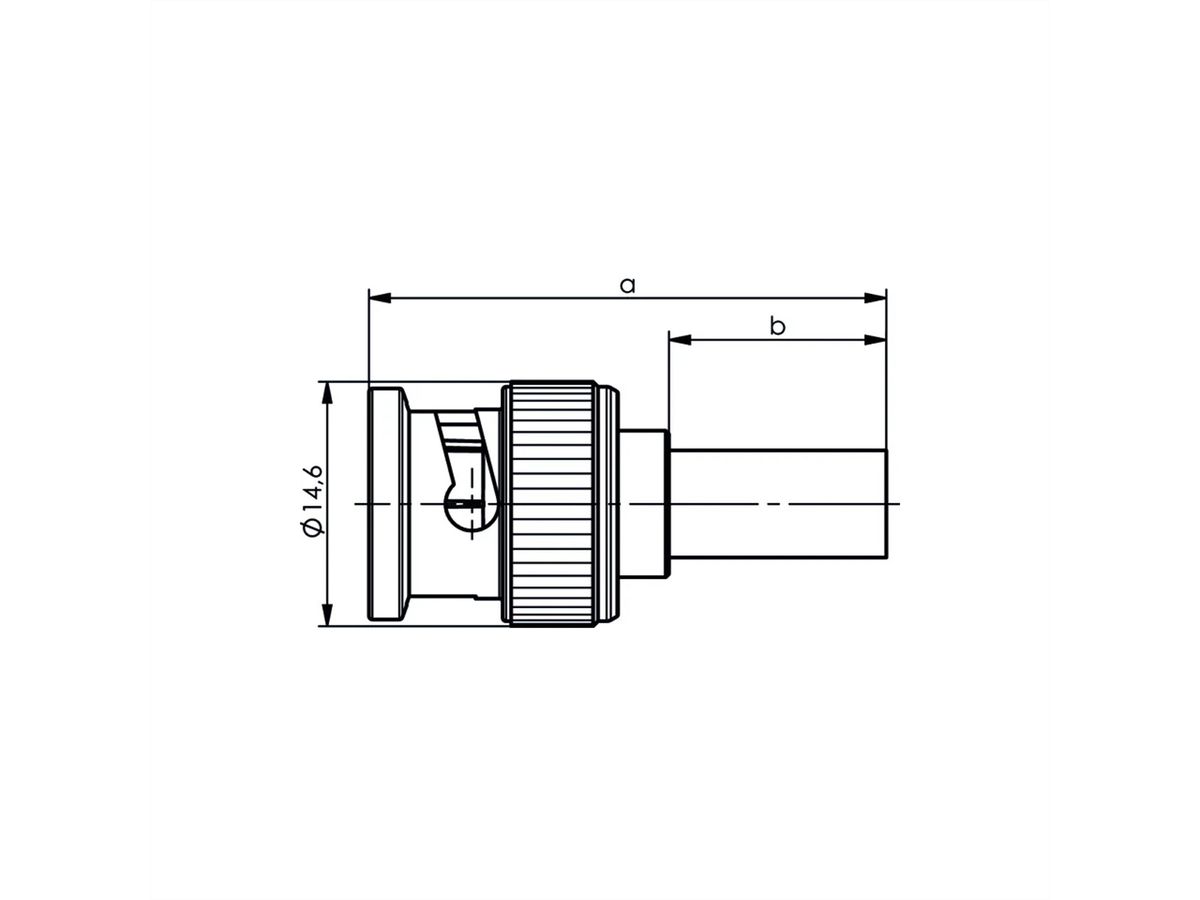

  • Dimensions: a=31, b=13
  • Assembly: A0205

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
BNC Straight Plug Crimp
Colour
silver
Quantity of ports
1
Side 1 Connector Type
BNC connector
Side 1 Connector Gender
Male
Side 2 Connector Type
Crimp termination
Protection class (IP Code)
IP54
Connection direction
Straight
Characteristic impedance
50 Ohm
Frequency range (max.)
4 GHz
Height
14.6 mm
Width
14.6 mm
Depth
31 mm
Weight
11.16 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.011 kg

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
info@telegaertner.com
