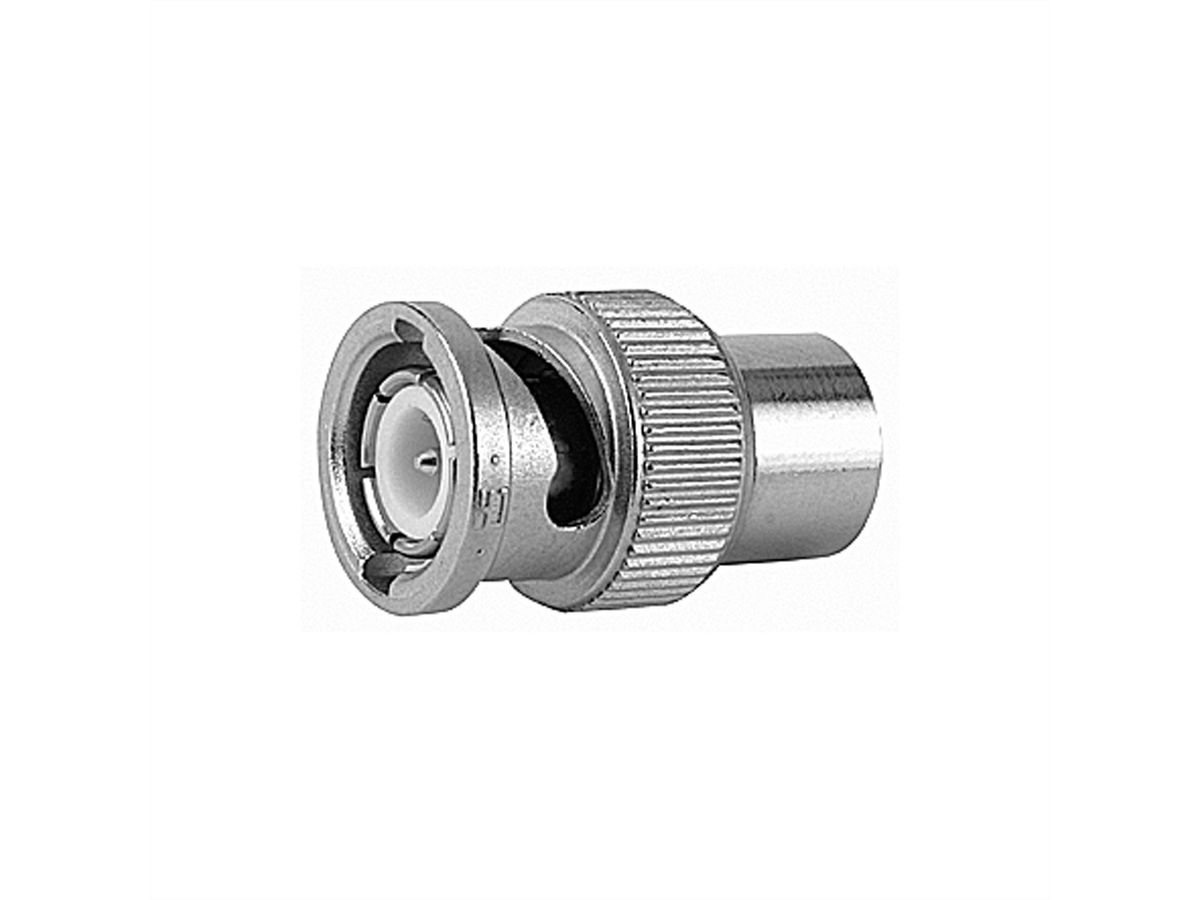

TELEGÄRTNER BNC Termination Load, (m) 50 Ohm

Item no. 21170495 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100023617 EAN 4018359303266 Item weight 0.014 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.

  • Article name: BNC Load m 2.5GHz 1W (Old item number J01006A0020)
  • Impedance: 50 Ω
  • Type: m
  • Max. Power: 1 W
  • Max. Frequency: 4 GHz
  • Return Loss: typ.: 1 GHz: -40 dB; 2 GHz: -32 dB; 4 GHz: -26 dB

Remark: Picture similar

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
BNC Termination Loads
Colour
silver
Quantity of ports
1
Side 1 Connector Type
BNC connector
Side 1 Connector Gender
Male
Protection class (IP Code)
IP54
Connection direction
Straight
Characteristic impedance
50 Ohm
Frequency range (max.)
4 GHz
Operating temperature min.
-40 °C
Operating temperature max.
155 °C

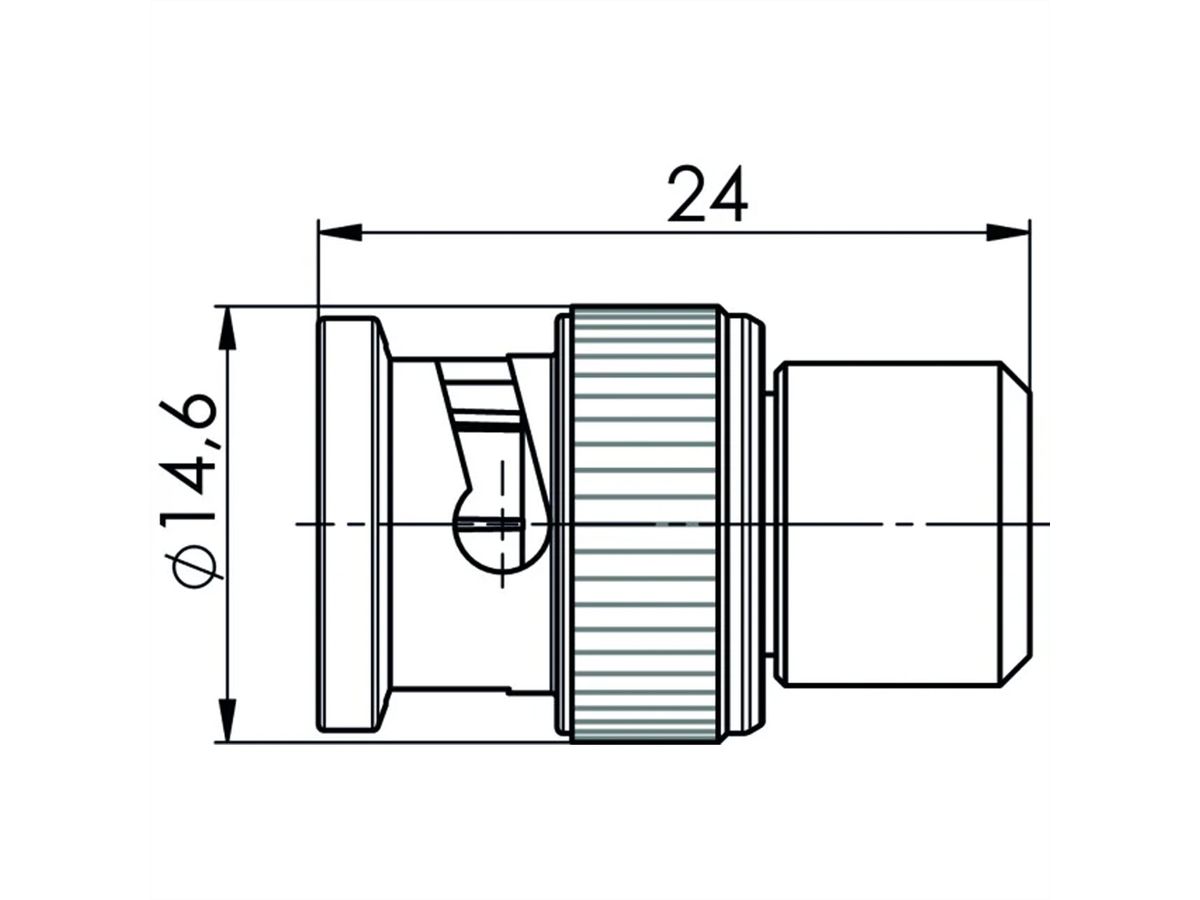

Height
14.6 mm
Width
14.6 mm
Depth
24 mm
Weight
14.15 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.014 kg

Downloads

Manufacturer data sheet - English (29.8 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
