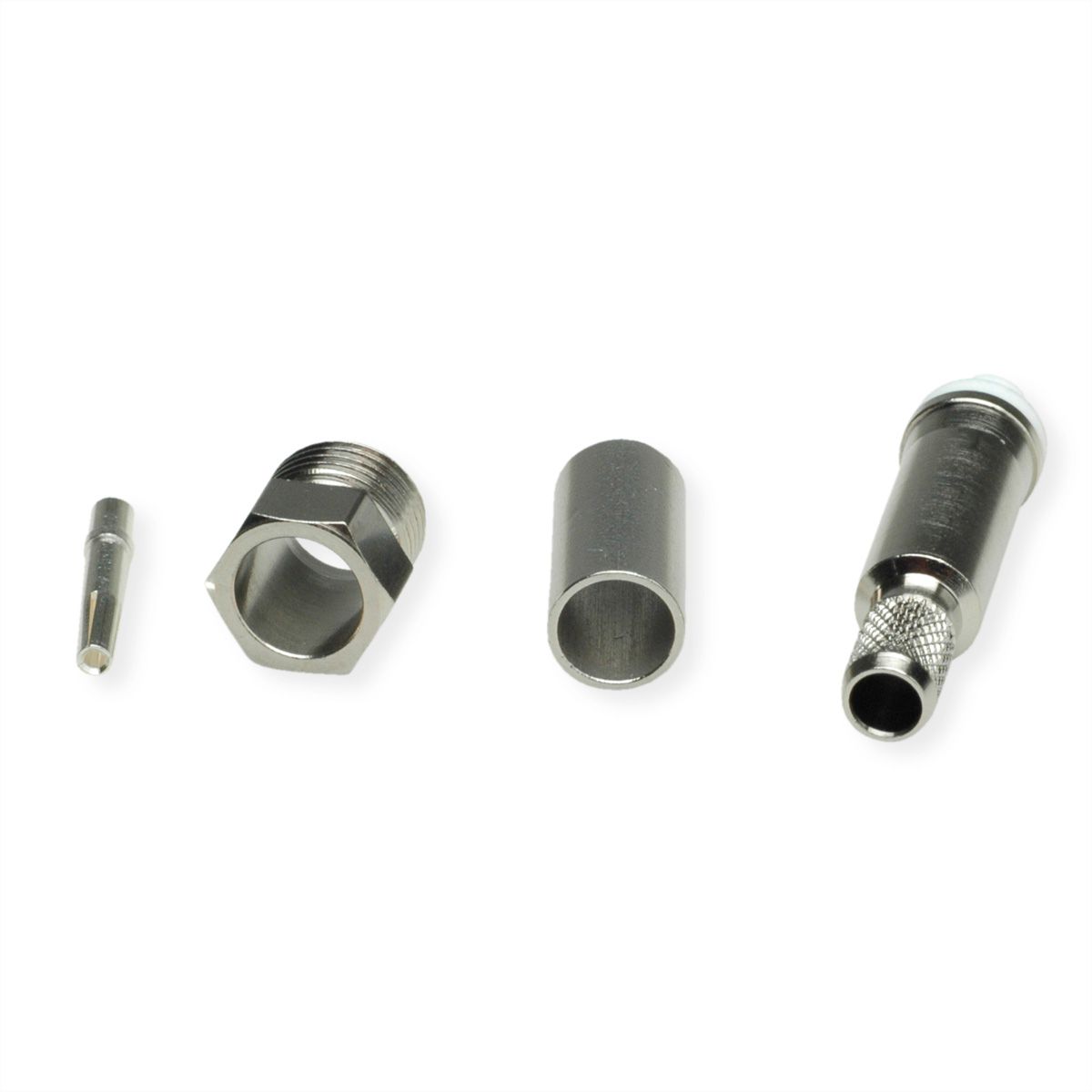

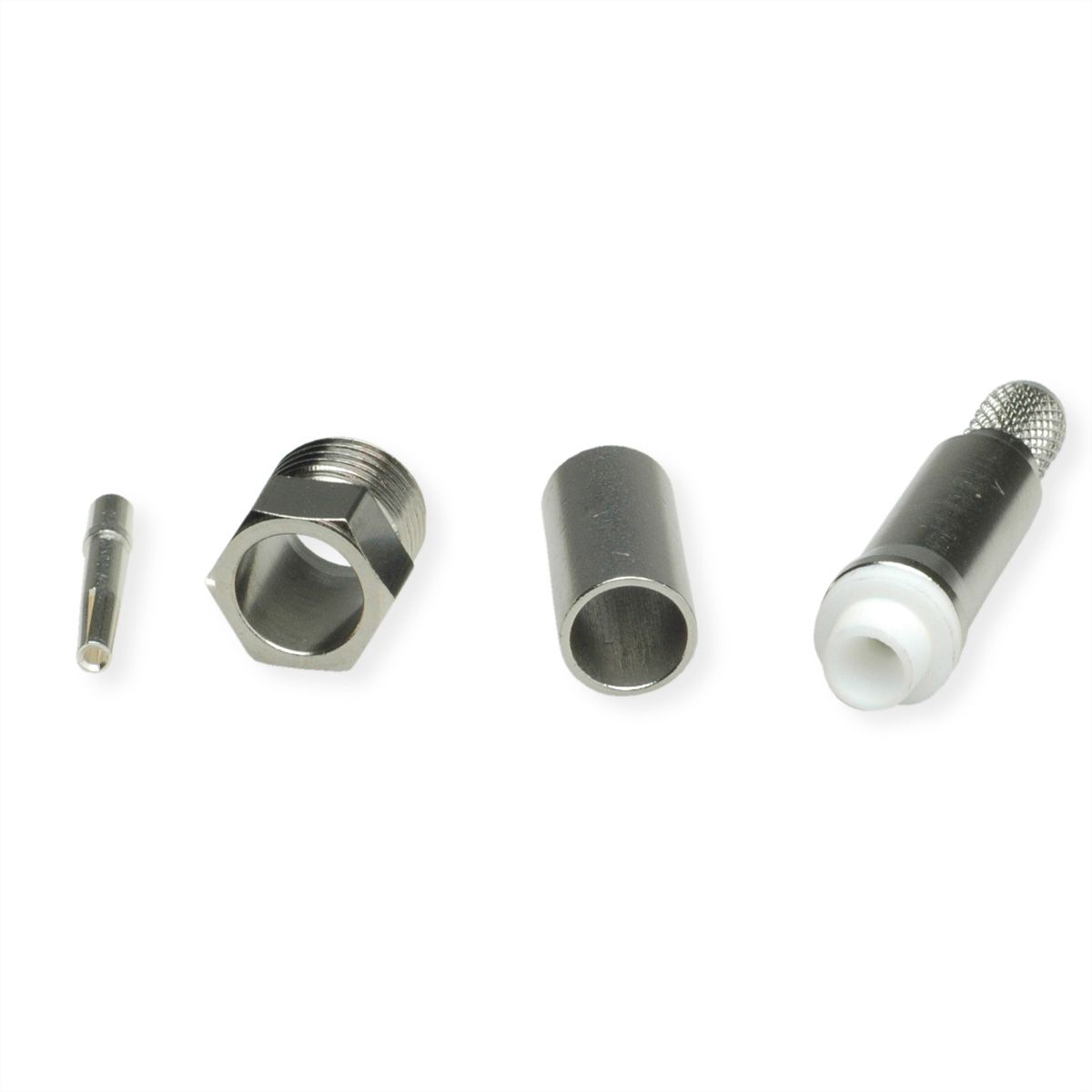

TELEGÄRTNER FME Straight Jack Crimp, G1 (RG-58C/U)

Item no. 21170501 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100027733 EAN 4018359130725 Item weight 0.006 kg
TELEGÄRTNER
New products

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The FME series is a miniature coax connector with screw coupling. The FME series can be used up to a frequency of 2 GHz. The impedance is controlled at 50 Ω. Connector styles are available for flexible and conformable cables. Applications for the FME series are in the area of mobile communications, especially in vehicles due to their compact size and durability.

  • Article name: FME Jck str cr/cr G1 (Old item number J01701A0007)
  • Cable group; cable: G1 (RG-58C/U), RG-58C/U, 7806A, 9907, CNT-195, HPF 195, KX 15, LMR-195, WCX195
  • Assembly: B0805

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
FME Straight Jack Crimp
Colour
silver
Quantity of ports
1
Side 1 Connector Type
FME connector
Side 1 Connector Gender
Female
Side 2 Connector Type
Crimp termination
Connection direction
Straight

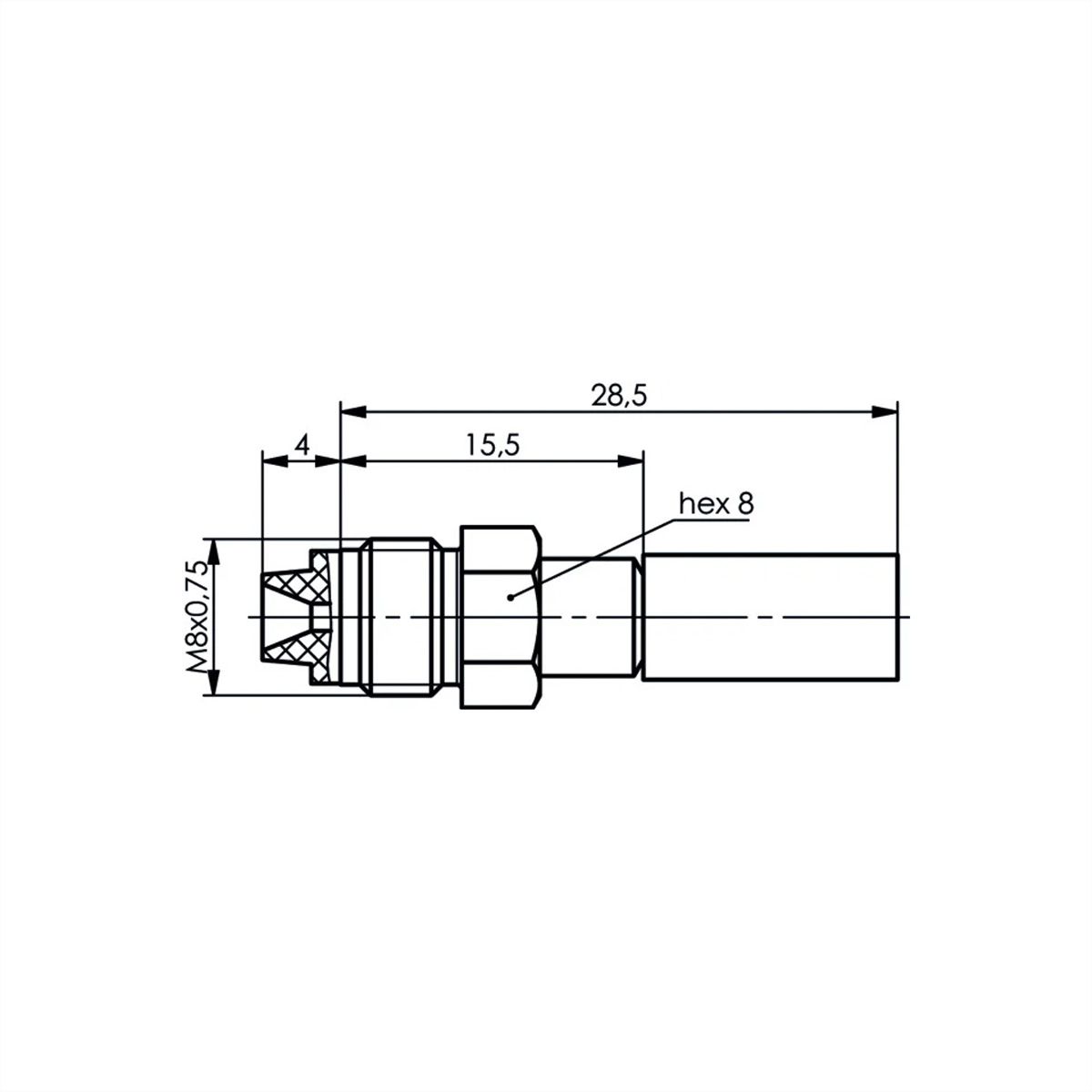

Height
8 mm
Width
8 mm
Depth
28.5 mm
Weight
6.03 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.006 kg

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
