TELEGÄRTNER FME Straight Plug Crimp, G30 (1.5/3.8), G54 (1.5/3.8 FLEX) crimp/crimp

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170500
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100027726
EAN	4018359258740
Item weight	0.008 kg

Description

The FME series is a miniature coax connector with screw coupling. The FME series can be used up to a frequency of 2 GHz. The impedance is controlled at 50 Ω. Applications for the FME series are in the area of mobile communications, especially in vehicles due to their compact size and durability.

Article name: FME Plg str cr/cr G30 G54 (Old item number J01700A0009)
Cable group; cable: G30 (1.5/3.8); G54 (1.5/3.8 FLEX), H 155, LOW LOSS 1.4/3.8, 02YS(ST)CY 1.4/3.7-50 LI, 1.4/3.8 AF, 7808A, CNT-240, HPF 240, LMR-240, MRC 240 AFB, S 04172 D, TZC 500 25, WCX240, 02YS(ST)CY 1.4/3.7-50, SPEEDFOAM 240 HFJ, SX 04172 B-60
Remarks: crimp/crimp

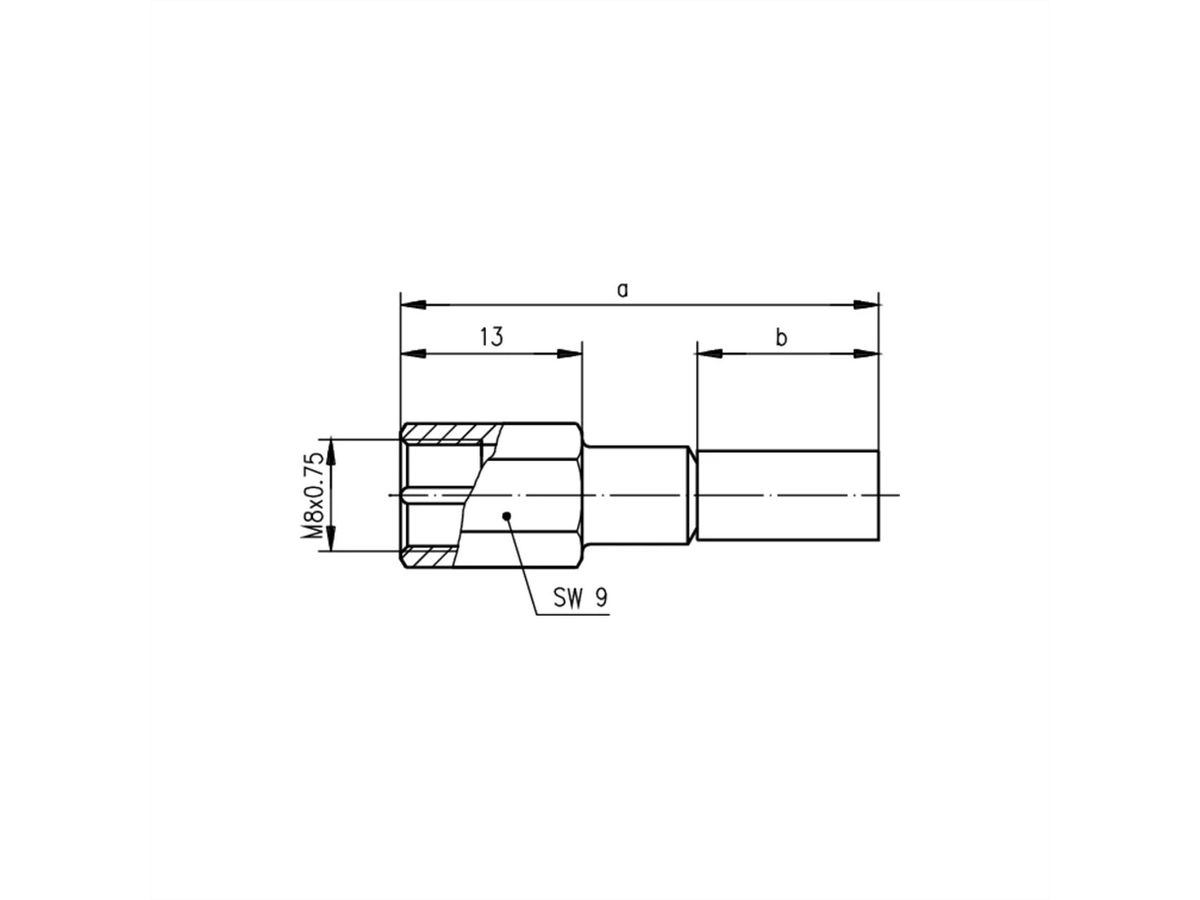

Dimensions: a=34.7, b=13.5
Assembly: B1231

Specifications

Manufacturer	TELEGÄRTNER
Product group	Coaxial Connectors
Product type	FME Straight Plug Crimp
Colour	silver
Quantity of ports	1
Side 1 Connector Type	FME connector
Side 1 Connector Gender	Male
Connection direction	Straight
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.008 kg
