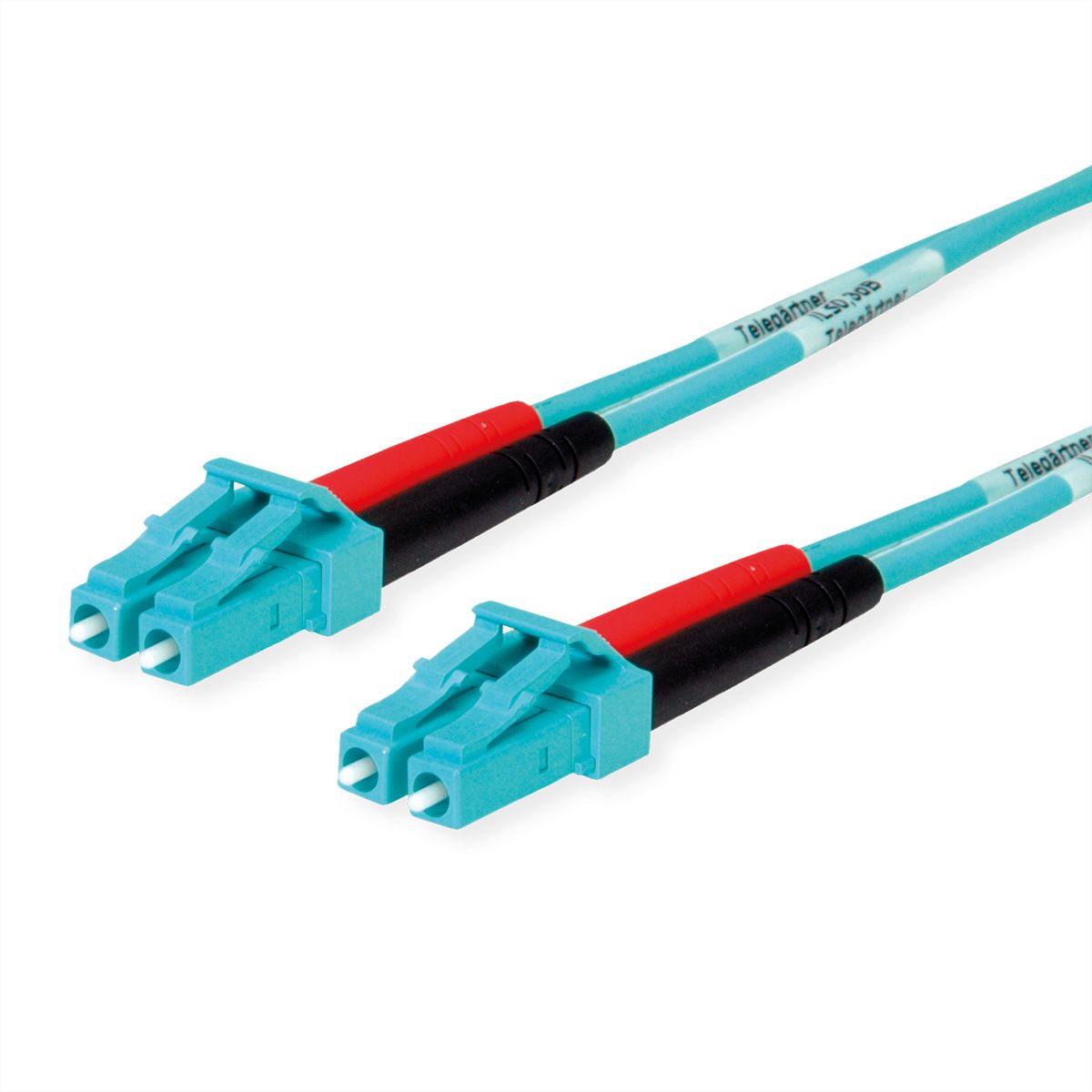

TELEGÄRTNER FO Duplex Patch Cables G50/125 OM3, 1x LC Duplex - 1x LC Duplex, turquoise, 2 m

Item no. 21170706 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100011325 EAN 4018359285470 Item weight 0.041 kg
TELEGÄRTNER
Colour:
Length:

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

FO Duplex Patch Cables G50/125 OM3 2,0 m

Acc. to ISO/IEC 11801 the fiber channels of duplex connectors are connected, i.e. channel termination A on the 1st side is connected to channel termination B on 2nd side. The channels A/B are marked by differently coloured cable boots (A=red, B=black).
Of all components in a channel, patch cords have to endure highest stress and wear. This is why many users rely on patch cords made by Telegärtner: Perfectly matched components, highest quality standards and completely tracked manufacturing processes make sure the data network works safely and reliably.

Specifications

Manufacturer
TELEGÄRTNER
Product group
Network Passive Components
Product type
Fibre Optic Jumper Cables OM3
Colour
turquoise
Length
2 m
Cable type
Duplex Cable
Fibre section
Multi mode 50/125µm OM3
Connection ports
LC / LC
Side 1 Connector Type
LC
Side 2 Connector Type
LC
Bend radius
25 mm
Cable LSOH
yes
Flame retardant according to IEC 60332-1-2
yes
Halogen free according to IEC 60754-2
yes
Max. insertion loss
0.25 dB
Min. return loss
30 dB
Operating temperature min.
-5 °C
Operating temperature max.
55 °C
Weight
38.73 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
190 mm
Depth of packaging (single piece)
240 mm
Package weight (single piece)
0.041 kg

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
