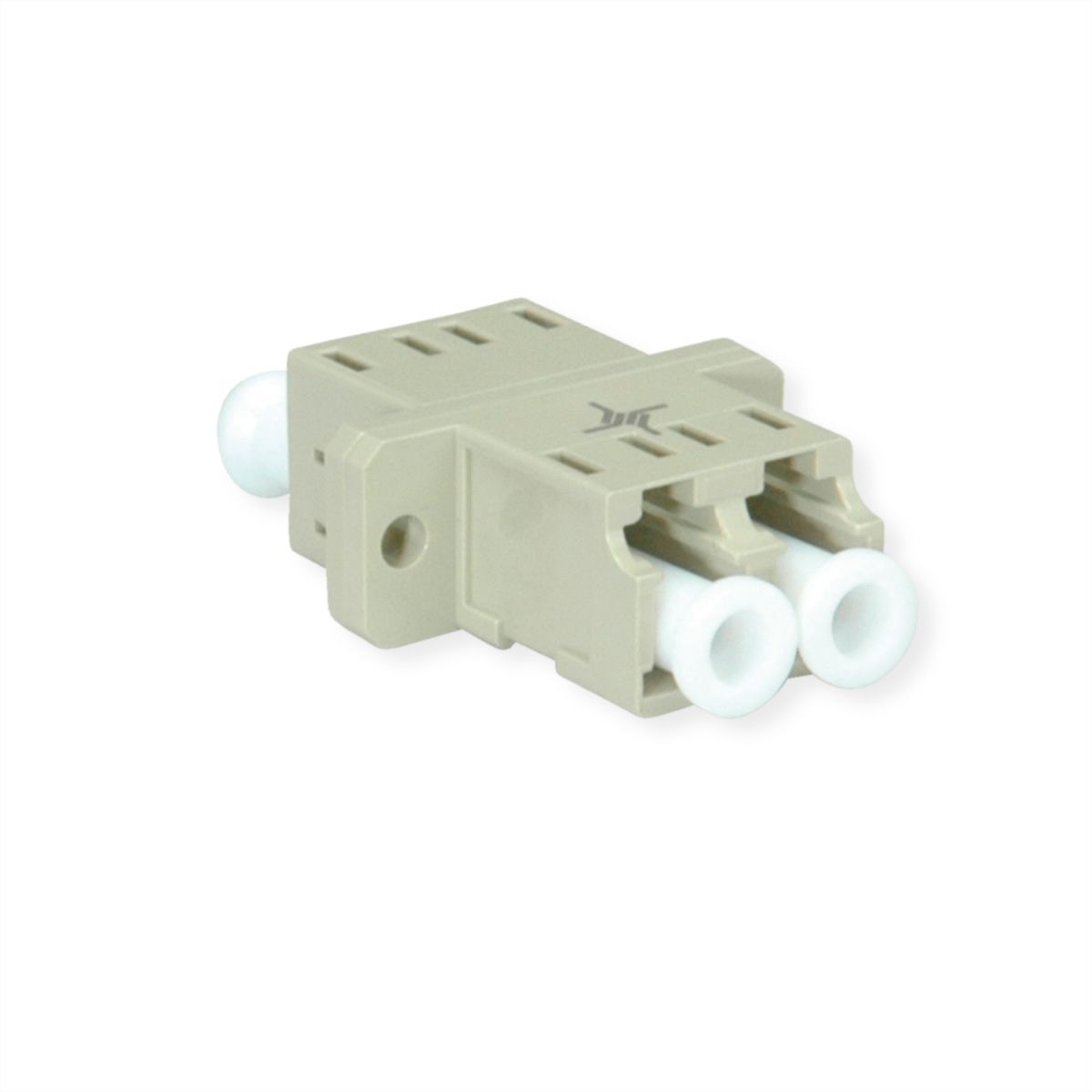

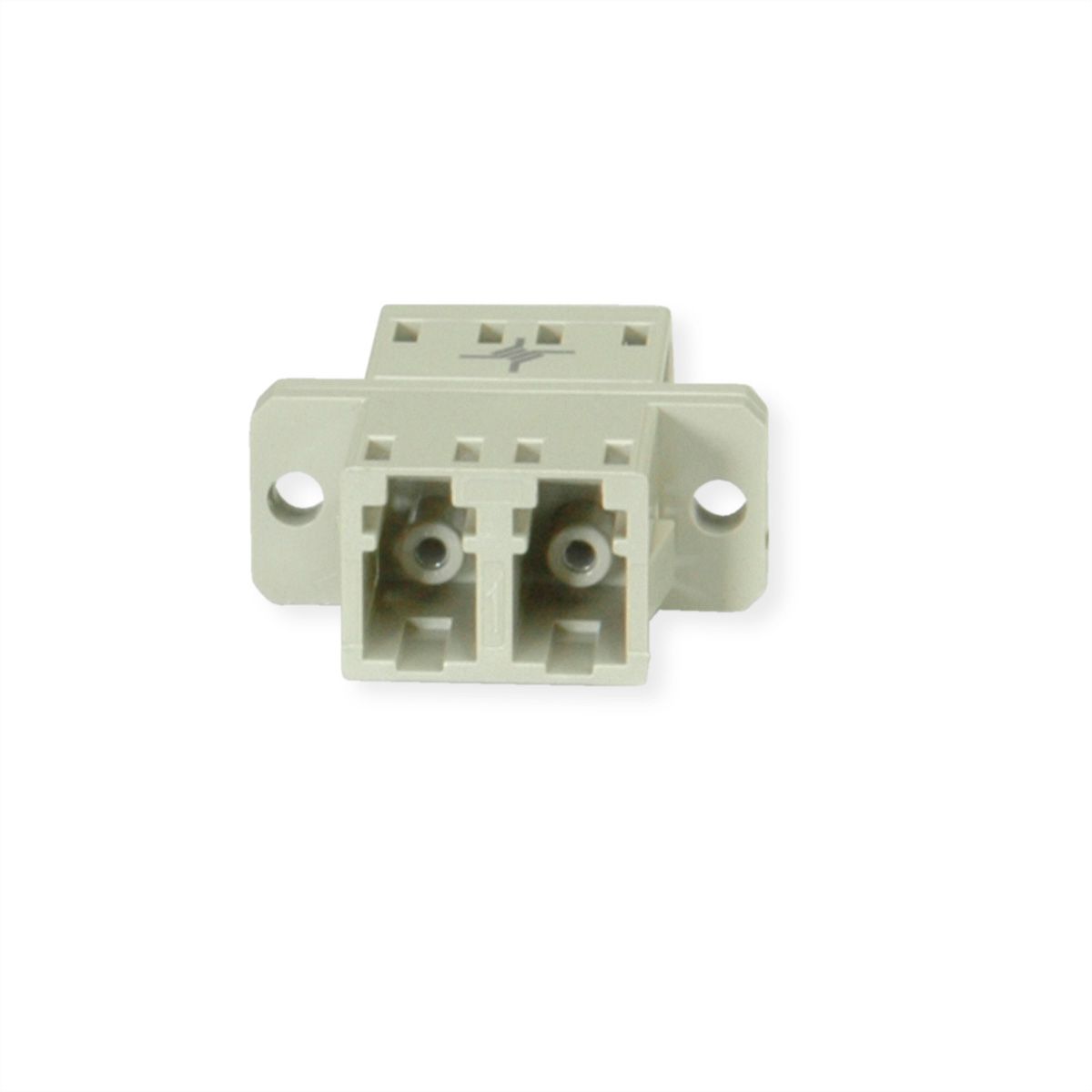

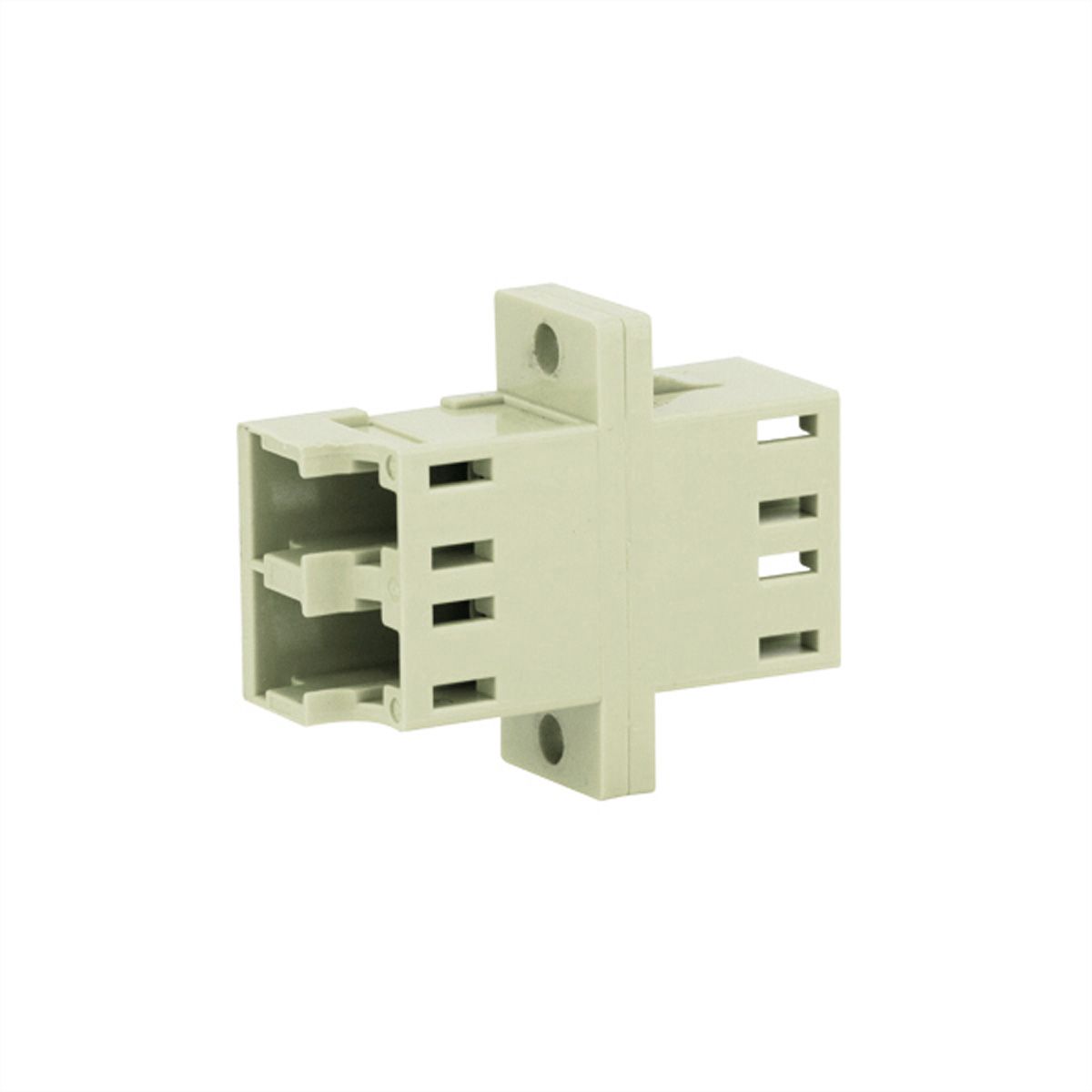

TELEGÄRTNER LC/APC Duplex adaptor, multimode, cramic sleeve, plastic housing, beige, Z77

Item no. 21173168 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100007150 EAN 4018359414412 Item weight 0.193 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

LC duplex adapter, multimode, ceramic sleeve, plastic housing, screw-snap mounting

Durable, precise and reliable: Telegärtner fiber optic connectors with ferrule and coupling sleeve made of zirconia ceramics exceed the specifications of the relevant international standards. The APC types (Angled Physical Contact) with 8° angled polished ferrules offer return loss values of more than 60 dB and meet highest expectations.

  • Available for Singlemode and Multimode
  • For 0.9 mm fibers and 3.2 mm cordage
  • Multimode 50 µm, 62,5 µm, 200 µm and 980 µ
  • Singlemode 9 µm

Specifications

Manufacturer
TELEGÄRTNER
Product group
Network Passive Components
Product type
Fibre Optic Adapters
Colour
beige
Side 1 Connector Type
LC
Side 2 Connector Type
LC
Min. return loss
60 dB
Operating temperature min.
-20 °C
Operating temperature max.
75 °C
Storage temperature min.
-40 °C
Storage temperature max.
90 °C
Height
9.3 mm
Width
22 mm
Depth
25.8 mm
Weight
3 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.193 kg

Downloads

Manufacturer data sheet - Deutsch (195.0 KB) Manufacturer data sheet - English (195.0 KB)
