Description

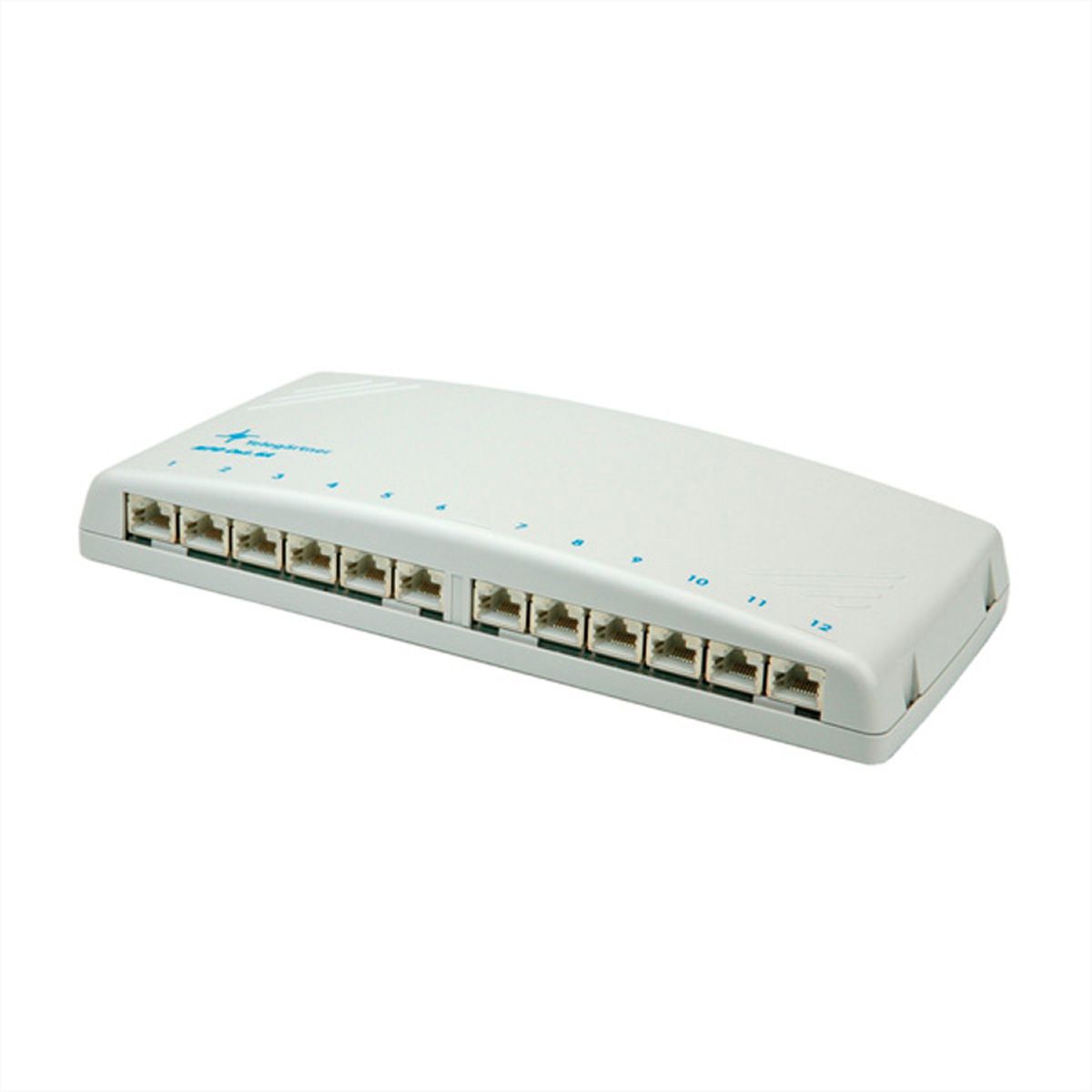

Shielded network patch panel with RJ-45 modular sockets

• Mini patch panel, Cat. 6A/Class EA, with 12 shielded RJ-45 modular sockets
• For transmission up to 500 MHz across all pair combinations
• Transmission characteristics comply with EIA/TIA TSB-40 and ISO/IEC 11801
• Cables are connected via LSAplus cut-to-length terminals with colour coding printed on the top in accordance with EIA/TIA 568
• Shielding cover with quick-release fastener, pre-fitted earth cable
• Shielding is connected directly to the printed circuit board via a clamp

Remark: Picture similar

Specifications

Manufacturer	TELEGÄRTNER
Product group	Connection technology TP
Product type	Patchpanel Cat.6A / Class EA
Colour	grey
Scope of delivery	Mini-verdeler
Shield type	Screened
Transfer quality	Cat6A / Class EA
Wall fixening	Wall mount
Quantity of ports	12
Assembly cable connection	Krone LSAplus
Material (casing)	Thermoplast, halogeenvrij
Shield contacts	ja
separate strain relief	yes
Connection direction	Straight
Dimensions (HxWxD)	34 x 255 x 118 mm
Assembly depth	118 mm
Technical particularity	with shielding hood, wall-mounted, suitable for side-by-side installation
RAL colour	RAL 7035 Light grey
Height	34 mm
Width	255 mm
Depth	118 mm
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	270 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.431 kg
