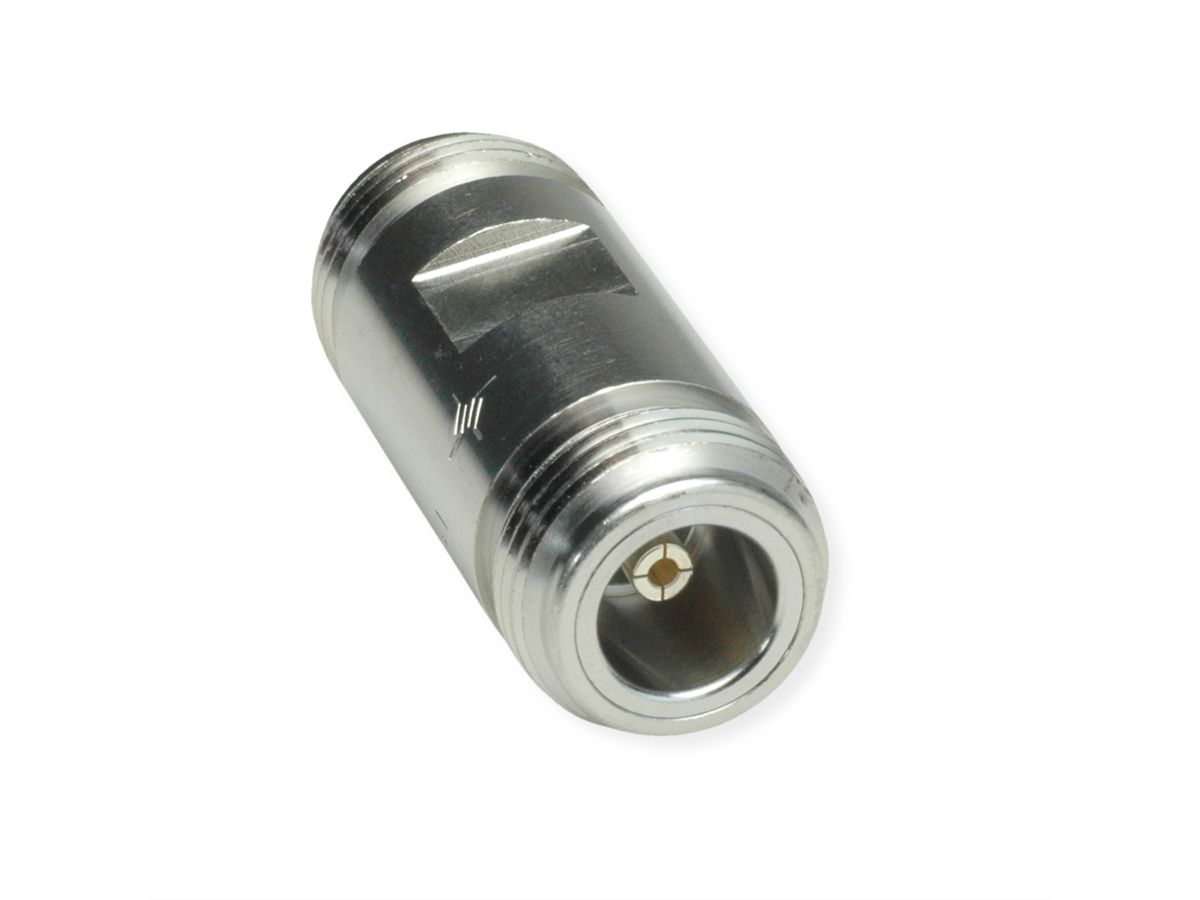

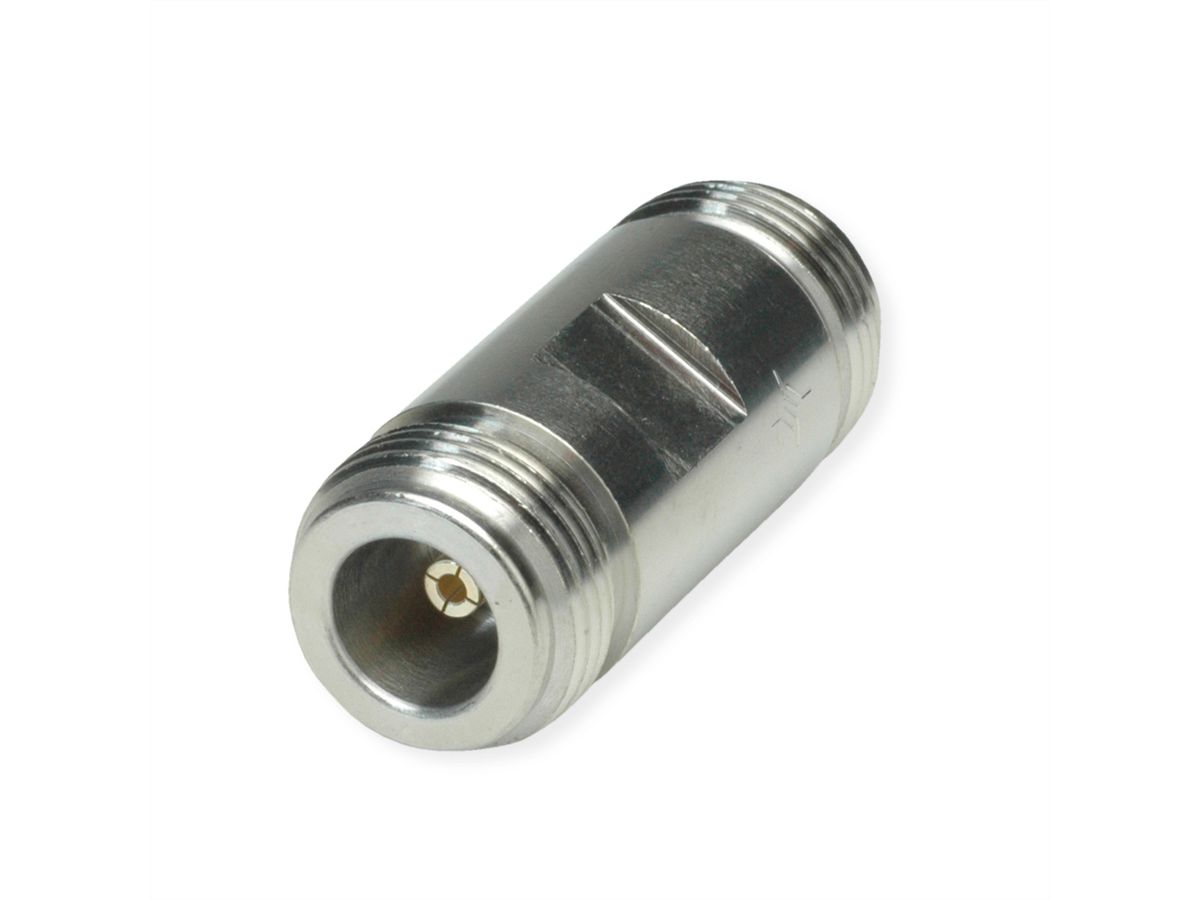

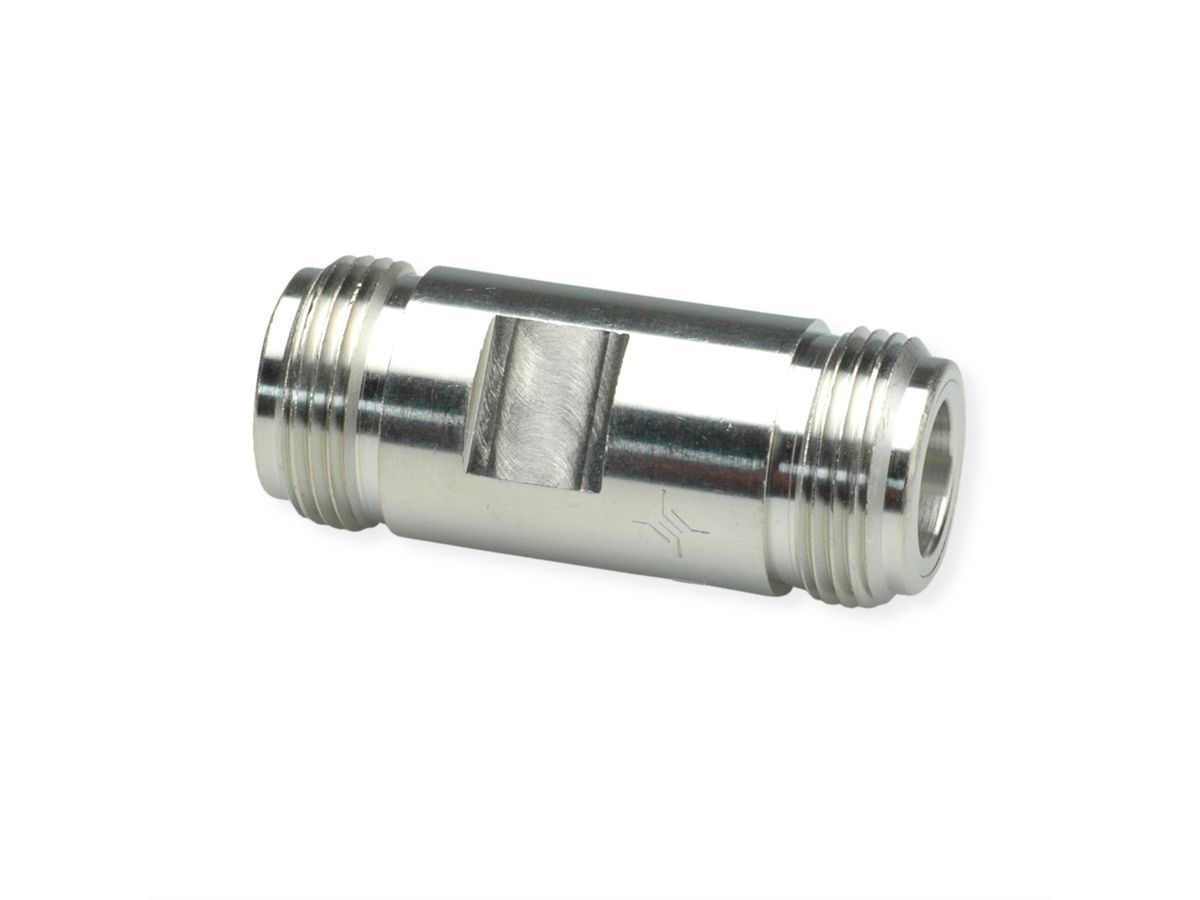

TELEGÄRTNER N Adaptor f-f

Item no. 21170420 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100024109 EAN 4018359252250 Item weight 0.044 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/14/2026
Download PDF

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

  • Article name: N Adapt str f-f (Old item number J01024A0004)
  • Type: f-f
  • Max. Frequency: 11 GHz
  • Return Loss: typ.: 1 GHz: -40 dB; 4 GHz: -35 dB; 10 GHz: -27 dB
  • Remarks: IP68
Performance characteristics:
  • Plug-&-Play principle: Can be installed directly
  • Suitable for indoor and outdoor use
  • Outstanding transmission properties
  • Suitable for Mobile Communications and DAS (Distributed Antenna Systems)
  • Public Safety/Critical Communications/TETRA
  • PMR - Private/Professional Mobile Radio
  • GSM/2G - Global System for Mobile Communications
  • UMTS/3G - Universal Mobile Telecommunications System
  • WLAN - Wireless Local Area Network
  • LTE/4G - Long Term Evolution
  • 5G - New Radio
  • Private/Campus Networks

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
N Adaptor
Colour
silver
Quantity of ports
1
Side 1 Connector Type
N connector
Side 1 Connector Gender
Female
Side 2 Connector Type
N connector
Side 2 Connector Gender
Female
Protection class (IP Code)
IP68
Connection direction
Straight
Frequency range (max.)
11 GHz

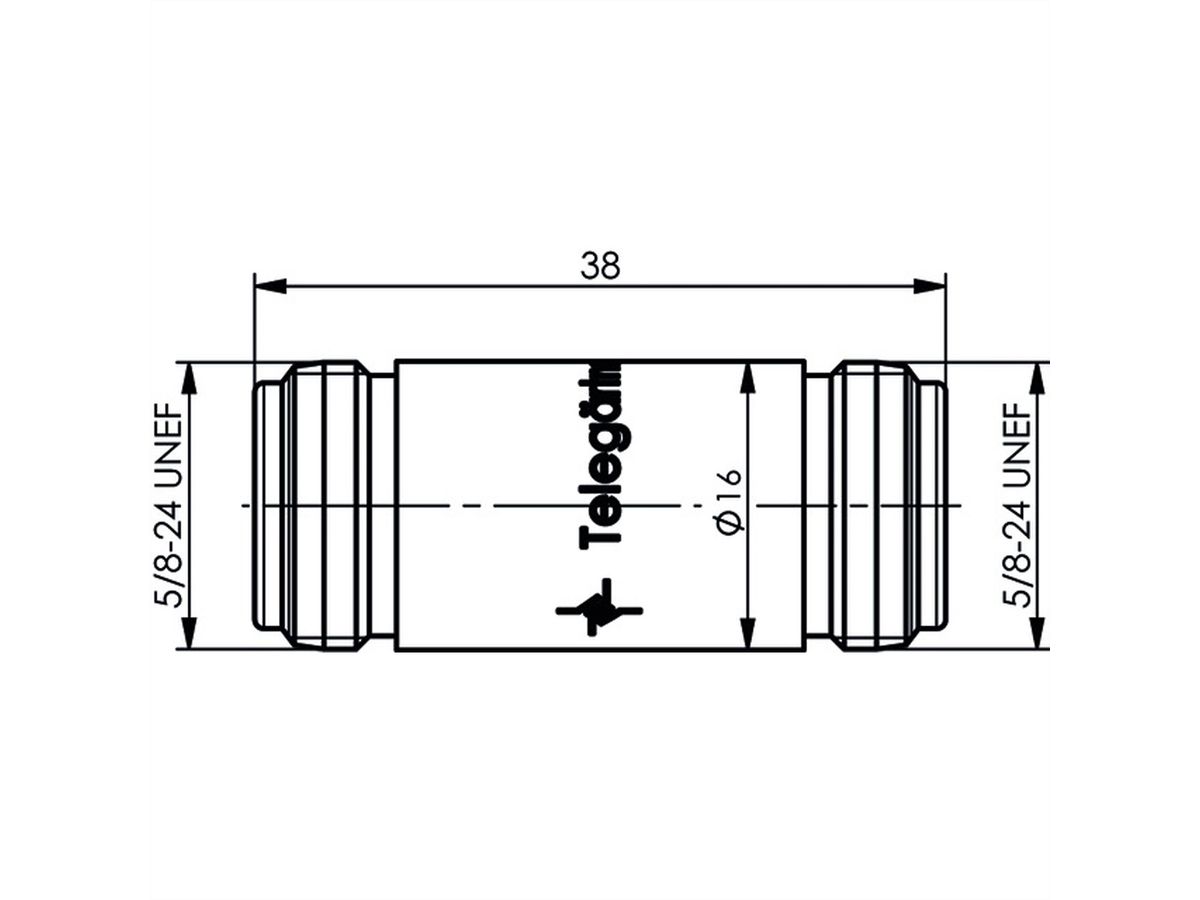

Height
16 mm
Width
16 mm
Depth
38 mm
Weight
45.6 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
60 mm
Depth of packaging (single piece)
40 mm
Package weight (single piece)
0.044 kg
