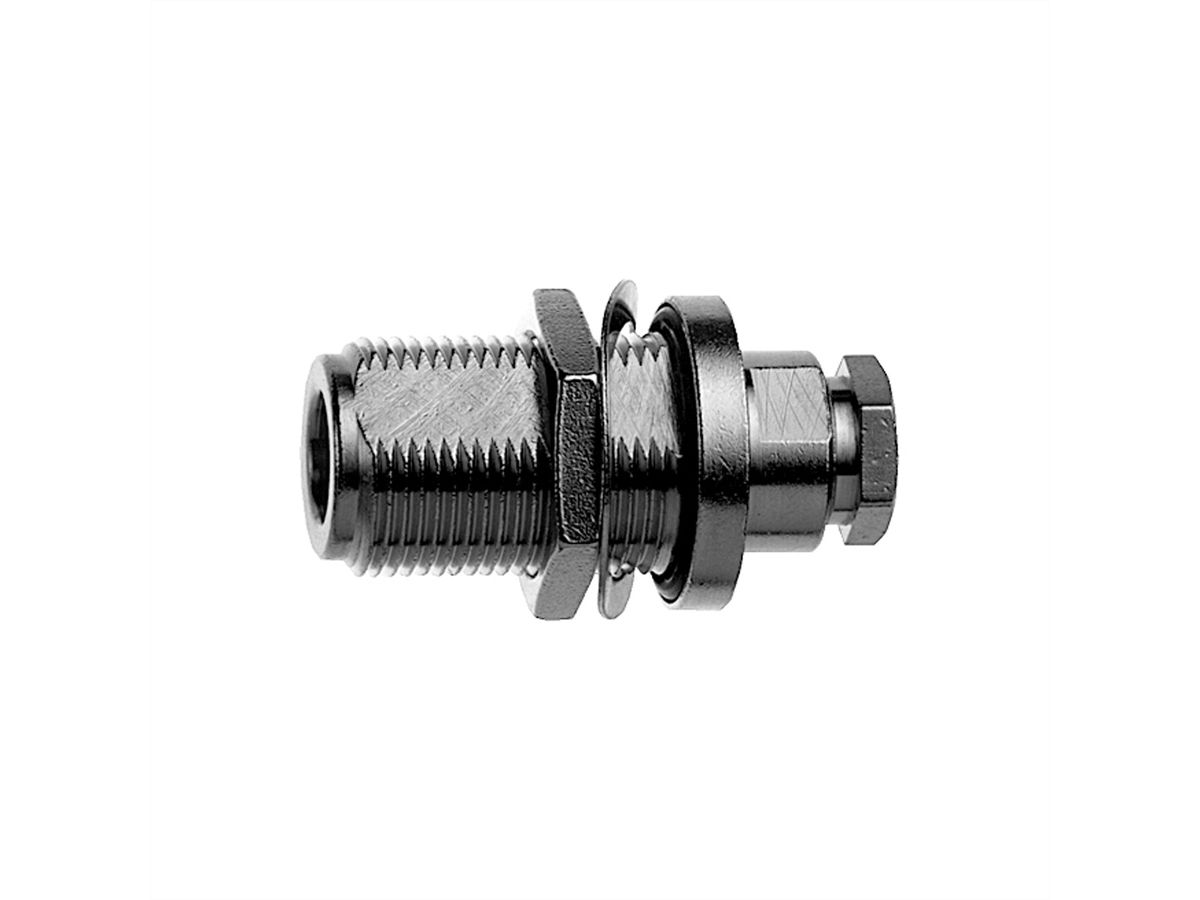

TELEGÄRTNER N Bulkhead Jack, G1 (RG-58C/U), G5 (RG-223/U), RG-142 B/U, RG-141 A/U IP67

Item no. 21170421 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100024106 EAN 4018359112936 Item weight 0.043 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

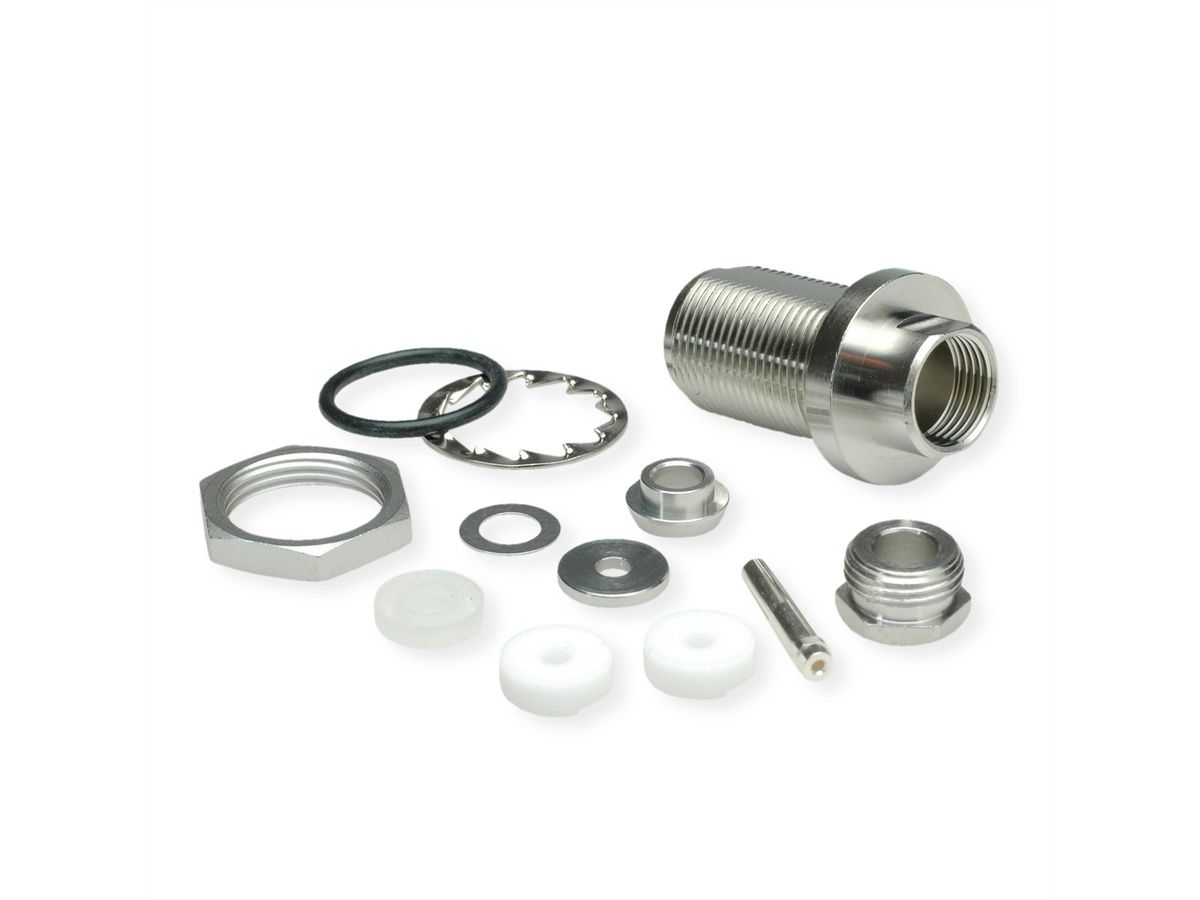

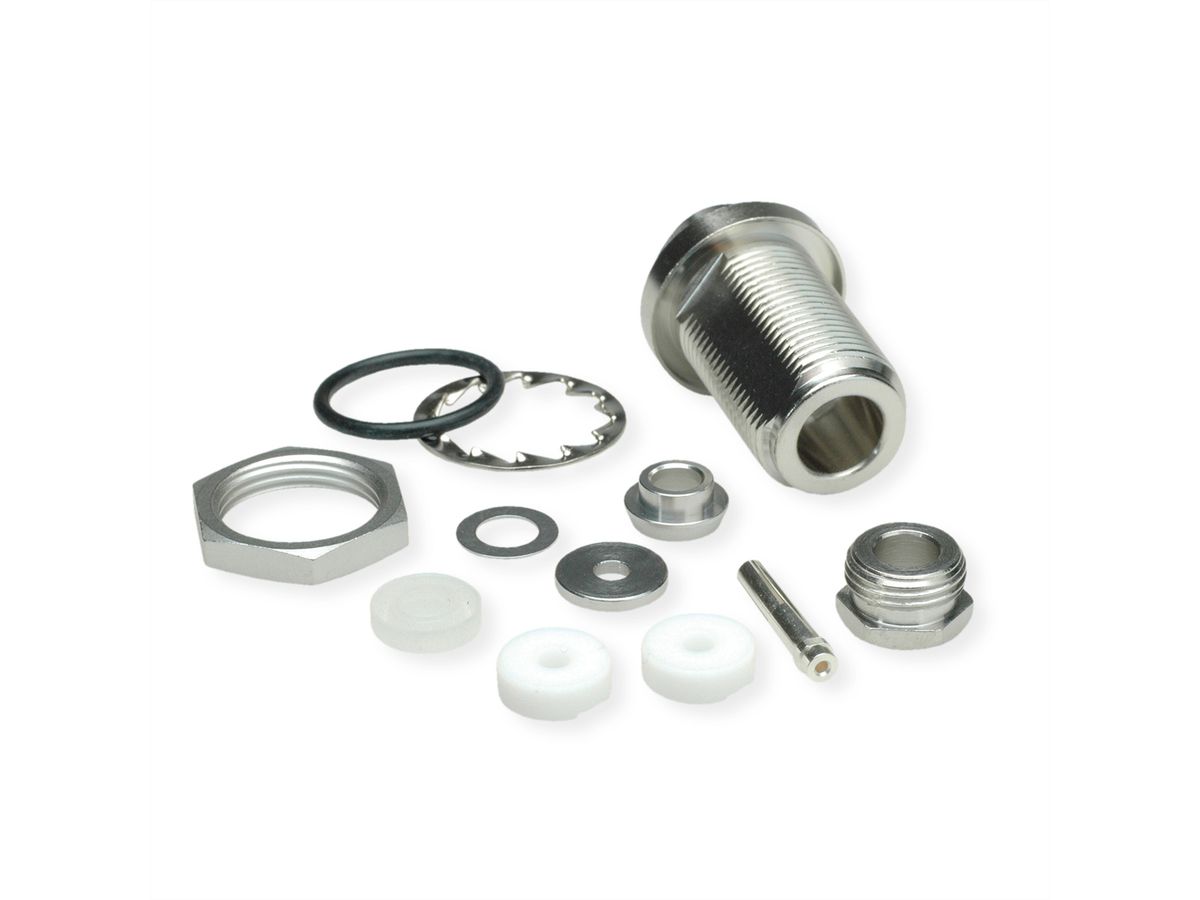

  • Article name: N Jck str Bkhd sd/cl G1 G5 PanSeal (Old item number J01021H1171)
  • Cable group; cable: G1 (RG-58C/U); G5 (RG-223/U); RG-142 B/U; RG-141 A/U; 1.0/2.95 AF, RG-58C/U, 7806A, 9907, CNT-195, HPF 195, KX 15, LMR-195, WCX195, RG-223/U, RG-400/U, 1.0/2.95 AF, RG-141A/U, RG-142B/U
  • Remarks: solder/MIL-clamp; pressure sleeve IP67

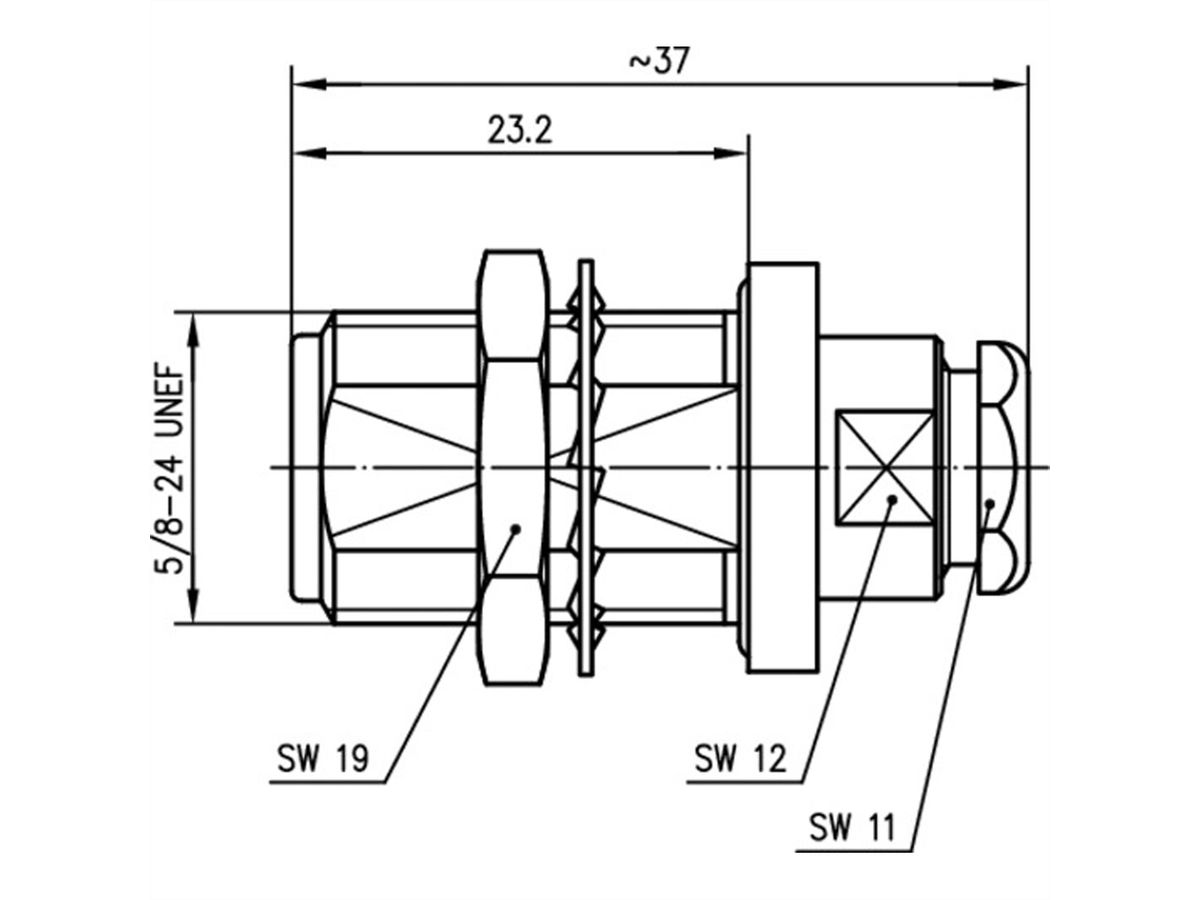

  • Mount. dim.: Z010
  • Assembly: B06

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
N Bulkhead Jack
Colour
silver
Quantity of ports
1
Side 1 Connector Type
N connector
Side 1 Connector Gender
Female
Side 2 Connector Type
Solder / Clamp termination
Protection class (IP Code)
IP67
Connection direction
Straight
Height
19 mm
Width
19 mm
Depth
37 mm
Weight
53 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
70 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.043 kg
