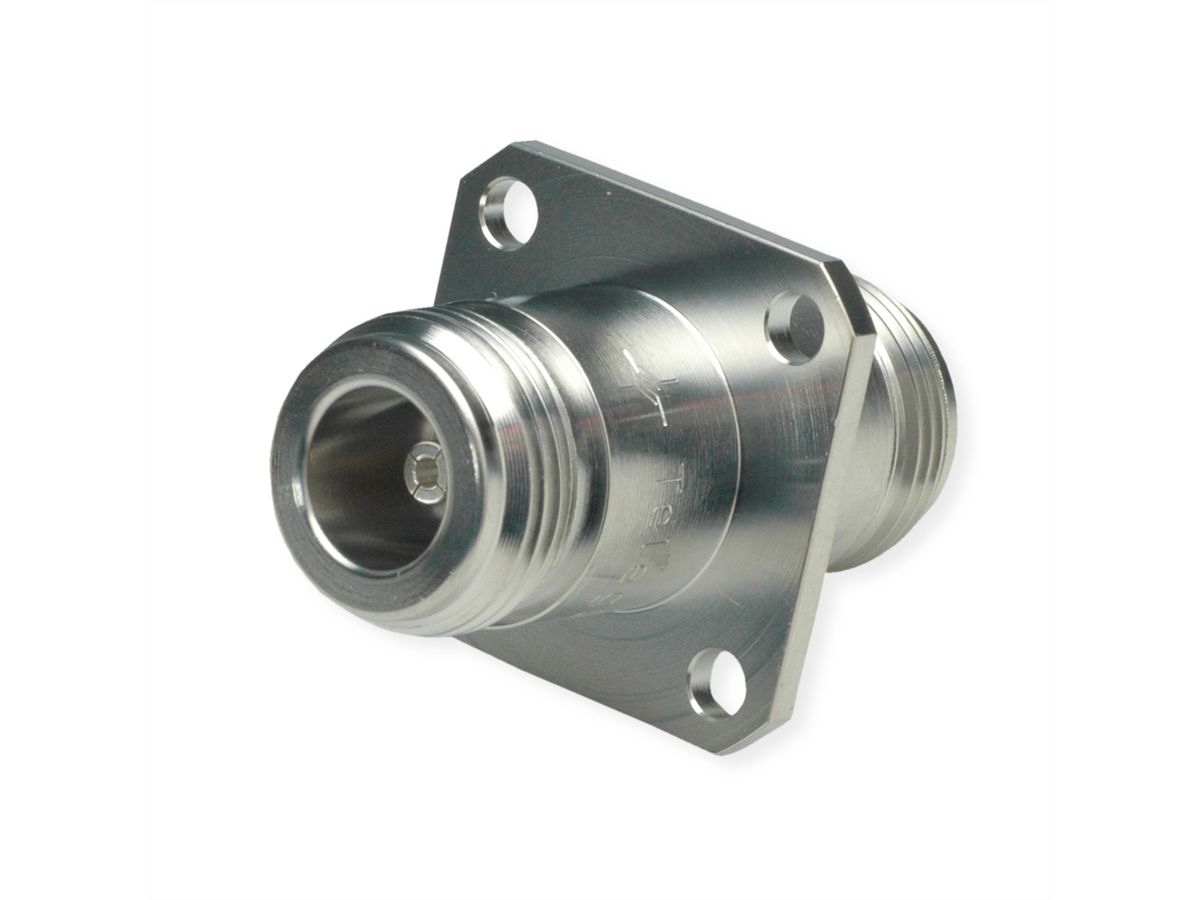

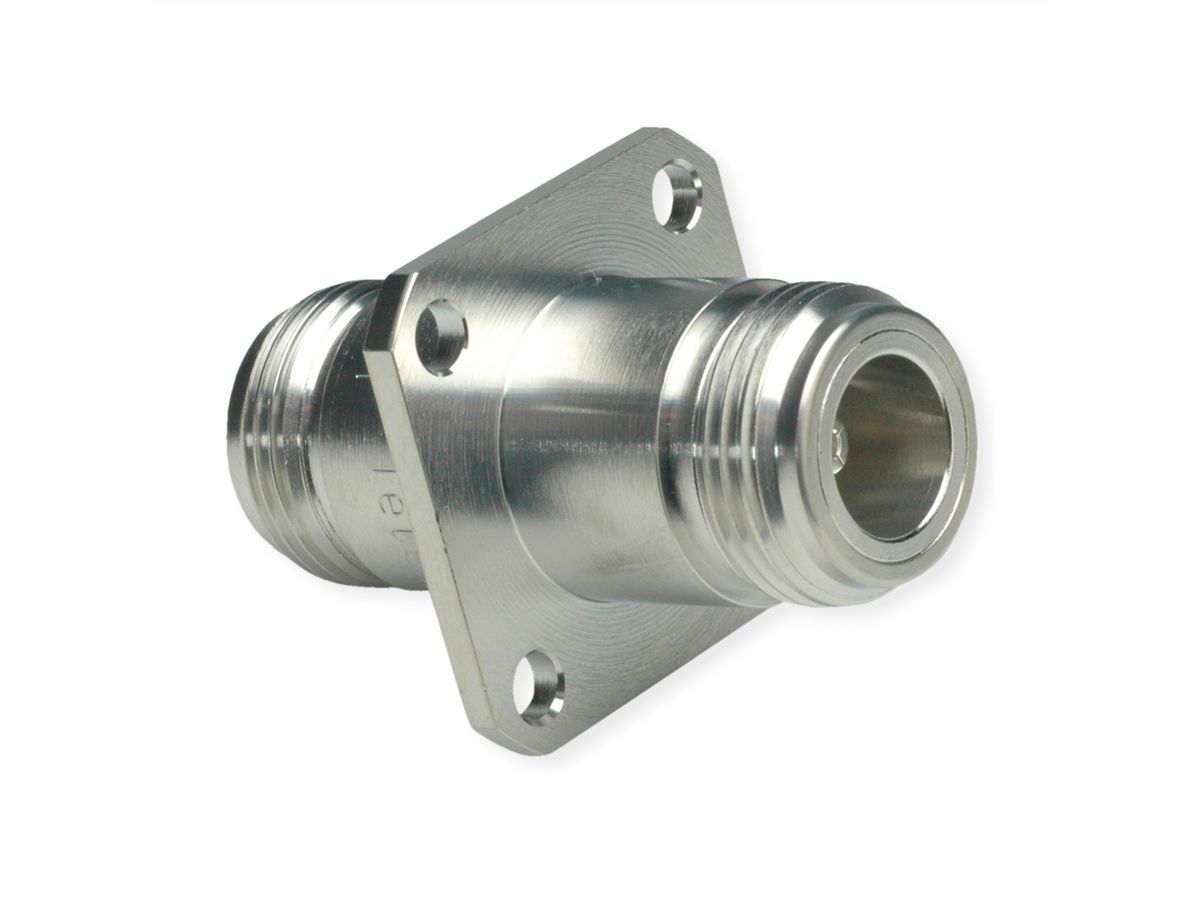

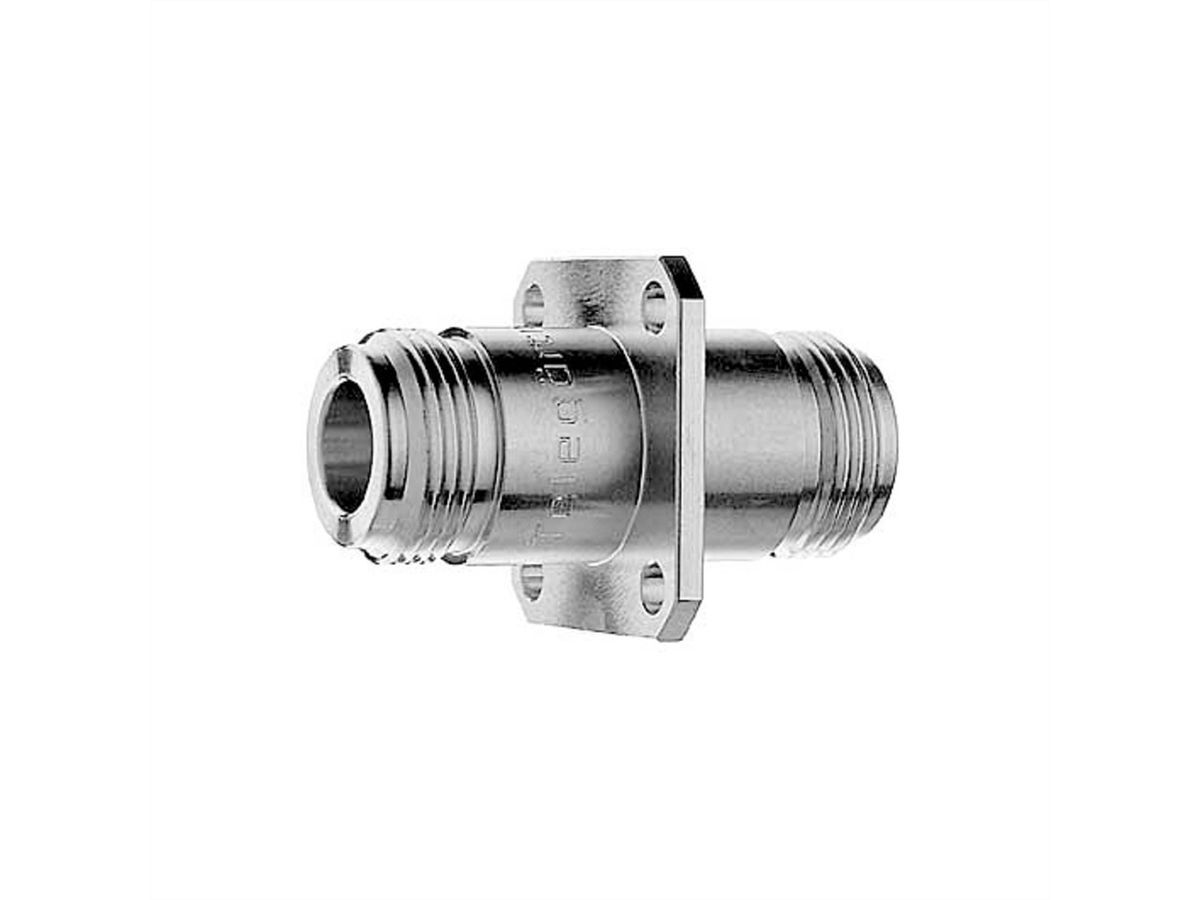

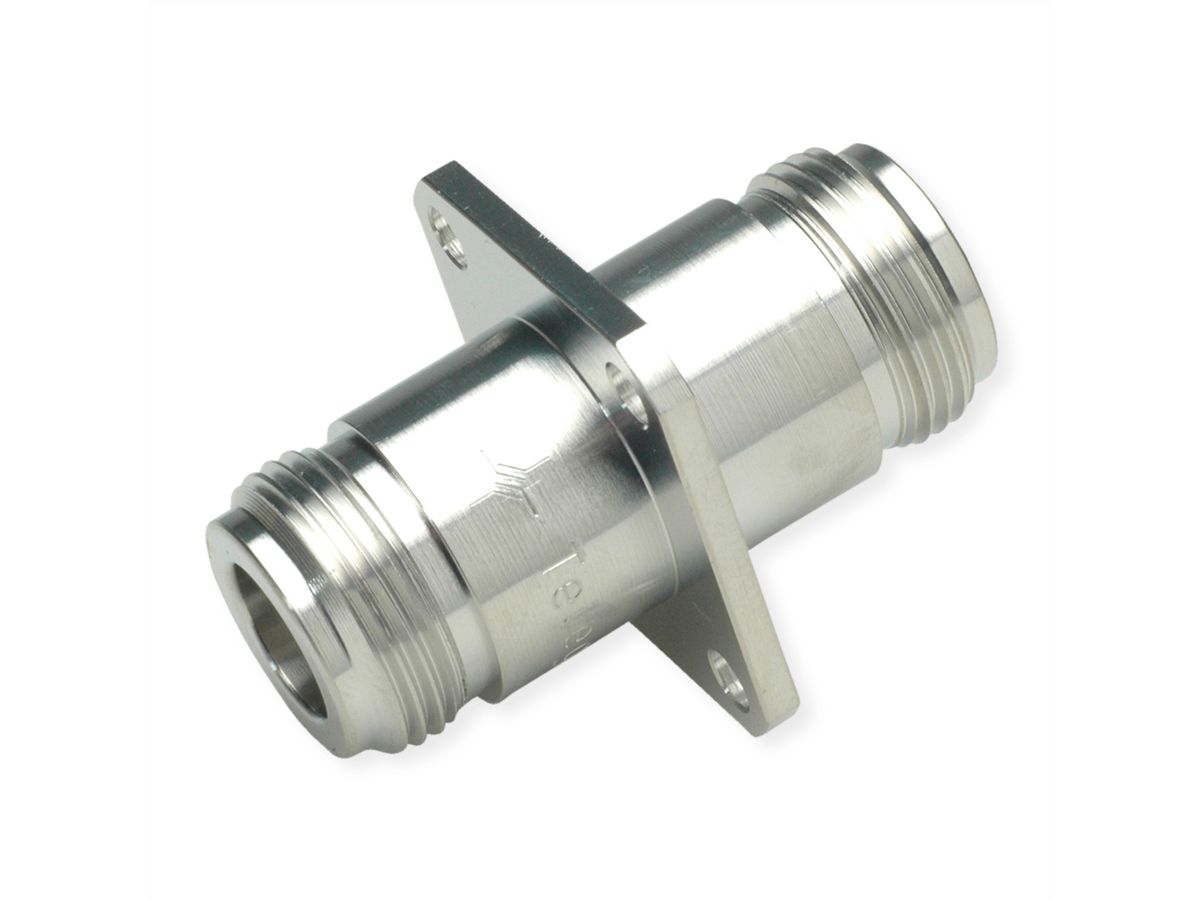

TELEGÄRTNER N Panel Adaptor with flange, f-f

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170454
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100024110
EAN	4018359252267
Item weight	0.05 kg

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

Article name: N Adapt str Flng f-f (Old item number J01024A0005)
Type: f-f
Return Loss: typ.: 1 GHz: -41 dB; 4 GHz: -35 dB; 11 GHz: -27 dB
MIL-Std.: UG-129/U
Mount. dim.: Z008

Specifications

Manufacturer	TELEGÄRTNER
Product group	Coaxial Connectors
Product type	N Adaptor for Panel Mounting
Colour	silver
Quantity of ports	1
Side 1 Connector Type	N connector
Side 1 Connector Gender	Female
Side 2 Connector Type	N connector
Side 2 Connector Gender	Female
Protection class (IP Code)	IP68
Connection direction	Straight
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.05 kg
