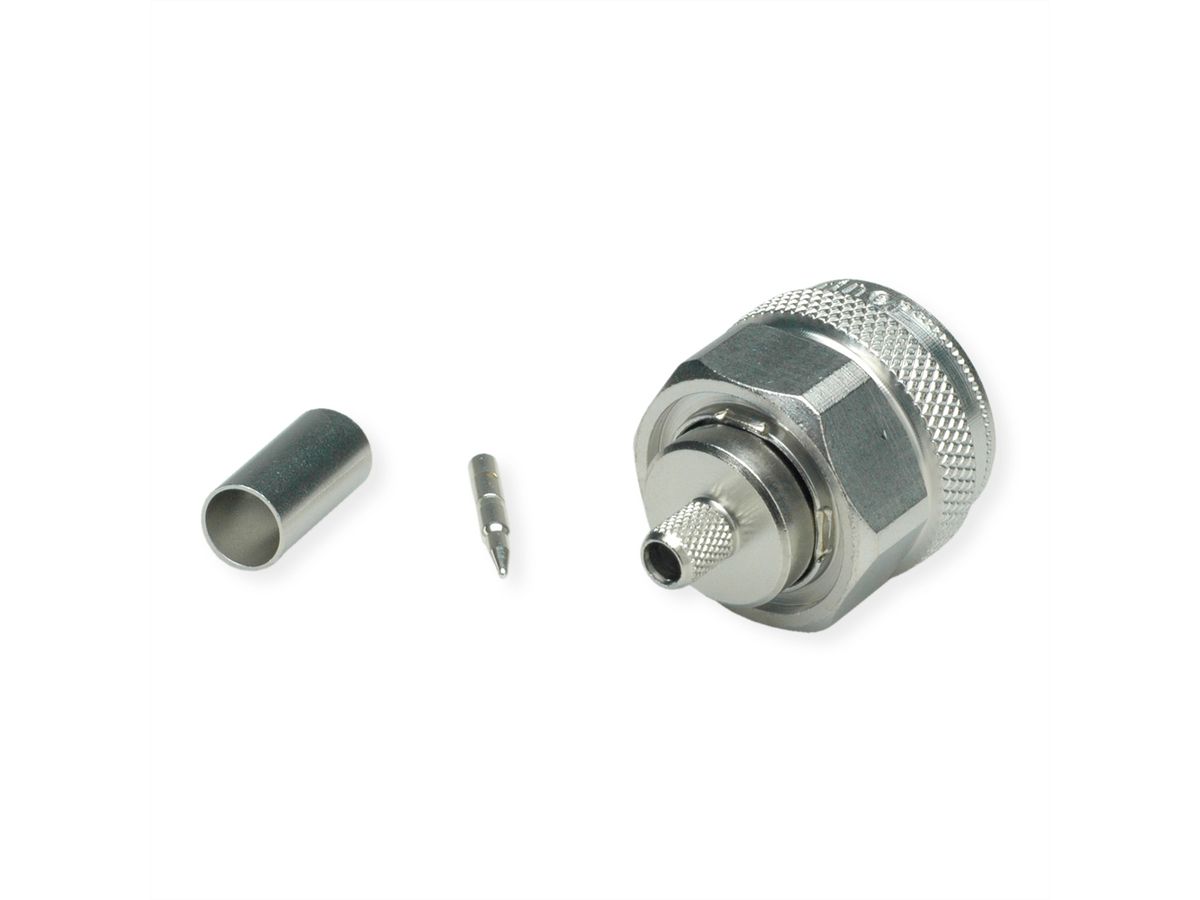

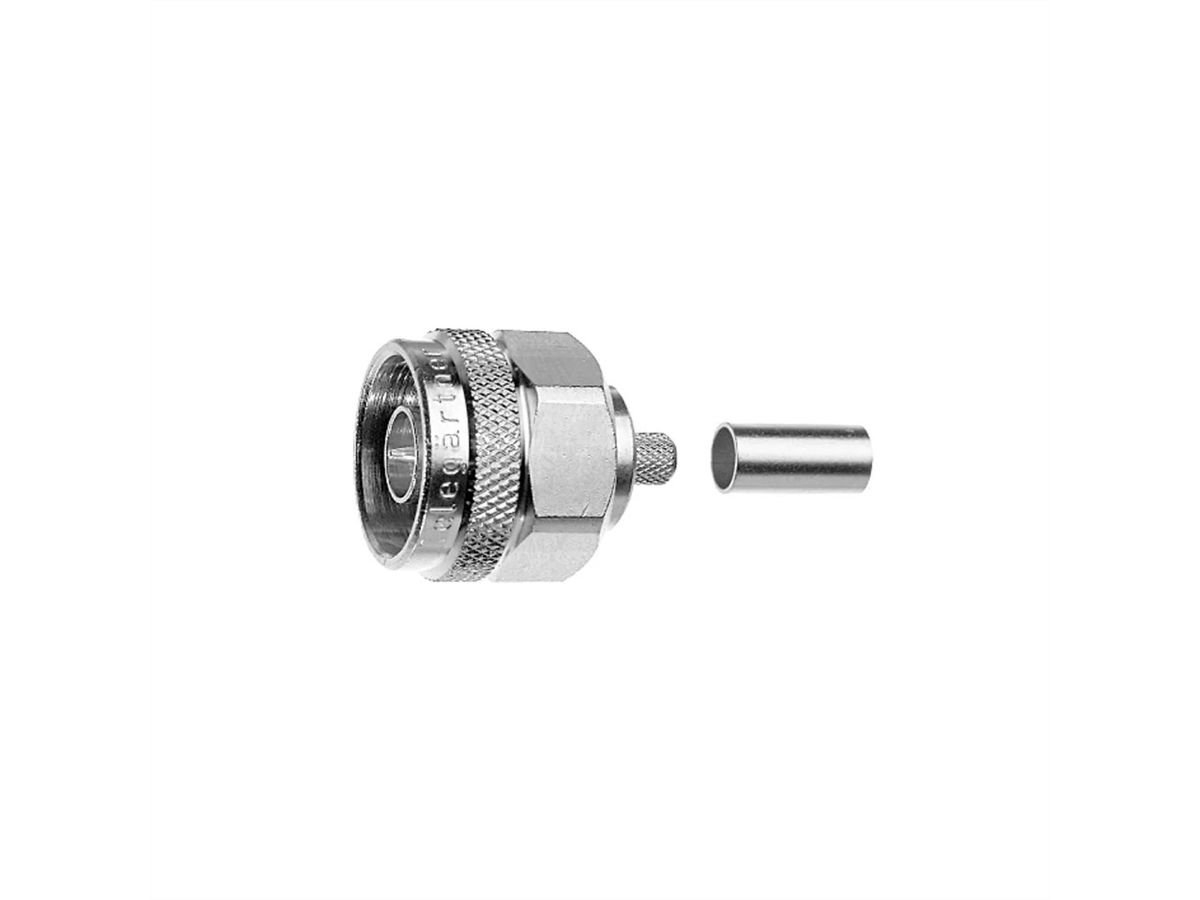

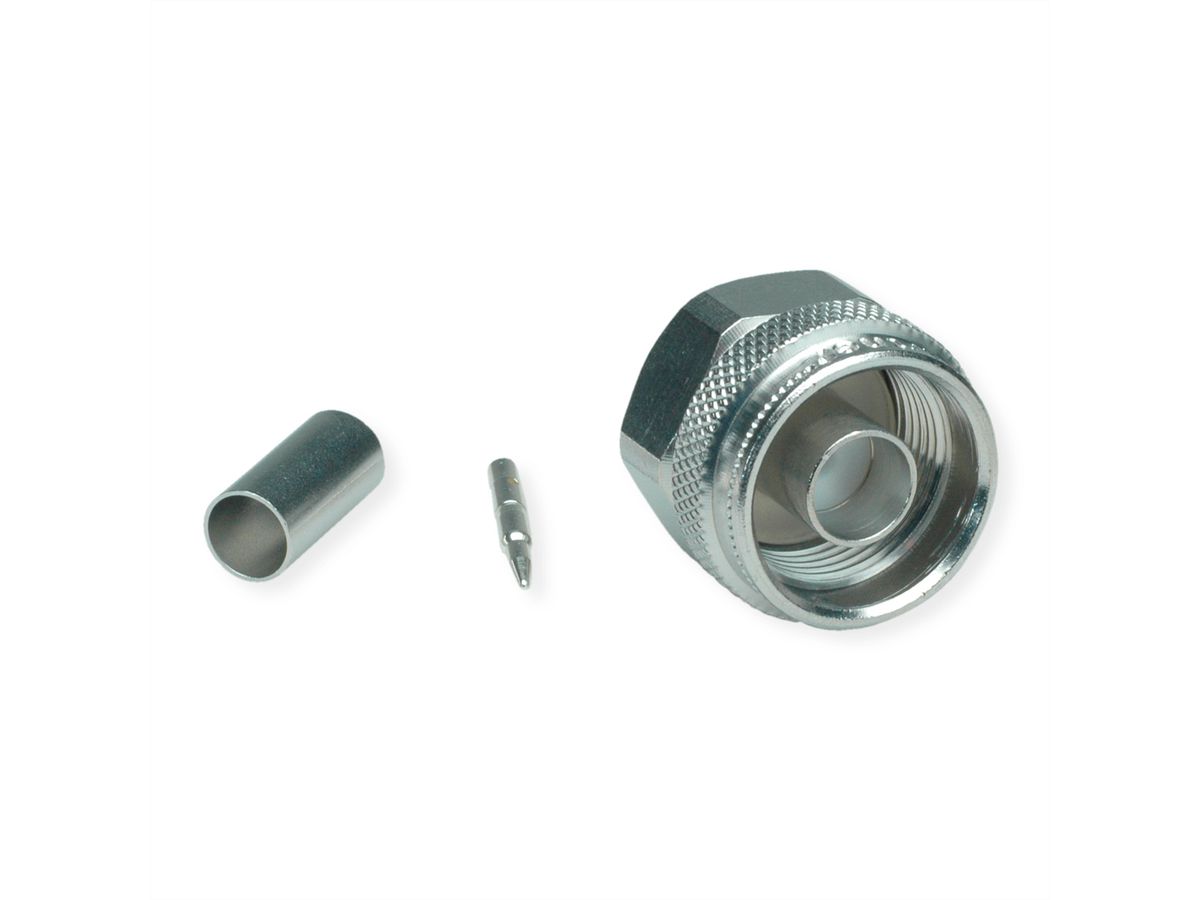

TELEGÄRTNER N Straight Plug Crimp, G5 (RG-223/U) crimp/crimp

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21170455
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100023911
EAN	4018359247812
Item weight	0.028 kg

Description

The N series is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. N series provides a medium-power high-frequency solution for coax connections.

Article name: N Plg str cr/cr G5 (Old item number J01020A0113)
Cable group; cable: G5 (RG-223/U); RG-142B/U, RG-223/U, RG-400/U
Remarks: crimp/crimp

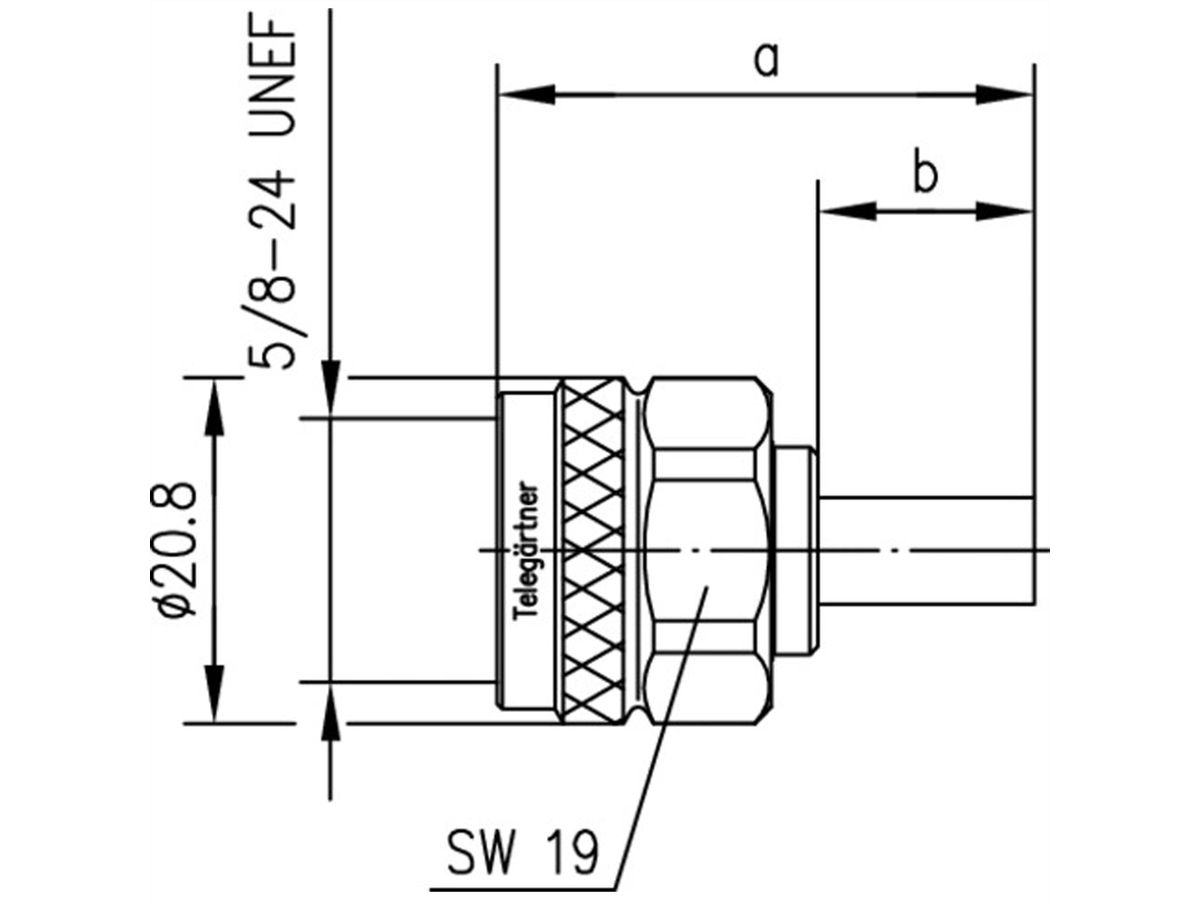

Dimensions: a=32.5, b=13.5
Assembly: B3305

Specifications

Manufacturer	TELEGÄRTNER
Product group	Coaxial Connectors
Product type	N Straight Plug Crimp
Colour	silver
Quantity of ports	1
Side 1 Connector Type	N connector
Side 1 Connector Gender	Male
Protection class (IP Code)	IP68
Connection direction	Straight
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	110 mm
Package weight (single piece)	0.028 kg

Downloads

Manufacturer data sheet - English (28.3 KB)

Download
