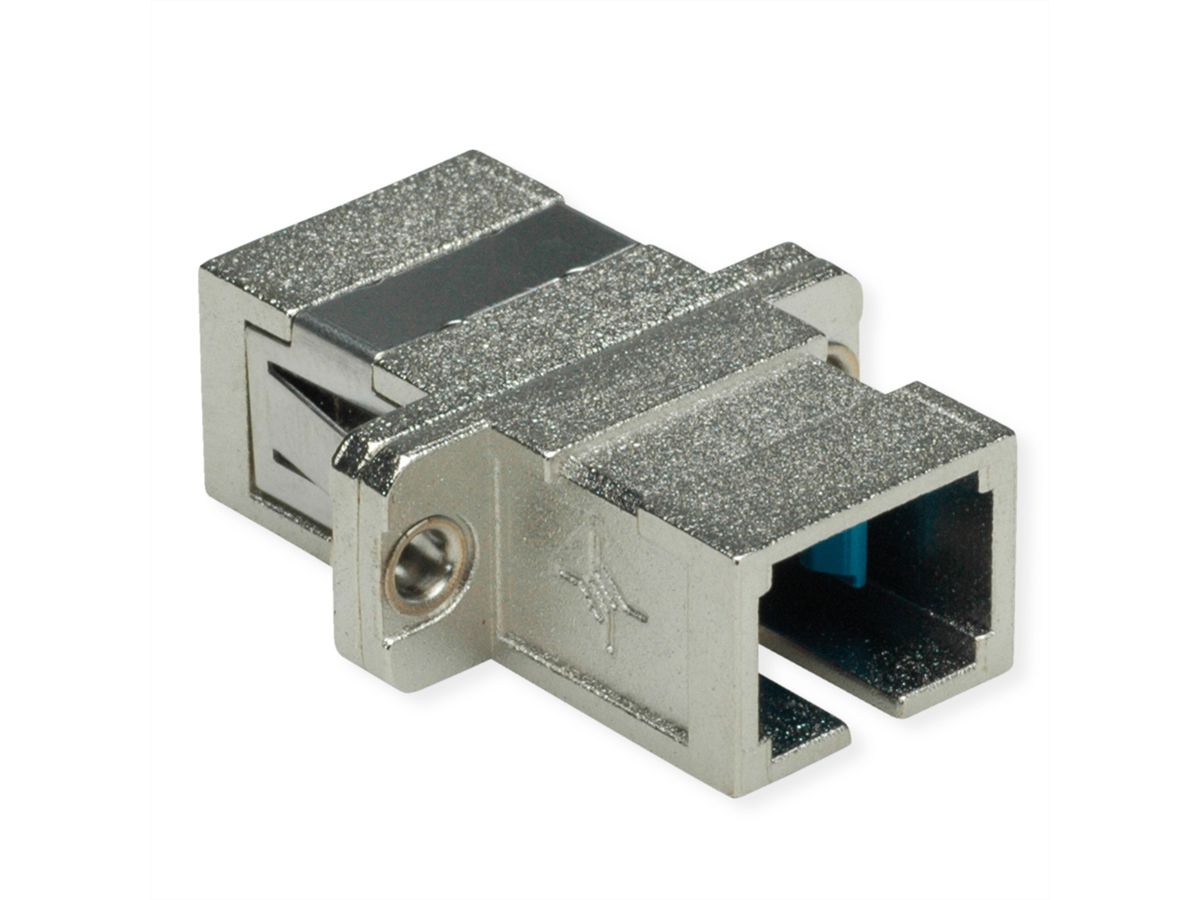

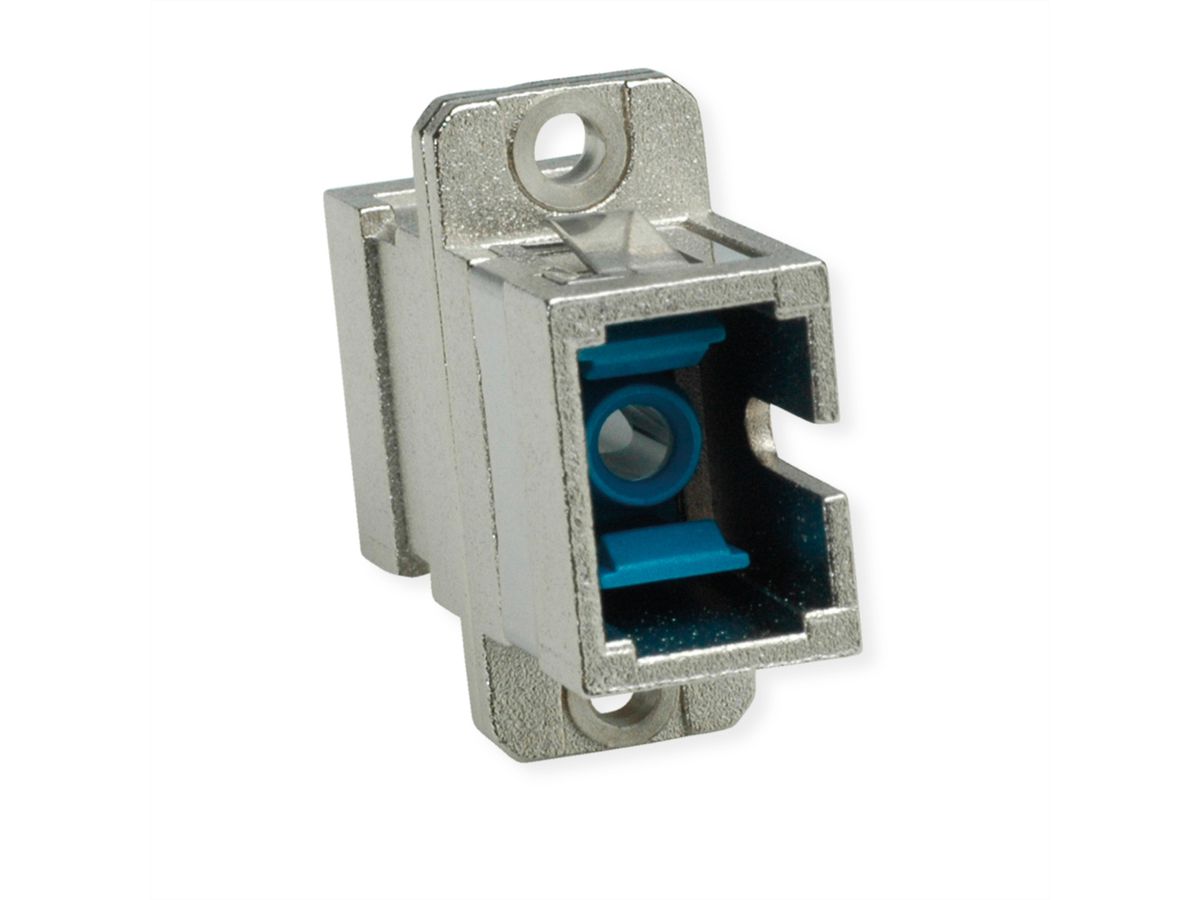

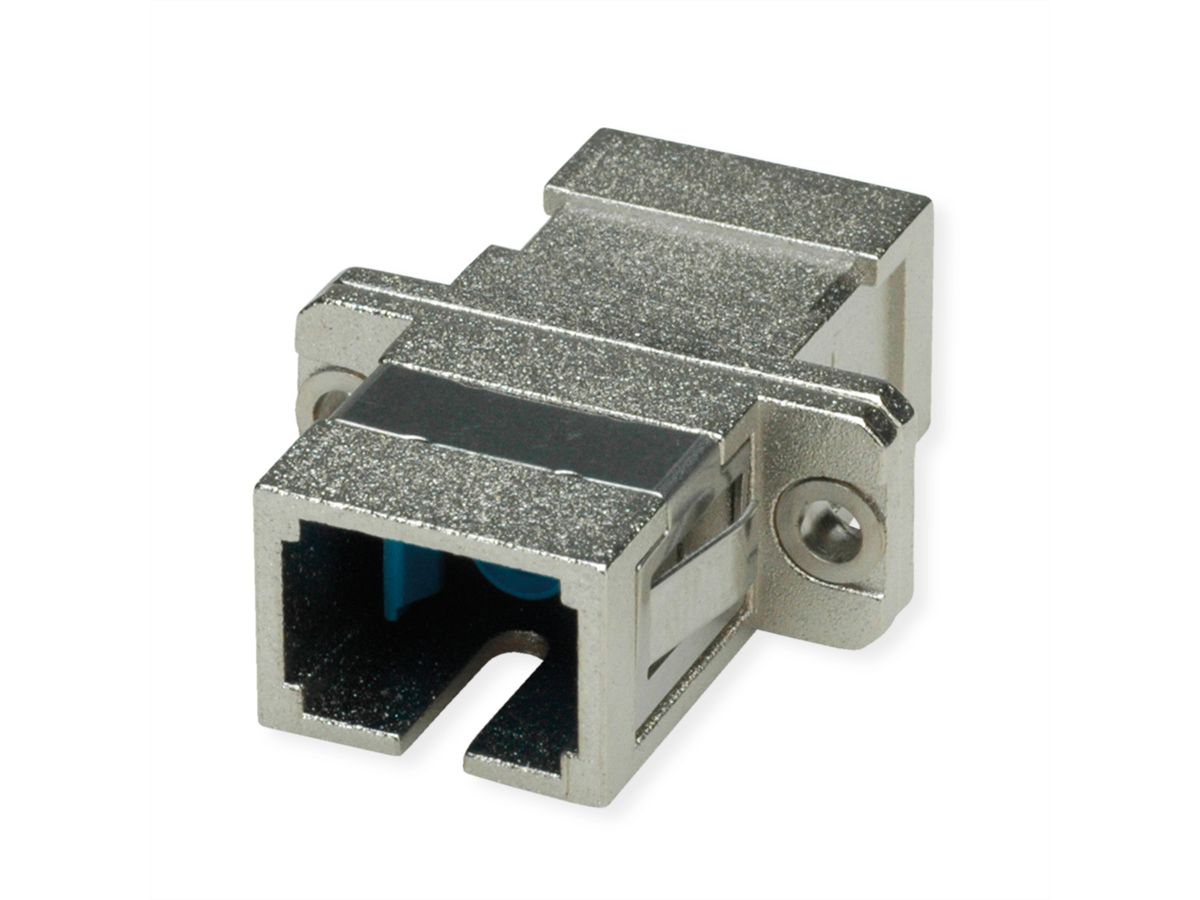

TELEGÄRTNER SC Adaptor, Multimode and Singlemode, Ceramic sleeve, metal housing

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21173172
Brand / Manufacturer	TELEGÄRTNER
Manuf. item no.	100007240
EAN	4018359212025
Item weight	0.013 kg

Description

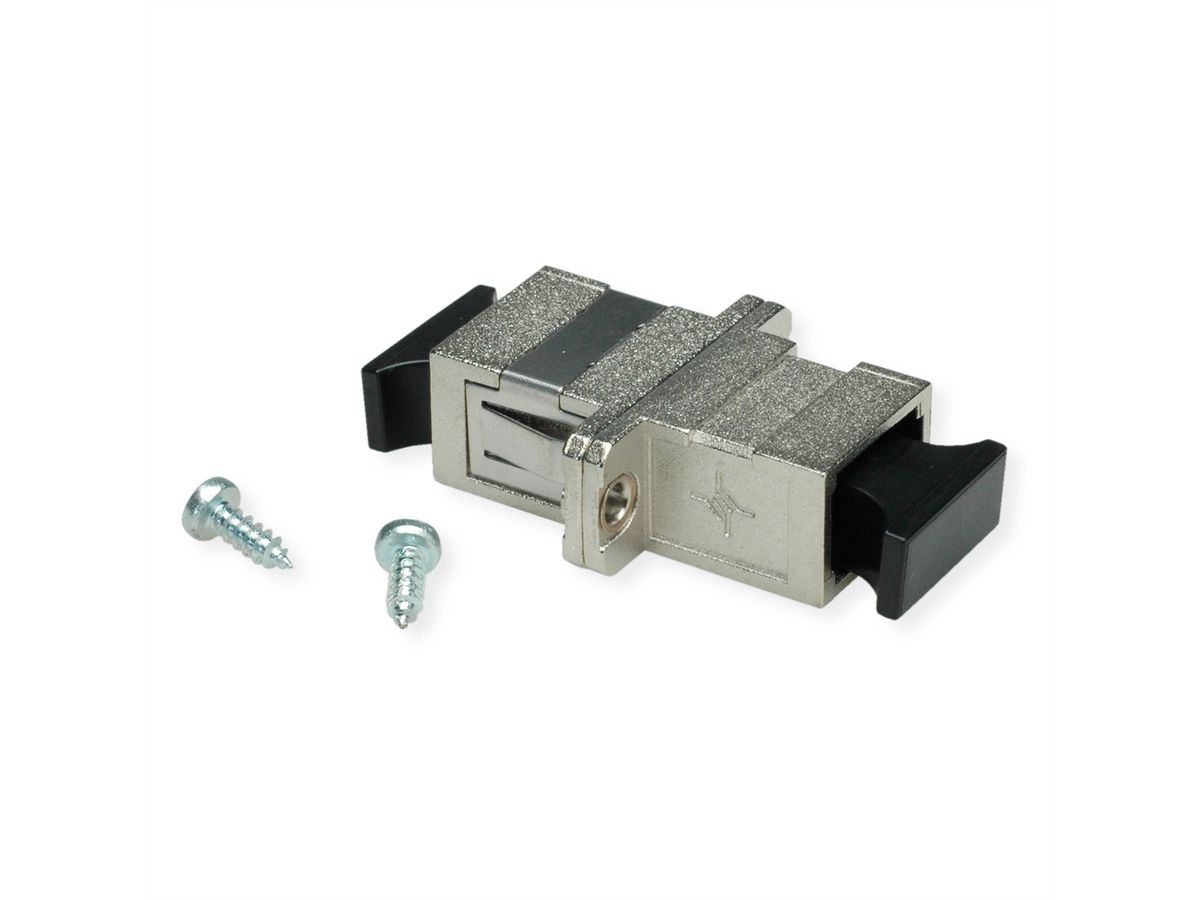

SC Adaptor, Multimode and Singlemode, Ceramic sleeve, metal housing, incl. tapping screws

Available for Singlemode and Multimode
For 0.9 mm fibers and 3.2 mm cordage
Multimode 50 µ, 62,5 µ, 200 µ and 980 µ
Singlemode 9 µ
Colour: connector housing / adaptor housing: Multimode: beige, blue, aqua, black, purple, Singlemode: blue; Singlemode APC: green; POF: yellow; PCF: red
Material: adaptor housing: thermoplastic, flame retardant, non halogen, or zinc diecast, nickel-plated

Specifications

Manufacturer	TELEGÄRTNER
Product group	Network Passive Components
Product type	Fibre Optic Adapters
Colour	grey
Side 1 Connector Type	SC
Side 2 Connector Type	SC
Protection class (IP Code)	IP20
Operating temperature min.	-40 °C
Operating temperature max.	65 °C
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.013 kg
