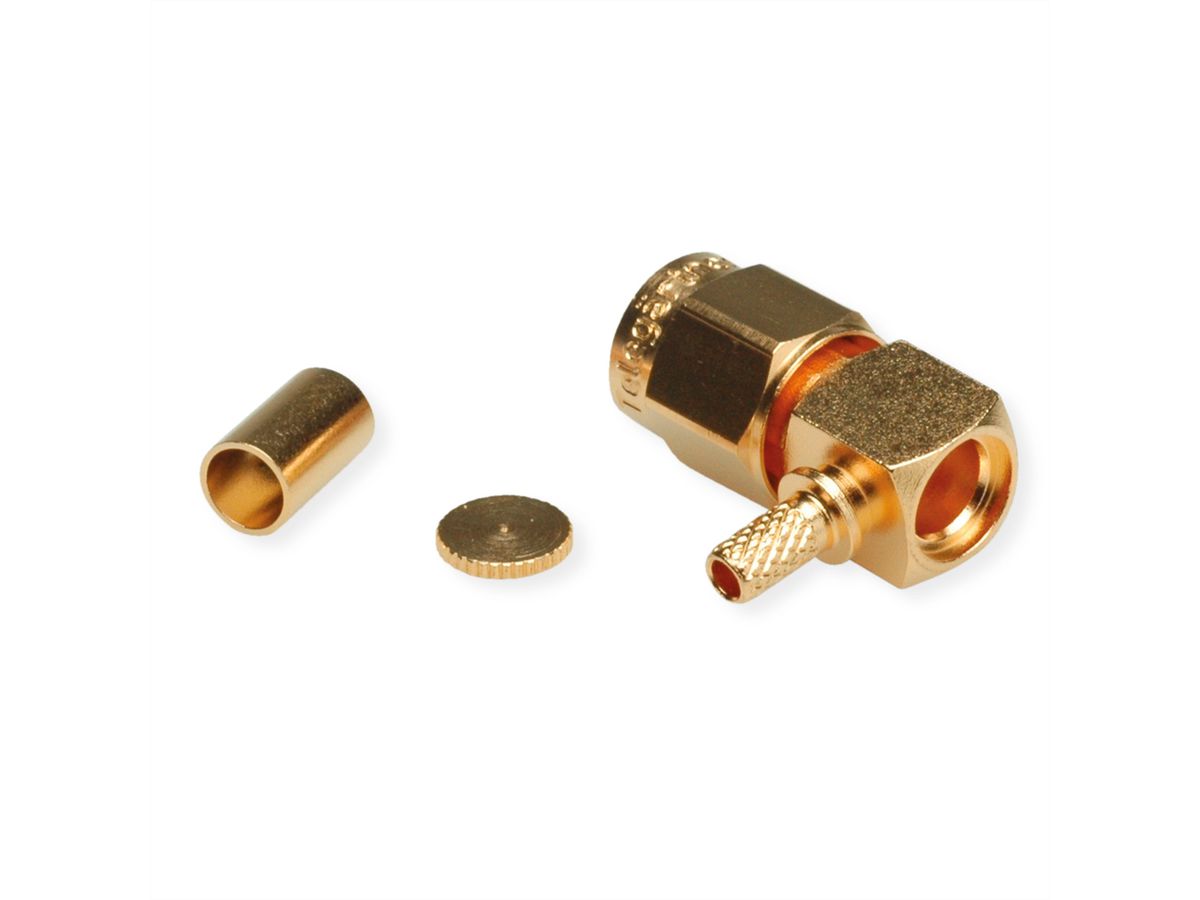

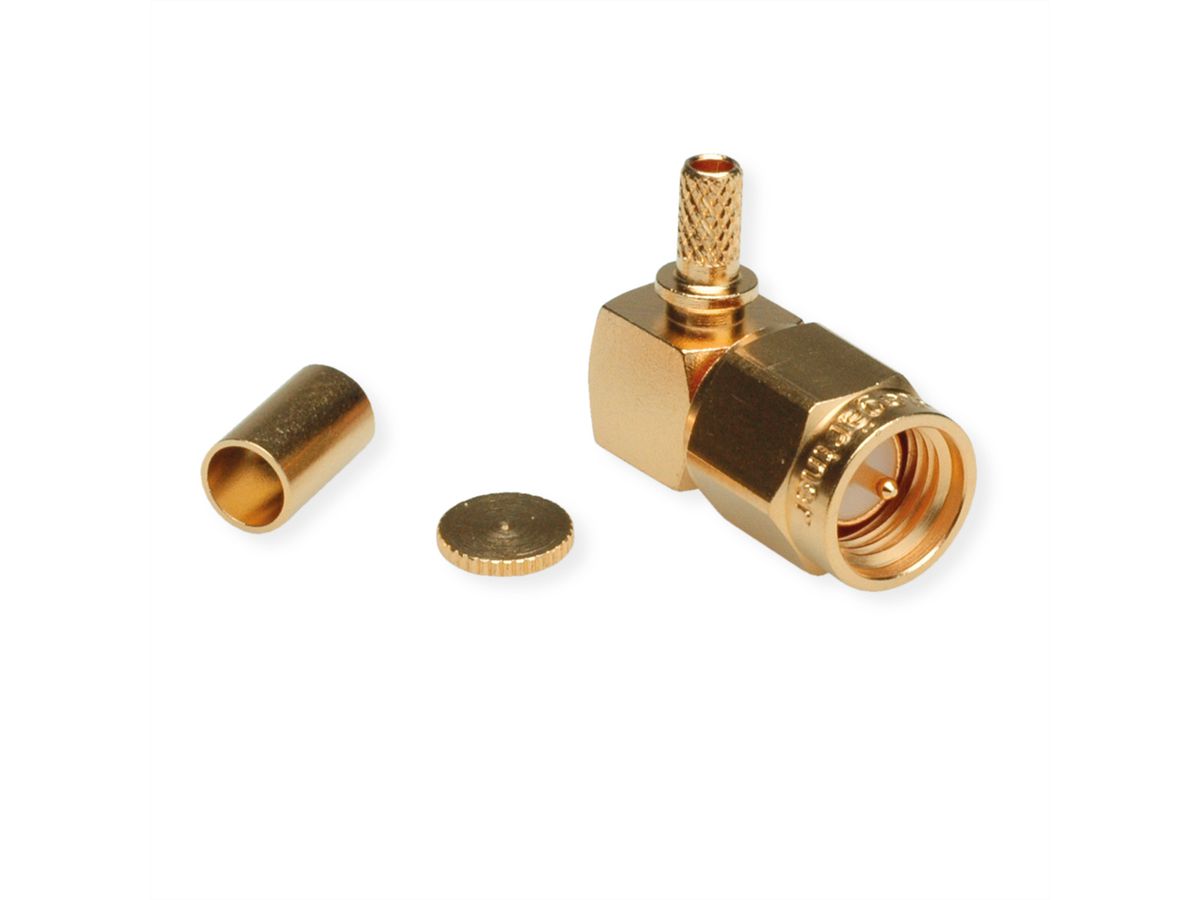

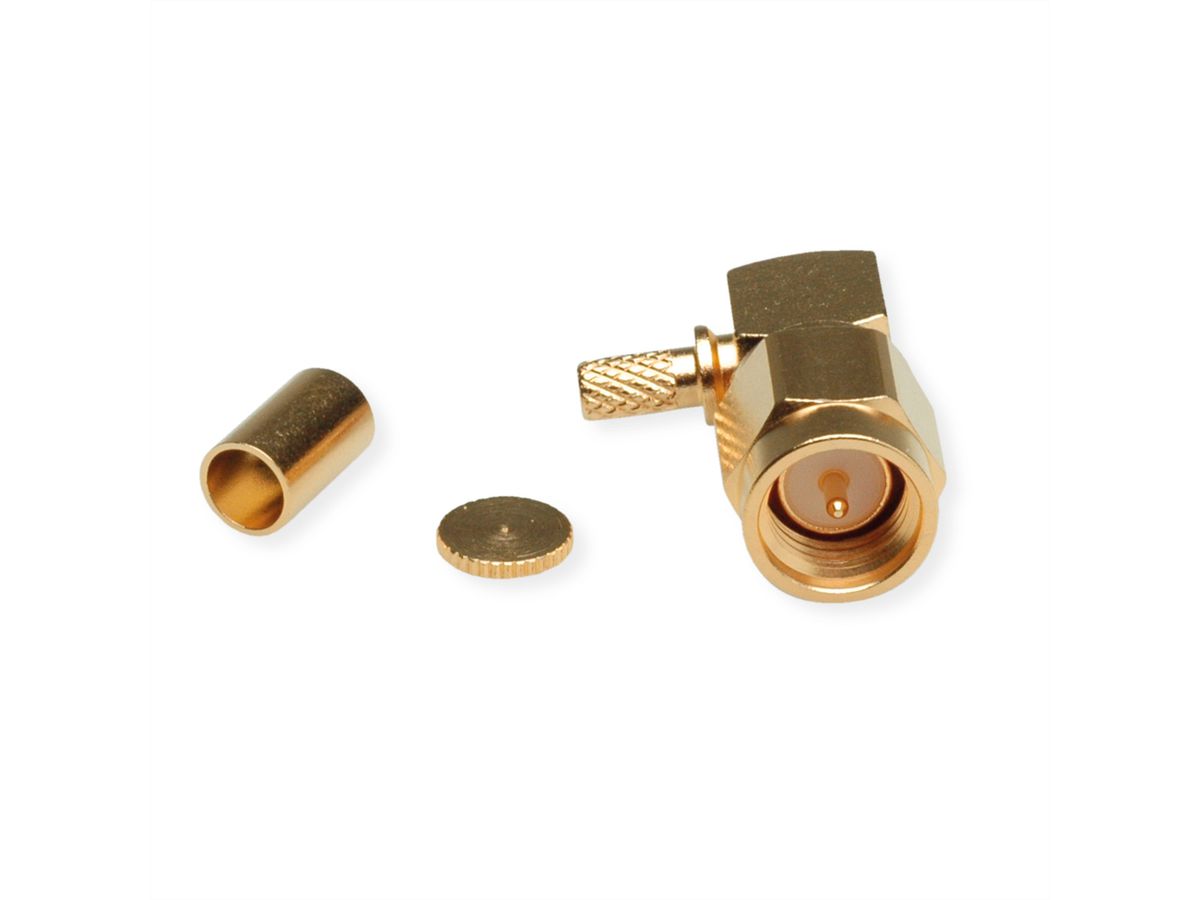

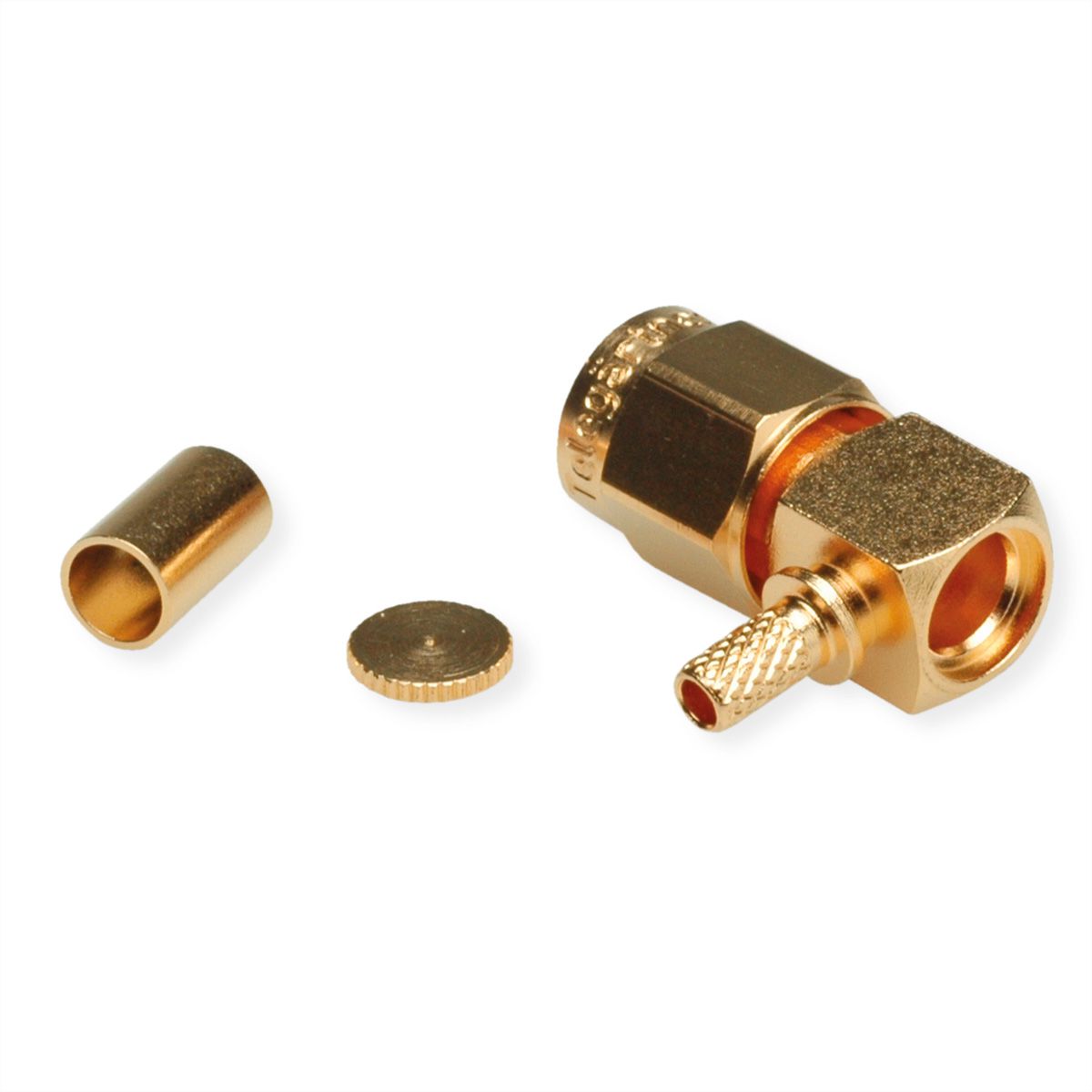

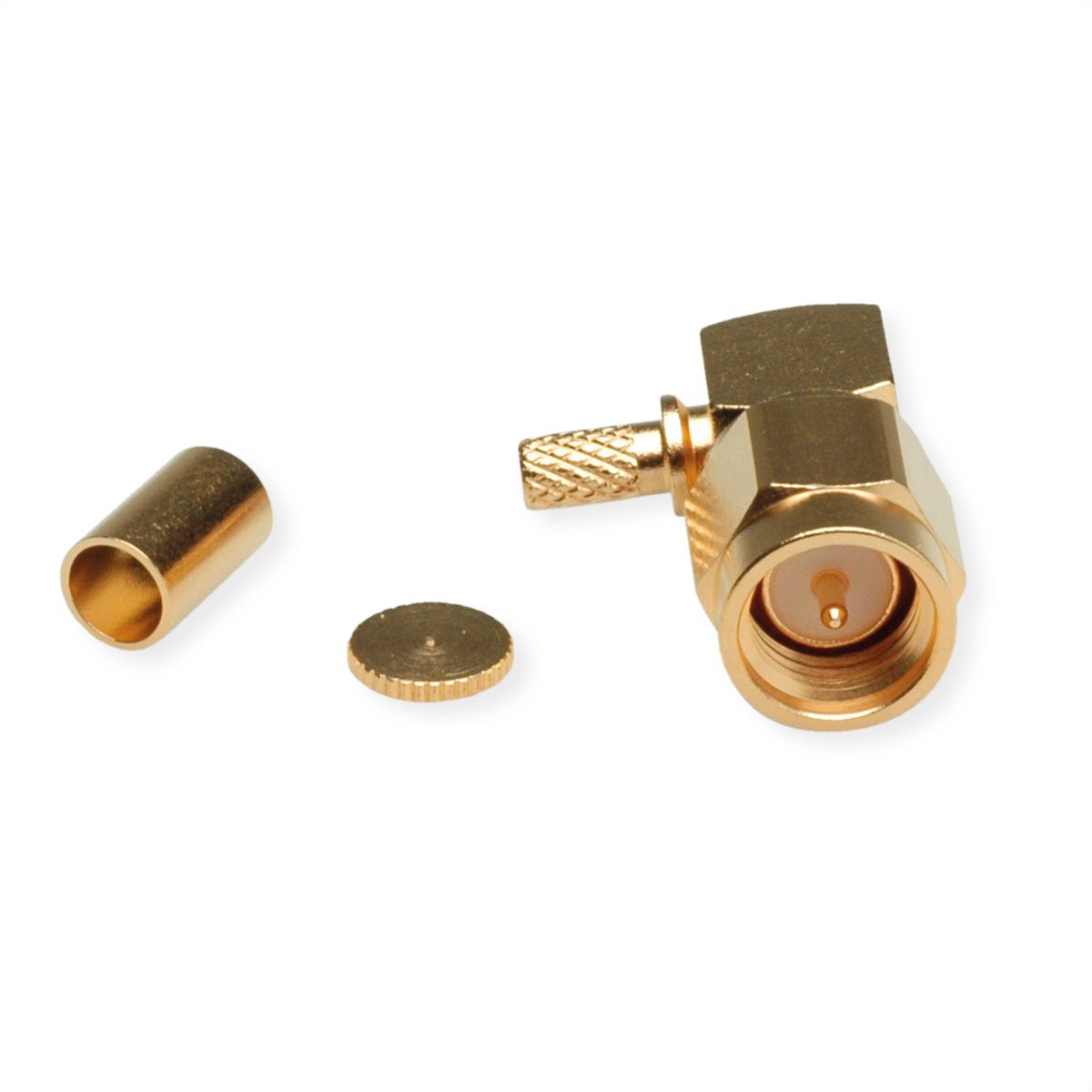

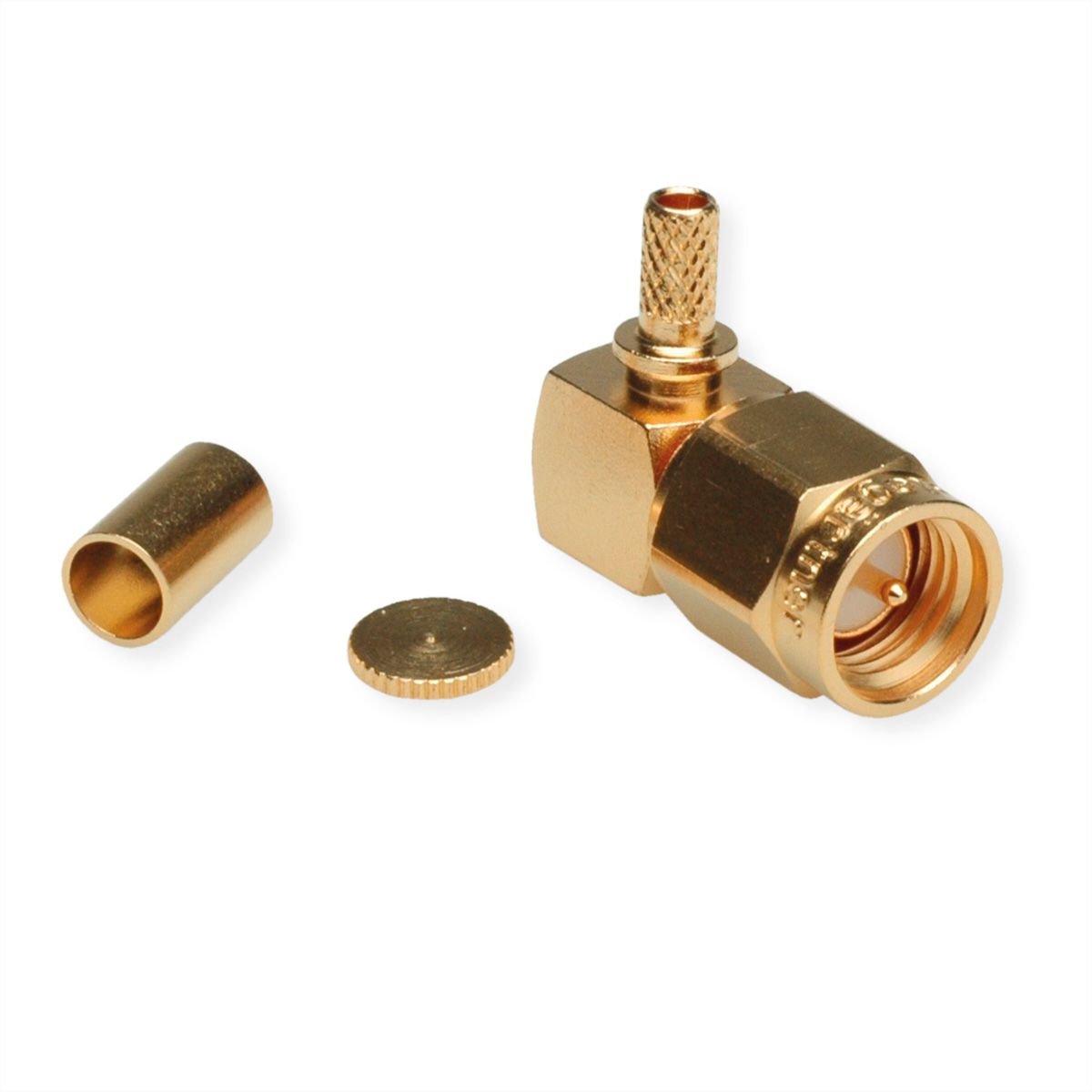

TELEGÄRTNER SMA Angle Plug Crimp, G8 (RD-316)
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21170478 |
|---|---|
| Brand / Manufacturer | TELEGÄRTNER |
| Manuf. item no. | 100027635 |
| EAN | 4018359272807 |
| Item weight | 0.006 kg |
:strip_icc():strip_exif()/logos/telegaertner.png "TELEGÄRTNER")
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. SMA applications include communications, satellite and test equipment.
- Article name: SMA Plg 90 sd/cr G8 Au
- Cable group; cable: G8 (RD-316), RD-316, G 02232 D, HF 50 0.5/1.5 LDY, K 02252 D
- Remarks: solder/crimp
- Return Loss: typ.: 1 GHz: -33 dB; 2 GHz: -28 dB; 4 GHz: -25 dB
- Finish: Gold

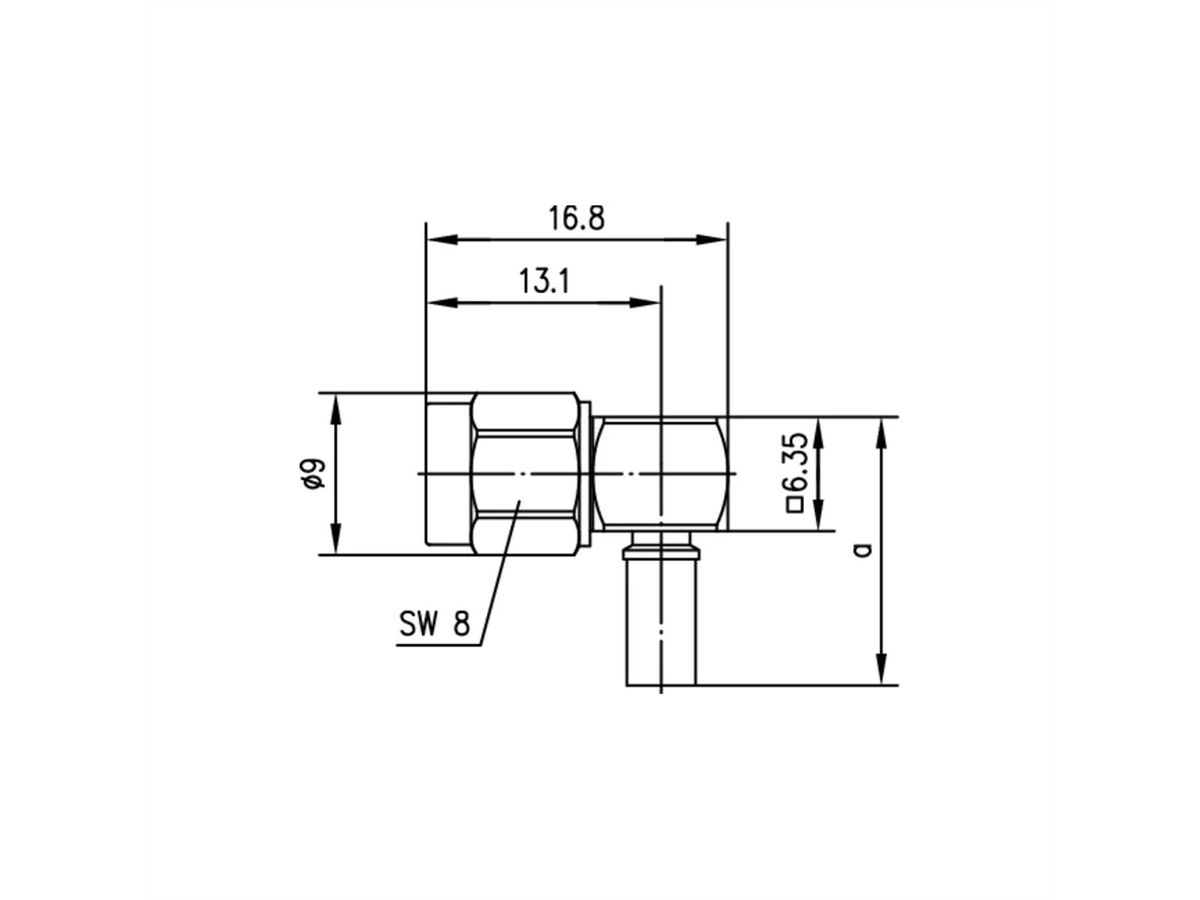

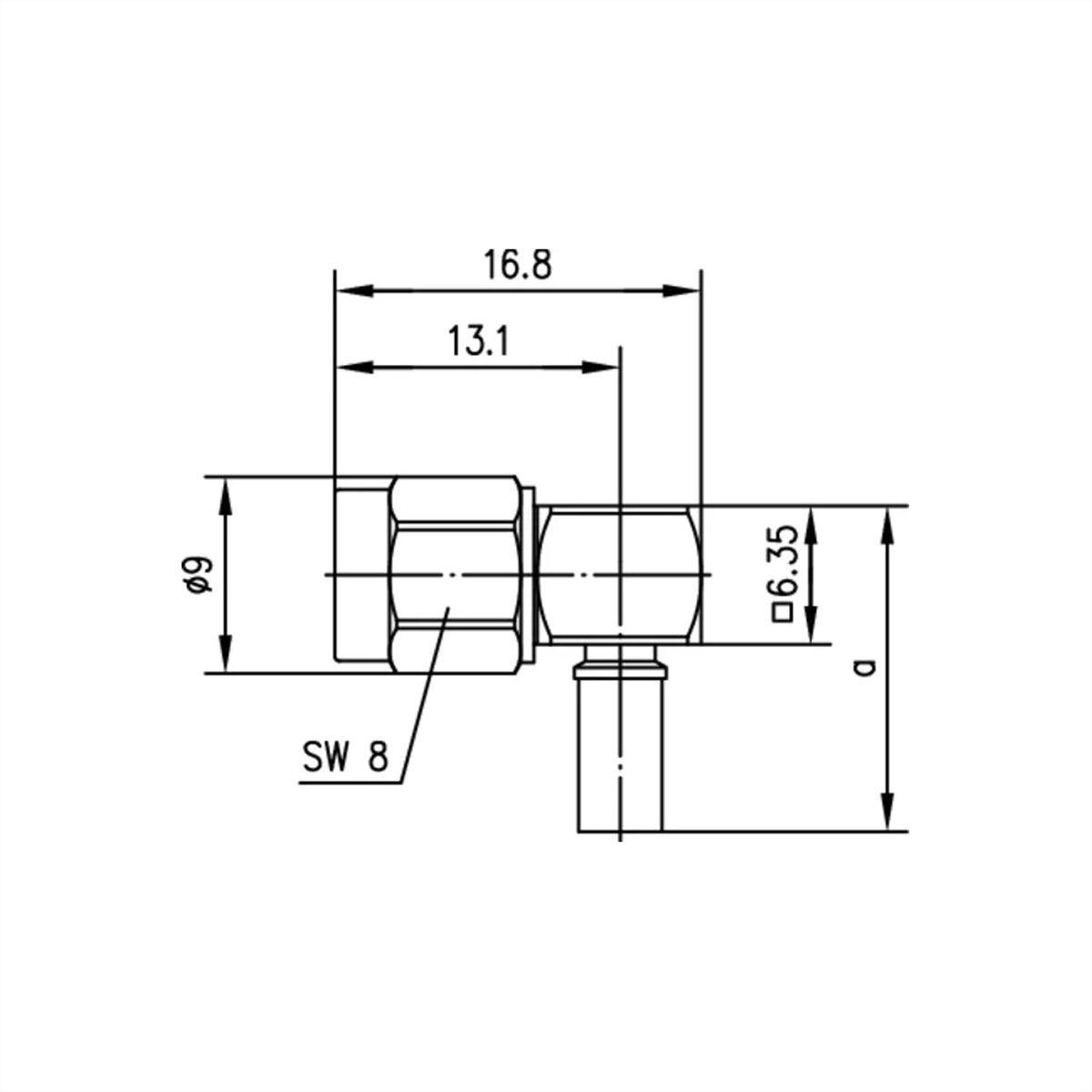

- Dimensions: a=14.9
- Assembly: C0414
Specifications
| Manufacturer | TELEGÄRTNER |
|---|---|
| Product group | Coaxial Connectors |
| Product type | SMA Angle Plug Crimp |
| Colour | gold |
| Quantity of ports | 1 |
| Side 1 Connector Type | SMA connector |
| Side 1 Connector Gender | Male |
| Protection class (IP Code) | IP68 |
| Connection direction | angled |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 130 mm |
| Package weight (single piece) | 0.006 kg |
The products of the TELEGÄRTNER brand stand for professional connection technology.
