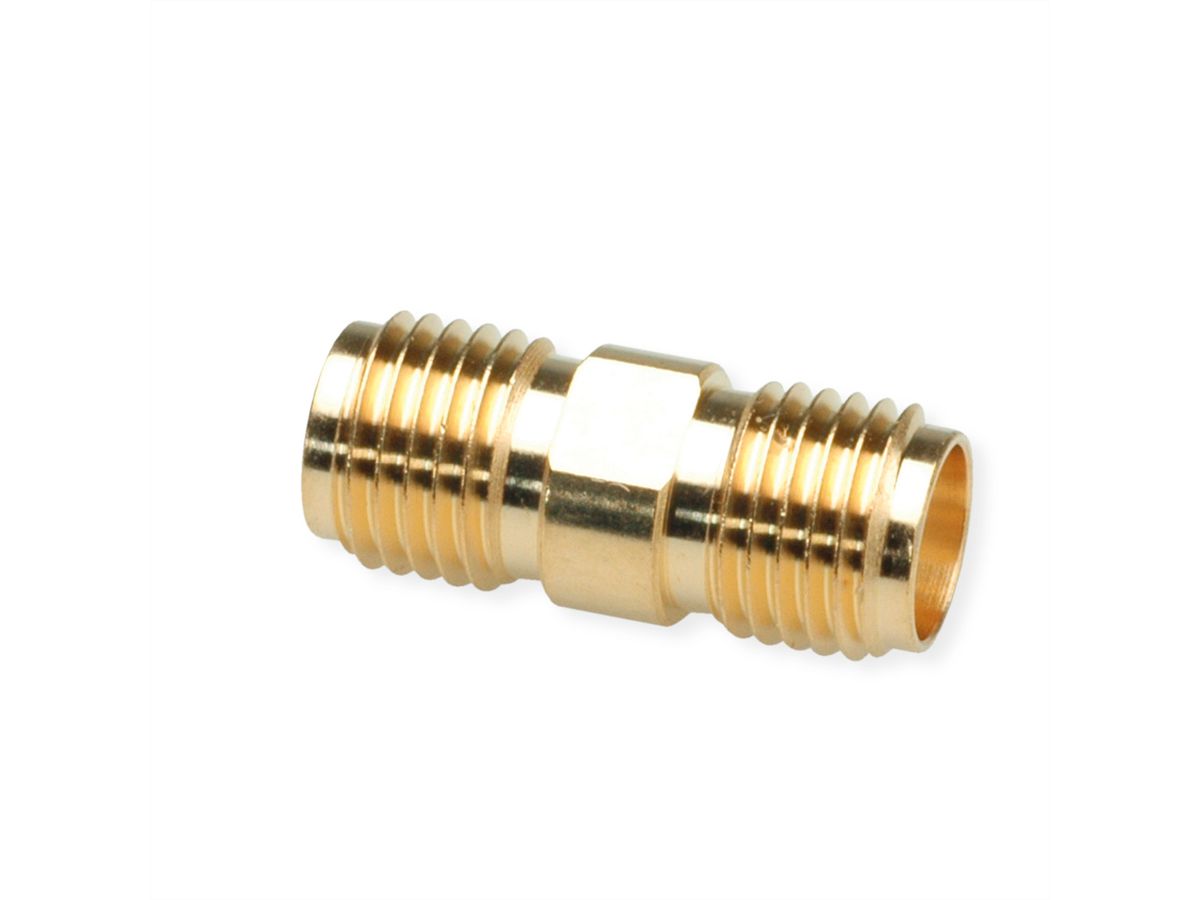

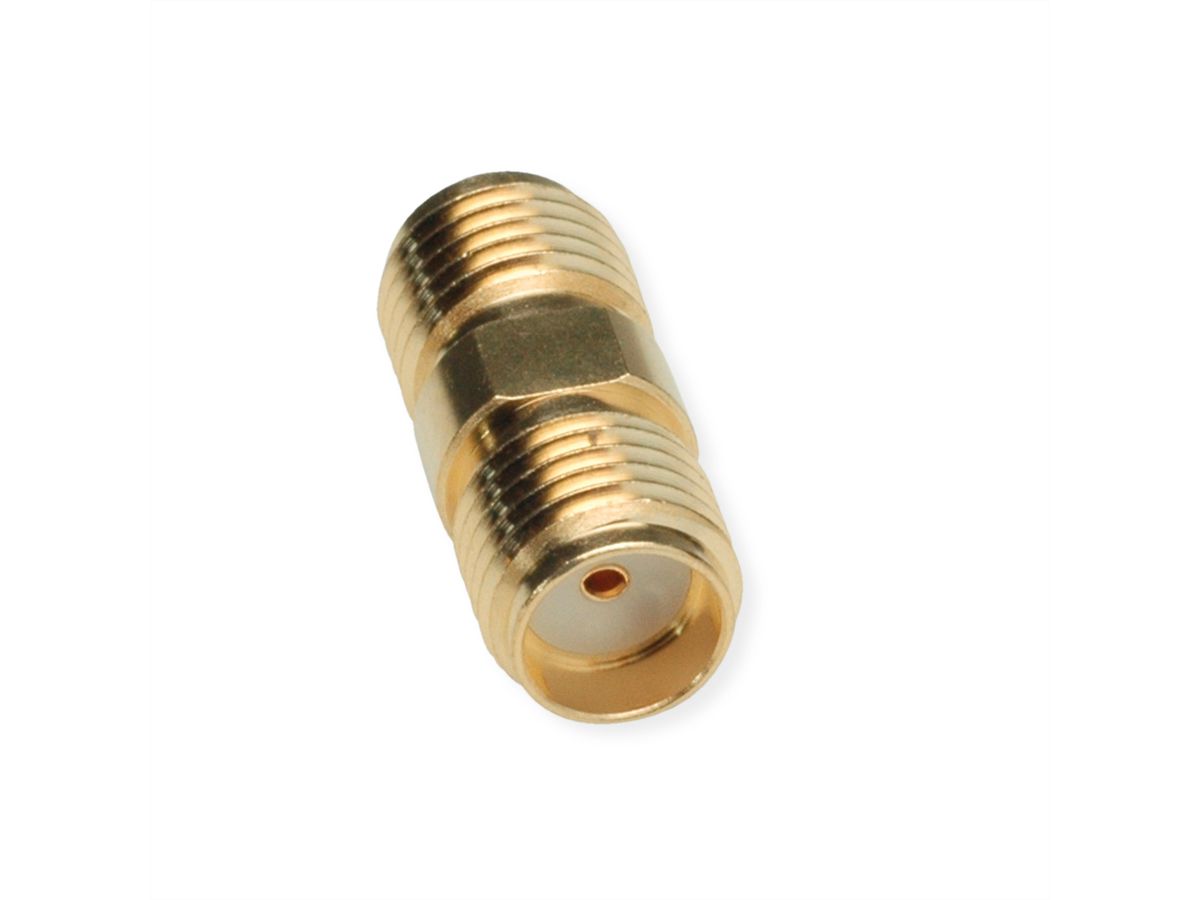

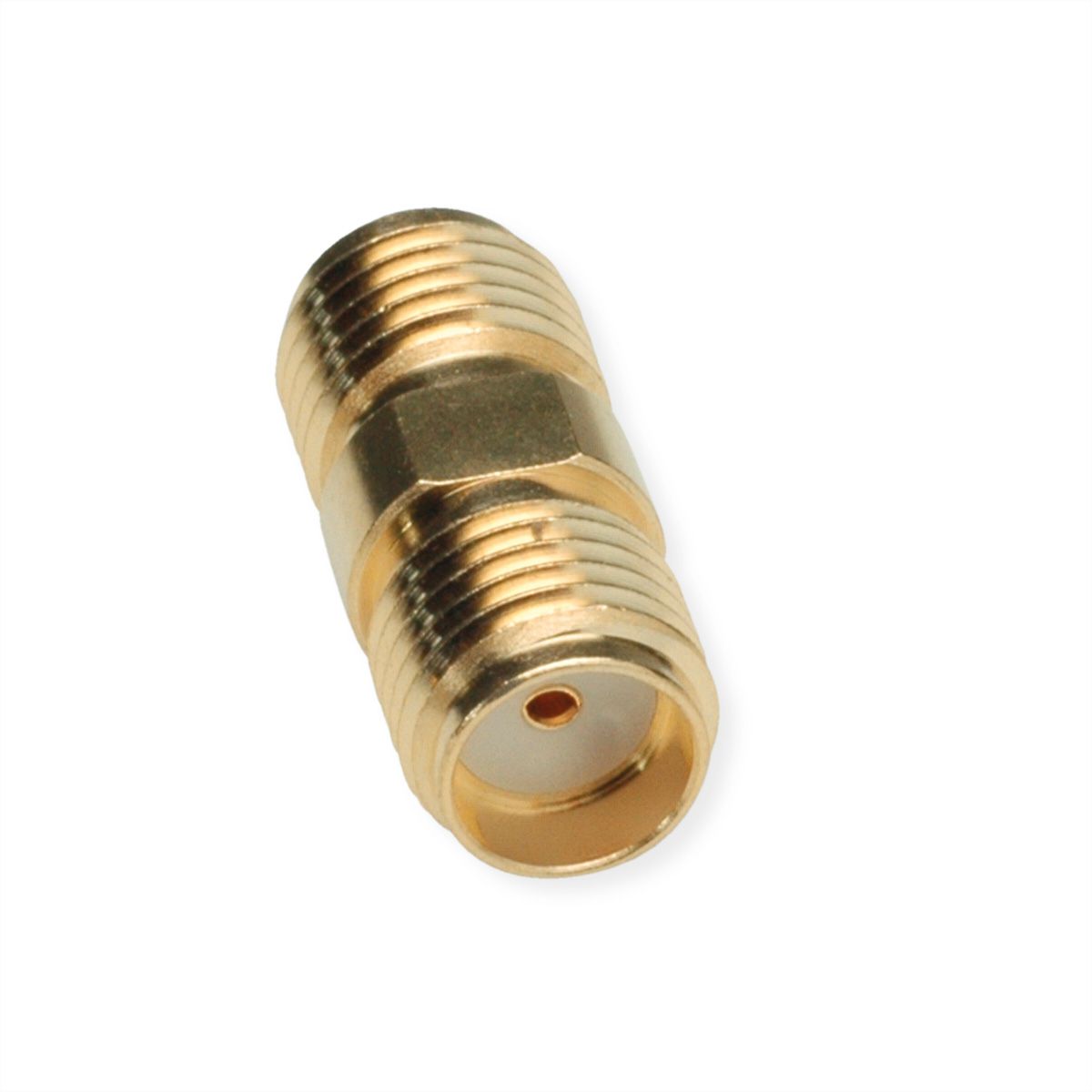

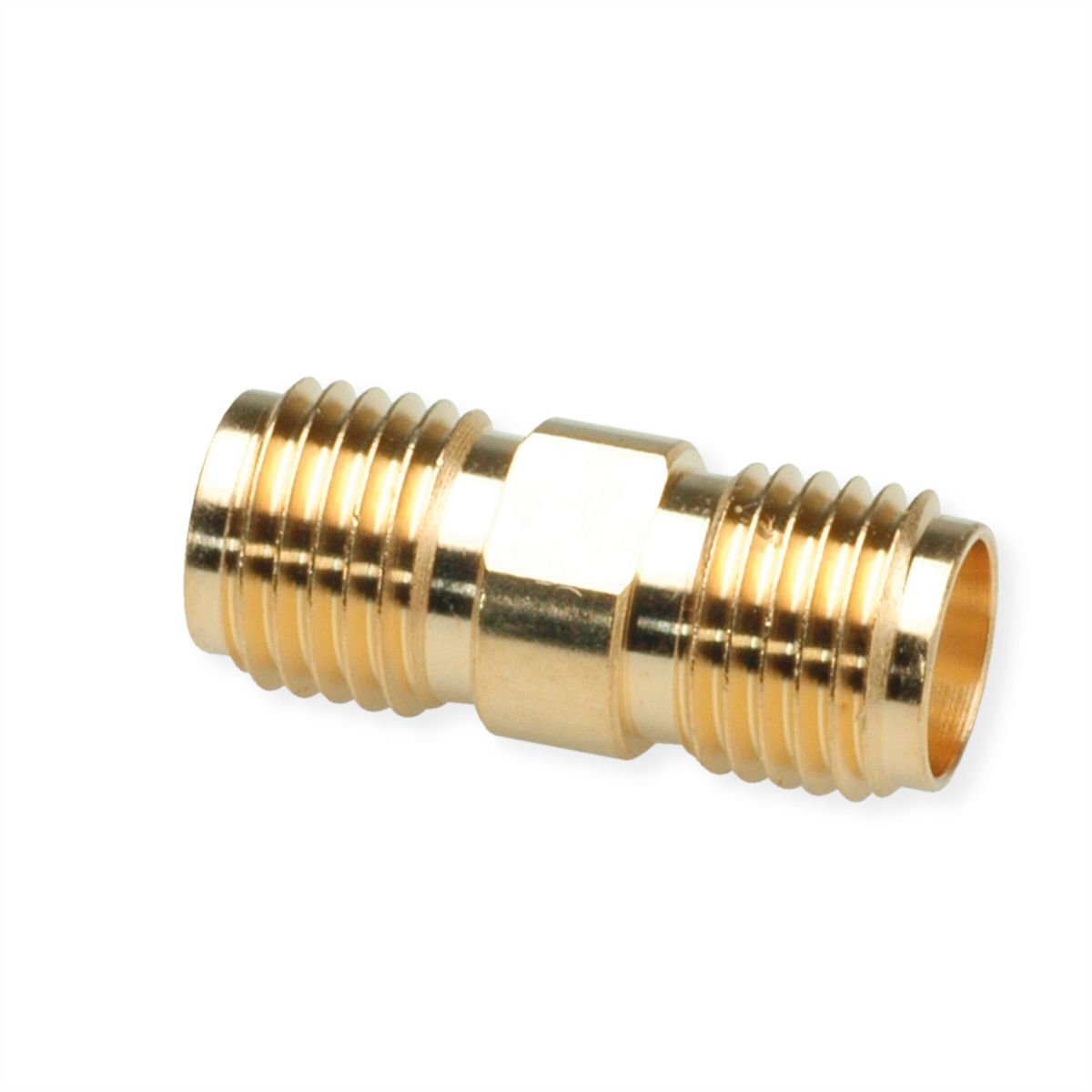

TELEGÄRTNER SMA Bulkhead Adaptor

Item no. 21170441 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100024790 EAN 4018359122263 Item weight 0.006 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. SMA applications include communications, satellite and test equipment.

  • Article name: SMA Adapt str f-f (Old item number J01154A0001)
  • Type: f-f
  • Max. Frequency: 6 GHz
  • Return Loss: typ.: 1 GHz: -36 dB; 4 GHz: -31 dB; 6 GHz: -26 dB
  • Finish: Gold
Performance characteristics:
  • Plug-&-Play principle: Can be installed directly
  • Suitable for indoor and outdoor use
  • Outstanding transmission properties

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
SMA Adaptor
Colour
gold
Quantity of ports
1
Side 1 Connector Type
SMA connector
Side 1 Connector Gender
Female
Side 2 Connector Type
SMA connector
Side 2 Connector Gender
Female
Protection class (IP Code)
IP68
Connection direction
Straight
Frequency range (max.)
6 GHz

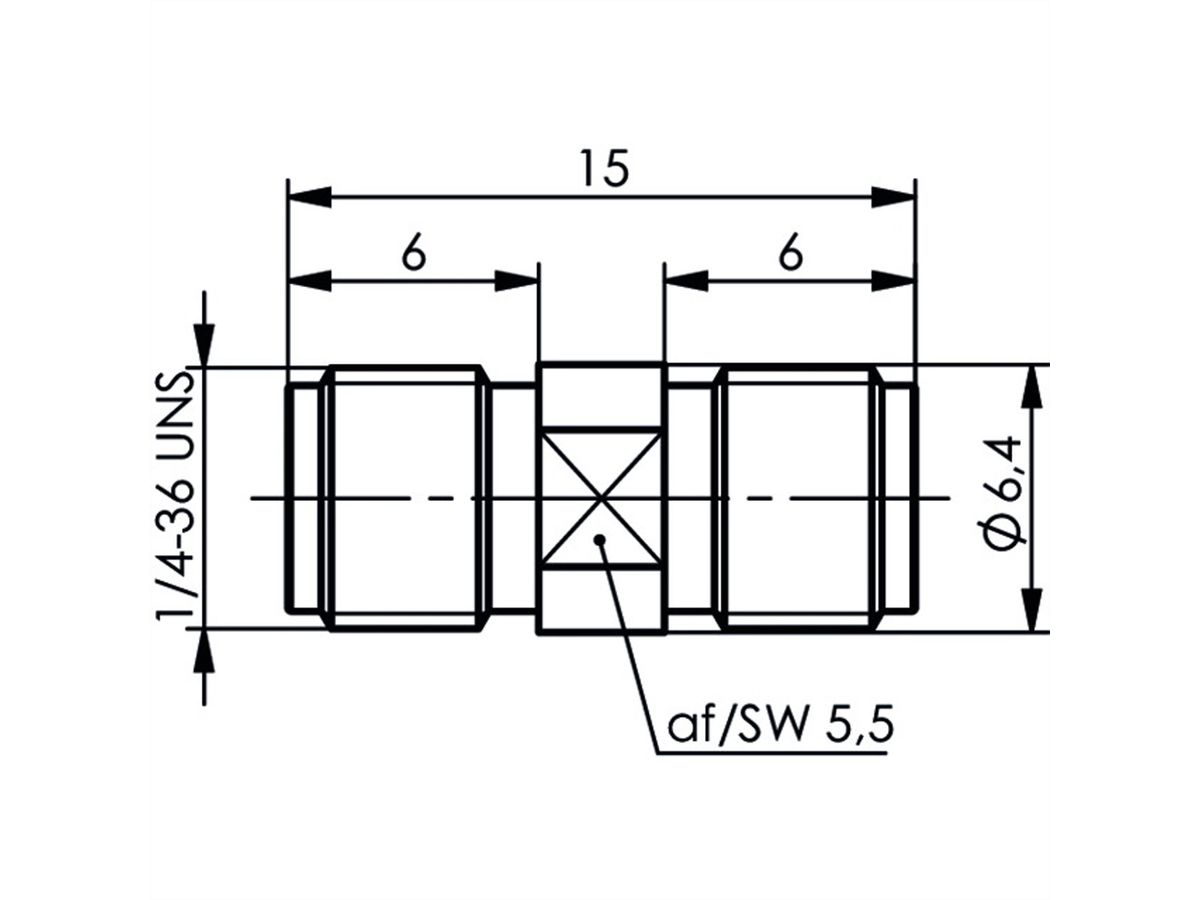

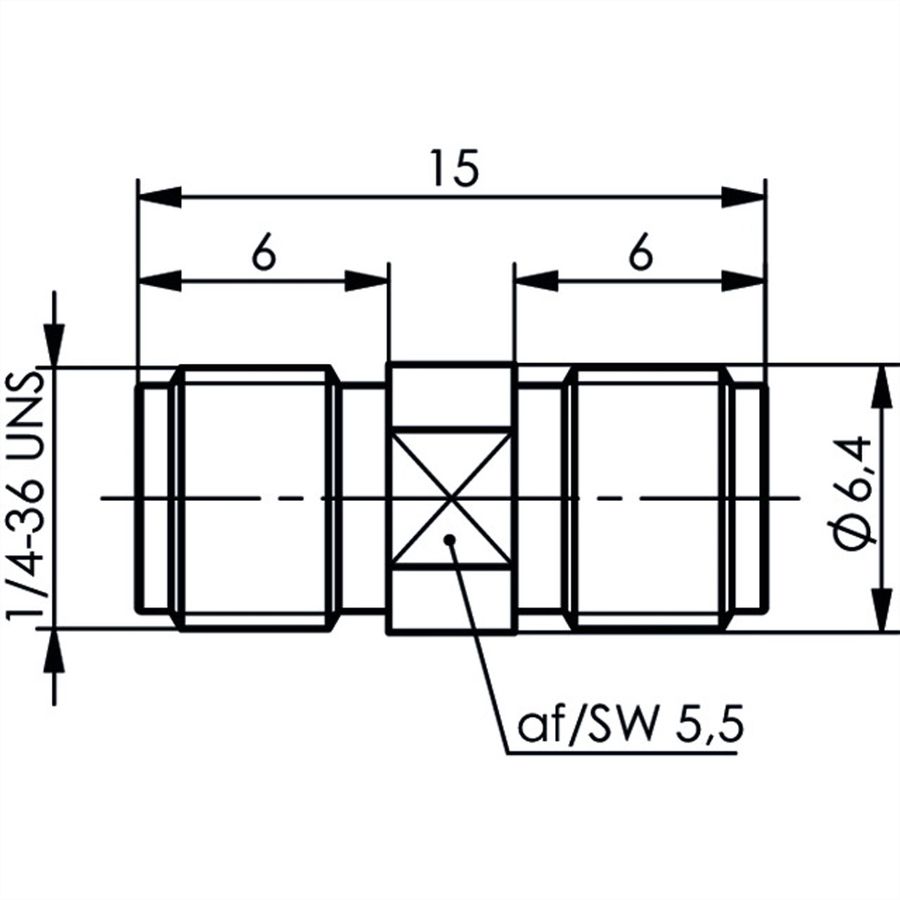

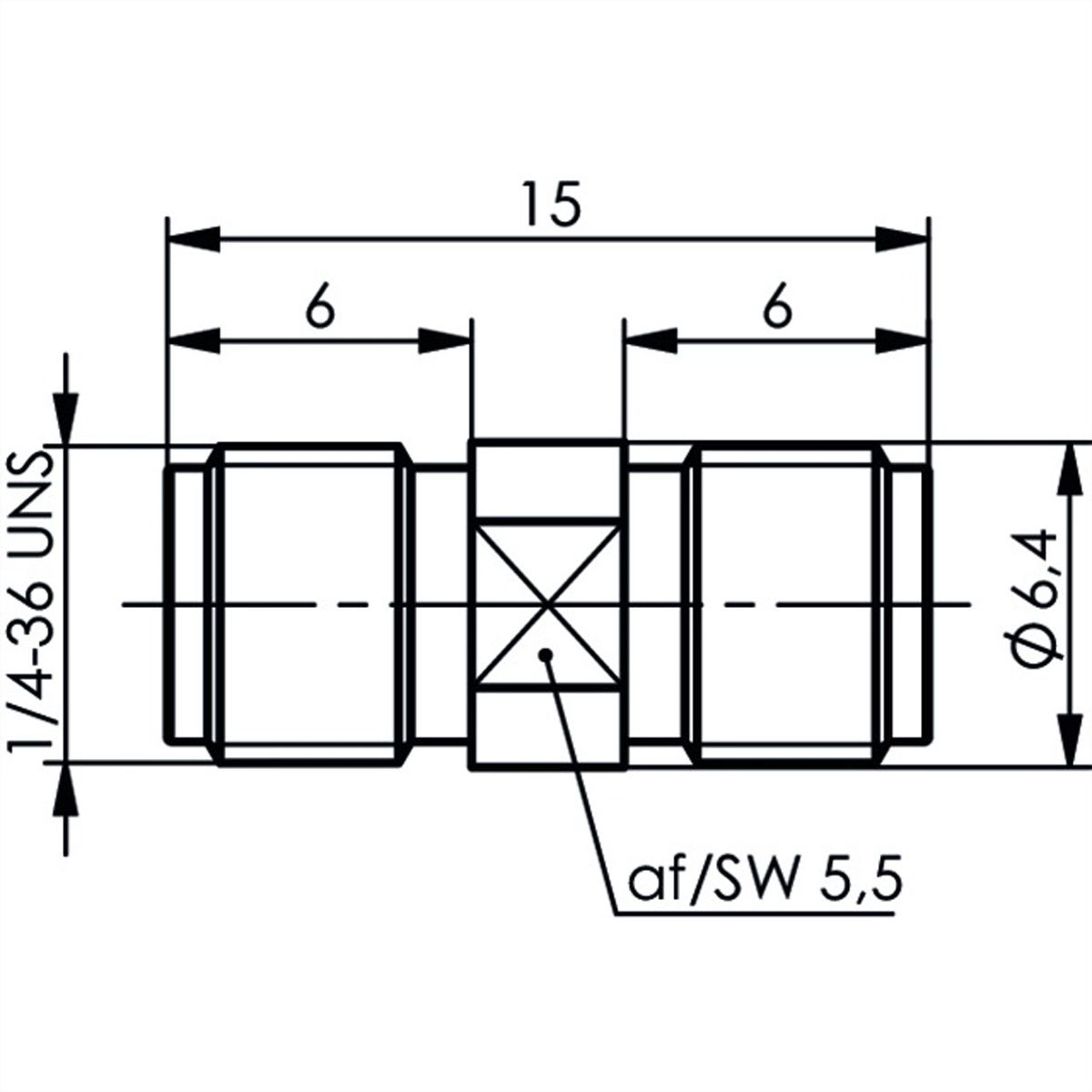

Height
6.4 mm
Width
6.4 mm
Depth
15 mm
Weight
3.21 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
40 mm
Depth of packaging (single piece)
20 mm
Package weight (single piece)
0.006 kg
